104 - central structure

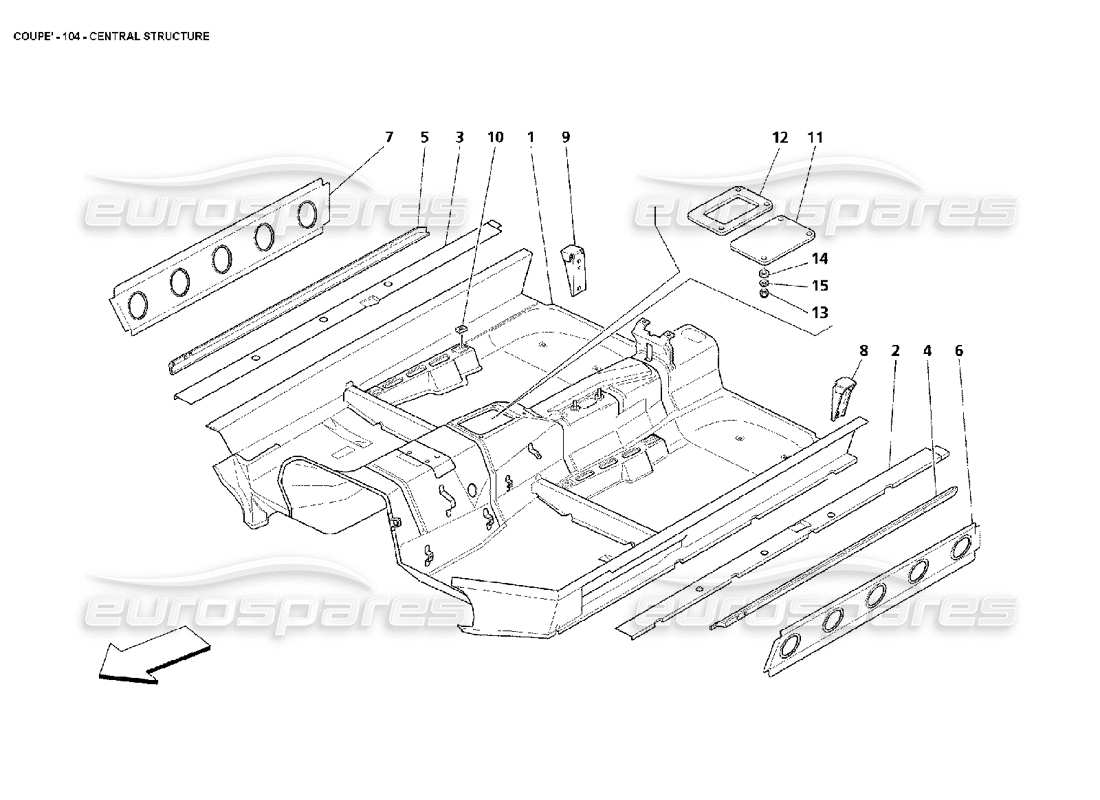

Maserati 4200 Coupe (2002) Central Structure Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 980138001
COMPLETE CENTRAL FLOOR
from £3,154.02
from £3,154.02
# 002
MPN: 66133900
LH UNDERDOOR LOWER LONGITUDINAL MEMBER
from £19.24
from £19.24
# 003
MPN: 66133800
RH UNDERDOOR LOWER LONGITUDINAL MEMBER
from £15.79
from £15.79
# 004
MPN: 381300425
LH LATERAL FRONT FLOOR ASSEMBLY
from £19.61
from £19.61
# 005
MPN: 381300426
RH LATERAL FRONT FLOOR ASSEMBLY
from £19.61
from £19.61
# 006
MPN: 66427500
LH LONGITUDINAL FRONT MEMBER
from £16.63
from £16.63
# 007
MPN: 66427400
RH LONGITUDINAL FRONT MEMBER
from £51.29
from £51.29
# 008
MPN: 66666300
LH BRACKET FOR SIDE-BAG SENSOR SUPPORTING
from £26.98
from £26.98
# 009
MPN: 66666200
RH BRACKET FOR SIDE-BAG SENSOR SUPPORTING
from £26.98
from £26.98
# 010
MPN: 66422200
NUT
from £5.57
from £5.57
# 011
MPN: 66423900
PLATE FOR GEAR CONTROL TONER
- Valid for F1
from £3.71
from £3.71
# 012
MPN: 66424000
PLATE GASKET
- Valid for F1
from £2.85
from £2.85
# 013
MPN: 16100814
NUT
- Valid for F1
from £0.71
from £0.71
# 014
MPN: 12625224
WASHER
- Valid for F1
from £0.53
from £0.53
This part replaces part number 12625221
# 015
MPN: 12601374
WASHER
- Valid for F1
from £0.54
from £0.54
