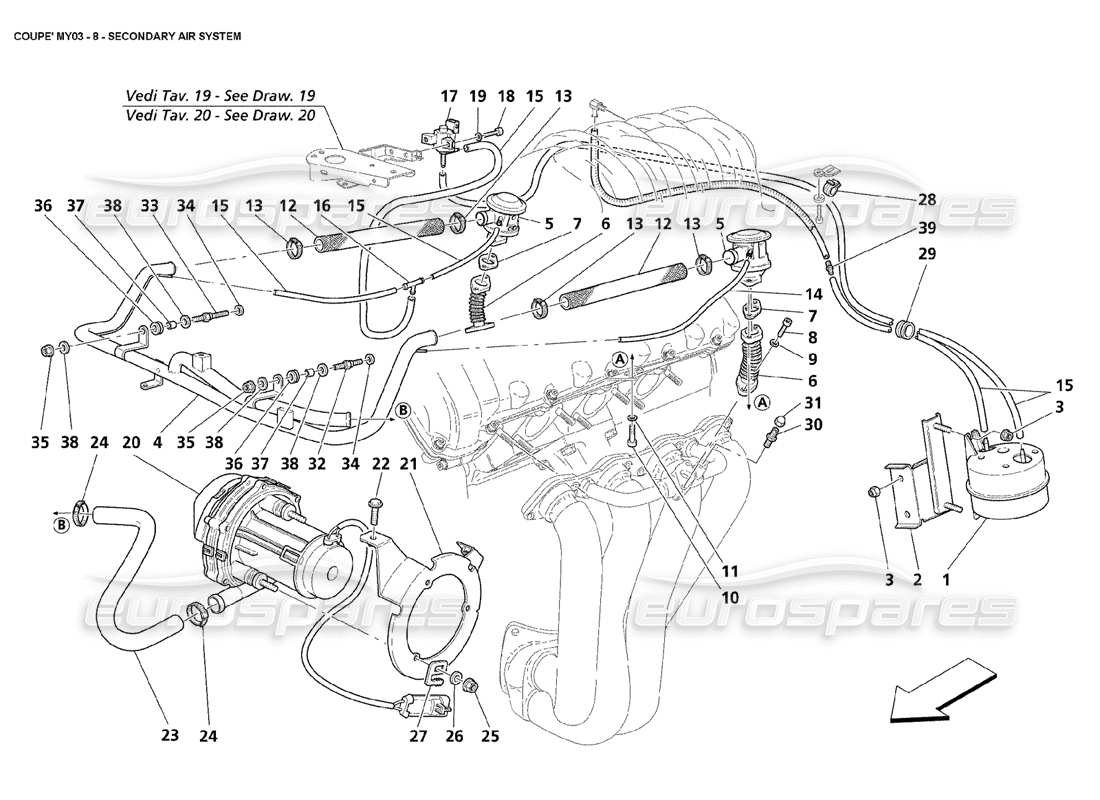

008 - secondary air system
Maserati 4200 Coupe (2003) Secondary Air System Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 330328400
VACUUM TANK
from £9.16
from £9.16
# 002
MPN: 66425700
BRACKET
from £38.85
from £38.85
# 003
MPN: 14059211
NUT
from £0.53
from £0.53
This part replaces part number 675000181
# 004
MPN: 195065
AIR DELIVERY TUBE TO VALVES
- Valid for GD
from £124.75
from £124.75
# 004
MPN: 195066
AIR DELIVERY TUBE TO VALVES
- Not for GD
from £128.32
from £128.32
# 005
MPN: 171175
SECONDARY AIR VALVE
from £103.65
from £103.65
# 006
MPN: 186274
SECONDARY AIR VALVE PIPE
from £47.13
from £47.13
# 007
MPN: 186781
GASKET
from £2.89
from £2.89
# 008
MPN: 14305724
SCREW
from £0.53
from £0.53
# 009
MPN: 127494
WASHER
from £0.53
from £0.53
# 010
MPN: 14433124
SCREW
from £0.51
from £0.51
# 011
MPN: 127494
WASHER
from £0.53
from £0.53
# 012
MPN: 155116
SLEEVE
from £5.58
from £5.58
# 013
MPN: 178054
CLAMP
from £0.53
from £0.53
# 014
MPN: 147125
LH RUBBER HOSE
from £10.43
from £10.43
# 015
MPN: 300100803
RUBBER HOSE
- Supplied in meters - (Minimum quantity 1m. or multiples)
from £54.96
from £54.96
This part replaces part number 318720329
# 016
MPN: 146972
3 WAY UNION
from £2.78
from £2.78
# 017
MPN: 315769
ON/OFF SOLENOID VALVE
from £28.93
from £28.93
This part replaces part number 184363
# 018
MPN: 14304224
SCREW
from £0.53
from £0.53
# 019
MPN: 12601174
WASHER
from £0.54
from £0.54
This part replaces part number 675000100
# 020
MPN: 181197
Secondary Air Pump
from £163.21
from £163.21
# 021
MPN: 184837
BRACKET
from £14.77
from £14.77
# 022
MPN: 16296924
SCREW
from £0.53
from £0.53
# 023
MPN: 190992
STUD
from £16.27
from £16.27
# 024
MPN: 178054
CLAMP
from £0.53
from £0.53
# 025
MPN: 102948
NUT
from £0.54
from £0.54
# 026
MPN: 12601274
WASHER
from £0.53
from £0.53
This part replaces part number 12601270
# 027
MPN: 162606
CLIP
from £0.85
from £0.85
# 028
MPN: 159740
CLIP
from £0.53
from £0.53
# 029
MPN: 388100423
RUBBER
from £1.55
from £1.55
# 030
MPN: 152630
THREADED UNION
from £44.39
from £44.39
# 031
MPN: 150595
CAP NUT
from £0.58
from £0.58
# 032
MPN: 194436
STUD
from £35.41
from £35.41
# 033
MPN: 194437
STUD
from £10.38
from £10.38
# 034
MPN: 11197774
WASHER
from £0.54
from £0.54
# 035
MPN: 159601
NUT
from £0.54
from £0.54
# 036
MPN: 315520375
SUPPORT
Supersession
Supersession
# 037
MPN: 397850624
SPACER
from £2.39
from £2.39
# 038
MPN: 14498801
WASHER
from £0.53
from £0.53
# 039
MPN: 313620303
UNION
from £0.78
from £0.78
