009 - fuel pumps and pipes

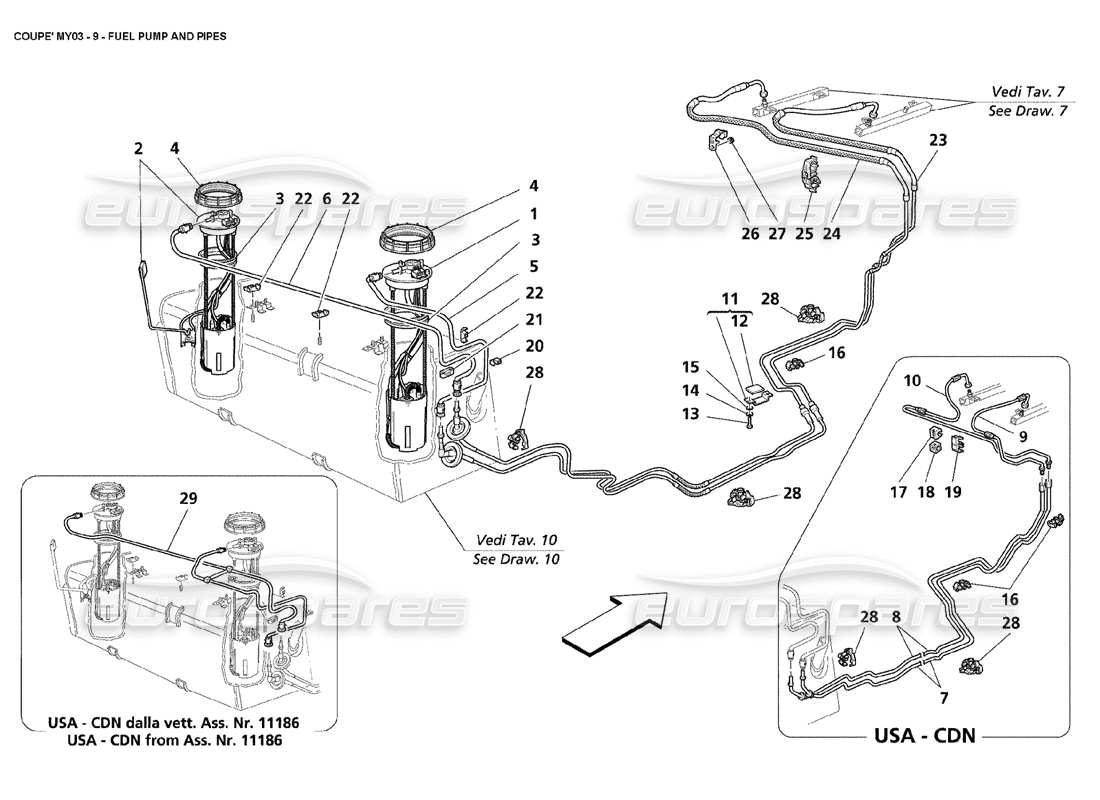

Maserati 4200 Coupe (2003) Fuel Pumps and Pipes Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 181205
RH COMPLETE FUEL PUMP
from £112.69
from £112.69
# 002
MPN: 181204
LH COMPLETE FUEL PUMP
from £177.08
from £177.08
# 003
MPN: 181681
GASKET
from £11.67
from £11.67
# 004
MPN: 181682
RING NUT
from £7.78
from £7.78
# 005
MPN: 183206
RH FUEL DELIVERY TUBE
- For cars NOT USA and CDN - valid till Ass. Nr. 11008 - For cars USA and CDN - valid till Ass. Nr. 11185
from £24.31
from £24.31
# 005
MPN: 197655
RH FUEL DELIVERY TUBE
- Not for USA and CDN - Valid from car Ass. Nr. 11009
from £191.23
from £191.23
# 006
MPN: 183203
LH FUEL DELIVERY TUBE
- For cars NOT USA and CDN - valid till Ass. Nr. 11008 - For cars USA and CDN - valid till Ass. Nr. 11185
from £27.49
from £27.49
# 006
MPN: 197656
LH FUEL DELIVERY TUBE
- Not for USA and CDN - Valid from car Ass. Nr. 11009
from £113.36
from £113.36
# 007
MPN: 183208
RH FUEL DELIVERY UNDERFRAME TUBE
- Valid for USA and CDN
from £65.18
from £65.18
# 008
MPN: 183211
LH FUEL DELIVERY UNDERFRAME TUBE
- Valid for USA and CDN
from £65.18
from £65.18
# 009
MPN: 183214
RH FUEL DELIVERY PIPE TO FLEXIBLE
- Valid for USA and CDN
from £37.40
from £37.40
# 010
MPN: 183215
LH FUEL DELIVERY PIPE TO FLEXIBLE
- Valid for USA and CDN
from £39.98
from £39.98
# 011
MPN: 187464
PIPES PROTECTION BRACKET
from £8.20
from £8.20
This part replaces part number 387400102
# 012
MPN: 387400402
GASKET
from £1.55
from £1.55
# 013
MPN: 10977824
SCREW
from £1.08
from £1.08
This part replaces part number 16130321 which we have in stock
# 014
MPN: 11181574
WASHER
from £0.54
from £0.54
# 015
MPN: 14447025
WASHER
from £1.39
from £1.39
# 016
MPN: 379200408
CLIP
- (Quantity defined during at assembly)
from £1.08
from £1.08
# 017
MPN: 140731
CLIP
- Valid for USA and CDN
from £0.69
from £0.69
# 018
MPN: 155781
ANCHORAGE FOR CLIP
- Valid for USA and CDN
from £0.47
from £0.47
# 019
MPN: 190410
CLIP
- Valid for USA and CDN
from £2.32
from £2.32
# 020
MPN: 389200406
CLIP
from £0.54
from £0.54
# 021
MPN: 191047
CLIP
from £2.32
from £2.32
# 022
MPN: 379200408
CLIP
from £1.08
from £1.08
# 023
MPN: 194747
RH FUEL DELIVERY PIPE TO FLEXIBLE
- Not for USA and CDN
from £64.55
from £64.55
This part replaces part number 980138232
# 024
MPN: 194748
LH FUEL DELIVERY PIPE TO FLEXIBLE
from £71.66
from £71.66
This part replaces part number 980138233
# 025
MPN: 195052
CLIP
- Not for USA and CDN
from £1.08
from £1.08
# 026
MPN: 159521
CLIP
- Not for USA and CDN
from £1.33
from £1.33
# 027
MPN: 14059111
NUT
- Not for USA and CDN
from £0.47
from £0.47
# 028
MPN: 190410
CLIP
- (Quantity defined during at assembly)
from £2.32
from £2.32
# 029
MPN: 193544
COMPLETE FUEL DELIVERY TUBE
- Valid for USA and CDN - Valid from car Ass. Nr. 11186
from £311.02
from £311.02
