maserati 4200 coupe (2003) inner gearbox controls parts diagram

032 - Inner Gearbox Controls

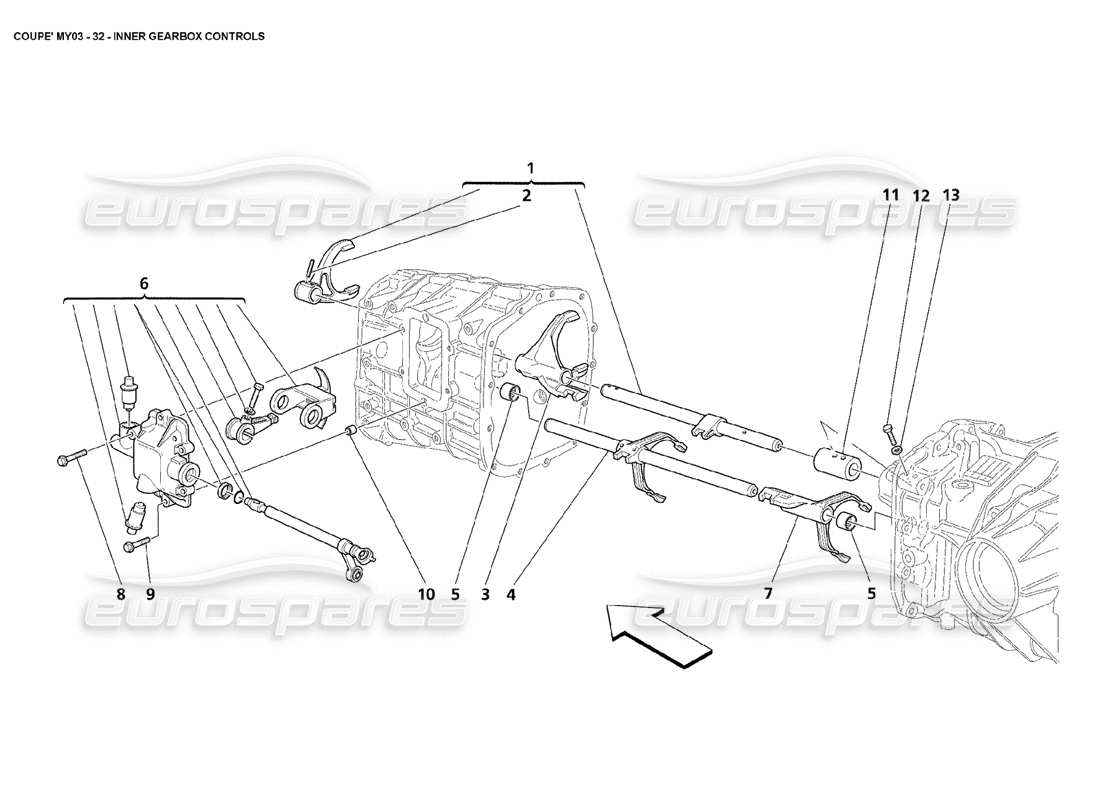

Maserati 4200 Coupe (2003) Inner Gearbox Controls Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
              #
              Part number
              Description
              Key
              Price
              # 001
              MPN: 185708
              COMPLETE ROD FOR 1ST 2ND GEAR AND REVERSE
              - Valid for F1
              from £708.14
              from £708.14
              COMPLETE 1ST 2ND AND REVERSE GEAR. LEV Genuine Maserati Part - New In stock
              CONTROL ROD FOR REVERSE Genuine Ferrari Part - New (to order)
              # 001
              MPN: 193944
              COMPLETE ROD FOR 1ST 2ND GEAR AND REVERSE
              - Not for F1
              from £309.40
              from £309.40
              LEVER Genuine Maserati Part - New (to order)
              # 002
              MPN: 13910470
              FLEXIBLE PIN
              from £1.43
              from £1.43
              COIL FLEX.PIN D.6X2 Genuine Maserati Part - New (to order)
              FLEXIBLE PIN Genuine Ferrari Part - New In stock
              # 003
              MPN: 183953
              CONTROL FORK FOR 1ST AND 2ND GEAR
              - Valid for F1
              from £105.44
              from £105.44
              FORCELLA COMPLETA I E II VEL Genuine Maserati Part - New (to order)
              FORCELLA COMPLETA I E II VEL Genuine Ferrari Part - New (to order)
              # 003
              MPN: 189369
              CONTROL FORK FOR 1ST AND 2ND GEAR
              - Not for F1
              from £63.18
              from £63.18
              FORK Genuine Maserati Part - New In stock
              # 004
              MPN: 183955
              COMPLETE ROD FOR 5TH AND 6TH GEAR
              - Valid for F1
              from £219.40
              from £219.40
              CPL. 5TH AND 6TH SPEED LEVER Genuine Maserati Part - New (to order)
              ROD FOR 5TH AND 6TH GEAR Genuine Ferrari Part - New (to order)
              # 004
              MPN: 189371
              COMPLETE ROD FOR 5TH AND 6TH GEAR
              - Not for F1
              from £185.90
              from £185.90
              ASTA COMPLETE FORC.5 -6 MOD.M138 Genuine Maserati Part - New In stock
              # 005
              MPN: 183982
              BEARING BUSH
              - Not for F1
              from £21.46
              from £21.46
              BALL BUSHING 18X24X20 Genuine Maserati Part - New (to order)
              BEARING BUSH Genuine Ferrari Part - New In stock
              # 006
              MPN: 198268
              COMPLETE OUTER CONTROL
              Supersession
              Supersession
              This part replaces part number 190667
              Genuine Maserati Part (no longer available to order)
              # 007
              MPN: 189372
              CONTROL FORK FOR 3RD AND 4TH GEAR
              - Not for F1
              from £91.64
              from £91.64
              FORK Genuine Maserati Part - New In stock
              # 007
              MPN: 211473
              CONTROL FORK FOR 3RD AND 4TH GEAR
              - Valid for F1
              from £209.66
              from £209.66
              This part replaces part number 184646
              CONTROL FORK FOR 3RD AND 4TH Genuine Maserati Part - New (to order)
              CONTROL FORK FOR 3RD AND 4TH Genuine Ferrari Part - New (to order)
              # 008
              MPN: 16286721
              SCREW
              - Not for F1
              from £0.79
              from £0.79
              FLANGED HEX HEAD SCREW M 6X50 Genuine Maserati Part - New In stock
              SCREW. Genuine Ferrari Part - New In stock
              # 009
              MPN: 16286321
              SCREW
              - Not for F1
              from £0.51
              from £0.51
              FLANGED HEX HEAD SCREW M 6X30 Genuine Maserati Part - New (to order)
              Genuine Ferrari Part (no longer available to order)
              # 010
              MPN: 145992
              CENTERING DOWEL
              from £40.17
              from £40.17
              CENTRING DOWEL Genuine Maserati Part - New (to order)
              DOWEL Genuine Ferrari Part - New (to order)
              # 011
              MPN: 185707
              BUSHING
              from £66.78
              from £66.78
              BUSHING Genuine Maserati Part - New (to order)
              # 012
              MPN: 10902224
              SCREW
              from £0.53
              from £0.53
              SCREW Genuine Maserati Part - New (to order)
              SCREW Genuine Ferrari Part - New In stock
              # 013
              MPN: 11194377
              WASHER
              from £0.71
              from £0.71
              WASHER Genuine Maserati Part - New In stock
              Genuine Ferrari Part (no longer available to order)
