107 - REAR BUMPER

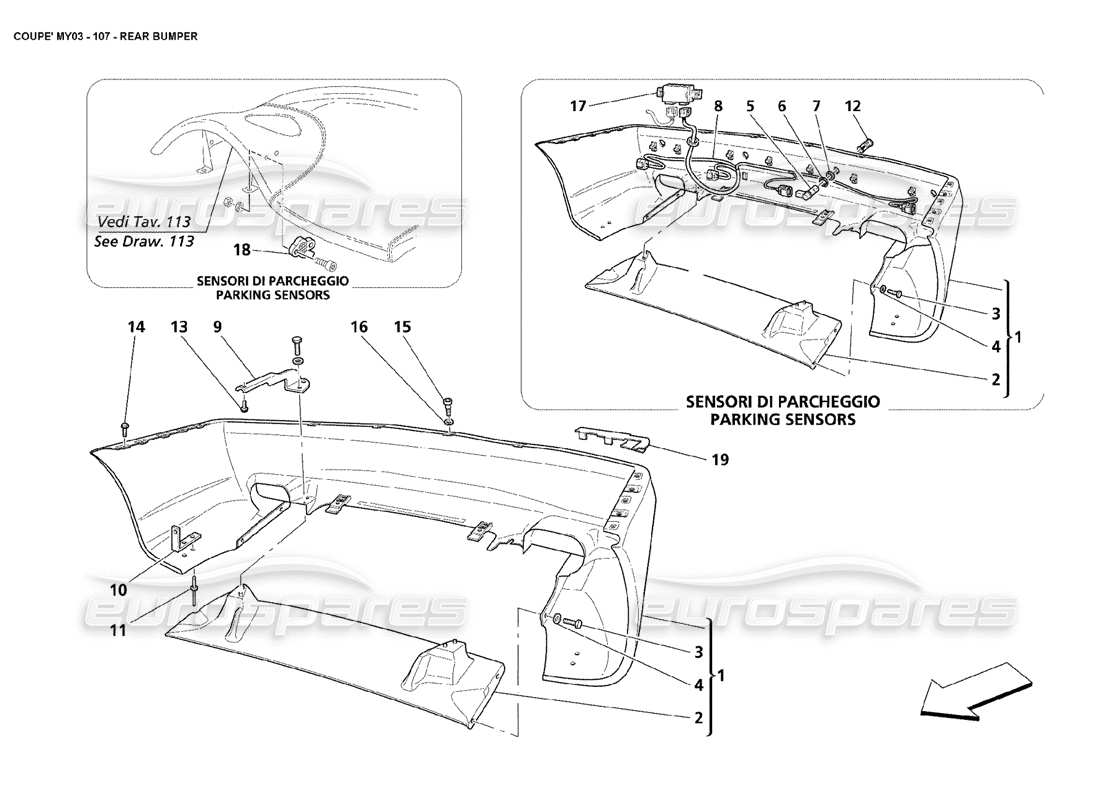

Maserati 4200 Coupe (2003) Rear Bumper Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 980001067
COMPLETE REAR BUMPER
- Standard - Not for USA and CDN
from £662.04
from £662.04
# 001
MPN: 980001068
COMPLETE REAR BUMPER
- Optional - Parking sensor - Not for USA and CDN
from £783.17
from £783.17
# 001
MPN: 980001069
COMPLETE REAR BUMPER
- Standard - Valid for USA and CDN
from £805.92
from £805.92
# 001
MPN: 980001070
COMPLETE REAR BUMPER
- Optional - Parking sensor - Valid for USA and CDN
from £965.14
from £965.14
# 002
MPN: 980001048
FRONT SPOILER
from £255.04
from £255.04
# 003
MPN: 14305321
SCREW
Supersession
Supersession
# 004
MPN: 12648221
WASHER
from £0.47
from £0.47
# 005
MPN: 184929
PARKING SENSOR
- Optional - Parking sensor
from £129.01
from £129.01
# 006
MPN: 187677
RING NUT
- Optional - Parking sensor
from £25.89
from £25.89
# 007
MPN: 187678
SPACER
- Optional - Parking sensor
from £10.05
from £10.05
# 008
MPN: 186662
BUMPER PARKING SENSOR CABLE
- Optional - Parking sensor - Not for USA and CDN - Valid till stock exhaustion
Supersession
Supersession
# 008
MPN: 186663
SIDE MARKERS AND PARKING SENSOR CABLE
- Optional - Parking sensor - Valid for USA and CDN
from £293.51
from £293.51
# 008
MPN: 200505
BUMPER PARKING SENSOR CABLE
- Optional - Parking sensor - Not for USA and CDN - Valid after stock exhaustion of 186662
from £115.76
from £115.76
This part replaces part number 186662 - and 1 more. Click to view details
# 009
MPN: 66605300
RH BRACKET
from £17.16
from £17.16
# 009
MPN: 66605400
LH BRACKET
from £16.70
from £16.70
# 010
MPN: 66494900
BRACKET
from £7.73
from £7.73
# 011
MPN: 7765139
RIVET
from £2.53
from £2.53
# 012
MPN: 187679
OUTER SLEEVE
- Optional - Parking sensor
from £24.56
from £24.56
# 012
MPN: 187680
INNER SLEEVE
- Optional - Parking sensor
from £19.01
from £19.01
# 013
MPN: 16288321
SCREW
from £0.53
from £0.53
# 014
MPN: 7739729
SCREW
from £1.55
from £1.55
# 015
MPN: 46419734
SCREW
not as spare part - use part number: 51810310
Supersession
Supersession
# 016
MPN: 312552529
GASKET
Supersession
Supersession
# 017
MPN: 193437
PARKING SENSOR CONTROL UNIT
- Optional - Parking sensor
from £170.15
from £170.15
This part replaces part number 184927 - and 1 more. Click to view details
# 018
MPN: 223469
BUZZER
- Optional - Parking sensor
from £14.84
from £14.84
This part replaces part number 184928 - and 1 more. Click to view details
# 019
MPN: 382500540
RH PLATE
from £39.41
from £39.41
# 019
MPN: 382500541
LH PLATE
from £39.41
from £39.41
