maserati 4200 coupe (2003) doors - framework and coverings parts diagram

116 - Doors - Framework and Coverings

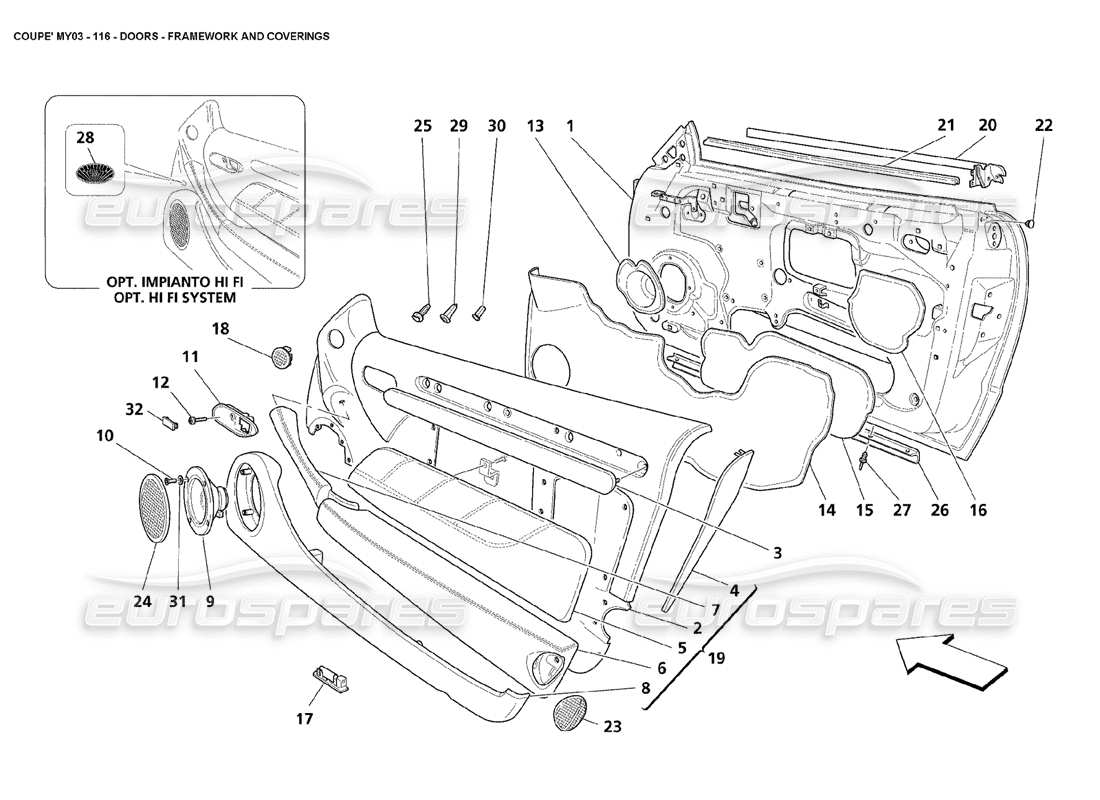

Maserati 4200 Coupe (2003) Doors - Framework and Coverings Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                      #
                                      Part number
                                      Description
                                      Key
                                      Price
                                      # 001
                                      MPN: 980001037
                                      COMPLETE LH DOOR
                                      from £787.50
                                      from £787.50
                                      COMPLETE LH DOOR Genuine Maserati Part - New (to order)
                                      COMPLETE LH DOOR Genuine Maserati Part - Used In stock
                                      Red, blue, dark blue, silver, white
                                      # 001
                                      MPN: 980001038
                                      COMPLETE RH DOOR
                                      from £1,600.04
                                      from £1,600.04
                                      COMPLETE RH DOOR Genuine Maserati Part - New (to order)
                                      COMPLETE RH DOOR Genuine Maserati Part - Used In stock
                                      Red, blue, dark blue, silver, grey, white
                                      # 002
                                      MPN: 672327..
                                      LH DOOR PANEL UPHOLSTERED
                                      - For order specify car number
                                      Supersession
                                      Supersession
                                      Genuine Maserati Part (no longer available to order)
                                      # 002
                                      MPN: 672462..
                                      RH DOOR PANEL UPHOLSTERED
                                      - For order specify car number
                                      Supersession
                                      Supersession
                                      Genuine Maserati Part (no longer available to order)
                                      # 003
                                      MPN: 67027600
                                      RH DOOR MOULDING
                                      - Optional - Carbon
                                      from £312.62
                                      from £312.62
                                      Maserati PART 67027600 Genuine Maserati Part - New (to order)
                                      # 003
                                      MPN: 67027700
                                      LH DOOR MOULDING
                                      - Optional - Carbon
                                      from £341.52
                                      from £341.52
                                      LH CARBON TRIM Genuine Maserati Part - New In stock
                                      # 003
                                      MPN: 67027800
                                      RH DOOR MOULDING
                                      - Optional - Brier
                                      from £288.47
                                      from £288.47
                                      MODANATURA PORTA A DX M138BB Genuine Maserati Part - New (to order)
                                      # 003
                                      MPN: 67027900
                                      LH DOOR MOULDING
                                      - Optional - Brier
                                      from £317.59
                                      from £317.59
                                      LH DOOR MOULDING,BRIARWOOD Genuine Maserati Part - New (to order)
                                      # 003
                                      MPN: 67247026
                                      RH DOOR MOULDING
                                      - Standard - Bordeaux color
                                      from £68.69
                                      from £68.69
                                      RIGHT MOLDING COMPLETE BORDEAUX Genuine Maserati Part - New In stock
                                      # 003
                                      MPN: 67247027
                                      RH DOOR MOULDING
                                      - Standard - Gray color
                                      from £68.69
                                      from £68.69
                                      MODANATURA DX COMPL GRIGIO Genuine Maserati Part - New (to order)
                                      # 003
                                      MPN: 67247326
                                      LH DOOR MOULDING
                                      - Standard - Bordeaux color
                                      from £71.08
                                      from £71.08
                                      MODANATURA SX COMPL.BORDEAUX Genuine Maserati Part - New (to order)
                                      # 003
                                      MPN: 67247327
                                      LH DOOR MOULDING
                                      - Standard - Gray color
                                      from £71.08
                                      from £71.08
                                      COMPLETE LH MOULDING,GREY Genuine Maserati Part - New (to order)
                                      # 004
                                      MPN: 663683..
                                      RH UPHOLSTERED TERMINAL PLUG
                                      - For order specify car number
                                      Supersession
                                      Supersession
                                      Genuine Maserati Part (no longer available to order)
                                      # 004
                                      MPN: 663684..
                                      LH UPHOLSTERED TERMINAL PLUG
                                      - For order specify car number
                                      Supersession
                                      Supersession
                                      Genuine Maserati Part (no longer available to order)

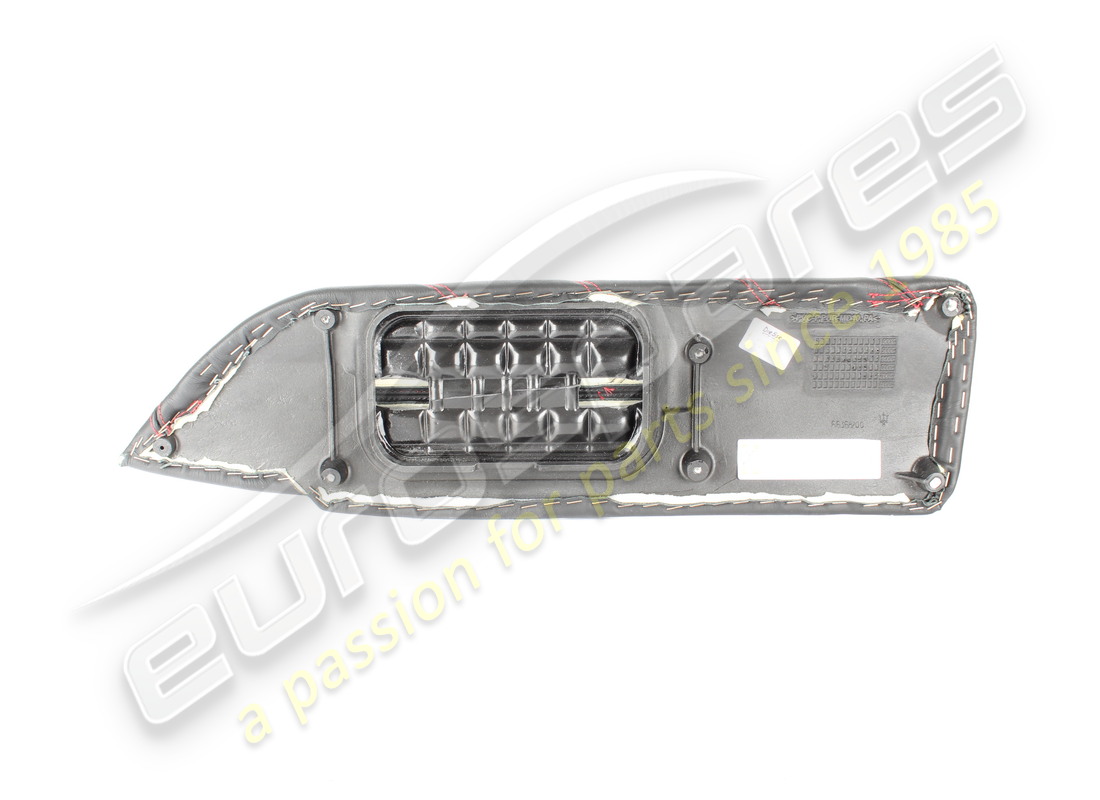

                                      # 005
                                      MPN: 67288502
                                      RH DOOR SIDE- BAG COVER
                                      P.AVORIO - IVORY
                                      from £538.88
                                      from £538.88
                                      This part replaces part number 66368102 - and 3 more. Click to view details
                                      RH COVER SIDE BAG,AVORIO LEATHER Genuine Maserati Part - New (to order)
                                      RH COVER SIDE BAG,AVORIO LEATHER Genuine Maserati Part - New (other) In stock
                                      Creame
                                      # 005
                                      MPN: 67288507
                                      RH DOOR SIDE BAG COVER (BORDEAUX)
                                      Please note: (Collection or Delivery by road within Europe)
                                      from £567.24
                                      from £567.24
                                      This part replaces part number 66368107 - and 1 more. Click to view details
                                      RH COVER SIDE BAG,BORDEAUX L. Genuine Maserati Part - New In stock
                                      # 005
                                      MPN: 67288600
                                      LH DOOR SIDE BAG COVER
                                      - For order specify car number
                                      from £538.88
                                      from £538.88
                                      This part replaces part number 66368200 - and 1 more. Click to view details
                                      LH COVER SIDE BAG,BLACK L. Genuine Maserati Part - New (to order)
                                      LH COVER SIDE BAG,BLACK L. Genuine Maserati Part - New (other) In stock
                                      - For order specify car number
                                      # 006
                                      MPN: 672399..
                                      LH ARM REST DOOR
                                      - For order specify car number
                                      Supersession
                                      Supersession
                                      Genuine Maserati Part (no longer available to order)
                                      # 006
                                      MPN: 672465..
                                      RH ARM REST DOOR
                                      - For order specify car number
                                      Supersession
                                      Supersession
                                      Genuine Maserati Part (no longer available to order)
                                      # 007
                                      MPN: 672329..
                                      LH UPHOLSTERED HANDLE MOULDING
                                      - For order specify car number
                                      Supersession
                                      Supersession
                                      Genuine Maserati Part (no longer available to order)
                                      # 007
                                      MPN: 672464..
                                      RH UPHOLSTERED HANDLE MOULDING
                                      - For order specify car number
                                      Supersession
                                      Supersession
                                      Genuine Maserati Part (no longer available to order)
                                      # 008
                                      MPN: 67232800
                                      LH POCKET UPHOLSTERED
                                      - For order specify car number
                                      from £313.31
                                      from £313.31
                                      LH POCKET Genuine Maserati Part - New (to order)
                                      # 008
                                      MPN: 672463..
                                      RH POCKET UPHOLSTERED
                                      - For order specify car number
                                      Supersession
                                      Supersession
                                      Genuine Maserati Part (no longer available to order)
                                      # 009
                                      MPN: 189389
                                      LOUD SPEAKER WOOFER
                                      - Standard
                                      from £74.76
                                      from £74.76
                                      ALTOPARLANTE WOOFER D 165 PO Genuine Maserati Part - New (to order)
                                      # 009
                                      MPN: 189390
                                      LOUD SPEAKER WOOFER
                                      - Optional - HI FI system
                                      from £55.72
                                      from £55.72
                                      ALTOPARLANTE WOOFER D 165 PO Genuine Maserati Part - New (to order)
                                      # 010
                                      MPN: 13274014
                                      SCREW
                                      from £3.54
                                      from £3.54
                                      SCREW Genuine Maserati Part - New (to order)
                                      Genuine Ferrari Part (no longer available to order)
                                      # 011
                                      MPN: 67393626
                                      RH HANDLE PLATE
                                      - Bordeaux color
                                      from £23.87
                                      from £23.87
                                      MOSTRINA MANIGLIA DX BORDEAU Genuine Maserati Part - New (to order)
                                      # 011
                                      MPN: 67393627
                                      RH HANDLE PLATE
                                      - Gray color
                                      from £22.59
                                      from £22.59
                                      MOSTRINA MANIGLIA DX GRIGIO Genuine Maserati Part - New (to order)
                                      # 011
                                      MPN: 67393700
                                      LH HANDLE PLATE
                                      black colour
                                      from £7.92
                                      from £7.92
                                      MOSTRINA MANIGLIA SX Genuine Maserati Part - New (to order)
                                      # 011
                                      MPN: 67393726
                                      LH HANDLE PLATE
                                      Bordeaux colour
                                      from £23.87
                                      from £23.87
                                      MOSTRINA MANIGLIA SX BORDEAU Genuine Maserati Part - New (to order)
                                      # 011
                                      MPN: 67393727
                                      LH HANDLE PLATE
                                      Gray colour
                                      from £25.08
                                      from £25.08
                                      MOSTRINA MANIGLIA SX GRIGIO Genuine Maserati Part - New (to order)
                                      # 012
                                      MPN: 15689907
                                      SCREW
                                      from £1.07
                                      from £1.07
                                      VITE AUTOF.TBIC M 8 X 25 Genuine Maserati Part - New (to order)
                                      # 013
                                      MPN: 66661100
                                      WATER SHIELD FOR LH LOUD SPEAKER
                                      from £23.75
                                      from £23.75
                                      LH SPEAKER WATER SHIELD Genuine Maserati Part - New (to order)
                                      # 013
                                      MPN: 66661200
                                      WATER SHIELD FOR RH LOUD SPEAKER
                                      from £22.41
                                      from £22.41
                                      RH SPEAKER WATER SHIELD Genuine Maserati Part - New (to order)
                                      # 014
                                      MPN: 66420100
                                      WATER SHIELD IN THE RH DOOR
                                      from £16.67
                                      from £16.67
                                      RIPARO ACQUA PORTA ANT DX M1 Genuine Maserati Part - New (to order)
                                      # 014
                                      MPN: 66420200
                                      WATER SHIELD IN THE LH DOOR
                                      from £25.01
                                      from £25.01
                                      RIPARO ACQUA PORTA ANT SX M1 Genuine Maserati Part - New (to order)
                                      # 015
                                      MPN: 66661300
                                      LH LOWER CENTRAL WATER FOR SHIELD
                                      from £23.75
                                      from £23.75
                                      RIPARO ACQUA CENTRALE INFERI Genuine Maserati Part - New (to order)
                                      # 015
                                      MPN: 66661400
                                      RH LOWER CENTRAL WATER FOR SHIELD
                                      from £14.64
                                      from £14.64
                                      RIPARO ACQUA CENTRALE INFERI Genuine Maserati Part - New (to order)
                                      # 016
                                      MPN: 66661500
                                      LH UPPER LATERAL WATER FOR SHIELD
                                      from £29.65
                                      from £29.65
                                      LH UPPER SIDE WATER SHIELD Genuine Maserati Part - New (to order)
                                      # 016
                                      MPN: 66661600
                                      RH UPPER LATERAL WATER FOR SHIELD
                                      from £18.47
                                      from £18.47
                                      RH UPPER SIDE WATER SHIELD Genuine Maserati Part - New (to order)
                                      # 017
                                      MPN: 60608165
                                      UNDER DOOR LAMP
                                      from £6.01
                                      from £6.01
                                      PLAFONIERA ILLUMIN SOTTOPORT Genuine Maserati Part - New In stock
                                      # 018
                                      MPN: 185969
                                      LOUD SPEAKER TWEETER
                                      - Standard
                                      from £27.09
                                      from £27.09
                                      TWEETER SPEAKER,M138 Genuine Maserati Part - New (to order)
                                      # 018
                                      MPN: 185970
                                      LOUD SPEAKER TWEETER
                                      - Optional - HI FI system
                                      from £37.27
                                      from £37.27
                                      HI FI TWEETER SPEAKER,M138 Genuine Maserati Part - New (to order)
                                      LUOD SPEAKER TWEETER. Genuine Ferrari Part - New (to order)
                                      # 019
                                      MPN: 672467..
                                      COMPLETE RH DOOR PANEL UPHOLSTERED
                                      - For order specify car number
                                      Supersession
                                      Supersession
                                      Genuine Maserati Part (no longer available to order)
                                      # 019
                                      MPN: 672471..
                                      COMPLETE LH DOOR PANEL UPHOLSTERED
                                      - For order specify car number
                                      Supersession
                                      Supersession
                                      Genuine Maserati Part (no longer available to order)

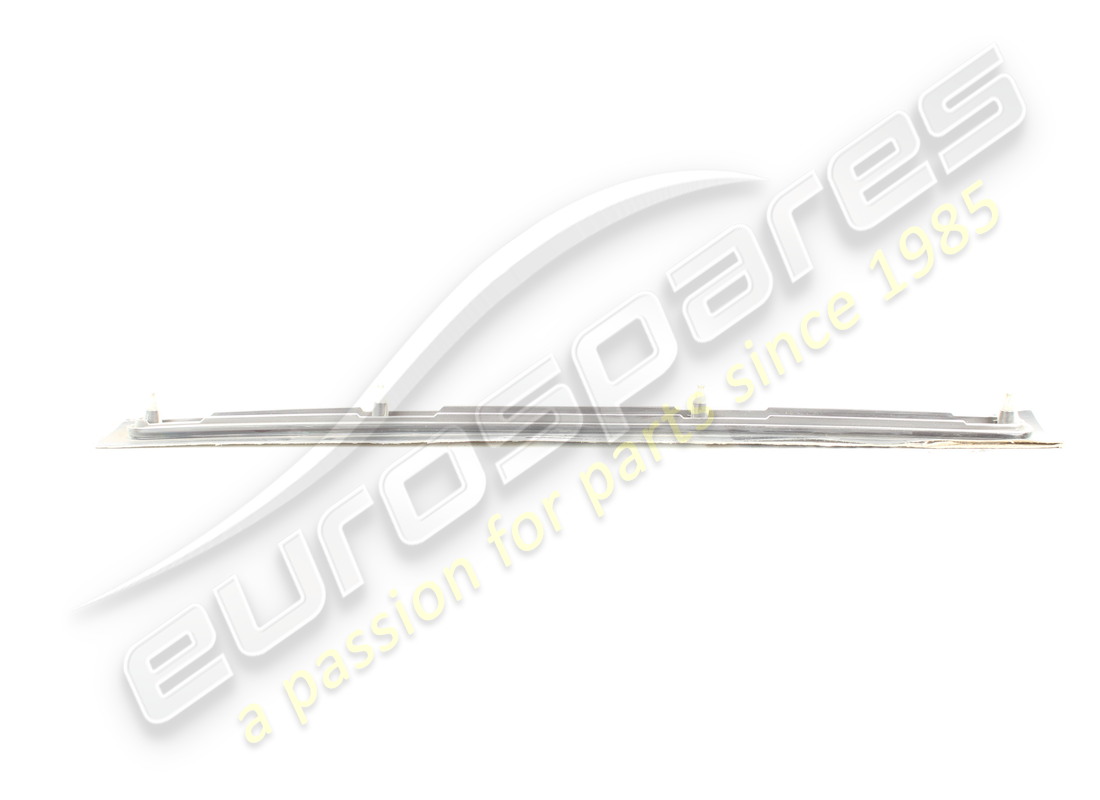

                                      # 020
                                      MPN: 67820200
                                      RH OUTER GLASS SCRAPER GASKET
                                      from £247.29
                                      from £247.29
                                      This part replaces part number 387700324
                                      GUARNIZIONE RASCHIAV.EST.ANT Genuine Maserati Part - New (to order)
                                      # 020
                                      MPN: 67820300
                                      LH Outer Glass Scraper Gasket
                                      from £136.01
                                      from £136.01
                                      This part replaces part number 387700323 - and 1 more. Click to view details
                                      LH Outer Glass Scraper Gasket Genuine Maserati Part - New (to order)
                                      LH Outer Glass Scraper Gasket Genuine Maserati Part - Used In stock
                                      # 021
                                      MPN: 67245400
                                      LH INNER GLASS SCRAPER GASKET
                                      - Valid till car Ass. Nr. 10852
                                      from £16.43
                                      from £16.43
                                      This part replaces part number 67021400
                                      INT. WINDOW WEATHER GASK. Genuine Maserati Part - New (to order)
                                      # 021
                                      MPN: 67669800
                                      INNER GLASS SCRAPER GASKET
                                      from £10.29
                                      from £10.29
                                      GUARNIZIONE RASCHIAVETRO INT Genuine Maserati Part - New (to order)
                                      GUARNIZIONE RASCHIAVETRO INT Genuine Maserati Part - Used In stock
                                      # 022
                                      MPN: 388300805
                                      button
                                      from £0.83
                                      from £0.83
                                      BOTTONE PER GUARNIZ.RASCHAV. Genuine Maserati Part - New (to order)
                                      # 023
                                      MPN: 46427291
                                      REFLECTOR FOR RH DOOR PANEL
                                      from £4.17
                                      from £4.17
                                      CATADIOTTRO PORTA ANT DX M33 Genuine Maserati Part - New (to order)
                                      CATADIOTTRO PORTA ANT DX M33 Genuine Maserati Part - Used In stock
                                      # 023
                                      MPN: 46427292
                                      REFLECTOR FOR LH DOOR PANEL
                                      from £4.17
                                      from £4.17
                                      CATADIOTTRO PORTA ANT SX M33 Genuine Maserati Part - New In stock
                                      CATADIOTTRO PORTA ANT SX M33 Genuine Maserati Part - Used In stock
                                      # 024
                                      MPN: 388300600
                                      LOUD SPEAKER PLATE
                                      from £4.95
                                      from £4.95
                                      This part replaces part number 388300496
                                      SPEAKER GRILL Genuine Maserati Part - New (to order)
                                      # 025
                                      MPN: 66805100
                                      PIN
                                      from £0.69
                                      from £0.69
                                      PINETTO PELOSATO 27200 FIAT Genuine Maserati Part - New (to order)
                                      CLIP PLASTIC Genuine Ferrari Part - New (to order)
                                      # 026
                                      MPN: 384500441
                                      UNDERDOOR GASKET
                                      from £14.10
                                      from £14.10
                                      GUARNIZIONE SOTTOPORTA Genuine Maserati Part - New (to order)
                                      GUARNIZIONE SOTTOPORTA Genuine Maserati Part - Used In stock
                                      # 027
                                      MPN: 384500442
                                      RIVET
                                      from £1.07
                                      from £1.07
                                      RIVETTO (FERR.62764000) Genuine Maserati Part - New In stock
                                      # 028
                                      MPN: 388300398
                                      PLATE
                                      - Optional - HI FI system
                                      from £34.01
                                      from £34.01
                                      PART Genuine Maserati Part - New (to order)
                                      # 029
                                      MPN: 7745194
                                      BUSHING
                                      from £1.13
                                      from £1.13
                                      FASTENING BUSHING Genuine Maserati Part - New In stock
                                      # 030
                                      MPN: 15180311
                                      RIVET
                                      from £1.83
                                      from £1.83
                                      EF/TC BLIND RIVET M5X18 Genuine Maserati Part - New (to order)
                                      # 031
                                      MPN: 12620374
                                      WASHER
                                      from £0.51
                                      from £0.51
                                      WASHER FOR EXTERIOR COWL Genuine Maserati Part - New (to order)
                                      WASHER Genuine Ferrari Part - New In stock
                                      # 032
                                      MPN: 67652826
                                      PLUG
                                      - Bordeaux color
                                      from £6.84
                                      from £6.84
                                      TAPPO COPRIFISSAGGIO BORDEAU Genuine Maserati Part - New (to order)
                                      # 032
                                      MPN: 67652827
                                      PLUG
                                      - Gray color
                                      from £4.56
                                      from £4.56
                                      FASTENING COVERING CAP,GREY Genuine Maserati Part - New (to order)
                                      Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
