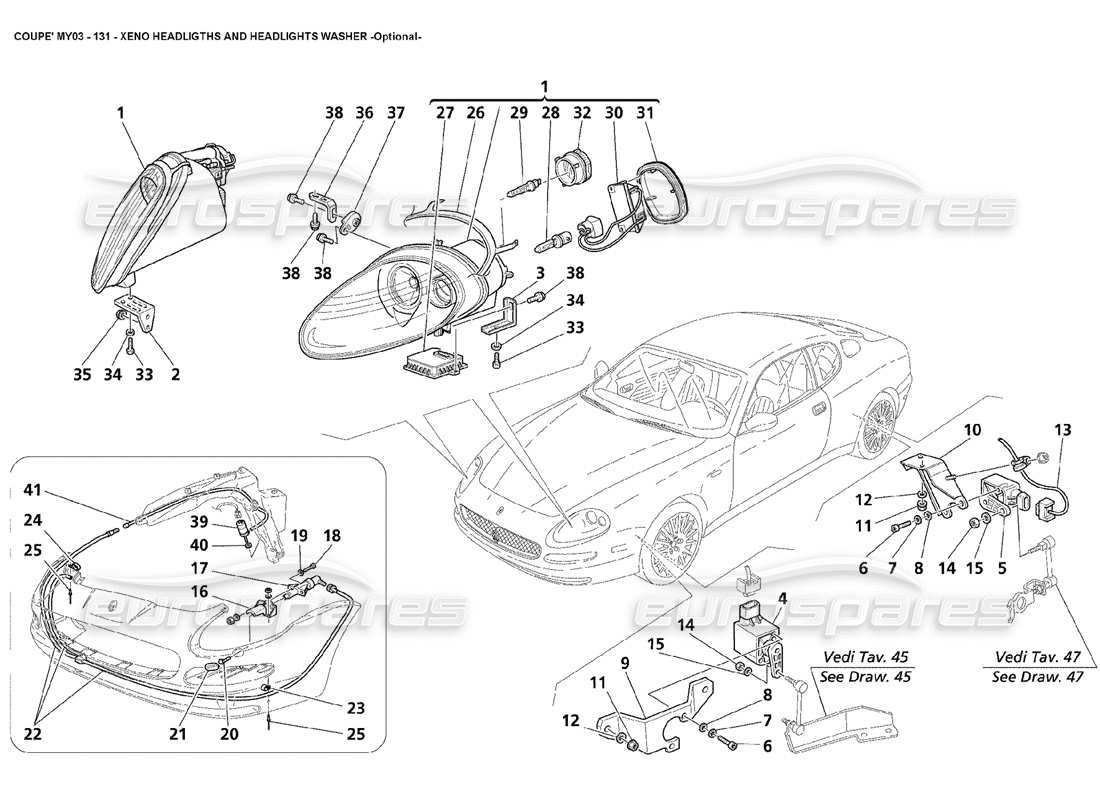

131 - Xeno Headlights and Headlights Washer - Optional
Maserati 4200 Coupe (2003) Xeno Headlights and Headlights Washer - Optional Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 184922...
RH FRONT HEADLIGHT
- Valid for GD and J
# 001
MPN: 184923015
LH FRONT HEADLIGHT
- Valid for GD and J (Bloogna Red)
from £1,453.83
from £1,453.83
# 002
MPN: 383100312
FRONT BRACKET
from £9.05
from £9.05
# 003
MPN: 383100161
REAR BRACKET
from £16.43
from £16.43
# 004
MPN: 188659
LIGHT ATTITUDE FRONT POTENTIOMETER
- Not for USA and CDN
from £256.09
from £256.09
# 005
MPN: 184943
LIGHT ATTITUDE REAR POTENTIOMETER
- Not for USA and CDN
from £100.65
from £100.65
# 006
MPN: 14304024
SCREW
- Not for USA and CDN
from £0.53
from £0.53
# 007
MPN: 10519301
WASHER
- Not for USA and CDN
from £12.85
from £12.85
# 008
MPN: 11199274
WASHER
- Not for USA and CDN
from £0.53
from £0.53
# 009
MPN: 190218
FRONT BRACKET
- Not for USA and CDN
from £13.77
from £13.77
# 010
MPN: 188406
REAR BRACKET
- Not for USA and CDN
from £6.19
from £6.19
# 011
MPN: 13832101
NUT
- Not for USA and CDN
from £0.53
from £0.53
# 012
MPN: 12644401
WASHER
- Not for USA and CDN
from £0.47
from £0.47
# 013
MPN: 186407
BRIDLE FOR POTENTIOMETER
- Not for USA and CDN - Valid till stock exhaustion
Supersession
Supersession
# 013
MPN: 200506
BRIDLE FOR POTENTIOMETER
- Not for USA and CDN - Valid after stock exhaustion of 186407
from £41.11
from £41.11
This part replaces part number 186407
# 014
MPN: 12575415
NUT
- Not for USA and CDN
from £1.07
from £1.07
# 015
MPN: 14498805
WASHER
- Not for USA and CDN
from £0.54
from £0.54
# 016
MPN: 66372000
RH HEADLIGHTS WASHER SUPPORT BRACKET
from £19.93
from £19.93
# 016
MPN: 66372100
LH HEADLIGHTS WASHER SUPPORT BRACKET
from £19.93
from £19.93
# 017
MPN: 980002001
COMPLETE PUMP FOR COUPLING
from £69.20
from £69.20
# 018
MPN: 14305324
SCREW
from £0.51
from £0.51
This part replaces part number 14305321
# 019
MPN: 11188079
WASHER
from £0.71
from £0.71
# 020
MPN: 900028018
LH COUPLING FOR PLUG
from £77.36
from £77.36
This part replaces part number 66371600
# 020
MPN: 900028019
RH COUPLING FOR PLUG
from £144.47
from £144.47
This part replaces part number 66371500
# 021
MPN: 66371700
RH PLUG
from £91.58
from £91.58
# 021
MPN: 66371800
LH PLUG
from £45.79
from £45.79
# 022
MPN: 66371900
HEADLIGHT WASHER PIPES (ASSEM.)
from £88.60
from £88.60
# 023
MPN: 10441590
BRACKET WITH SHEATH
from £0.50
from £0.50
# 024
MPN: 10115801
BRACKET
from £3.58
from £3.58
# 025
MPN: 14642893
RIVET
# 026
MPN: 980000951
LH HEADLAMP EXTERNAL GASKET
from £18.71
from £18.71
This part replaces part number 94074245
# 026
MPN: 980000952
RH HEADLAMP EXTERNAL GASKET
from £18.71
from £18.71
This part replaces part number 94074244
# 027
MPN: 980001133
XENO LIGHT CONTROL STATION
from £329.97
from £329.97
# 028
MPN: 980001138
LOW BEAM BULB
from £131.33
from £131.33
# 029
MPN: 980000953
HIGH BEAM BULB
- Valid for USA and CDN
from £20.44
from £20.44
# 029
MPN: 980001139
HIGH BEAM BULB
- Not for USA and CDN
from £16.50
from £16.50
# 030
MPN: 980001134
XENO LIGHT IGNITOR
from £121.90
from £121.90
# 031
MPN: 980001136
LOW BEAM BULB CAP
from £19.93
from £19.93
This part replaces part number 980001135
# 032
MPN: 980001141
HIGH BEAM BULB CAP
from £21.23
from £21.23
# 033
MPN: 11730924
SCREW
from £1.52
from £1.52
# 034
MPN: 12644424
WASHER
from £0.53
from £0.53
This part replaces part number 13550214
# 035
MPN: 13046114
NUT
from £0.53
from £0.53
# 036
MPN: 66379100
LAMP FIXING UPPET BRACKET
from £5.47
from £5.47
# 037
MPN: 66320000
LH BRACKET
from £11.64
from £11.64
# 037
MPN: 66379200
RH BRACKET
from £28.60
from £28.60
# 038
MPN: 11730624
SCREW
from £0.51
from £0.51
# 039
MPN: 65164700
HEADLIGHTS WASHER PUMP
from £41.17
from £41.17
# 040
MPN: 65511700
GASKET
from £3.20
from £3.20
# 041
MPN: 66421700
HEADLIGHT WASHER PIPE
from £31.72
from £31.72
