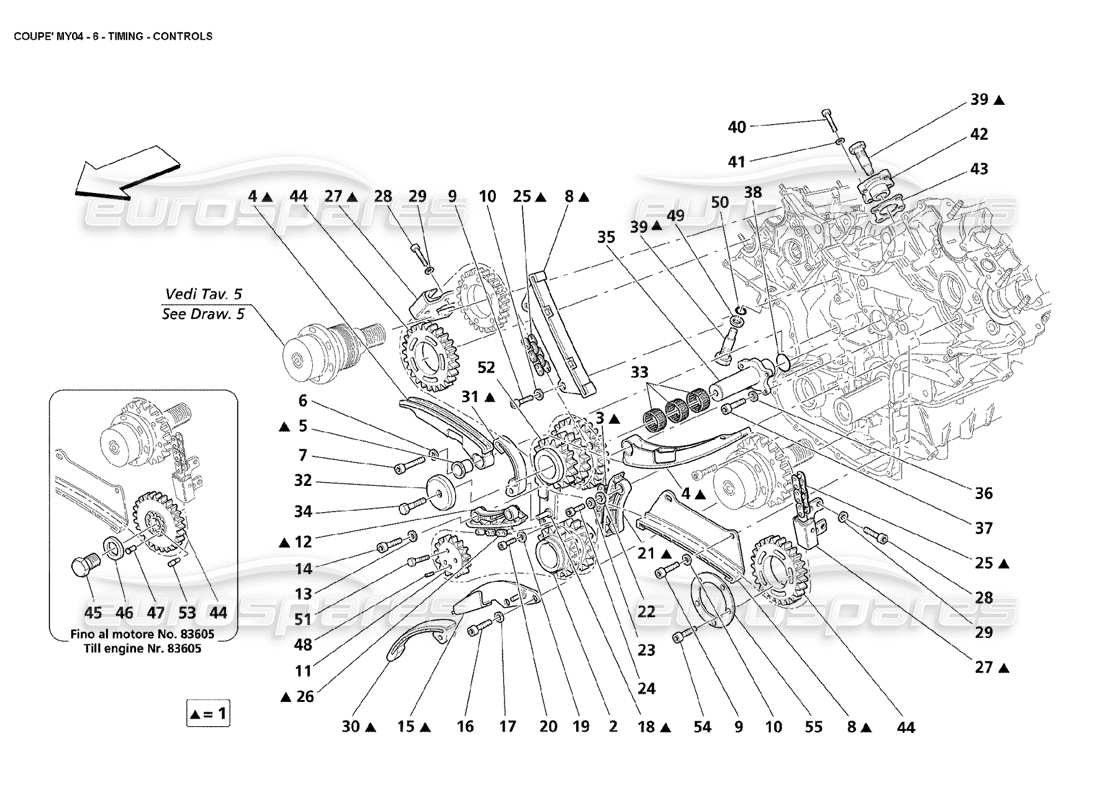

Maserati 4200 Coupe (2004) Timing Controls Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 196902
TIMING CONTROL ASSEMBLY
from £594.81
from £594.81
This part replaces part number 193716
# 002
MPN: 186854
ENGINE SHAFT TOOTHED WHEEL
from £57.90
from £57.90
# 003
MPN: 175286
TRANSMISSION CHAIN
from £24.50
from £24.50
# 004
MPN: 186184
MOBILE GUIDE SHOE
from £71.44
from £71.44
# 005
MPN: 175303
BUSHING
from £13.48
from £13.48
# 006
MPN: 10569373
WASHER
from £0.47
from £0.47
# 007
MPN: 14306424
SCREW
from £0.47
from £0.47
# 008
MPN: 186185
FIXED TENSION
from £33.00
from £33.00
# 009
MPN: 14306224
SCREW
from £0.47
from £0.47
# 010
MPN: 11193874
WASHER
from £0.47
from £0.47
# 011
MPN: 189564
PUMP CONTROM TOOTHED WHEEL
from £266.10
from £266.10
# 012
MPN: 186186
FIXED TENSION
from £15.90
from £15.90
# 013
MPN: 11197774
WASHER
from £0.54
from £0.54
# 014
MPN: 14305424
SCREW
from £0.47
from £0.47
# 015
MPN: 185724
GUIDE SHOE SUPPORT
from £10.76
from £10.76
# 016
MPN: 14305724
SCREW
from £0.53
from £0.53
# 017
MPN: 11197774
WASHER
from £0.54
from £0.54
# 018
MPN: 186159
GUIDE SHOE SUPPORT
Requires P/N 196683
from £16.40
from £16.40
# 019
MPN: 11197774
WASHER
from £0.54
from £0.54
# 020
MPN: 14305724
SCREW
from £0.53
from £0.53
# 021
MPN: 306094
FIXED TENSION
from £22.12
from £22.12
This part replaces part number 186181
# 022
MPN: 12647624
WASHER
from £0.47
from £0.47
This part replaces part number 12647601
# 023
MPN: 11197774
WASHER
from £0.54
from £0.54
# 024
MPN: 14432224
SCREW
from £0.47
from £0.47
# 025
MPN: 193616
TIMING CONTROL CHAIN
from £54.51
from £54.51
# 026
MPN: 175314
CHAIN
from £26.27
from £26.27
# 027
MPN: 189569
UPPER FIXED TENSION
from £18.01
from £18.01
# 028
MPN: 14305934
SCREW
from £0.80
from £0.80
# 029
MPN: 11197774
WASHER
from £0.53
from £0.53
# 030
MPN: 185725
CHAIN TENSIONER
from £30.93
from £30.93
# 031
MPN: 196683
CHAIN TENSIONER
from £24.54
from £24.54
# 032
MPN: 194262
SHOULDER
from £10.73
from £10.73
# 033
MPN: 175282
ROLLER CAGE
from £2.85
from £2.85
# 034
MPN: 16043124
SCREW
from £0.26
from £0.26
# 035
MPN: 194261
SUPPORT
from £82.55
from £82.55
# 036
MPN: 11181574
WASHER
from £0.53
from £0.53
# 037
MPN: 14304224
SCREW
from £0.47
from £0.47
# 038
MPN: 104212
O.R. GASKET
from £0.47
from £0.47
# 039
MPN: 180316
HYDRAULIC TIGHTENER
from £34.50
from £34.50
# 040
MPN: 14432224
SCREW
from £0.47
from £0.47
# 041
MPN: 11197774
WASHER
from £0.53
from £0.53
# 042
MPN: 190060
BUSHING FOR TIGHTENER
from £11.19
from £11.19
# 043
MPN: 323282
GASKET
- Supplied also in the cylinder heads - gasket revision kit (cod. 980020001)
from £1.17
from £1.17
This part replaces part number 247147
# 044
MPN: 187530
TOOTHED WHEEL FOR SHAFT
- Valid till engine Nr. 83605
from £26.48
from £26.48
# 044
MPN: 195511
TOOTHED WHEEL FOR SHAFT
- Valid from engine Nr. 83606
from £820.57
from £820.57
# 045
MPN: 193831
SCREW
- Valid till engine Nr. 83605
from £7.33
from £7.33
# 046
MPN: 175751
WASHER
- Valid till engine Nr. 83605
from £3.18
from £3.18
# 047
MPN: 176610
CENTERING DOWEL
- Valid till engine Nr. 83605
from £3.33
from £3.33
# 048
MPN: 189779
DOWEL
from £1.29
from £1.29
# 049
MPN: 190171
SPACER
from £3.29
from £3.29
# 050
MPN: 192069
O.R. GASKET
from £0.47
from £0.47
# 051
MPN: 189563
SCREW
from £30.06
from £30.06
# 052
MPN: 193565
TRANSMISSION TOOTHED WHEEL
from £60.60
from £60.60
# 053
MPN: 194191
DOWEL
- Valid till engine Nr. 83605
from £4.28
from £4.28
# 054
MPN: 14305170
SCREW
- Valid from engine Nr. 83606
from £2.54
from £2.54
This part replaces part number 14305770
# 055
MPN: 195649
WASHER
- Valid from engine Nr. 83606
from £3.40
from £3.40
