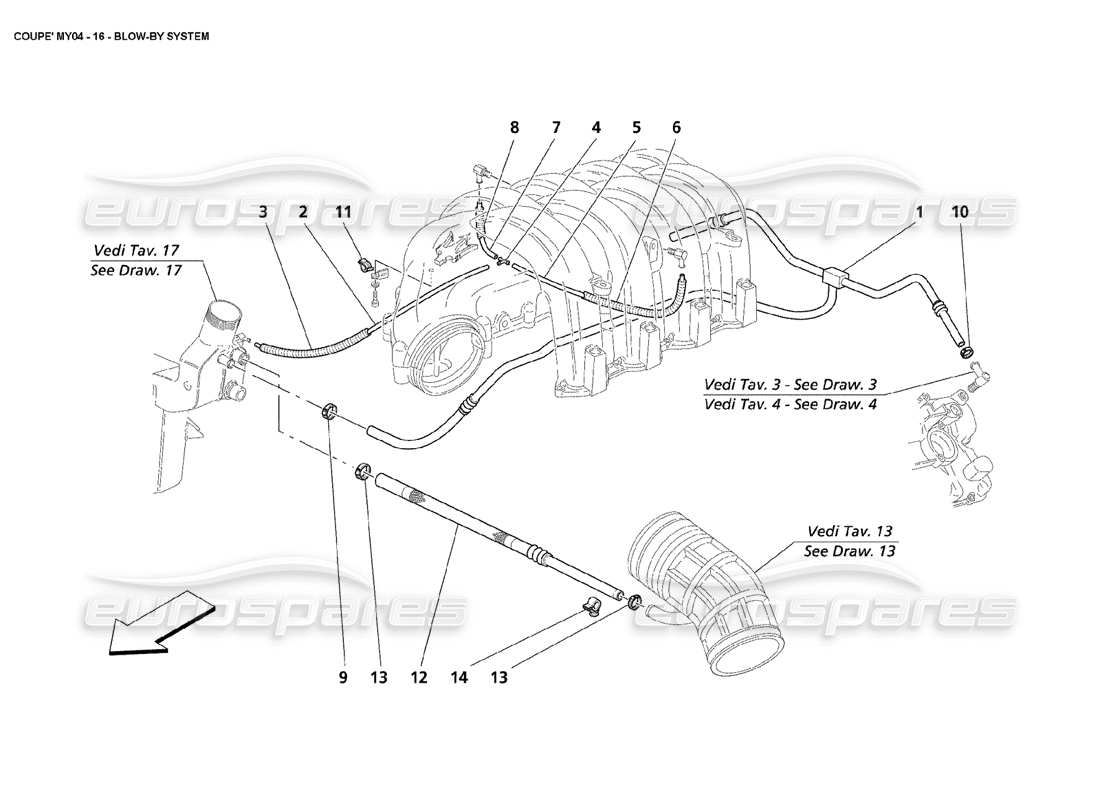

maserati 4200 coupe (2004) blow - by system parts diagram

016 - Blow - By System

Maserati 4200 Coupe (2004) Blow - By System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                        #
                        Part number
                        Description
                        Price
                        # 001
                        MPN: 198346
                        HEAD COVERS VENT PIPE
                        from £47.13
                        from £47.13
                        This part replaces part number 190120 which we have in stock - and 1 more. Click to view details
                        # 002
                        MPN: 169700
                        RUBBER HOSE
                        - Supplied in meters - (Minimum quantity 1m. or multiples)
                        from £7.19
                        from £7.19
                        # 003
                        MPN: 97218
                        PIPE
                        from £1.86
                        from £1.86
                        This part replaces part number 188340 - and 1 more. Click to view details
                        # 004
                        MPN: 146972
                        3 WAY UNION
                        from £2.78
                        from £2.78
                        # 005
                        MPN: 194323
                        RUBBER HOSE
                        from £6.93
                        from £6.93
                        This part replaces part number 192445
                        # 006
                        MPN: 97218
                        PIPE
                        - Supplied in meters - (Minimum quantity 1m. or multiples)
                        from £1.86
                        from £1.86
                        This part replaces part number 188340 - and 1 more. Click to view details
                        # 007
                        MPN: 165608
                        RUBBER HOSE
                        from £1.52
                        from £1.52
                        This part replaces part number 235375
                        # 008
                        MPN: 97218
                        PIPE
                        - Supplied in meters - (Minimum quantity 1m. or multiples)
                        from £1.86
                        from £1.86
                        This part replaces part number 188340 - and 1 more. Click to view details
                        # 009
                        MPN: 177996
                        CLAMP
                        from £0.77
                        from £0.77
                        # 010
                        MPN: 178052
                        CLAMP
                        from £0.84
                        from £0.84
                        # 011
                        MPN: 191273
                        CLIP
                        from £0.47
                        from £0.47
                        # 012
                        MPN: 184216
                        VENT PIPE
                        from £30.08
                        from £30.08
                        # 013
                        MPN: 13000490
                        SCREW COLLAR
                        from £0.47
                        from £0.47
                        This part replaces part number 13127870 - and 1 more. Click to view details
                        # 014
                        MPN: 187694
                        CLIP
                        from £0.69
                        from £0.69
                        This part replaces part number 98061
