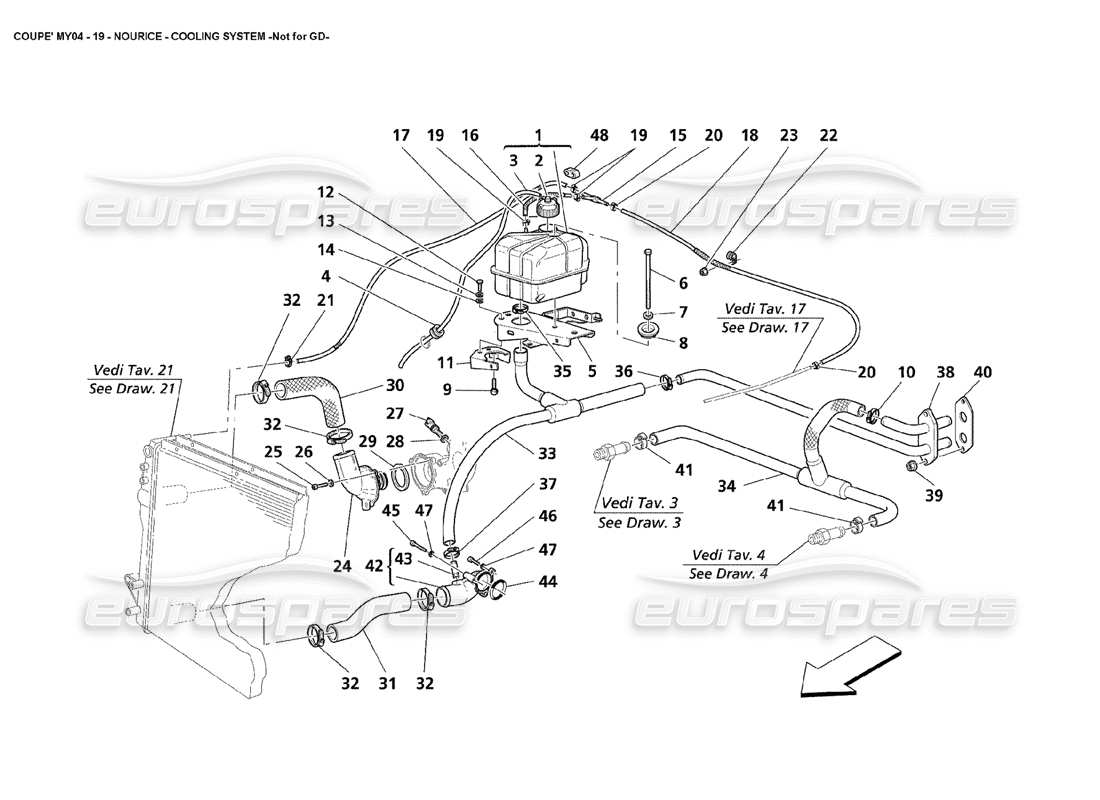

019 - Nourice Cooling System Not for GD
Maserati 4200 Coupe (2004) Nourice Cooling System Not for GD Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 384000102
COMPLETE EXPANSION TANK
WITH CAP
from £61.01
from £61.01
This part replaces part number 60597447
# 002
MPN: 980145477
TANK PLUG
from £12.21
from £12.21
This part replaces part number 46556738
# 003
MPN: 384001316
HOSE
from £7.54
from £7.54
# 004
MPN: 10461987
RING
from £1.55
from £1.55
# 005
MPN: 189782
NOURICE SUPPORTING BRACKET
from £22.49
from £22.49
# 006
MPN: 60607472
SPECIAL SCREW
from £4.88
from £4.88
# 007
MPN: 12601274
WASHER
from £0.47
from £0.47
This part replaces part number 12601270
# 008
MPN: 82404496
CUP
from £1.04
from £1.04
# 009
MPN: 11730624
SCREW
from £0.47
from £0.47
# 010
MPN: 186680
CLAMP
from £0.76
from £0.76
# 011
MPN: 384000135
SUPPORT FOR BRACKET
from £14.77
from £14.77
# 012
MPN: 14305521
SCREW
from £0.47
from £0.47
# 013
MPN: 12620474
WASHER
from £0.47
from £0.47
# 014
MPN: 12646601
WASHER
from £0.47
from £0.47
# 015
MPN: 189345
3 WAY UNION
- Valid till engine Nr. 79340
from £13.88
from £13.88
# 015
MPN: 201215
3 WAY UNION
- Valid from engine Nr. 79341
from £57.47
from £57.47
# 016
MPN: 192621
RUBBER HOSE
from £19.58
from £19.58
# 017
MPN: 192614
RUBBER HOSE
from £163.12
from £163.12
# 018
MPN: 192615
RUBBER HOSE
- Valid till engine Nr. 79340
from £10.01
from £10.01
# 018
MPN: 201216
RUBBER HOSE
- Valid from engine Nr. 79341
from £11.63
from £11.63
# 019
MPN: 13125470
STRAP COLLAR
from £0.47
from £0.47
# 020
MPN: 183919
STRAP COLLAR
from £0.63
from £0.63
# 021
MPN: 13000190
SCREW COLLAR
from £0.47
from £0.47
# 022
MPN: 10441390
BRACKET WITH SHEATH
from £0.47
from £0.47
# 023
MPN: 14058411
NUT
from £0.47
from £0.47
# 024
MPN: 230890
COVER WITH THERMOSTAT
from £87.22
from £87.22
This part replaces part number 224623
# 025
MPN: 14305324
SCREW
from £0.47
from £0.47
This part replaces part number 14305321
# 026
MPN: 11197774
WASHER
from £0.47
from £0.47
# 027
MPN: 180137
WATER TEMPERATURE SENSOR
from £9.88
from £9.88
# 028
MPN: 10298460
GASKET
from £0.47
from £0.47
# 029
MPN: 137873
GASKET
from £2.95
from £2.95
# 030
MPN: 190354
DELIVERY PIPE FROM ENGINE TO RADIATOR
from £77.89
from £77.89
This part replaces part number 181747 - and 1 more. Click to view details
# 031
MPN: 181748
RETURN PIPE FROM RADIATOR TO ENGINE
from £28.75
from £28.75
# 032
MPN: 13000790
SCREW COLLAR
from £0.47
from £0.47
This part replaces part number 312420106
# 033
MPN: 187080
RUBBER HOSE
from £8.95
from £8.95
This part replaces part number 186586 which we have in stock - and 3 more. Click to view details
# 034
MPN: 187082
WATER OUTLET PIPE
from £99.84
from £99.84
# 035
MPN: 13000590
SCREW COLLAR
from £0.47
from £0.47
# 036
MPN: 186680
CLAMP
from £0.76
from £0.76
# 037
MPN: 183126
CLAMP
from £0.77
from £0.77
# 038
MPN: 66069000
COMPLETE RIGID PIPE TO HEATER
from £29.61
from £29.61
# 039
MPN: 12575421
NUT
Supersession
Supersession
This part replaces part number 12575411
# 040
MPN: 385500371
GASKET
from £1.08
from £1.08
# 041
MPN: 178053
CLAMP
from £0.87
from £0.87
# 042
MPN: 188067
WATER ENTRY COVER
from £200.82
from £200.82
# 043
MPN: 111628
THREADED UNION
from £0.47
from £0.47
# 044
MPN: 154191
GASKET
from £0.70
from £0.70
# 045
MPN: 14306024
SCREW
from £1.31
from £1.31
This part replaces part number 14306034 which we have in stock
# 046
MPN: 14432224
SCREW
from £0.47
from £0.47
# 047
MPN: 11197774
WASHER
from £0.47
from £0.47
# 048
MPN: 192650
CLIP
from £1.08
from £1.08
