maserati 4200 coupe (2004) outer gearbox controls parts diagram

033 - Outer Gearbox Controls

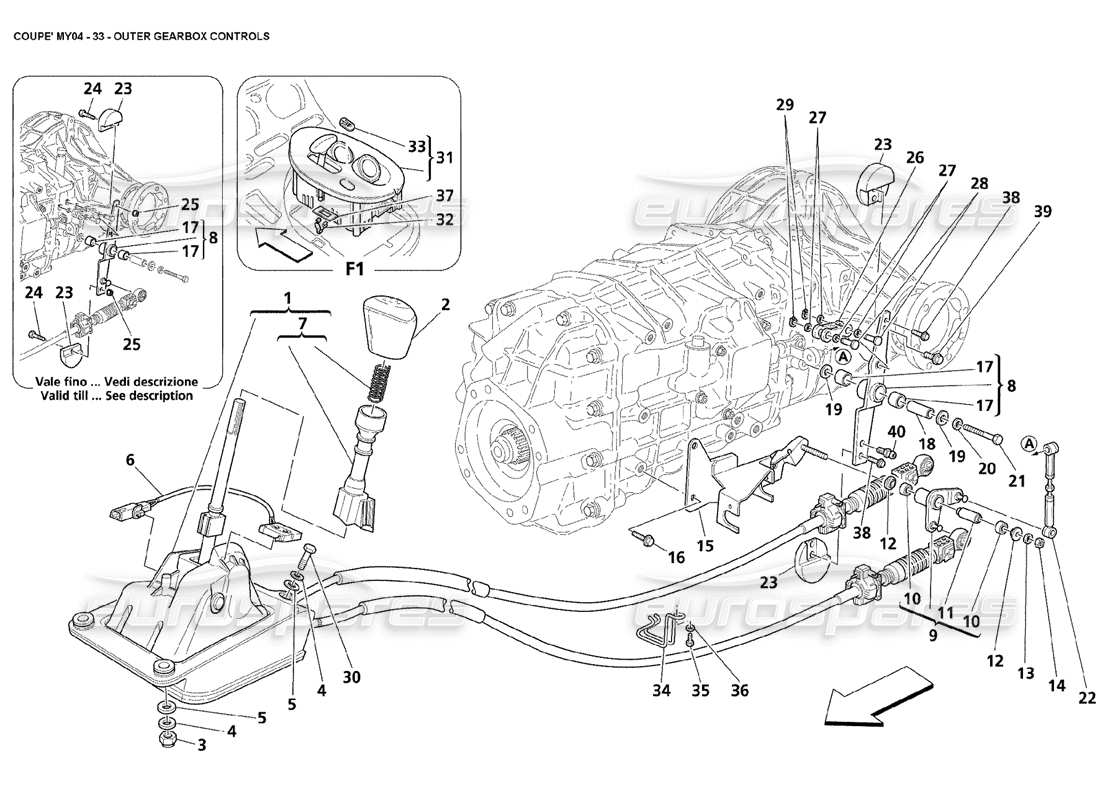

Maserati 4200 Coupe (2004) Outer Gearbox Controls Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 001
MPN: 198242
GEARBOX CONTROL ASSEMBLY
- Not for F1
from £1,425.63
from £1,425.63
This part replaces part number 194726
GEARBOX CONTROL ASSEMBLY,COUPE Genuine Maserati Part - New (to order)
# 002
MPN: 186122
GEARBOX CONTROL KNOB
(manual)
from £975.09
from £975.09
POMELLO COMANDO CAMBIO STAND Genuine Maserati Part - New (to order)
# 002
MPN: 186123
GEARBOX CONTROL KNOB
- Optional - Brier - Not for F1
from £1,035.06
from £1,035.06
MANUAL GEAR KNOB (BRIARWOOD) Genuine Maserati Part - New In stock
# 002
MPN: 186124
GEARBOX CONTROL KNOB
- Optional - Carbon - Not for F1
from £1,035.06
from £1,035.06
CARBON AUTOM.GEARBOX CTRL KNOB Genuine Maserati Part - New (to order)
# 002
MPN: 197106
GEARBOX CONTROL KNOB
- Optional - Leather drilled - Not for F1
from £484.25
from £484.25
LEATHER GEARBOX CONTROL KNOB Genuine Maserati Part - New (to order)
# 003
MPN: 16100814
NUT
- Not for F1
from £0.47
from £0.47
NUT FOR REAR DIFFERENTIAL Genuine Maserati Part - New In stock
Genuine Ferrari Part (no longer available to order)
# 004
MPN: 12601374
WASHER
- Not for F1
from £0.47
from £0.47
WASHER Genuine Maserati Part - New In stock
WASHER Genuine Ferrari Part - New In stock
# 005
MPN: 12625224
WASHER
- Not for F1
from £0.47
from £0.47
This part replaces part number 12625221
WASHER Genuine Maserati Part - New (to order)
WASHER Genuine Ferrari Part - New In stock
# 006
MPN: 980001109
MICROSWITCH KIT
- Not for F1
from £15.15
from £15.15
KIT MICROSWITCH Genuine Maserati Part - New (to order)
# 007
MPN: 980001110
GEARBOX CONTROL SLEEVE KIT
- Not for F1
from £8.44
from £8.44
MG LEVER KIT Genuine Maserati Part - New (to order)
# 008
MPN: 185807
COMPLETE GEAR COUPLING CABLE
- Not for F1 - Valid till car Ass. Nr. 13598 - Not for cars with complete gearbox code 203017
from £573.36
from £573.36
GEARBOX CONTROL-CPL GEARSHIFT LEV Genuine Maserati Part - New (to order)
# 008
MPN: 208630
COMPLETE GEAR COUPLING CABLE
- Not for F1 - Valid from car Ass. Nr. 13599 - Valid for cars with complete gearbox code 203017
from £257.12
from £257.12
GEARBOX CONTROL-CPL GEARSHIFT LEV Genuine Maserati Part - New (to order)
# 009
MPN: 196876
COMPLETE GEARSHIFT ROCKER ARM
- Not for F1
from £249.46
from £249.46
This part replaces part number 186780 which we have in stock
LH REAR COVER Genuine Maserati Part - New (to order)
# 010
MPN: 196878
BALL BEARING
- Not for F1
from £86.10
from £86.10
THREADED BALL BEARING D. 8- 16X 1 Genuine Maserati Part - New In stock
# 011
MPN: 196877
SPACER
- Not for F1
from £358.59
from £358.59
SPACER Genuine Maserati Part - New (to order)
# 012
MPN: 198381
WASHER
- Not for F1
from £11.28
from £11.28
WASHER FOR FASTENING SELEC.ROCKER Genuine Maserati Part - New In stock
# 013
MPN: 12604474
WASHER
- Not for F1
from £0.47
from £0.47
This part replaces part number 12604479
WASHER Genuine Maserati Part - New (to order)
WASHER Genuine Ferrari Part - New In stock
# 014
MPN: 14075811
NUT
- Not for F1
from £1.63
from £1.63
This part replaces part number 314632309
S-LOCK.HEX.NUT M8 WITH METAL FIT. Genuine Maserati Part - New (to order)
# 015
MPN: 186780
BRACKET FOR GEARBOX CABLE FIXING
- Not for F1
from £273.42
from £273.42
Genuine Maserati Part (no longer available to order)
BRACKET FOR SHIFTER CABLE Genuine Maserati Part - New (other) In stock
taken off new gearbox
# 016
MPN: 16296921
SCREW
- Not for F1
from £1.55
from £1.55
SCREW Genuine Maserati Part - New In stock
# 017
MPN: 103226
SELF LUBRICATING BUSHING
- Not for F1
from £2.32
from £2.32
SELF-LUBRICATING BUSHING 18- Genuine Maserati Part - New (to order)
BUSH Genuine Ferrari Part - New (to order)
# 018
MPN: 183396
BUSHING
- Not for F1
from £33.15
from £33.15
GEARSHIFT LEVER ROTATION BUSHING Genuine Maserati Part - New (to order)
# 019
MPN: 184525
WASHER
- Not for F1
from £3.16
from £3.16
WASHER FASTENING ENG.LEVER Genuine Maserati Part - New (to order)
# 020
MPN: 12604574
WASHER
- Not for F1
from £0.47
from £0.47
WASHER Genuine Maserati Part - New (to order)
WASHER. Genuine Ferrari Part - New In stock
# 021
MPN: 15888724
SCREW
- Not for F1
from £0.56
from £0.56
HEX HEAD SCREW M 10X1.25X Genuine Maserati Part - New In stock
SCREW Genuine Ferrari Part - New (to order)
# 022
MPN: 185976
COMPLETE TIE ROD FOR GEARSHIFT
- Not for F1
from £46.16
from £46.16
COMPLETE TIE-ROD FOR GEAR SELECTI Genuine Maserati Part - New (to order)
# 023
MPN: 183738
COUNTER WEIGHT
- Not for F1 - Valid till car Ass. Nr. 13598 - Not for cars with complete gearbox code 203017
from £48.77
from £48.77
COUNTER WEIGHT BLOCK FOR SHIFTER Genuine Maserati Part - New (to order)
# 023
MPN: 208631
COUNTER WEIGHT
- Not for F1 - Valid from car Ass. Nr. 13599 - Valid for cars with complete gearbox code 203017
from £118.16
from £118.16
COUNTER-WEIGHT -NOT FOR F1- Genuine Maserati Part - New (to order)
# 024
MPN: 16286224
SCREW
- Not for F1 - Valid till car Ass. Nr. 13598 - Not for cars with complete gearbox code 203017
from £1.55
from £1.55
FLANGED HEX HEAD SCREW M6X25 Genuine Maserati Part - New (to order)
SCREW Genuine Ferrari Part - New In stock
# 025
MPN: 14058419
NUT
- Not for F1 - Valid till car Ass. Nr. 13598 - Not for cars with complete gearbox code 203017
from £0.54
from £0.54
NUT WITH FLANGE Genuine Maserati Part - New In stock
NUT Genuine Ferrari Part - New (to order)
# 026
MPN: 174912
FORK FOR GEARBOX CONTROL COUPLING
- Not for F1
from £95.38
from £95.38
FORK FOR GEARBOX CONTROL ENG Genuine Maserati Part - New (to order)
FORK Genuine Ferrari Part - New In stock
# 027
MPN: 171673
SPACER
- Not for F1
from £3.63
from £3.63
SPACER BETWEEN UNIBALL AND FORK Genuine Maserati Part - New (to order)
SPACER Genuine Ferrari Part - New In stock
# 028
MPN: 174974
PIN
- Not for F1
from £10.51
from £10.51
LEVER FORK PIN Genuine Maserati Part - New (to order)
PERNO PER FORCELLINA LEVERAG Genuine Ferrari Part - New In stock
# 029
MPN: 11065674
SEEGER RING
- Not for F1
from £0.47
from £0.47
SEEGER RING FOR SHAFT D.8 Genuine Maserati Part - New In stock
SEEGER RING. Genuine Ferrari Part - New In stock
# 030
MPN: 16135724
SCREW
- Not for F1
from £1.85
from £1.85
SCREW Genuine Maserati Part - New (to order)
SCREW Genuine Ferrari Part - New (to order)
# 031
MPN: 67604226
F1 CONTROL DASHBOARD
- Valid for F1 - Not for USA, CDN and GD - Bordeaux color
from £1,166.39
from £1,166.39
PLANCETTA INT/PULS. F1 GS BO Genuine Maserati Part - New (to order)
# 031
MPN: 67604227
F1 CONTROL DASHBOARD
- Valid for F1 - Not for USA, CDN and GD - Aluminium color
from £1,062.91
from £1,062.91
This part replaces part number 67604228
PLANCETTA INT/PULS. F1 GS GR Genuine Maserati Part - New In stock
# 031
MPN: 67604326
F1 CONTROL DASHBOARD
- Valid for F1 - Valid for GD - Bordeaux color
from £1,264.91
from £1,264.91
PLANCETTA INT/PULS. F1 GD BO Genuine Maserati Part - New (to order)
# 031
MPN: 67604327
F1 CONTROL DASHBOARD
- Valid for F1 - Valid for GD - Gray color
from £1,264.91
from £1,264.91
This part replaces part number 67604328
PLANCETTA INT/PULS. F1 GD GR Genuine Maserati Part - New (to order)
# 031
MPN: 67604328
F1 CONTROL DASHBOARD
- Valid for F1 - Valid for GD - Aluminium color
Supersession
Supersession
Genuine Maserati Part (no longer available to order)
# 031
MPN: 67734326
F1 CONTROL DASHBOARD
- Valid for F1 - Valid for USA and CDN - Bordeaux color
from £986.53
from £986.53
F1 CONTROL SWITCH PANEL Genuine Maserati Part - New (to order)
# 031
MPN: 67734327
F1 CONTROL DASHBOARD
- Valid for F1 - Valid for USA and CDN - Gray color
from £1,125.33
from £1,125.33
PLANCETTA INT/PULS. F1 GRIGI Genuine Maserati Part - New (to order)
# 031
MPN: 67734328
F1 CONTROL DASHBOARD
- Valid for F1 - Valid for USA and CDN - Aluminium color
from £927.38
from £927.38
F1 CONTROL SWITCH PANEL Genuine Maserati Part - New (to order)
Valid for F1 - Not for GD - Aluminium color
# 032
MPN: 67968400
FIXING CLIP
- Valid for F1 - Valid till car Ass. Nr. 12244
from £2.32
from £2.32
This part replaces part number 65048300
MOLLETTA A SCATTO Genuine Maserati Part - New In stock
# 032
MPN: 67968400
FIXING CLIP
- Valid for F1 - Valid from car Ass. Nr. 12245
from £2.32
from £2.32
This part replaces part number 65048300
MOLLETTA A SCATTO Genuine Maserati Part - New In stock
# 033
MPN: 66951200
Maserati MARK
- Valid for F1
from £35.18
from £35.18
TRIDENTE SU PLANCETTA F1 M13 Genuine Maserati Part - New (to order)
# 034
MPN: 193082
CLIP
- Not for F1
from £17.70
from £17.70
CLIP Genuine Maserati Part - New (to order)
# 035
MPN: 16285011
SCREW
- Not for F1
from £0.99
from £0.99
SCREW Genuine Maserati Part - New (to order)
SCREW Genuine Ferrari Part - New (to order)
# 036
MPN: 12637801
WASHER
- Not for F1
from £0.47
from £0.47
SPLIT WASHER D.2 5.15 -11X 1 Genuine Maserati Part - New In stock
WASHER Genuine Ferrari Part - New In stock
# 037
MPN: 67968500
SMALL PLATE
- Valid for F1 - Valid from car Ass. Nr. 12245
from £2.32
from £2.32
PIASTRINO FISS. MOLLA A SCAT Genuine Maserati Part - New (to order)
# 038
MPN: 208635
SCREW
- Valid from car Ass. Nr. 13599 - Valid for cars with complete gearbox code 203017
from £6.65
from £6.65
SCREW Genuine Maserati Part - New (to order)
# 039
MPN: 208634
SCREW
- Valid from car Ass. Nr. 13599 - Valid for cars with complete gearbox code 203017
from £1.55
from £1.55
SCREW Genuine Maserati Part - New (to order)
# 040
MPN: 208633
PIN
- Included in the gear coupling cable (Pos. 8) - Valid from car Ass. Nr. 13599 - Valid for cars with complete gearbox code 203017
from £36.56
from £36.56
PIN Genuine Maserati Part - New (to order)
