047 - Rear Suspension Wishbones

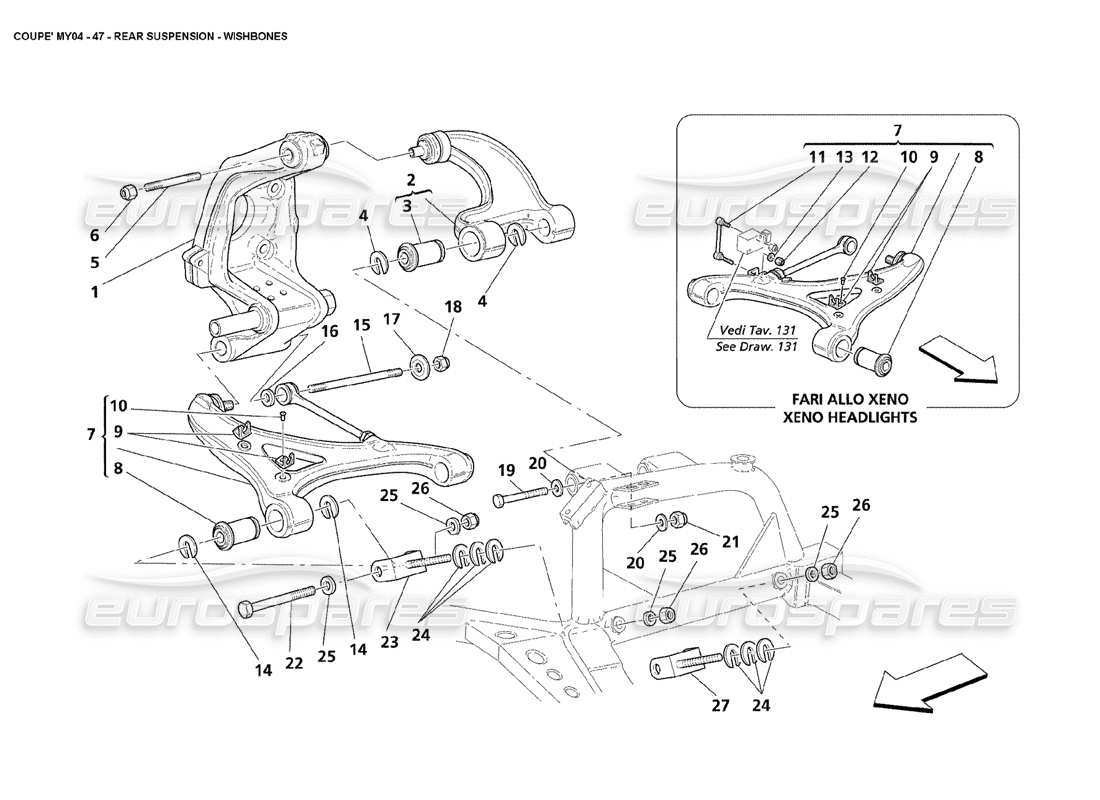

Maserati 4200 Coupe (2004) Rear Suspension Wishbones Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 189334
RH REAR HUB HOLDER
from £336.00
from £336.00
# 001
MPN: 189335
LH REAR HUB HOLDER
from £355.38
from £355.38
# 003
MPN: 186496
FLANBLOC
from £98.23
from £98.23
# 004
MPN: 377030378
WASHER
- Thickness mm. 0,50
from £3.16
from £3.16
# 004
MPN: 377030379
WASHER
- Thickness mm. 0,75
from £3.86
from £3.86
# 004
MPN: 377030380
WASHER
- Thickness mm. 1,00
from £17.23
from £17.23
# 004
MPN: 377030381
WASHER
- Thickness mm. 1,75
from £3.86
from £3.86
# 004
MPN: 377030382
WASHER
- Thickness mm. 3,00
from £4.57
from £4.57
# 005
MPN: 13530624
STUD
from £21.56
from £21.56
# 006
MPN: 14048825
NUT
from £4.57
from £4.57
# 007
MPN: 196776
COMPLETE LH LOWER LEVER
- Standard
from £190.68
from £190.68
This part replaces part number 196038
# 007
MPN: 198027
COMPLETE RH LOWER LEVER
from £190.68
from £190.68
This part replaces part number 196037
# 007
MPN: 198501
LH REAR LOWER LEVER
from £190.68
from £190.68
This part replaces part number 196039 - and 1 more. Click to view details
# 007
MPN: 198503
RH REAR LOWER LEVER
from £190.68
from £190.68
This part replaces part number 196034 - and 1 more. Click to view details
# 008
MPN: 186494
FLANBLOC
from £106.03
from £106.03
# 009
MPN: 387000393
ABS CABLE BRACKET
from £72.34
from £72.34
# 010
MPN: 13684370
RIVET
from £1.39
from £1.39
# 011
MPN: 188632
TIE ROD
- Valid for opt. Xeno headlights - Not for USA and CDN
from £66.30
from £66.30
# 012
MPN: 12574215
NUT
- Valid for opt. Xeno headlights - Not for USA and CDN
from £1.23
from £1.23
# 013
MPN: 14498805
WASHER
- Valid for opt. Xeno headlights - Not for USA and CDN
from £0.47
from £0.47
# 014
MPN: 377030378
WASHER
- Thickness mm. 0,50
from £3.16
from £3.16
# 014
MPN: 377030379
WASHER
- Thickness mm. 0,75
from £3.86
from £3.86
# 014
MPN: 377030380
WASHER
- Thickness mm. 1,00
from £17.23
from £17.23
# 014
MPN: 377030381
WASHER
- Thickness mm. 1,75
from £3.86
from £3.86
# 014
MPN: 377030382
WASHER
- Thickness mm. 3,00
from £4.57
from £4.57
# 015
MPN: 13531734
STUD
from £17.16
from £17.16
This part replaces part number 13531634
# 016
MPN: 13507521
WASHER
from £2.32
from £2.32
# 017
MPN: 387000329
CUP
from £3.63
from £3.63
# 018
MPN: 14048825
NUT
from £4.57
from £4.57
# 019
MPN: 196071
SCREW
from £4.24
from £4.24
# 020
MPN: 14496825
WASHER
from £1.11
from £1.11
# 021
MPN: 15503915
NUT
from £1.63
from £1.63
# 022
MPN: 196071
SCREW
from £4.24
from £4.24
# 023
MPN: 196521
FRONT FORK
from £51.82
from £51.82
# 024
MPN: 199644
WASHER
- Thickness mm. 0,20
from £2.32
from £2.32
# 024
MPN: 199645
WASHER
- Thickness mm. 0,30
from £2.32
from £2.32
# 024
MPN: 199646
WASHER
- Thickness mm. 0,40
from £2.32
from £2.32
# 024
MPN: 377030378
WASHER
- Thickness mm. 0,50
from £3.16
from £3.16
# 024
MPN: 377030379
WASHER
- Thickness mm. 0,75
from £3.86
from £3.86
# 024
MPN: 377030380
WASHER
- Thickness mm. 1,00
from £17.23
from £17.23
# 024
MPN: 377030381
WASHER
- Thickness mm. 1,75
from £3.86
from £3.86
# 024
MPN: 377030382
WASHER
- Thickness mm. 3,00
from £4.57
from £4.57
# 025
MPN: 14496825
WASHER
from £1.14
from £1.14
# 026
MPN: 15503915
NUT
from £1.63
from £1.63
