117 - Doors Opening Control and Hinges

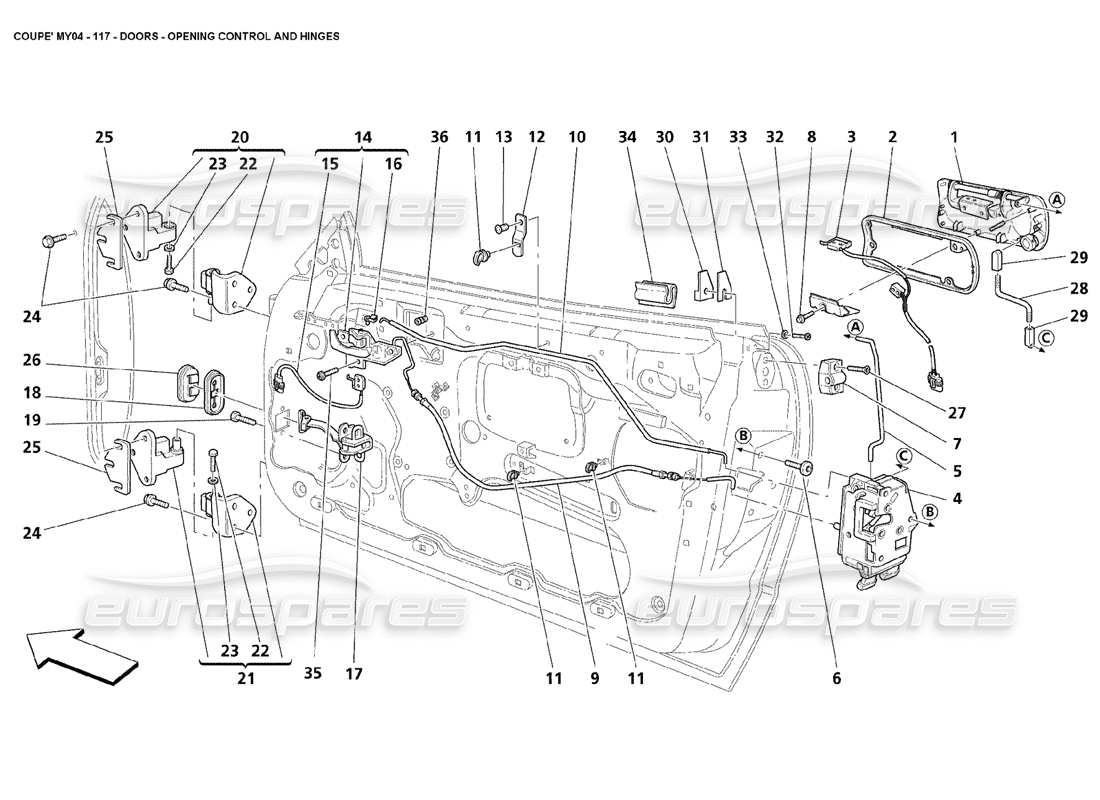

Maserati 4200 Coupe (2004) Doors Opening Control and Hinges Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 67811600
RH DOOR OUTSIDE HANDLE
- Optional - Vintage version
from £222.03
from £222.03
# 001
MPN: 67811700
LH DOOR OUTSIDE HANDLE
- Optional - Vintage version
from £222.03
from £222.03
# 001
MPN: 980000917
LH DOOR OUTSIDE HANDLE
- Standard
from £122.54
from £122.54
This part replaces part number 384500015 - and 1 more. Click to view details
# 001
MPN: 980000918
RH DOOR OUTSIDE HANDLE
- Standard
from £122.54
from £122.54
This part replaces part number 384500016 - and 1 more. Click to view details
# 002
MPN: 980000965
LH HANDLE GASKET
from £37.72
from £37.72
# 002
MPN: 980000966
RH HANDLE GASKET
from £29.06
from £29.06
# 003
MPN: 980000963
LH MICROSWITCH AND CABLE
from £83.16
from £83.16
# 003
MPN: 980000964
RH MICROSWITCH AND CABLE
from £112.16
from £112.16
# 004
MPN: 67294800
RH DOOR LOCK
from £62.38
from £62.38
This part replaces part number 82487456
# 004
MPN: 67294900
LH DOOR LOCK
from £62.38
from £62.38
This part replaces part number 82487457
# 005
MPN: 384500395
LH DOOR HANDLE LOCK TIE ROD
from £3.06
from £3.06
# 005
MPN: 384500396
RH DOOR HANDLE LOCK TIE ROD
from £5.72
from £5.72
# 006
MPN: 46401658
SCREW
from £1.55
from £1.55
# 007
MPN: 60594692
FLEXIBLE BLOCK
from £10.16
from £10.16
# 008
MPN: 16284914
SCREW
from £0.47
from £0.47
This part replaces part number 16284911
# 009
MPN: 67237000
RH DOOR INSIDE RELEASE BOWDEN
from £22.87
from £22.87
# 009
MPN: 67237100
LH DOOR INSIDE RELEASE BOWDEN
from £12.84
from £12.84
# 010
MPN: 66132400
RH DOOR SAFETY TIE ROD
from £8.02
from £8.02
# 010
MPN: 66132500
LH DOOR SAFETY TIE ROD
from £8.02
from £8.02
# 011
MPN: 14572587
CABLES RETAINING CLIP
from £1.08
from £1.08
# 012
MPN: 66061400
BRACKET
from £1.55
from £1.55
# 013
MPN: 15624311
RIVET
from £1.85
from £1.85
# 014
MPN: 67236800
COMPLETE RH DOOR INSIDE HANDLE
from £344.24
from £344.24
# 014
MPN: 67236900
COMPLETE LH DOOR INSIDE HANDLE
from £344.24
from £344.24
# 015
MPN: 388300615
SWITCH
from £40.35
from £40.35
# 016
MPN: 82377992
CABLES RETAINING CLIP
from £0.69
from £0.69
# 017
MPN: 60624357
STOP TIE ROD
from £39.88
from £39.88
This part replaces part number 46420413
# 018
MPN: 60624899
LH GASKET FOR STOP TIE ROD
from £1.55
from £1.55
# 019
MPN: 11620021
SCREW
from £1.55
from £1.55
# 020
MPN: 67358200
COMPLETE RH UPPER HINGE
from £544.93
from £544.93
This part replaces part number 384500114 which we have in stock - and 3 more. Click to view details
# 020
MPN: 67358300
COMPLETE LH UPPER HINGE
from £184.43
from £184.43
This part replaces part number 384500113 - and 3 more. Click to view details
# 021
MPN: 67358000
COMPLETE RH LOWER HINGE
from £597.13
from £597.13
This part replaces part number 384500118 which we have in stock - and 1 more. Click to view details
# 021
MPN: 67358100
COMPLETE LH LOWER HINGE
from £306.60
from £306.60
This part replaces part number 384500117 - and 1 more. Click to view details
# 022
MPN: 10902434
SCREW
from £0.47
from £0.47
# 023
MPN: 11197774
WASHER
from £0.47
from £0.47
# 024
MPN: 11586024
SCREW
from £3.63
from £3.63
# 025
MPN: 382500536
SHIMMING PLATE
from £36.85
from £36.85
This part replaces part number 314520402 - and 1 more. Click to view details
# 026
MPN: 60624898
RH GASKET FOR STOP TIE ROD
from £1.55
from £1.55
# 027
MPN: 67420200
SCREW
from £1.31
from £1.31
This part replaces part number 67048300
# 028
MPN: 384500390
TIE ROD
from £3.88
from £3.88
# 029
MPN: 53451352
ELASTIC CONNECTION
from £0.69
from £0.69
# 030
MPN: 387700404
RH REAR GUIDE SHOE
from £5.09
from £5.09
# 030
MPN: 387700405
LH REAR GUIDE SHOE
from £5.96
from £5.96
# 031
MPN: 387700406
THICKNESS
from £12.90
from £12.90
# 032
MPN: 13271617
SCREW
from £0.47
from £0.47
# 033
MPN: 14496207
WASHER
Supersession
Supersession
# 034
MPN: 66133300
CLIP
from £2.32
from £2.32
# 035
MPN: 15689907
SCREW
from £1.08
from £1.08
# 036
MPN: 60585246
NUT SCREW
from £0.69
from £0.69
