121 - Front Seat Guide and Movement

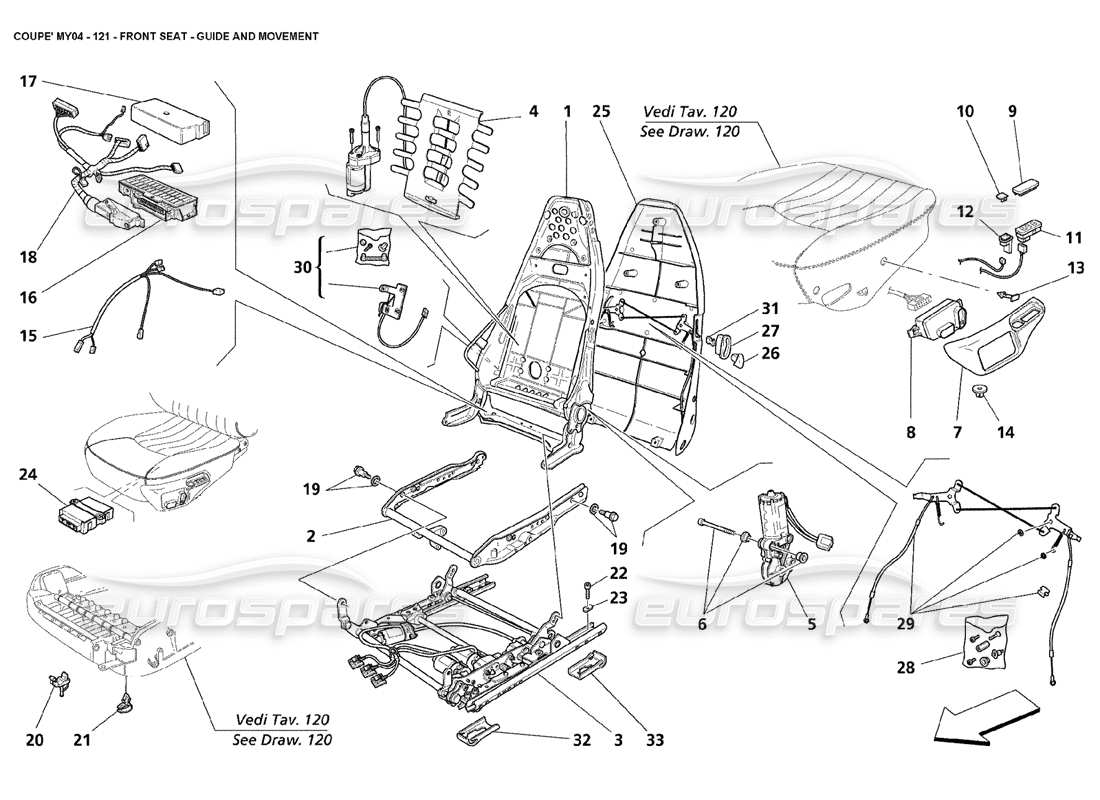

Maserati 4200 Coupe (2004) Front Seat Guide and Movement Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 980001142
BACKSEAT FRAME
from £307.29
from £307.29
# 002
MPN: 980001177
LH CUSHION FRAME
from £94.47
from £94.47
This part replaces part number 980001145
# 002
MPN: 980001178
RH CUSHION FRAME
from £95.39
from £95.39
This part replaces part number 980001146
# 003
MPN: 980001111
PILOT SEAT MOVEMENT
from £1,217.13
from £1,217.13
# 003
MPN: 980138112
PASSENGER SEAT MOVEMENT
from £2,045.09
from £2,045.09
# 004
MPN: 386900100
LOMBAR ADJUST
from £123.94
from £123.94
# 005
MPN: 386900402
PASSENGERS BACKSEAT ADJUST ENGINE
from £124.54
from £124.54
# 005
MPN: 386901402
PILOT BACKSEAT ADJUST ENGINE
from £275.56
from £275.56
# 006
MPN: 386900403
ENGINE FIXINGS
from £37.56
from £37.56
# 007
MPN: 66710400
RH SEAT CARTER
from £7.30
from £7.30
This part replaces part number 66711800 - and 1 more. Click to view details
# 007
MPN: 66710700
LH SEAT CARTER
from £13.89
from £13.89
This part replaces part number 66712900
# 008
MPN: 386900223
LH SEAT MOVEMENT CONTROL JOYSTICK
from £87.27
from £87.27
# 008
MPN: 386900224
RH SEAT MOVEMENT CONTROL JOYSTICK
from £82.79
from £82.79
# 009
MPN: 980001124
PLUG FOR MEMORIES BUTTON
from £5.57
from £5.57
# 010
MPN: 980001123
PLUG FOR HEATER BUTTON
from £5.09
from £5.09
# 011
MPN: 386901225
MEMORIER BUTTON PANEL
from £59.47
from £59.47
# 012
MPN: 386901226
HEATHER CONTROL BUTTON
from £12.68
from £12.68
# 013
MPN: 386900404
CARTER FIXING CLIP
from £11.28
from £11.28
# 014
MPN: 386900405
CARTER FIXING NUT
from £3.24
from £3.24
# 015
MPN: 980001117
PILOT SEAT CABLE
from £72.76
from £72.76
# 015
MPN: 980138113
PASSENGER SEAT CABLE
- Valid for GD
from £267.61
from £267.61
# 015
MPN: 980138114
PASSENGER SEAT CABLE
- Not for GD
from £267.61
from £267.61
# 016
MPN: 980001115
PILOT SIDE MEMORIES CONTROL UNIT
from £908.71
from £908.71
# 017
MPN: 980001116
PILOT SIDE CONTROL UNIT COVER
from £32.38
from £32.38
# 018
MPN: 980001129
PILOT SIDE MEMORY CABLE
- Not for GD
from £565.51
from £565.51
# 018
MPN: 980001130
PILOT SIDE MEMORY CABLE
- Valid for GD
from £320.00
from £320.00
# 019
MPN: 980001023
PILOT SEAT MOVEMENT FIXING KIT
from £72.81
from £72.81
# 020
MPN: 386900406
CLIP
from £5.09
from £5.09
# 021
MPN: 386900407
CLIP
from £6.42
from £6.42
# 022
MPN: 376900302
SCREW
from £4.24
from £4.24
# 023
MPN: 386900302
ELASTIC PLATE
from £0.77
from £0.77
# 024
MPN: 386900200
EASY ENTRY CONTROL STATION
Supersession
Supersession
# 025
MPN: 66710000
SEAT BACK PANEL
from £201.31
from £201.31
# 026
MPN: 980138109
SEAT RELEASE LEVER
from £3.63
from £3.63
# 027
MPN: 980138108
SEAT RELEASE LEVER PLATE
from £45.56
from £45.56
# 028
MPN: 980138111
PANEL FIXING KIT
from £56.34
from £56.34
# 029
MPN: 980138110
SEAT RELEASE CABLE KIT
from £61.59
from £61.59
# 030
MPN: 386900309
KIT FOR LH EASY ENTRY MICROSWITCH
Supersession
Supersession
# 030
MPN: 386900310
KIT FOR RH EASY ENTRY MICROSWITCH
Supersession
Supersession
# 031
MPN: 386900313
CLIP
from £2.85
from £2.85
# 032
MPN: 388100472
FRONT SHIELD FOR FRONT SEAT GUIDE
from £5.50
from £5.50
# 033
MPN: 388100474
REAR SHIELD FOR FRONT SEAT GUIDE
from £4.81
from £4.81
