146 - Stereo Equipment Accesories

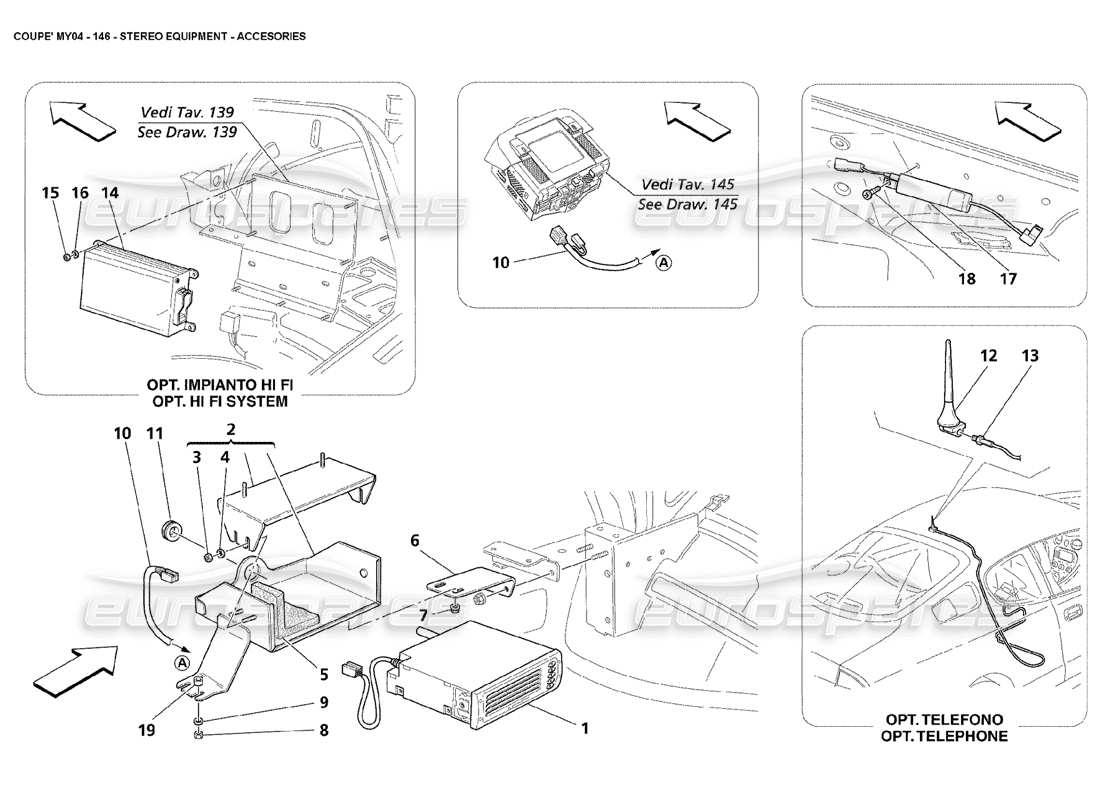

Maserati 4200 Coupe (2004) Stereo Equipment Accesories Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 233649
CD CHARGER
- Optional - CD charger - Not for J
from £510.69
from £510.69
This part replaces part number 383500140
# 002
MPN: 67669600
COMPLETE CD CHARGER BRACKET
- Optional - CD charger
from £114.00
from £114.00
This part replaces part number 192912
# 003
MPN: 15896211
NUT
- Optional - CD charger
Supersession
Supersession
# 004
MPN: 13579224
WASHER
- Optional - CD charger - Optional - CD charger
from £0.47
from £0.47
# 005
MPN: 67116100
ANTI VIBRATION GASKET
from £3.63
from £3.63
# 006
MPN: 67668300
BRACKET FOR SUPPORT BOX CD CHARGER
- Optional - CD charger
from £8.20
from £8.20
# 007
MPN: 13046111
NUT
- Optional - CD charger
from £0.47
from £0.47
# 008
MPN: 15896211
NUT
- Optional - CD charger
Supersession
Supersession
# 009
MPN: 13579224
WASHER
- Optional - CD charger
from £0.47
from £0.47
# 010
MPN: 201190
CD CHARGER CABLE
- Optional - CD charger - Not for J
from £30.52
from £30.52
This part replaces part number 190278 - and 1 more. Click to view details
# 011
MPN: 319220361
RUBBER
- Optional - CD charger
from £2.32
from £2.32
# 012
MPN: 183667
TELEPHONE ANTENNA
- Optional - Telephone - Not for USA, CDN and J
from £95.16
from £95.16
# 013
MPN: 200653
ANTENNA CABLE TO TELEPHONE
- Optional - Telephone - Not for USA, CDN and J
from £51.73
from £51.73
This part replaces part number 183668 which we have in stock
# 014
MPN: 193476
AMPLIFIER
- Optional - HI FI system
from £686.22
from £686.22
# 015
MPN: 15896211
NUT
- Optional - HI FI system
Supersession
Supersession
# 016
MPN: 13579224
WASHER
- Optional - HI FI system
from £0.47
from £0.47
# 017
MPN: 201458
POSITIVE REAR WINDOW FILTER
from £12.32
from £12.32
This part replaces part number 383500110 which we have in stock - and 1 more. Click to view details
# 018
MPN: 13273824
SCREW
from £1.21
from £1.21
# 019
MPN: 13604015
SPACER
- Optional - CD charger
from £0.47
from £0.47
