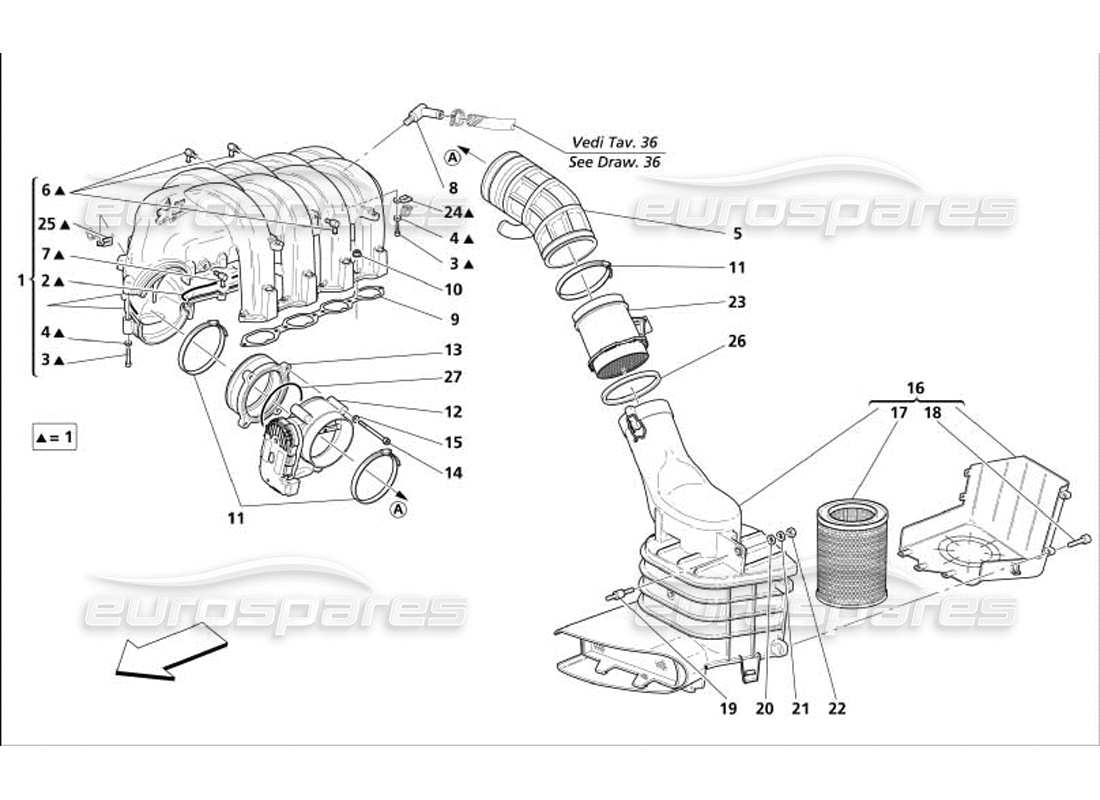

013 - Air Intake Manifold
Maserati 4200 Coupe (2005) Air Intake Manifold Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 199039
COMPLETE SUCTION MANIFOLD
from £700.79
from £700.79
# 002
MPN: 180830
GASKET
from £15.38
from £15.38
# 003
MPN: 14305524
SCREW
M6X30
from £0.52
from £0.52
# 003
MPN: 14305824
SCREW
M6X40
from £0.53
from £0.53
# 003
MPN: 14432224
SCREW
M6X22
from £0.49
from £0.49
# 003
MPN: 14441424
SCREW
M6X20
from £1.15
from £1.15
# 004
MPN: 11197774
WASHER
from £0.52
from £0.52
# 005
MPN: 180047
SLEEVE
from £29.23
from £29.23
# 006
MPN: 128016
THREADED UNION
from £6.74
from £6.74
# 007
MPN: 174818
THREADED UNION
from £9.10
from £9.10
# 008
MPN: 124342
THREADED UNION
from £3.56
from £3.56
# 009
MPN: 219459
GASKET
Supplied also in the cylinder headsgasket revision kit (cod. 980020001)
from £6.81
from £6.81
This part replaces part number 185824
# 010
MPN: 159601
NUT
from £0.52
from £0.52
# 011
MPN: 190151
CLAMP
from £2.01
from £2.01
# 012
MPN: 179912
THROTTLE HOLDER
from £309.95
from £309.95
# 013
MPN: 240262
SPACER
from £61.82
from £61.82
This part replaces part number 195206
# 014
MPN: 14305924
SCREW
from £0.51
from £0.51
This part replaces part number 14305921 - and 1 more. Click to view details
# 015
MPN: 11197774
WASHER
from £0.53
from £0.53
# 016
MPN: 196832
COMPLETE FILTER BOX
from £161.43
from £161.43
This part replaces part number 189757
# 017
MPN: 186183
AIR FILTER
from £30.52
from £30.52
# 018
MPN: 184829
SCREW
from £4.88
from £4.88
# 019
MPN: 184824
PAD
from £9.55
from £9.55
# 020
MPN: 12643724
WASHER
from £0.52
from £0.52
# 021
MPN: 12544274
WASHER
from £1.85
from £1.85
# 022
MPN: 15896224
NUT
from £0.53
from £0.53
# 023
MPN: 180045

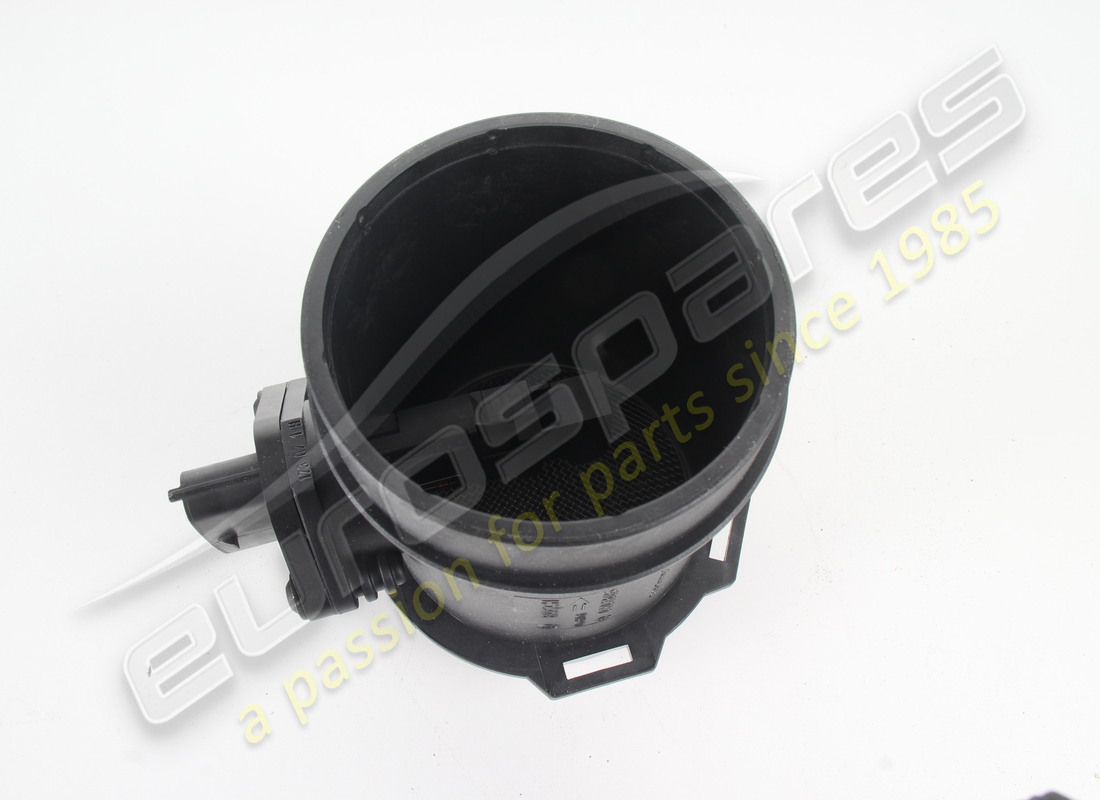

AIR FLOW METER
from £151.54
from £151.54
# 024
MPN: 190509
PIPES SUPPORTING BRACKET
from £130.69
from £130.69
# 025
MPN: 191009
PIPES SUPPORTING BRACKET
from £60.28
from £60.28
# 026
MPN: 193113
GASKET
from £3.24
from £3.24
# 027
MPN: 150302
O.R. GASKET
from £1.66
from £1.66
