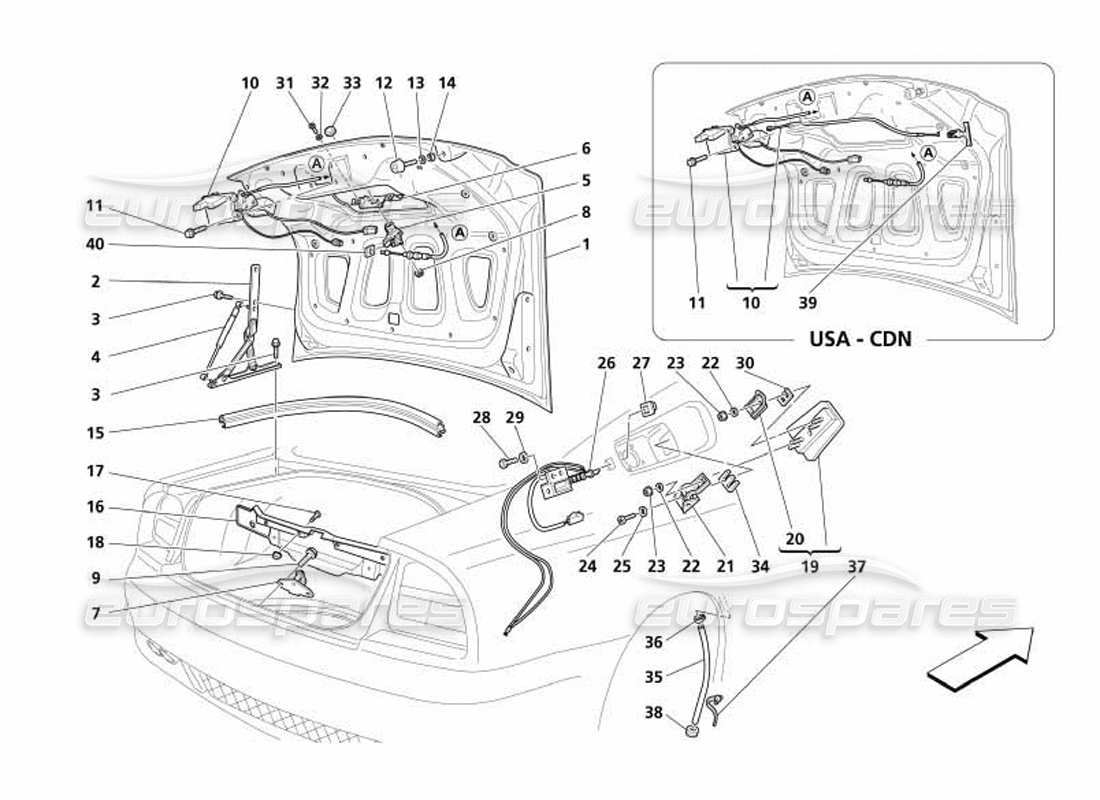

115 - Trunk Hood Bonnet and Gas Door
Maserati 4200 Coupe (2005) Trunk Hood Bonnet and Gas Door Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 67372600
COMPLETE REAR DOOR
Not for USA and CDN
from £2,356.15
from £2,356.15
This part replaces part number 66603300 - and 1 more. Click to view details
# 001
MPN: 67372700
COMPLETE REAR DOOR
Valid for USA and CDN
from £1,089.08
from £1,089.08
This part replaces part number 67026800
# 002
MPN: 384700105
LH HINGE
from £56.41
from £56.41
# 002
MPN: 384700106
RH HINGE
from £56.41
from £56.41
# 003
MPN: 82448954
SCREW
from £4.24
from £4.24
This part replaces part number 18770424
# 004
MPN: 384700118
LUGGAGE COMPARTMENT STRUT
from £53.83
from £53.83
# 005
MPN: 82484270
TRUNK HOOD OPENING CONTROL
from £10.97
from £10.97
# 006
MPN: 384700127
BRACKET
from £6.50
from £6.50
# 007
MPN: 82487413
BOOT LOCK STRIKER
from £4.63
from £4.63
# 008
MPN: 13046114
NUT
from £0.54
from £0.54
# 009
MPN: 10704324
SCREW
from £1.85
from £1.85
# 010
MPN: 384700125
COMPLETE BOOT LOCK- BOWDEN CABLE
Not for USA and CDN
from £280.93
from £280.93
# 010
MPN: 67554600
COMPLETE BOOT LOCK- BOWDEN CABLE
Valid for USA and CDN
from £319.87
from £319.87
This part replaces part number 66914200 - and 2 more. Click to view details
# 011
MPN: 10704324
SCREW
from £1.85
from £1.85
# 012
MPN: 60616619
FLEXIBLE PAD
from £3.59
from £3.59
# 013
MPN: 11182277
WASHER
from £1.85
from £1.85
# 014
MPN: 16102311
NUT
from £0.42
from £0.42
# 015
MPN: 68084300
GASKET FOR TRUNK HOOD
from £35.88
from £35.88
This part replaces part number 384700130 - and 1 more. Click to view details
# 016
MPN: 66244100
REAR TRIM
from £53.26
from £53.26
# 017
MPN: 15783507
SCREW
from £1.11
from £1.11
# 018
MPN: 7754387
BLOCK
Supersession
Supersession
# 019
MPN: 382501050
COMPLETE FUEL INLET LID
from £78.75
from £78.75
This part replaces part number 382500050 which we have in stock - and 1 more. Click to view details
# 020
MPN: 67502500
WIRE ROD
from £11.82
from £11.82
# 021
MPN: 382500201
HINGE FOR GAS UNION DOOOR
from £35.41
from £35.41
# 022
MPN: 12638104
WASHER
from £0.53
from £0.53
# 023
MPN: 14075611
NUT
from £1.31
from £1.31
# 024
MPN: 13283214
SCREW
from £1.08
from £1.08
# 025
MPN: 10519304
WASHER
from £0.85
from £0.85
This part replaces part number 14496304
# 026
MPN: 383300195
FUEL INLET LID ACTUATOR
from £69.22
from £69.22
# 027
MPN: 388100355
RUBBER
from £6.81
from £6.81
# 028
MPN: 10977624
SCREW
from £0.53
from £0.53
# 029
MPN: 135600050
WASHER
from £0.84
from £0.84
# 030
MPN: 382500554
ADJUSTING PLATE
from £2.85
from £2.85
This part replaces part number 66193600
# 031
MPN: 13283514
SCREW
from £1.55
from £1.55
# 032
MPN: 12642801
WASHER
from £0.54
from £0.54
# 033
MPN: 82484271
GASKET
from £1.08
from £1.08
# 034
MPN: 66919100
SHIMMING PLATE
from £1.93
from £1.93
# 035
MPN: 388100356
LIQUID OUTLET HOSE
from £3.24
from £3.24
# 036
MPN: 13000290
SCREW COLLAR
from £0.56
from £0.56
# 037
MPN: 7601962
CLAMP
Supersession
Supersession
# 038
MPN: 53241312
CABLE BUSHING
from £1.09
from £1.09
# 039
MPN: 67232100
HANDLE
Valid for USA and CDN
from £12.47
from £12.47
# 040
MPN: 67587700
NUT
from £3.16
from £3.16
