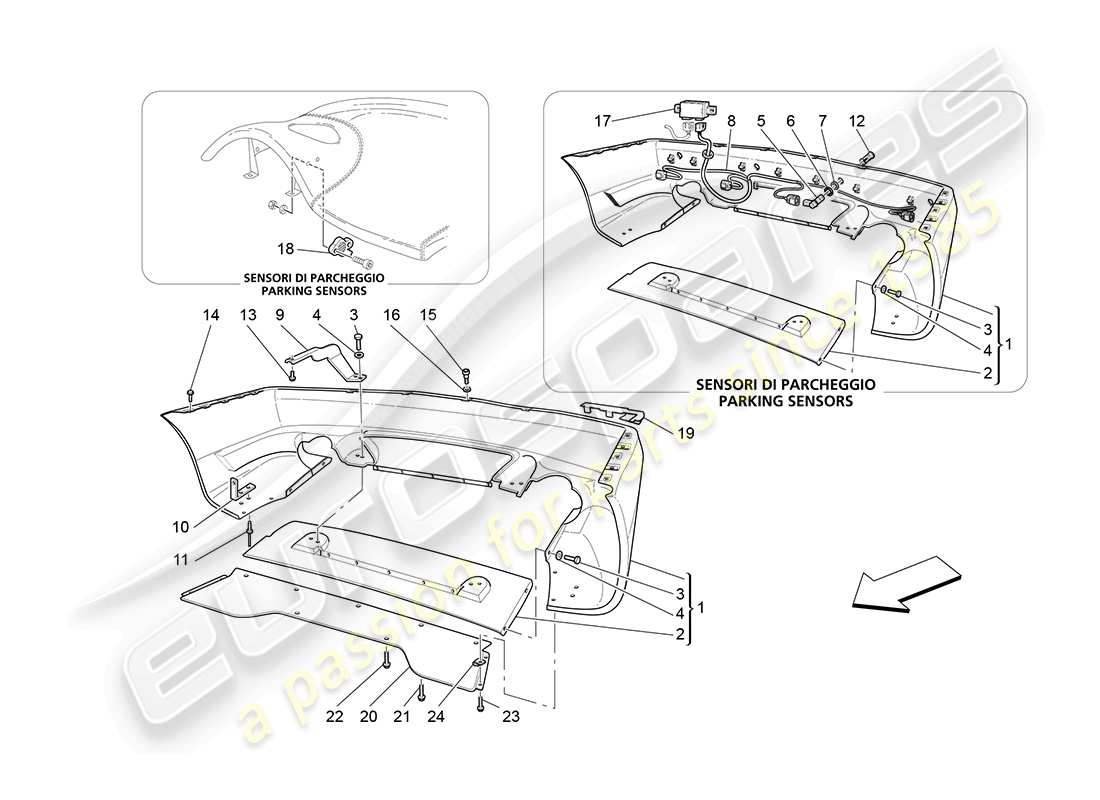

107 - REAR BUMPER
Maserati 4200 Gransport (2005) Rear Bumper Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 01
MPN: 980138248
COMPLETE REAR BUMPER
Standard- -Black nets- -Not for USA and CDN
from £955.70
from £955.70
# 01
MPN: 980138249
COMPLETE REAR BUMPER
Standard- -Chromate nets- -Not for USA and CDN
from £600.00
from £600.00
# 01
MPN: 980138250
COMPLETE REAR BUMPER
Optional- -Parking sensor- -Black nets- -Not for USA and CDN
from £1,594.10
from £1,594.10
# 01
MPN: 980138251
COMPLETE REAR BUMPER
Optional- -Parking sensor- -Chromate nets- -Not for USA and CDN
from £1,736.12
from £1,736.12
# 01
MPN: 980138252
COMPLETE REAR BUMPER
Standard- -Black nets- -Valid for USA and CDN
from £1,111.21
from £1,111.21
# 01
MPN: 980138253
COMPLETE REAR BUMPER
Standard- -Chromate nets- -Valid for USA and CDN
from £677.08
from £677.08
# 01
MPN: 980138254
COMPLETE REAR BUMPER
Optional- -Parking sensor- -Black nets- -Valid for USA and CDN
from £1,594.10
from £1,594.10
# 01
MPN: 980138255
COMPLETE REAR BUMPER
Optional- -Parking sensor- -Chromate nets- -Valid for USA and CDN
from £1,093.76
from £1,093.76
# 02
MPN: 980138256
SPOILER
from £797.19
from £797.19
# 03
MPN: 14305324

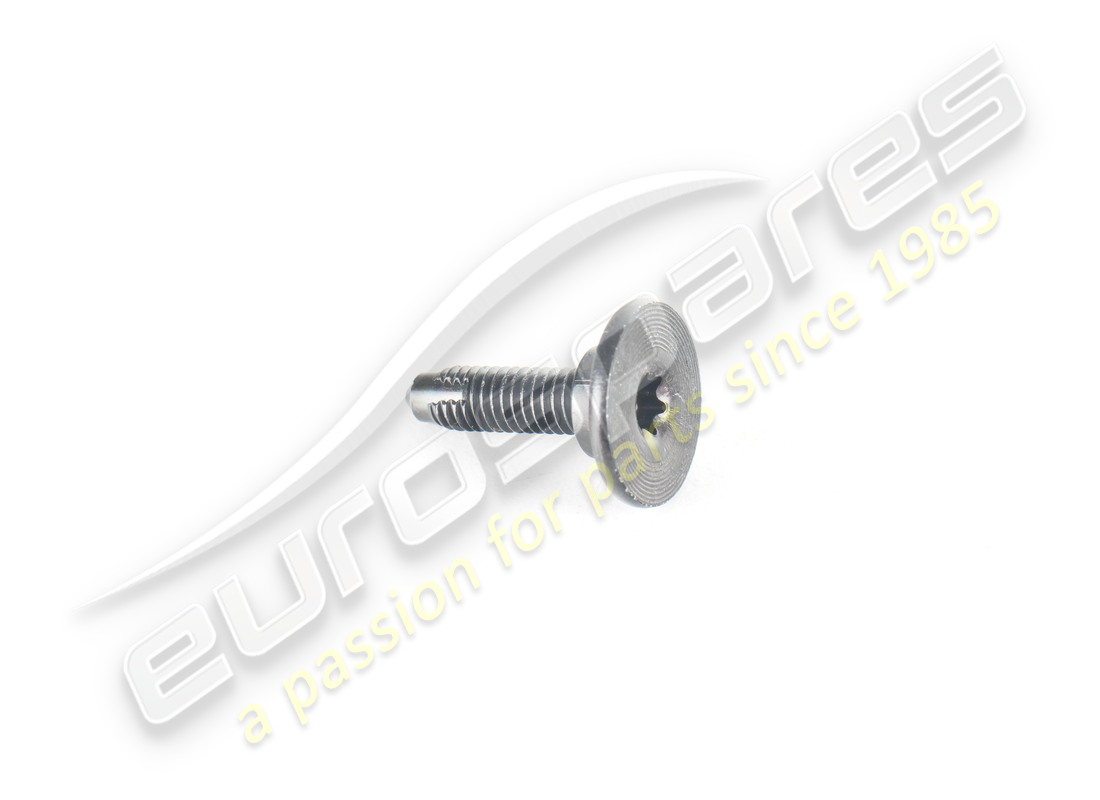

SCREW
from £0.48
from £0.48
This part replaces part number 14305321
# 04
MPN: 12643724
WASHER D 6,15-18X 1,5
from £0.48
from £0.48
# 05
MPN: 184929
PARKING SENSOR
Optional- -Parking sensor
from £133.07
from £133.07
# 06
MPN: 187677
RING NUT
Optional- -Parking sensor
from £26.89
from £26.89
# 07
MPN: 187678
SPACER
Optional- -Parking sensor
from £9.98
from £9.98
# 08
MPN: 200505
BUMPER PARKING SENSOR WIRING HARNESS
Optional- -Parking sensors- -Not for USA and CDN
from £119.40
from £119.40
This part replaces part number 186662 - and 1 more. Click to view details
# 09
MPN: 221029
SIDE MARKERS AND PARKING SENSOR LINKING CABLE
Optional- -Parking sensors- -Valid for USA and CDN
from £166.50
from £166.50
This part replaces part number 200509 - and 1 more. Click to view details
# 09
MPN: 68827400
RH BRACKET
from £157.86
from £157.86
# 09
MPN: 68827500
LH BRACKET
from £157.86
from £157.86
# 10
MPN: 66494900
BRACKET
from £8.05
from £8.05
# 11
MPN: 675000715
RIVET
from £1.13
from £1.13
# 12
MPN: 187679

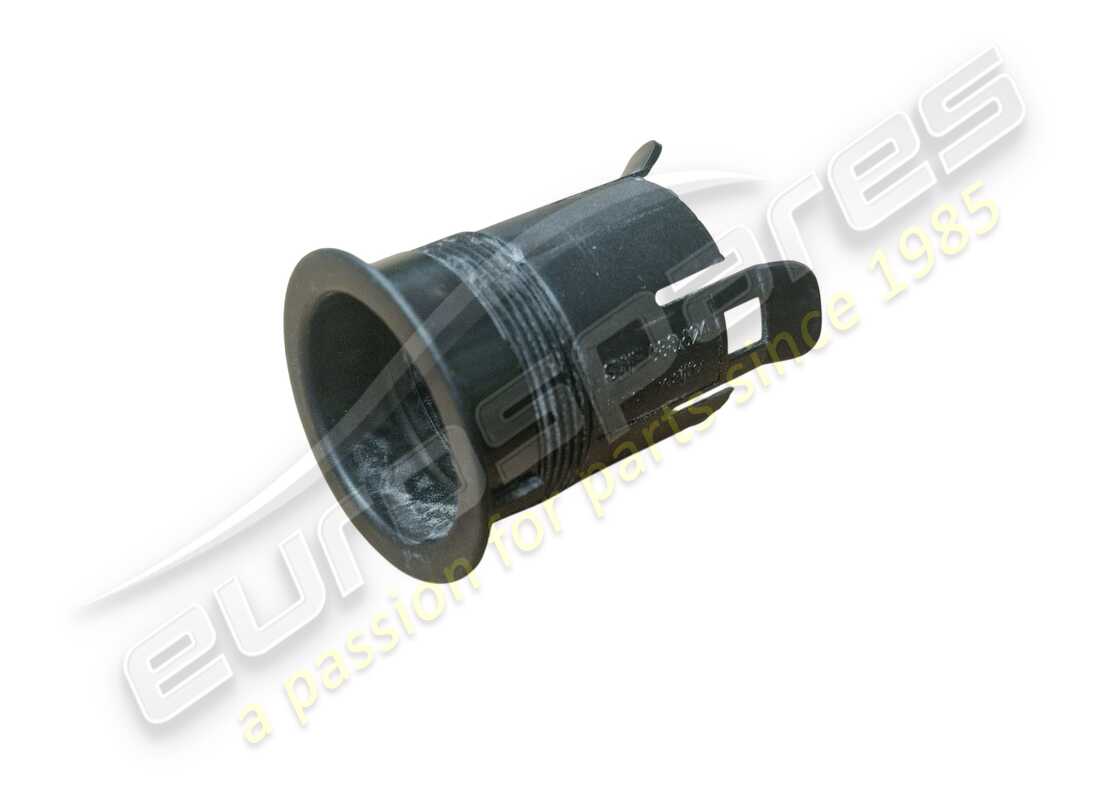

OUTER SLEEVE
Optional- -Parking sensor
from £24.41
from £24.41
# 12
MPN: 187680
INNER SLEEVE
Optional- -Parking sensor
from £19.81
from £19.81
# 13
MPN: 16288321
SCREW
from £0.53
from £0.53
# 14
MPN: 7739729
SCREW
from £1.61
from £1.61
# 15
MPN: 51810310
SCREW
from £2.42
from £2.42
This part replaces part number 46419734
# 16
MPN: 67806700
WASHER
from £1.44
from £1.44
This part replaces part number 312552529
# 17
MPN: 193437
PARKING SENSOR ECU
Optional- -Parking sensor
from £176.48
from £176.48
This part replaces part number 184927 - and 1 more. Click to view details
# 18
MPN: 223469

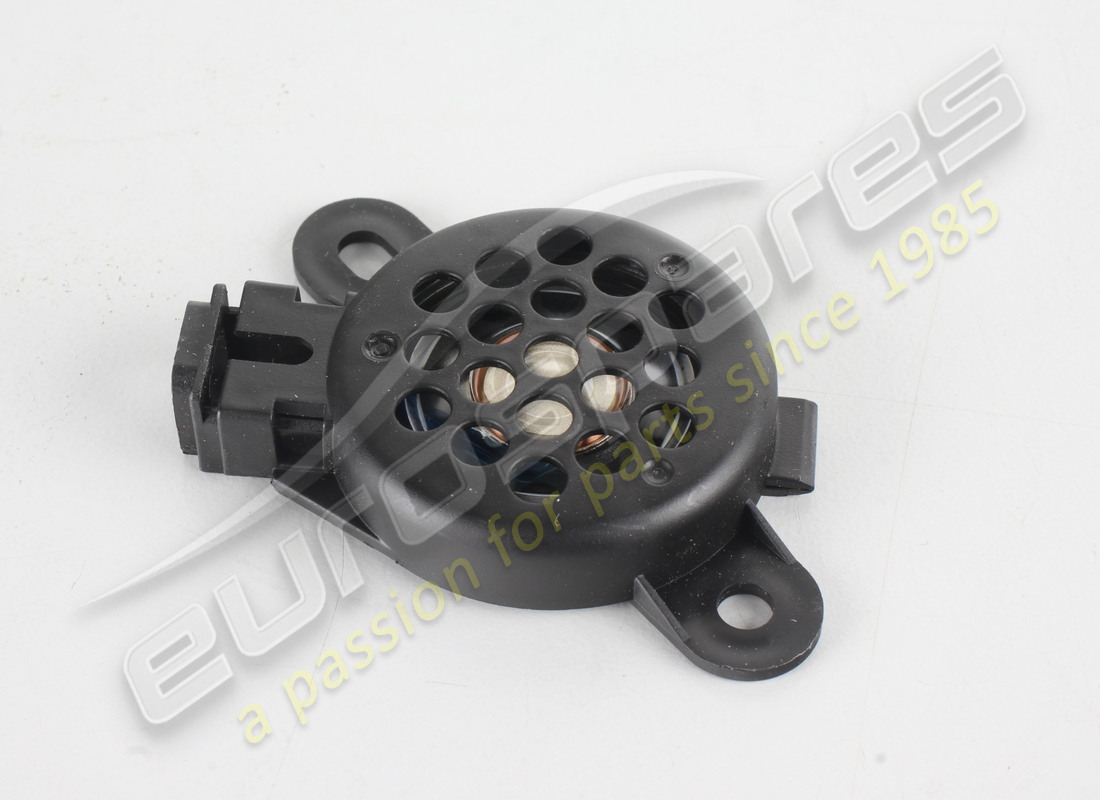

PARKING SENSOR BUZZER
Optional- -Parking sensor- -Valid till stock exhaustion
from £15.32
from £15.32
This part replaces part number 184928 - and 1 more. Click to view details
# 18
MPN: 223469
PARKING SENSOR BUZZER
Optional- -Parking sensor- -Valid after stock exhaustion of 184928
from £15.32
from £15.32
This part replaces part number 184928 - and 1 more. Click to view details
# 19
MPN: 382500540
RH PLATE
from £41.07
from £41.07
# 19
MPN: 382500541
LH PLATE
from £41.07
from £41.07
# 20
MPN: 68331000
BUMPER LOWER SEAL
from £179.53
from £179.53
# 21
MPN: 51810310
SCREW
from £2.42
from £2.42
This part replaces part number 46419734
# 22
MPN: 10711227
SCREW M5X12
from £1.61
from £1.61
# 23
MPN: 67721000
SCREW M5
from £6.21
from £6.21
# 24
MPN: 67278700
BRACKET
from £2.42
from £2.42
