009 - fuel pump and pipes

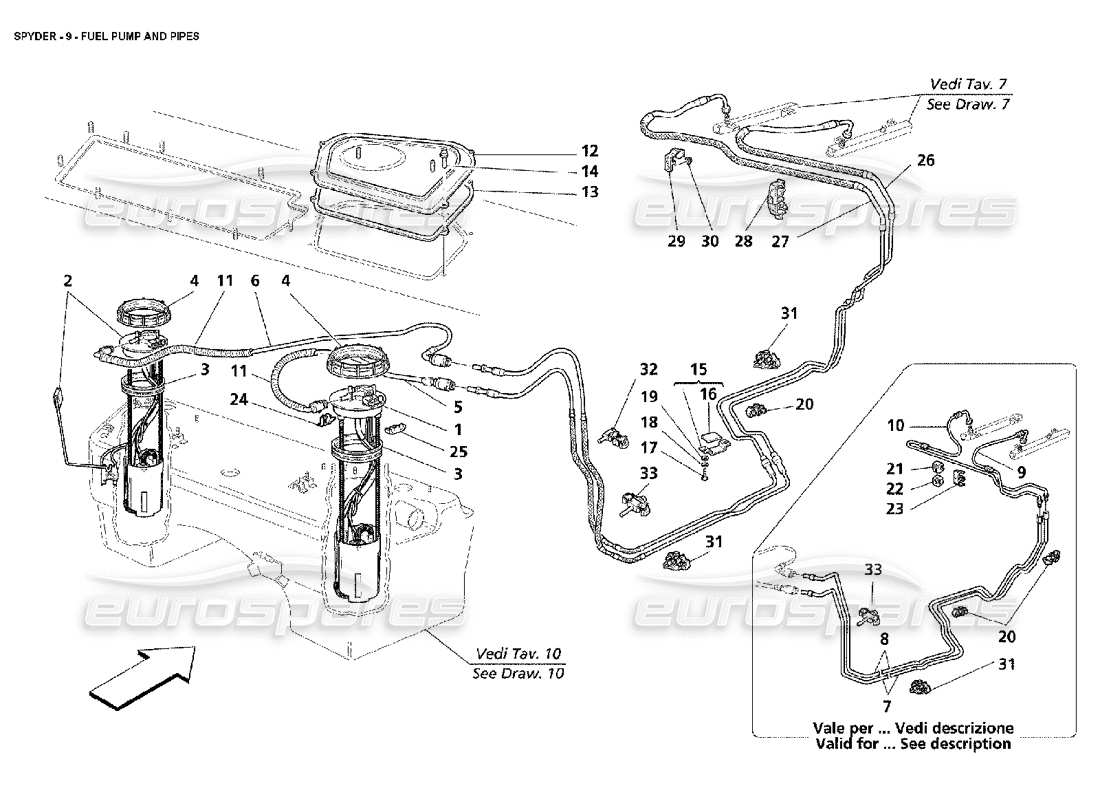

Maserati 4200 Spyder (2002) Fuel Pump and Pipes Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 184348
RH COMPLETE FUEL PUMP
from £252.73
from £252.73
# 002
MPN: 184347
LH COMPLETE FUEL PUMP
from £306.84
from £306.84
# 003
MPN: 181681
GASKET
from £11.67
from £11.67
# 004
MPN: 181682
RING NUT
from £7.78
from £7.78
# 005
MPN: 186702
RH FUEL DELIVERY TUBE
from £29.88
from £29.88
# 006
MPN: 186701
LH FUEL DELIVERY TUBE
from £32.35
from £32.35
# 007
MPN: 186703
RH FUEL DELIVERY UNDERFRAME TUBE
- Till car Ass. Nr. 9571 valid for all versions - From car Ass. Nr. 9572 valid only for USA and CDN
from £59.26
from £59.26
# 008
MPN: 186704
LH FUEL DELIVERY UNDERFRAME TUBE
- Till car Ass. Nr. 9571 valid for all versions - From car Ass. Nr. 9572 valid only for USA and CDN
from £59.26
from £59.26
# 009
MPN: 183214
RH FUEL DELIVERY PIPE TO FLEXIBLE
- Not for GD - Till car Ass. Nr. 9571 valid for all GS versions - From car Ass. Nr. 9572 valid only for USA and CDN
from £37.40
from £37.40
# 009
MPN: 189663
RH FUEL DELIVERY PIPE TO FLEXIBLE
- Valid for GD - Valid till car Ass. Nr. 9571
from £70.24
from £70.24
# 010
MPN: 183215
LH FUEL DELIVERY PIPE TO FLEXIBLE
- Not for GD - Till car Ass. Nr. 9571 valid for all GS versions - From car Ass. Nr. 9572 valid only for USA and CDN
from £39.98
from £39.98
# 010
MPN: 189664
LH FUEL DELIVERY PIPE TO FLEXIBLE
- Valid for GD - Valid till car Ass. Nr. 9571
from £79.41
from £79.41
# 011
MPN: 97218
PIPE
- Supplied in meters - (Minimum quantity 1m. or multiples)
from £1.86
from £1.86
This part replaces part number 188340 - and 1 more. Click to view details
# 012
MPN: 66360600
RH PUMP COVER
from £30.23
from £30.23
# 013
MPN: 66360500
GASKET
from £26.98
from £26.98
# 014
MPN: 16296927
SCREW
from £0.51
from £0.51
# 015
MPN: 187464
PIPES PROTECTION BRACKET
from £8.20
from £8.20
This part replaces part number 387400102
# 016
MPN: 387400402
GASKET
from £1.55
from £1.55
# 017
MPN: 10977824
SCREW
from £1.08
from £1.08
This part replaces part number 16130321 which we have in stock
# 018
MPN: 11181574
WASHER
from £0.54
from £0.54
# 019
MPN: 14447025
WASHER
from £1.39
from £1.39
# 020
MPN: 379200408
CLIP
- (Quantity defined during at assembly)
from £1.08
from £1.08
# 021
MPN: 140731
CLIP
- Till car Ass. Nr. 9571 valid for all versions - From car Ass. Nr. 9572 valid only for USA and CDN
from £0.69
from £0.69
# 022
MPN: 155781
ANCHORAGE FOR CLIP
- Till car Ass. Nr. 9571 valid for all versions - From car Ass. Nr. 9572 valid only for USA and CDN
from £0.47
from £0.47
# 023
MPN: 190410
CLIP
- Till car Ass. Nr. 9571 valid for all versions - From car Ass. Nr. 9572 valid only for USA and CDN
from £2.32
from £2.32
# 024
MPN: 389200406
CLIP
from £0.54
from £0.54
# 025
MPN: 379200408
CLIP
from £1.08
from £1.08
# 026
MPN: 194749
RH FUEL DELIVERY PIPE TO FLEXIBLE
- Not for USA and CDN - Valid from car Ass. Nr. 9572
from £125.18
from £125.18
# 027
MPN: 194750
LH FUEL DELIVERY PIPE TO FLEXIBLE
- Not for USA and CDN - Valid from car Ass. Nr. 9572
from £227.60
from £227.60
# 028
MPN: 195052
CLIP
- Not for USA and CDN - Valid from car Ass. Nr. 9572
from £1.08
from £1.08
# 029
MPN: 159521
CLIP
- Not for USA and CDN - Valid from car Ass. Nr. 9572
from £1.33
from £1.33
# 030
MPN: 14059111
NUT
- Not for USA and CDN - Valid from car Ass. Nr. 9572
from £0.47
from £0.47
# 031
MPN: 190410
CLIP
- (Quantity defined during at assembly)
from £2.32
from £2.32
# 032
MPN: 191431
CLIP
- Not for USA and CDN - Valid from car Ass. Nr. 9572 - (Quantity defined during at assembly)
from £1.08
from £1.08
# 033
MPN: 191283
CLIP
- (Quantity defined during at assembly)
from £1.08
from £1.08
