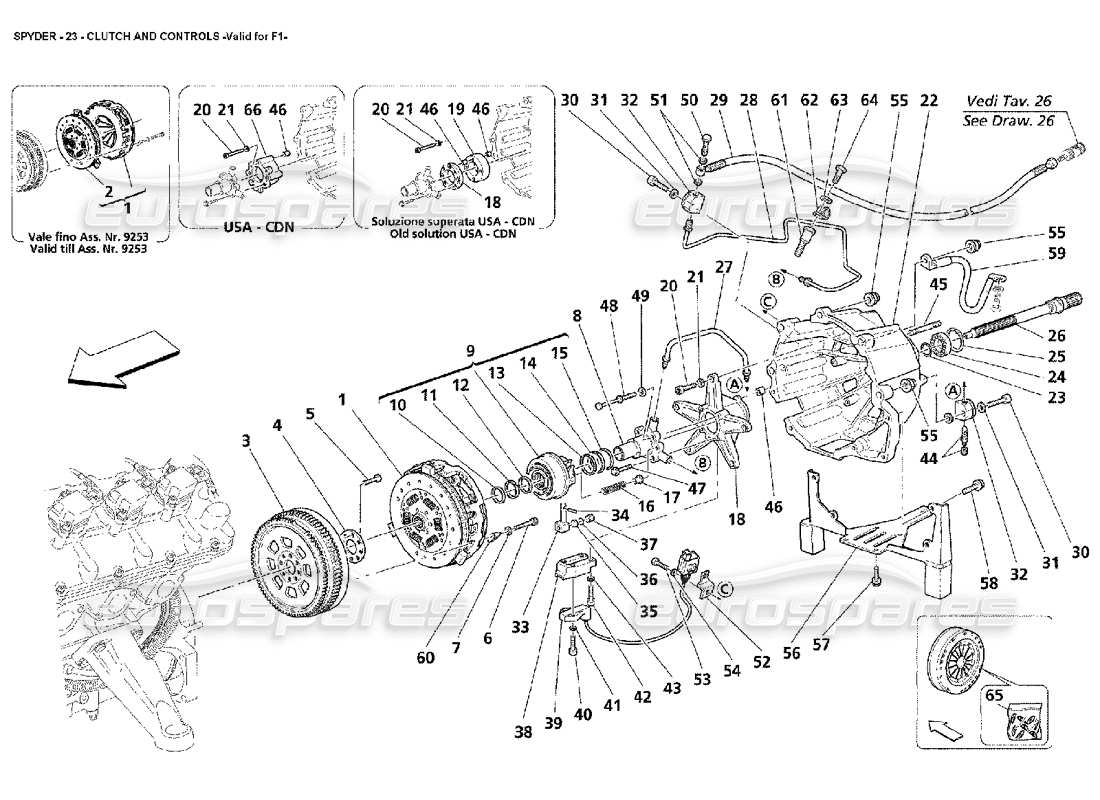

023 - Clutch and Controls -Valid for F1
Maserati 4200 Spyder (2002) Clutch and Controls -Valid for F1 Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 196021
COMPLETE CLUTCH
- Valid until car Ass. Nr. 9253
from £1,349.32
from £1,349.32
# 001
MPN: 196021
COMPLETE CLUTCH
from £1,349.32
from £1,349.32
# 001
MPN: 196335
COMPLETE CLUTCH
from £1,070.63
from £1,070.63
# 002
MPN: 191998
CLUTCH DOUBLE DISC
- Valid till car Ass. Nr. 9253
from £763.37
from £763.37
# 003
MPN: 187015
COMPLETE ENGINE FLYWHEEL
- Valid for USA and CDN
from £532.99
from £532.99
# 003
MPN: 230426
FLYWHEEL
from £396.35
from £396.35
This part replaces part number 185983
# 004
MPN: 103876
FLYWHEEL FIXING WASHER
from £2.70
from £2.70
# 005
MPN: 103875
SCREW
- Not for USA and CDN
Supersession
Supersession
# 005
MPN: 188852
SCREW
- Valid for USA and CDN
from £14.98
from £14.98
# 006
MPN: 185206
SCREW
from £1.40
from £1.40
# 007
MPN: 11194377
WASHER
from £0.71
from £0.71
# 008
MPN: 182952
BEARING SUPPORTING FLANGE
from £352.11
from £352.11
# 009
MPN: 234953
CLUTCH BEARING WITH SEALS
Valid for F1 Cars only
from £465.96
from £465.96
This part replaces part number 190771 - and 1 more. Click to view details
# 010
MPN: 181837
SCRAPER RING
from £13.14
from £13.14
# 011
MPN: 170416
RING
(replaces: 181839)
from £1.20
from £1.20
This part replaces part number 181839
# 011
MPN: 181839
RING
not as spare part - use part number: 170416
Supersession
Supersession
# 012
MPN: 181838
SEAL RING
from £12.30
from £12.30
# 013
MPN: 181828
SEAL RING
from £15.35
from £15.35
# 014
MPN: 154507
RING
(replaces: 181829)
from £2.43
from £2.43
This part replaces part number 170419 which we have in stock - and 1 more. Click to view details
# 014
MPN: 181829
RING
not as spare part - use part number 154507
from £3.98
from £3.98
THROW OUT BEARING SEALS F Genuine Maserati Part - New (other) In stock
not as spare part - use part number 154507
not as spare part - use part number 154507
# 015
MPN: 181836
SCRAPER RING
from £14.44
from £14.44
# 016
MPN: 155207
PRELOAD SPRING
from £2.21
from £2.21
# 017
MPN: 155206
SPACER FOR SPRING
from £1.79
from £1.79
# 018
MPN: 184970
CLUTCH CONTROL FLANGE SUPPORT
- Not for USA and CDN
from £303.97
from £303.97
# 018
MPN: 186389
CLUTCH CONTROL FLANGE SUPPORT
- Valid for USA and CDN - Valid till stock exhaustion after stock exhaustion replaced by 190146 (pos. 66)
Supersession
Supersession
# 019
MPN: 187703
SPACER
- Valid for USA and CDN - Valid till stock exhaustion after stock exhaustion replaced by 190146 (pos. 66)
Supersession
Supersession
This part replaces part number 186389
# 020
MPN: 14305334
SCREW
- Not for USA and CDN
from £0.52
from £0.52
# 020
MPN: 14306034
SCREW
- Valid for USA and CDN
from £0.47
from £0.47
# 021
MPN: 12604274
WASHER
- (Quantity 4 for cars USA and CDN)
from £0.53
from £0.53
# 022
MPN: 184763
CLUTCH HOUSING
from £1,044.75
from £1,044.75
# 023
MPN: 144511
STOP RING
from £1.52
from £1.52
# 024
MPN: 174470
BEARING
from £29.39
from £29.39
# 025
MPN: 182963
STOP RING
from £2.34
from £2.34
# 026
MPN: 182587
CLUTCH SHAFT
from £212.36
from £212.36
# 027
MPN: 182584
COMPLETE BLEED PIPE
- Not for USA and CDN
from £10.63
from £10.63
# 027
MPN: 188864
COMPLETE BLEED PIPE
- Valid for USA and CDN
from £29.08
from £29.08
# 028
MPN: 182583
CLUTCH OIL DELIVERY PIPE
- Not for USA and CDN
from £28.44
from £28.44
# 028
MPN: 188863
CLUTCH OIL DELIVERY PIPE
- Valid for USA and CDN
from £66.99
from £66.99
# 029
MPN: 187734
CLUTCH OIL PIPE
from £168.49
from £168.49
# 030
MPN: 14305434
SCREW
from £0.53
from £0.53
# 031
MPN: 12604274
WASHER
from £0.54
from £0.54
# 032
MPN: 139471
TWO-WAY UNION
from £12.68
from £12.68
# 033
MPN: 166676
PIN
from £18.78
from £18.78
# 034
MPN: 14158570
FLEXIBLE PIN
from £0.54
from £0.54
# 035
MPN: 165676
MAGNET
from £33.54
from £33.54
# 036
MPN: 165658
O.R. GASKET
from £4.20
from £4.20
# 037
MPN: 167802
PLUG
from £21.29
from £21.29
# 038
MPN: 184900
F1 SENSOR SUPPORT
from £149.88
from £149.88
# 039
MPN: 179658
CLUTCH SENSOR
from £172.73
from £172.73
This part replaces part number 179782
# 040
MPN: 14303324
SCREW
from £0.53
from £0.53
# 041
MPN: 10519224
WASHER
from £0.54
from £0.54
# 042
MPN: 14304424
SCREW
from £0.53
from £0.53
# 043
MPN: 10519378
WASHER
from £0.54
from £0.54
# 044
MPN: 121699
BLEEDER SCREW
from £11.49
from £11.49
# 045
MPN: 13546334
STUD
from £0.60
from £0.60
# 046
MPN: 102725
CENTERING DOWEL
- (Quantity 4 for cars USA and CDN with old solution)
from £0.64
from £0.64
# 047
MPN: 16286224
SCREW
from £1.52
from £1.52
# 048
MPN: 182955
STUD FOR END OF STROKE
from £15.85
from £15.85
# 049
MPN: 12601274
WASHER
from £0.53
from £0.53
This part replaces part number 12601270
# 050
MPN: 171454
UNION
from £26.07
from £26.07
# 051
MPN: 10261060
GASKET
from £0.53
from £0.53
This part replaces part number 274036
# 052
MPN: 170925
CONNECTOR FIXING BRACKET
from £2.20
from £2.20
# 053
MPN: 10979414
SCREW
from £0.51
from £0.51
# 054
MPN: 12601274
WASHER
from £0.54
from £0.54
This part replaces part number 12601270
# 055
MPN: 156462
NUT
Supersession
Supersession
# 056
MPN: 187799
EXHAUST FRONT SUPPORT
- Not for USA, CDN, J, AUS and cars GB opt. japan version
from £77.94
from £77.94
# 056
MPN: 191399
EXHAUST FRONT SUPPORT
- Valid for USA, CDN, J, AUS and cars GB opt. japan version
from £76.60
from £76.60
# 057
MPN: 11730624
SCREW
from £0.53
from £0.53
# 058
MPN: 16288121
SCREW
from £2.43
from £2.43
# 058
MPN: 16297721
SCREW
from £1.83
from £1.83
# 059
MPN: 182225
CABLE FOR ENGINE-FRAME EARTH
from £12.55
from £12.55
# 060
MPN: 191329
BALANCING MASS
- Grams 1 - As necessary
from £24.73
from £24.73
# 060
MPN: 191330
BALANCING MASS
- Grams 2 - As necessary
from £23.10
from £23.10
# 060
MPN: 191331
BALANCING MASS
- Grams 4 - As necessary
from £29.56
from £29.56
# 060
MPN: 191333
BALANCING MASS
- Grams 5 - As necessary
from £7.88
from £7.88
# 060
MPN: 191334
BALANCING MASS
- Grams 6 - As necessary
from £15.55
from £15.55
# 060
MPN: 191335
BALANCING MASS
- Grams 7 - As necessary
from £19.41
from £19.41
# 060
MPN: 191336
BALANCING MASS
- Grams 8 - As necessary
from £45.58
from £45.58
# 060
MPN: 191337
BALANCING MASS
- Grams 9 - As necessary
from £36.05
from £36.05
# 060
MPN: 191338
BALANCING MASS
- Grams 10 - As necessary
from £40.40
from £40.40
# 060
MPN: 191339
BALANCING MASS
- Grams 11 - As necessary
from £8.70
from £8.70
# 060
MPN: 191340
BALANCING MASS
- Grams 12 - As necessary
from £40.40
from £40.40
# 060
MPN: 191341
BALANCING MASS
- Grams 13 - As necessary
from £9.11
from £9.11
# 060
MPN: 191342
BALANCING MASS
- Grams 14 - As necessary
from £94.82
from £94.82
# 060
MPN: 191343
BALANCING MASS
- Grams 15 - As necessary
from £9.11
from £9.11
# 060
MPN: 191344
BALANCING MASS
- Grams 16 - As necessary
from £88.67
from £88.67
# 060
MPN: 191345
BALANCING MASS
- Grams 17 - As necessary
from £10.63
from £10.63
# 060
MPN: 191346
BALANCING MASS
- Grams 18 - As necessary
from £10.63
from £10.63
# 060
MPN: 191347
BALANCING MASS
- Grams 19 - As necessary
from £8.70
from £8.70
# 060
MPN: 191395
BALANCING MASS
- Grams 20 - As necessary
from £88.67
from £88.67
# 061
MPN: 190876
STUD
from £13.96
from £13.96
This part replaces part number 585412900
# 062
MPN: 10441190
BRACKET WITH SHEATH
from £0.54
from £0.54
# 063
MPN: 127494
WASHER
from £0.54
from £0.54
# 064
MPN: 10979414
SCREW
from £0.51
from £0.51
# 065
MPN: 980001166
CLUTCH BALANCING KIT
from £966.00
from £966.00
# 066
MPN: 190146
CLUTCH CONTROL FLANGE SUPPORT
- Valid for USA and CDN - Valid after stock exhaustion of 186389 (pos. 18) and 187703 (pos. 19)
from £393.12
from £393.12
This part replaces part number 187703 - and 1 more. Click to view details
-part-diagram-024.webp "MASERATI 4200 SPYDER (2002) PEDALS AND ELECTRONIC ACCELERATOR CONTROL -NOT FOR GD PARTS DIAGRAM")
-part-diagram-025.webp "MASERATI 4200 SPYDER (2002) PEDALS AND ELECTRONIC ACCELERATOR CONTROL -VALID FOR GD PARTS DIAGRAM")
-part-diagram-026.webp "MASERATI 4200 SPYDER (2002) F1 CLUTCH HYDRAULIC CONTROLS -VALID FOR F1 PARTS DIAGRAM")
-part-diagram-027.webp "MASERATI 4200 SPYDER (2002) POWER UNIT AND TANK -VALID FOR F1 PARTS DIAGRAM")
-part-diagram-028.webp "MASERATI 4200 SPYDER (2002) GEARBOX - COVER - GEARBOX OIL RADIATOR PARTS DIAGRAM")
-part-diagram-029.webp "MASERATI 4200 SPYDER (2002) DIFFERENTIAL BOX - REAR UNDERBODY PARTS DIAGRAM")
-part-diagram-030.webp "MASERATI 4200 SPYDER (2002) MAIN SHAFT GEARS PARTS DIAGRAM")
-part-diagram-031.webp "MASERATI 4200 SPYDER (2002) LAY SHAFT GEARS PARTS DIAGRAM")
-part-diagram-032.webp "MASERATI 4200 SPYDER (2002) INNER GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-033.webp "MASERATI 4200 SPYDER (2002) OUTER GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-034.webp "MASERATI 4200 SPYDER (2002) ENGINE-TRANSMISSION CONNECTION TUBE AND INSULATIONS PARTS DIAGRAM")
-part-diagram-035.webp "MASERATI 4200 SPYDER (2002) DIFFERENTIAL & AXLE SHAFTS PARTS DIAGRAM")
-part-diagram-036.webp "MASERATI 4200 SPYDER (2002) BRAKES AND CLUTCH HYDRAULIC CONTROLS PARTS DIAGRAM")
-part-diagram-037.webp "MASERATI 4200 SPYDER (2002) BRAKING SYSTEM -NOT FOR GD PARTS DIAGRAM")
-part-diagram-038.webp "MASERATI 4200 SPYDER (2002) BRAKING SYSTEM -VALID FOR GD PARTS DIAGRAM")
-part-diagram-039.webp "MASERATI 4200 SPYDER (2002) BRAKE CALIPERS PARTS DIAGRAM")
-part-diagram-040.webp "MASERATI 4200 SPYDER (2002) HAND-BRAKE CONTROL PARTS DIAGRAM")
-part-diagram-041.webp "MASERATI 4200 SPYDER (2002) FRONT UNDER FRAME AND UNDERMOTOR SHIELDS PARTS DIAGRAM")
-part-diagram-042.webp "MASERATI 4200 SPYDER (2002) STEERING BOX PARTS DIAGRAM")
-part-diagram-043.webp "MASERATI 4200 SPYDER (2002) STEERING COLUMN PARTS DIAGRAM")
-part-diagram-044.webp "MASERATI 4200 SPYDER (2002) FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-045.webp "MASERATI 4200 SPYDER (2002) FRONT SUSPENSION - WISHBONES AND STABILIZER BAR PARTS DIAGRAM")
-part-diagram-046.webp "MASERATI 4200 SPYDER (2002) REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISK PARTS DIAGRAM")
-part-diagram-047.webp "MASERATI 4200 SPYDER (2002) REAR SUSPENSION - WISHBONES PARTS DIAGRAM")
-part-diagram-048.webp "MASERATI 4200 SPYDER (2002) WHEELS PARTS DIAGRAM")
-part-diagram-049.webp "MASERATI 4200 SPYDER (2002) SPARE WHEEL AND EQUIPMENT -OPTIONAL PARTS DIAGRAM")
-part-diagram-050.webp "MASERATI 4200 SPYDER (2002) BATTERY PARTS DIAGRAM")
-part-diagram-051.webp "MASERATI 4200 SPYDER (2002) CURRENT GENERATOR-STARTING MOTOR PARTS DIAGRAM")
-part-diagram-052.webp "MASERATI 4200 SPYDER (2002) TOOLS EQUIPMENT AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-100.webp "MASERATI 4200 SPYDER (2002) BODY - OUTER TRIMS PARTS DIAGRAM")
-part-diagram-101.webp "MASERATI 4200 SPYDER (2002) BODY - REAR OUTER TRIMS PARTS DIAGRAM")
-part-diagram-102.webp "MASERATI 4200 SPYDER (2002) FRONT STRUCTURE PARTS DIAGRAM")
-part-diagram-103.webp "MASERATI 4200 SPYDER (2002) CENTRAL STRUCTURE PARTS DIAGRAM")
-part-diagram-104.webp "MASERATI 4200 SPYDER (2002) REAR STRUCTURE PARTS DIAGRAM")
-part-diagram-105.webp "MASERATI 4200 SPYDER (2002) FRONT BUMPER PARTS DIAGRAM")
-part-diagram-106.webp "MASERATI 4200 SPYDER (2002) REAR BUMPER PARTS DIAGRAM")
-part-diagram-107.webp "MASERATI 4200 SPYDER (2002) PASSENGERS COMPARTMENT CARPETS PARTS DIAGRAM")
-part-diagram-108.webp "MASERATI 4200 SPYDER (2002) ROOF PANEL UPHOLSTERY AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-109.webp "MASERATI 4200 SPYDER (2002) PASSEGERS COMPARTMENT UPHOLSTERY ACCESSORIES PARTS DIAGRAM")
-part-diagram-110.webp "MASERATI 4200 SPYDER (2002) TRUNK HOOD COMPARTMENT TRIMS - AIR INLET AND HEATH SHIELDS PARTS DIAGRAM")
-part-diagram-111.webp "MASERATI 4200 SPYDER (2002) CAPOTE CLOTH - GASKET PARTS DIAGRAM")
-part-diagram-112.webp "MASERATI 4200 SPYDER (2002) CAPOTE FRONT CLOSING PARTS DIAGRAM")
-part-diagram-113.webp "MASERATI 4200 SPYDER (2002) CAPOTE STRUCTURE PARTS DIAGRAM")
-part-diagram-114.webp "MASERATI 4200 SPYDER (2002) CAPOTE CONTROL STATION - RELAY - MICROSWITCH PARTS DIAGRAM")
-part-diagram-115.webp "MASERATI 4200 SPYDER (2002) CAPOTE HYDRAULIC SYSTEM PARTS DIAGRAM")
-part-diagram-116.webp "MASERATI 4200 SPYDER (2002) CLOSINGS AND COVER PARTS DIAGRAM")
-part-diagram-117.webp "MASERATI 4200 SPYDER (2002) ENGINE BONNET AND OPENING DEVICE PARTS DIAGRAM")
-part-diagram-118.webp "MASERATI 4200 SPYDER (2002) TRUNK HOOD BONNET AND GAS DOOR PARTS DIAGRAM")
-part-diagram-119.webp "MASERATI 4200 SPYDER (2002) DOORS - FRAMEWORK AND COVERINGS PARTS DIAGRAM")
-part-diagram-120.webp "MASERATI 4200 SPYDER (2002) DOORS - OPENING CONTROL AND HINGES PARTS DIAGRAM")
-part-diagram-121.webp "MASERATI 4200 SPYDER (2002) DOORS - POWER WINDOW AND REARWIEW MIRROR PARTS DIAGRAM")
-part-diagram-122.webp "MASERATI 4200 SPYDER (2002) GLASSES WINDSHIELD - GASKETS AND INNER REARWIEW MIRROR PARTS DIAGRAM")
-part-diagram-123.webp "MASERATI 4200 SPYDER (2002) ELECRICAL SEAT-SAFETY BELTS PARTS DIAGRAM")
-part-diagram-124.webp "MASERATI 4200 SPYDER (2002) ELECTRICAL SEAT-GUIDE AND MOVEMENT PARTS DIAGRAM")
-part-diagram-125.webp "MASERATI 4200 SPYDER (2002) DASHBOARD -NOT FOR GD PARTS DIAGRAM")
-part-diagram-126.webp "MASERATI 4200 SPYDER (2002) DASHBOARD -VALID FOR GD PARTS DIAGRAM")
-part-diagram-127.webp "MASERATI 4200 SPYDER (2002) DASHBOARD DRAWER PARTS DIAGRAM")
-part-diagram-128.webp "MASERATI 4200 SPYDER (2002) TUNNEL - FRAMEWORK AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-129.webp "MASERATI 4200 SPYDER (2002) AIR-BAGS PARTS DIAGRAM")
-part-diagram-130.webp "MASERATI 4200 SPYDER (2002) DASHBOARD INSTRUMENTS PARTS DIAGRAM")
-part-diagram-131.webp "MASERATI 4200 SPYDER (2002) TUNNEL INSTRUMENTS PARTS DIAGRAM")
-part-diagram-132.webp "MASERATI 4200 SPYDER (2002) FRONT AND REAR LIGHTS PARTS DIAGRAM")
-part-diagram-133.webp "MASERATI 4200 SPYDER (2002) XENO HEADLIGTHS AND HEADLIGHTS WASHER -OPTIONAL PARTS DIAGRAM")
-part-diagram-134.webp "MASERATI 4200 SPYDER (2002) SHIELDS AND OUTSIDE FINISHING PARTS DIAGRAM")
-part-diagram-135.webp "MASERATI 4200 SPYDER (2002) WINDSHIELD - GLASS WASHER AND HORNS PARTS DIAGRAM")
-part-diagram-136.webp "MASERATI 4200 SPYDER (2002) ELECTRICAL SYSTEM PARTS DIAGRAM")
-part-diagram-137.webp "MASERATI 4200 SPYDER (2002) ENGINE BONNET SENSOR AND CONTROL STATIONS PARTS DIAGRAM")
-part-diagram-138.webp "MASERATI 4200 SPYDER (2002) FRONT PASSENGERS COMPARTMENT CONTROL STATION PARTS DIAGRAM")
-part-diagram-139.webp "MASERATI 4200 SPYDER (2002) PASSENGERS SIDE CONTROL UNITS PARTS DIAGRAM")
-part-diagram-140.webp "MASERATI 4200 SPYDER (2002) RH SIDE TRUNK BONNET SENSOR AND CONTROL UNITS PARTS DIAGRAM")
-part-diagram-141.webp "MASERATI 4200 SPYDER (2002) LH SIDE TRUNK BONNET CONTROL UNIT PARTS DIAGRAM")
-part-diagram-142.webp "MASERATI 4200 SPYDER (2002) ANTI THEFT ELECTRICAL BOARDS AND DEVICES PARTS DIAGRAM")
-part-diagram-143.webp "MASERATI 4200 SPYDER (2002) IMMOBILIZER KIT PARTS DIAGRAM")
-part-diagram-144.webp "MASERATI 4200 SPYDER (2002) EVAPORATOR GROUP PARTS DIAGRAM")
-part-diagram-145.webp "MASERATI 4200 SPYDER (2002) AIR CONDITIONING SYSTEM PARTS DIAGRAM")
-part-diagram-146.webp "MASERATI 4200 SPYDER (2002) CAR STEREO SYSTEM PARTS DIAGRAM")
-part-diagram-147.webp "MASERATI 4200 SPYDER (2002) STEREO EQUIPMENT - ACCESORIES PARTS DIAGRAM")
-part-diagram-148.webp "MASERATI 4200 SPYDER (2002) PLATES PARTS DIAGRAM")
-part-diagram-000.webp "MASERATI 4200 SPYDER (2002) SPARE ASSEMBLY UNITS PARTS DIAGRAM")
-part-diagram-001.webp "MASERATI 4200 SPYDER (2002) CRANKCASE PARTS DIAGRAM")
-part-diagram-002.webp "MASERATI 4200 SPYDER (2002) CRANKSHAFT CONRODS AND PISTONS PARTS DIAGRAM")
-part-diagram-003.webp "MASERATI 4200 SPYDER (2002) RH CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-004.webp "MASERATI 4200 SPYDER (2002) LH CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-005.webp "MASERATI 4200 SPYDER (2002) TIMING - TAPPETS PARTS DIAGRAM")
-part-diagram-006.webp "MASERATI 4200 SPYDER (2002) TIMING - CONTROLS PARTS DIAGRAM")
-part-diagram-007.webp "MASERATI 4200 SPYDER (2002) INJECTION DEVICE - IGNITION PARTS DIAGRAM")
-part-diagram-008.webp "MASERATI 4200 SPYDER (2002) SECONDARY AIR SYSTEM PARTS DIAGRAM")
-part-diagram-009.webp "MASERATI 4200 SPYDER (2002) FUEL PUMP AND PIPES PARTS DIAGRAM")
-part-diagram-010.webp "MASERATI 4200 SPYDER (2002) FUEL TANKS AND UNION PARTS DIAGRAM")
-part-diagram-011.webp "MASERATI 4200 SPYDER (2002) ANTIEVAPORATION DEVICE -NOT FOR USA AND CDN PARTS DIAGRAM")
-part-diagram-012.webp "MASERATI 4200 SPYDER (2002) ANTIEVAPORATION DEVICE -VALID FOR USA AND CDN PARTS DIAGRAM")
-part-diagram-013.webp "MASERATI 4200 SPYDER (2002) AIR INTAKE MANIFOLD PARTS DIAGRAM")
-part-diagram-014.webp "MASERATI 4200 SPYDER (2002) EXHAUST SYSTEM PARTS DIAGRAM")
-part-diagram-015.webp "MASERATI 4200 SPYDER (2002) EXHAUST SYSTEM -VARIATIONS FOR USA AND CDN PARTS DIAGRAM")
-part-diagram-016.webp "MASERATI 4200 SPYDER (2002) BLOW - BY SYSTEM PARTS DIAGRAM")
-part-diagram-017.webp "MASERATI 4200 SPYDER (2002) LUBRICATION SYSTEM - TANK - HEATER EXCHANGER PARTS DIAGRAM")
-part-diagram-018.webp "MASERATI 4200 SPYDER (2002) WATER-OIL PUMP PARTS DIAGRAM")
-part-diagram-019.webp "MASERATI 4200 SPYDER (2002) NOURICE - COOLING SYSTEM -NOT FOR GD PARTS DIAGRAM")
-part-diagram-020.webp "MASERATI 4200 SPYDER (2002) NOURICE - COOLING SYSTEM -VALID FOR GD PARTS DIAGRAM")
-part-diagram-021.webp "MASERATI 4200 SPYDER (2002) COOLING SYSTEM RADIATOR PARTS DIAGRAM")
-part-diagram-022.webp "MASERATI 4200 SPYDER (2002) CLUTCH AND CONTROLS -NOT FOR F1 PARTS DIAGRAM")
