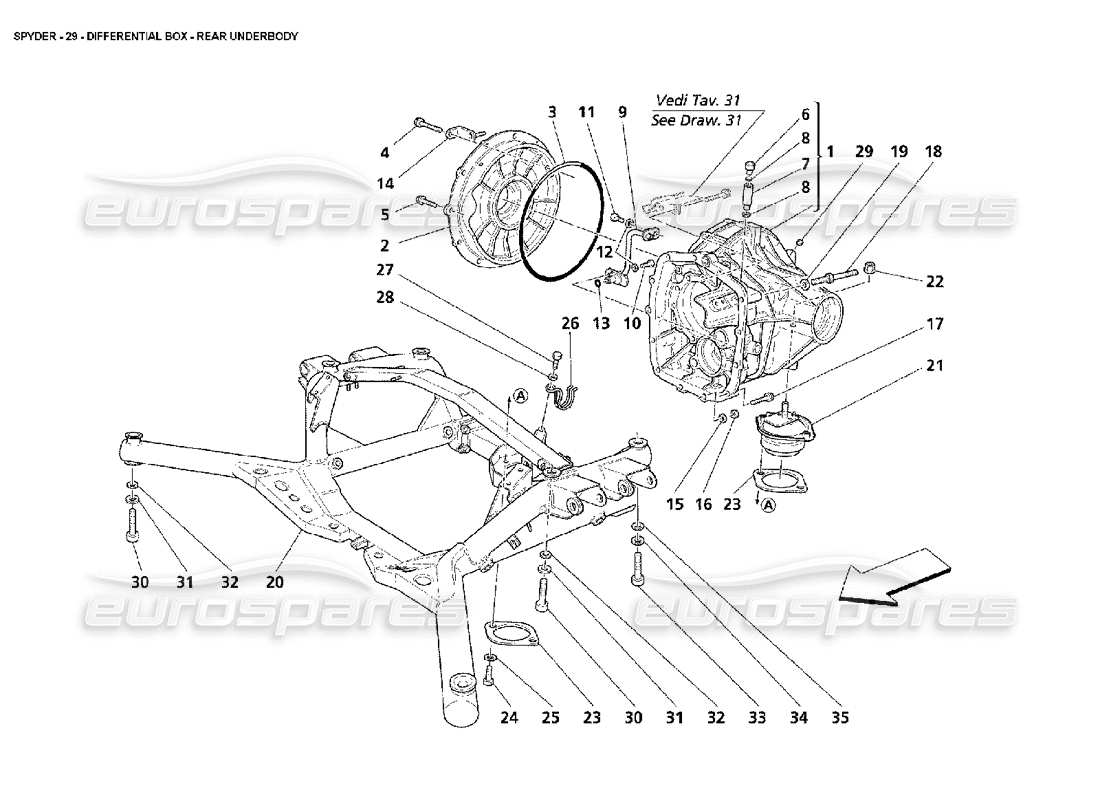

029 - Differential Box - Rear Underbody
Maserati 4200 Spyder (2002) Differential Box - Rear Underbody Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 192732
COMPLETE DIFFERENTIAL BOX
from £814.22
from £814.22
This part replaces part number 184644
# 002
MPN: 184767
DIFFERENTIAL COVER
from £147.89
from £147.89
# 003
MPN: 14468781
O.R. GASKET
from £23.08
from £23.08
# 004
MPN: 16287321
SCREW
from £0.47
from £0.47
# 005
MPN: 16287221
SCREW
from £0.53
from £0.53
# 006
MPN: 13414691
OIL BREATHER
from £5.57
from £5.57
# 007
MPN: 186900
ADAPTER FOR VENT
from £50.83
from £50.83
# 008
MPN: 13415400
COPPER GASKET
from £0.47
from £0.47
# 009
MPN: 185720
LUBRICATION TUBE
from £88.08
from £88.08
# 010
MPN: 10902224
SCREW
from £0.53
from £0.53
# 011
MPN: 10979424
SCREW
from £0.53
from £0.53
# 012
MPN: 11194377
WASHER
from £0.71
from £0.71
# 013
MPN: 137192
O.R. GASKET
from £0.54
from £0.54
# 014
MPN: 149694
FIXING BRACKET
- Valid for F1
from £3.84
from £3.84
# 015
MPN: 12601374
WASHER
from £0.54
from £0.54
# 016
MPN: 16100812
NUT
from £0.71
from £0.71
# 017
MPN: 16287521
SCREW-M 8X40
from £2.13
from £2.13
# 017
MPN: 16287624
SCREW-M 8X45
from £1.85
from £1.85
This part replaces part number 16287421
# 017
MPN: 16287921
SCREW-M 8X60
- Not for F1
from £2.47
from £2.47
# 018
MPN: 190044
STUD
- Valid for F1
from £16.31
from £16.31
This part replaces part number 190094
# 019
MPN: 12601374
WASHER
- Valid for F1
from £0.54
from £0.54
# 020
MPN: 66628200

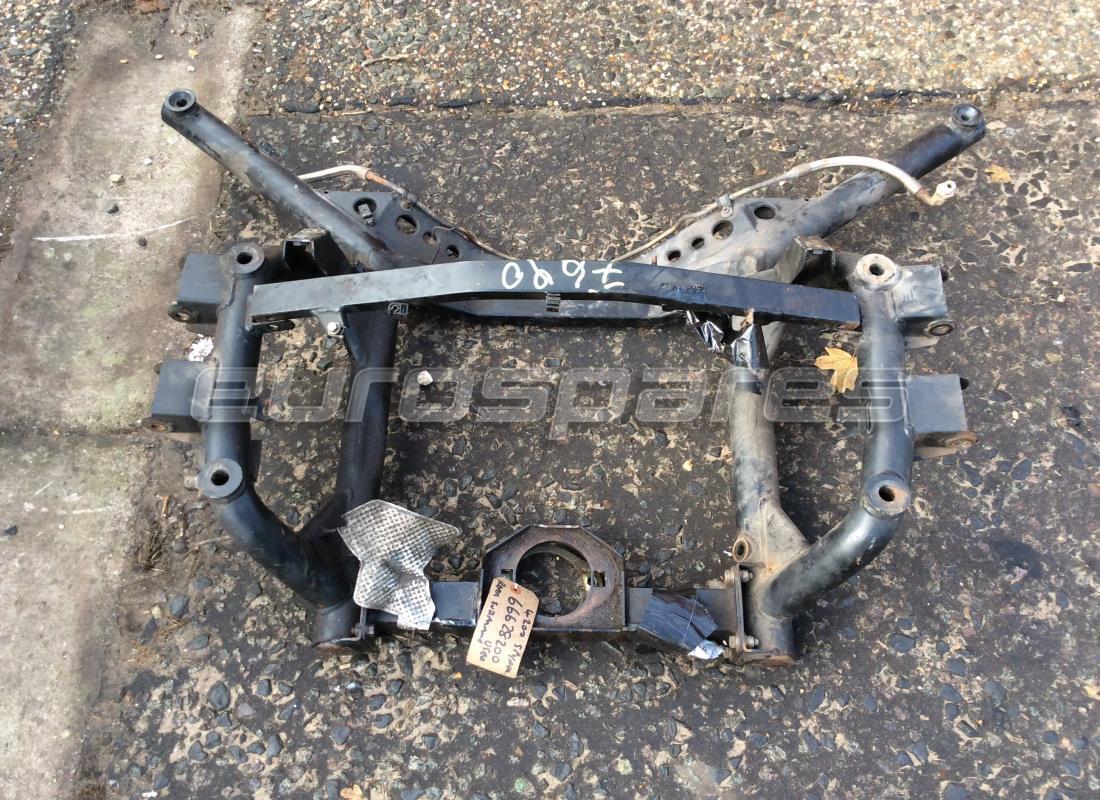

REAR UNDER FRAME
from £540.82
from £540.82
This part replaces part number 66069300 - and 1 more. Click to view details
# 021
MPN: 186908
FLEXIBLE PAD
from £520.81
from £520.81
# 022
MPN: 177018
NUT
from £0.67
from £0.67
# 023
MPN: 66428300
GEAR SUPPORT FLANGE
from £3.88
from £3.88
# 024
MPN: 14307534
SCREW
from £1.55
from £1.55
# 025
MPN: 11198374
WASHER
from £0.47
from £0.47
This part replaces part number 675000618
# 026
MPN: 188971
PIPES RETAINING SPRING
- Valid for F1
from £2.97
from £2.97
# 027
MPN: 10979424
SCREW
- Valid for F1
from £0.53
from £0.53
# 028
MPN: 10519411
WASHER
- Valid for F1
from £1.39
from £1.39
# 029
MPN: 14326101
THREADED PLUG
from £0.72
from £0.72
This part replaces part number 10152350
# 030
MPN: 14331574
SCREW-M 12X50
- Valid from car Ass. Nr. 9867
from £7.73
from £7.73
# 030
MPN: 14331874
SCREW-M 12X65
- Valid till car Ass. Nr. 9866
from £4.24
from £4.24
# 031
MPN: 10569579
WASHER
- For screw - M 12X65
from £1.08
from £1.08
# 031
MPN: 11198674
WASHER
- For screw - M 12X50
from £1.39
from £1.39
# 032
MPN: 10732501
WASHER
- For screw - M 12X65
from £1.18
from £1.18
# 032
MPN: 10738021
WASHER
- For screw - M 12X50
from £0.73
from £0.73
# 033
MPN: 14312174
SCREW
from £7.73
from £7.73
# 034
MPN: 66490100
WASHER
from £1.85
from £1.85
# 035
MPN: 67246100
WASHER
from £5.41
from £5.41
This part replaces part number 102694
