123 - Elecrical Seat-Safety Belts

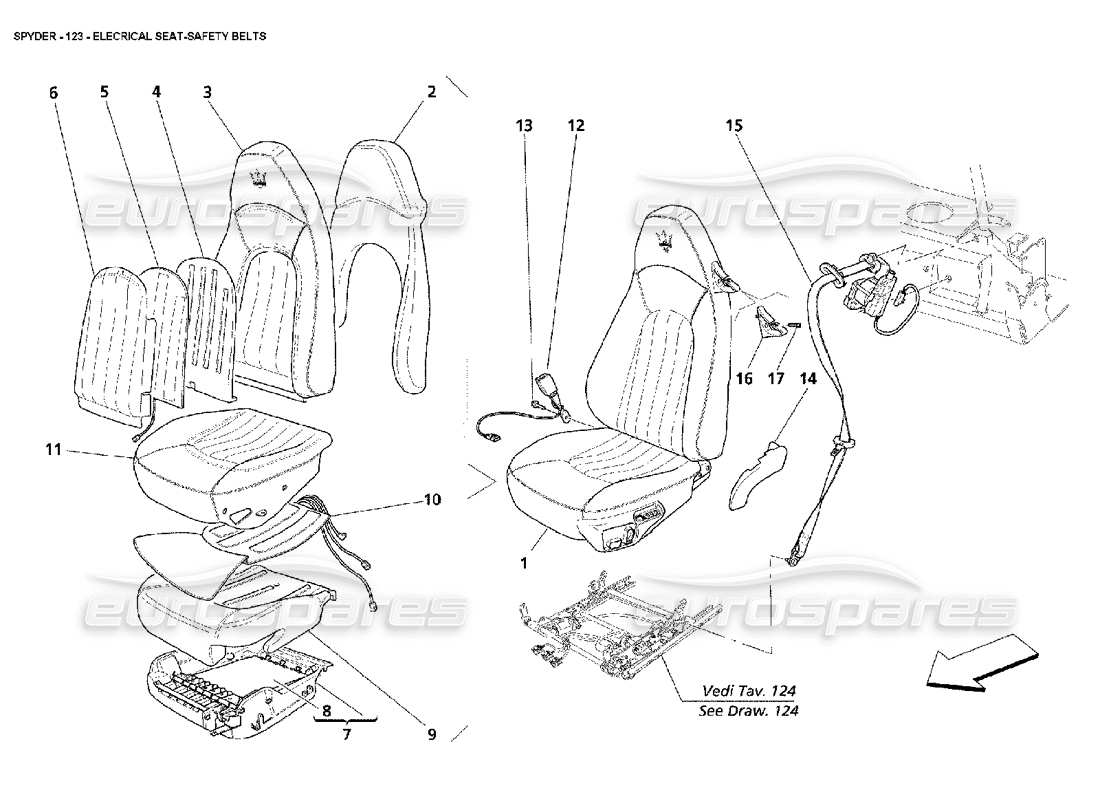

Maserati 4200 Spyder (2002) Elecrical Seat-Safety Belts Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: 900114694
PAIR OF SEATS
# 001
MPN: 666638..
COMPLETE RH FRONT SEAT
- Standard - Valid for GD - Valid till car Ass. Nr. 7270
Supersession
Supersession
# 001
MPN: 666639..
COMPLETE LH FRONT SEAT
- Standard - Valid for GD - Valid till car Ass. Nr. 7270
Supersession
Supersession
# 001
MPN: 667797..
COMPLETE RH FRONT SEAT
- Standard - Not for GD - Valid till car Ass. Nr. 7270
Supersession
Supersession
# 001
MPN: 667799..
COMPLETE LH FRONT SEAT
- Standard - Not for GD - Valid till car Ass. Nr. 7270
Supersession
Supersession
# 001
MPN: 668760..
COMPLETE RH FRONT SEAT
- Optional - Heater - Not for GD - Valid till car Ass. Nr. 7270
Supersession
Supersession
# 001
MPN: 668763..
COMPLETE LH FRONT SEAT
- Optional - Heater - Not for GD - Valid till car Ass. Nr. 7270
Supersession
Supersession
# 001
MPN: 669114..
COMPLETE RH FRONT SEAT
- Optional - Heater - Valid for GD - Valid till car Ass. Nr. 7270
Supersession
Supersession
# 001
MPN: 669115..
COMPLETE LH FRONT SEAT
- Optional - Heater - Valid for GD - Valid till car Ass. Nr. 7270
Supersession
Supersession
# 001
MPN: 9811007..
COMPLETE LH FRONT SEAT
- Standard - Not for GD - Valid from car Ass. Nr. 7271
Supersession
Supersession
# 001
MPN: 9811008..
COMPLETE RH FRONT SEAT
- Standard - Not for GD - Valid from car Ass. Nr. 7271
Supersession
Supersession
# 001
MPN: 9811009..
COMPLETE LH FRONT SEAT
- Optional - Heater - Not for GD - Valid from car Ass. Nr. 7271
Supersession
Supersession
# 001
MPN: 9811011..
COMPLETE RH FRONT SEAT
- Optional - Heater - Not for GD - Valid from car Ass. Nr. 7271
Supersession
Supersession
# 001
MPN: 9811017..
COMPLETE RH FRONT SEAT
- Standard - Valid for GD - Valid from car Ass. Nr. 7271
Supersession
Supersession
# 001
MPN: 9811018..
COMPLETE RH FRONT SEAT
- Optional - Heater - Valid for GD - Valid from car Ass. Nr. 7271
Supersession
Supersession
# 001
MPN: 9811019..
COMPLETE LH FRONT SEAT
- Standard - Valid for GD - Valid from car Ass. Nr. 7271
Supersession
Supersession
# 001
MPN: 9811021..
COMPLETE LH FRONT SEAT
- Optional - Heater - Valid for GD - Valid from car Ass. Nr. 7271
Supersession
Supersession
# 002
MPN: 980001119
SEATBACK PERIPHERAL PADDING
- Valid till car Ass. Nr. 7270
from £59.89
from £59.89
# 002
MPN: 980138100
SEATBACK PERIPHERAL PADDING
- Valid from car Ass. Nr. 7271
from £1,018.96
from £1,018.96
# 003
MPN: 9811001..
BACKSEAT PERIPHERAL UPHOLSTERY
- Valid till car Ass. Nr. 7270
Supersession
Supersession
# 003
MPN: 9811002..
BACKSEAT PERIPHERAL UPHOLSTERY
- Valid from car Ass. Nr. 7271
Supersession
Supersession
# 004
MPN: 980001118
BACKSEAT CENTRAL PADDING
from £59.89
from £59.89
# 005
MPN: 980001121
BACKSEAT HEATER
from £53.43
from £53.43
# 006
MPN: 9811000..
BACKSEAT CENTRAL UPHOLSTERY
Supersession
Supersession
# 007
MPN: 66708500
COMPLETE RH CUSHION BOTTOM
- Valid till car Ass. Nr. 8480
from £82.08
from £82.08
# 007
MPN: 66709600
COMPLETE LH CUSHION BOTTOM
- Valid till car Ass. Nr. 8480
from £82.08
from £82.08
# 007
MPN: 980001179
COMPLETE LH CUSHION BOTTOM
- Valid from car Ass. Nr. 8481
from £50.36
from £50.36
# 007
MPN: 980001180
COMPLETE RH CUSHION BOTTOM
- Valid from car Ass. Nr. 8481
from £50.36
from £50.36
# 008
MPN: 980001122
CUSHION BOTTOM MEMBRANE
from £32.06
from £32.06
# 009
MPN: 66708400
RH CUSHION PADDING
- Not for GD - Valid till car Ass. Nr. 7270
from £111.82
from £111.82
# 009
MPN: 66709500
LH CUSHION PADDING
- Valid for GD - Valid till car Ass. Nr. 7270
from £111.82
from £111.82
# 009
MPN: 66711200
RH CUSHION PADDING
- Valid for GD - Valid till car Ass. Nr. 7270
from £146.00
from £146.00
# 009
MPN: 66712400
LH CUSHION PADDING
- Not for GD - Valid till car Ass. Nr. 7270
from £146.00
from £146.00
# 009
MPN: 980138101
LH CUSHION PADDING
- Valid for GD - Valid from car Ass. Nr. 7271
from £1,018.96
from £1,018.96
# 009
MPN: 980138102
RH CUSHION PADDING
- Not for GD - Valid from car Ass. Nr. 7271
from £1,018.96
from £1,018.96
# 009
MPN: 980138103
LH CUSHION PADDING
- Not for GD - Valid from car Ass. Nr. 7271
from £1,018.96
from £1,018.96
# 009
MPN: 980138104
RH CUSHION PADDING
- Valid for GD - Valid from car Ass. Nr. 7271
from £1,018.96
from £1,018.96
# 010
MPN: 980001120
CUSHION HEATER
from £126.96
from £126.96
# 011
MPN: 9811003..
LH FRONT CUSHION UPHOLSTERY
- Valid till car Ass. Nr. 7270
Supersession
Supersession
# 011
MPN: 9811004..
RH FRONT CUSHION UPHOLSTERY
- Valid till car Ass. Nr. 7270
Supersession
Supersession
# 011
MPN: 9812001..
LH FRONT CUSHION UPHOLSTERY
- Valid from car Ass. Nr. 7271
Supersession
Supersession
# 011
MPN: 9812002..
RH FRONT CUSHION UPHOLSTERY
- Valid from car Ass. Nr. 7271
Supersession
Supersession
# 012
MPN: 388100336
PASSENGER SEAT BELT LOCK
from £26.53
from £26.53
# 012
MPN: 388100337
PILOT SEAT BELT LOCK
from £107.43
from £107.43
# 013
MPN: 386900301
SCREW
from £13.80
from £13.80
# 014
MPN: 66710500
RH SEAT JOINT COVER
- Not for GD
from £13.39
from £13.39
# 014
MPN: 66710800
LH SEAT JOINT COVER
from £15.78
from £15.78
# 015
MPN: 66311100
RH ROLLER
- Not for USA and CDN
from £147.52
from £147.52
# 015
MPN: 66311200
RH ROLLER
- Valid for USA and CDN
from £152.61
from £152.61
# 015
MPN: 66311300
LH ROLLER
- Not for USA e CDN
from £147.52
from £147.52
# 015
MPN: 66919400
LH ROLLER
- Valid for USA e CDN
from £141.64
from £141.64
# 016
MPN: 66710600
BELT HOLDER
from £37.58
from £37.58
This part replaces part number 66710900
# 017
MPN: 386900408
SCREW
from £4.36
from £4.36
-part-diagram-124.webp "MASERATI 4200 SPYDER (2002) ELECTRICAL SEAT-GUIDE AND MOVEMENT PARTS DIAGRAM")
-part-diagram-125.webp "MASERATI 4200 SPYDER (2002) DASHBOARD -NOT FOR GD PARTS DIAGRAM")
-part-diagram-126.webp "MASERATI 4200 SPYDER (2002) DASHBOARD -VALID FOR GD PARTS DIAGRAM")
-part-diagram-127.webp "MASERATI 4200 SPYDER (2002) DASHBOARD DRAWER PARTS DIAGRAM")
-part-diagram-128.webp "MASERATI 4200 SPYDER (2002) TUNNEL - FRAMEWORK AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-129.webp "MASERATI 4200 SPYDER (2002) AIR-BAGS PARTS DIAGRAM")
-part-diagram-130.webp "MASERATI 4200 SPYDER (2002) DASHBOARD INSTRUMENTS PARTS DIAGRAM")
-part-diagram-131.webp "MASERATI 4200 SPYDER (2002) TUNNEL INSTRUMENTS PARTS DIAGRAM")
-part-diagram-132.webp "MASERATI 4200 SPYDER (2002) FRONT AND REAR LIGHTS PARTS DIAGRAM")
-part-diagram-133.webp "MASERATI 4200 SPYDER (2002) XENO HEADLIGTHS AND HEADLIGHTS WASHER -OPTIONAL PARTS DIAGRAM")
-part-diagram-134.webp "MASERATI 4200 SPYDER (2002) SHIELDS AND OUTSIDE FINISHING PARTS DIAGRAM")
-part-diagram-135.webp "MASERATI 4200 SPYDER (2002) WINDSHIELD - GLASS WASHER AND HORNS PARTS DIAGRAM")
-part-diagram-136.webp "MASERATI 4200 SPYDER (2002) ELECTRICAL SYSTEM PARTS DIAGRAM")
-part-diagram-137.webp "MASERATI 4200 SPYDER (2002) ENGINE BONNET SENSOR AND CONTROL STATIONS PARTS DIAGRAM")
-part-diagram-138.webp "MASERATI 4200 SPYDER (2002) FRONT PASSENGERS COMPARTMENT CONTROL STATION PARTS DIAGRAM")
-part-diagram-139.webp "MASERATI 4200 SPYDER (2002) PASSENGERS SIDE CONTROL UNITS PARTS DIAGRAM")
-part-diagram-140.webp "MASERATI 4200 SPYDER (2002) RH SIDE TRUNK BONNET SENSOR AND CONTROL UNITS PARTS DIAGRAM")
-part-diagram-141.webp "MASERATI 4200 SPYDER (2002) LH SIDE TRUNK BONNET CONTROL UNIT PARTS DIAGRAM")
-part-diagram-142.webp "MASERATI 4200 SPYDER (2002) ANTI THEFT ELECTRICAL BOARDS AND DEVICES PARTS DIAGRAM")
-part-diagram-143.webp "MASERATI 4200 SPYDER (2002) IMMOBILIZER KIT PARTS DIAGRAM")
-part-diagram-144.webp "MASERATI 4200 SPYDER (2002) EVAPORATOR GROUP PARTS DIAGRAM")
-part-diagram-145.webp "MASERATI 4200 SPYDER (2002) AIR CONDITIONING SYSTEM PARTS DIAGRAM")
-part-diagram-146.webp "MASERATI 4200 SPYDER (2002) CAR STEREO SYSTEM PARTS DIAGRAM")
-part-diagram-147.webp "MASERATI 4200 SPYDER (2002) STEREO EQUIPMENT - ACCESORIES PARTS DIAGRAM")
-part-diagram-148.webp "MASERATI 4200 SPYDER (2002) PLATES PARTS DIAGRAM")
-part-diagram-000.webp "MASERATI 4200 SPYDER (2002) SPARE ASSEMBLY UNITS PARTS DIAGRAM")
-part-diagram-001.webp "MASERATI 4200 SPYDER (2002) CRANKCASE PARTS DIAGRAM")
-part-diagram-002.webp "MASERATI 4200 SPYDER (2002) CRANKSHAFT CONRODS AND PISTONS PARTS DIAGRAM")
-part-diagram-003.webp "MASERATI 4200 SPYDER (2002) RH CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-004.webp "MASERATI 4200 SPYDER (2002) LH CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-005.webp "MASERATI 4200 SPYDER (2002) TIMING - TAPPETS PARTS DIAGRAM")
-part-diagram-006.webp "MASERATI 4200 SPYDER (2002) TIMING - CONTROLS PARTS DIAGRAM")
-part-diagram-007.webp "MASERATI 4200 SPYDER (2002) INJECTION DEVICE - IGNITION PARTS DIAGRAM")
-part-diagram-008.webp "MASERATI 4200 SPYDER (2002) SECONDARY AIR SYSTEM PARTS DIAGRAM")
-part-diagram-009.webp "MASERATI 4200 SPYDER (2002) FUEL PUMP AND PIPES PARTS DIAGRAM")
-part-diagram-010.webp "MASERATI 4200 SPYDER (2002) FUEL TANKS AND UNION PARTS DIAGRAM")
-part-diagram-011.webp "MASERATI 4200 SPYDER (2002) ANTIEVAPORATION DEVICE -NOT FOR USA AND CDN PARTS DIAGRAM")
-part-diagram-012.webp "MASERATI 4200 SPYDER (2002) ANTIEVAPORATION DEVICE -VALID FOR USA AND CDN PARTS DIAGRAM")
-part-diagram-013.webp "MASERATI 4200 SPYDER (2002) AIR INTAKE MANIFOLD PARTS DIAGRAM")
-part-diagram-014.webp "MASERATI 4200 SPYDER (2002) EXHAUST SYSTEM PARTS DIAGRAM")
-part-diagram-015.webp "MASERATI 4200 SPYDER (2002) EXHAUST SYSTEM -VARIATIONS FOR USA AND CDN PARTS DIAGRAM")
-part-diagram-016.webp "MASERATI 4200 SPYDER (2002) BLOW - BY SYSTEM PARTS DIAGRAM")
-part-diagram-017.webp "MASERATI 4200 SPYDER (2002) LUBRICATION SYSTEM - TANK - HEATER EXCHANGER PARTS DIAGRAM")
-part-diagram-018.webp "MASERATI 4200 SPYDER (2002) WATER-OIL PUMP PARTS DIAGRAM")
-part-diagram-019.webp "MASERATI 4200 SPYDER (2002) NOURICE - COOLING SYSTEM -NOT FOR GD PARTS DIAGRAM")
-part-diagram-020.webp "MASERATI 4200 SPYDER (2002) NOURICE - COOLING SYSTEM -VALID FOR GD PARTS DIAGRAM")
-part-diagram-021.webp "MASERATI 4200 SPYDER (2002) COOLING SYSTEM RADIATOR PARTS DIAGRAM")
-part-diagram-022.webp "MASERATI 4200 SPYDER (2002) CLUTCH AND CONTROLS -NOT FOR F1 PARTS DIAGRAM")
-part-diagram-023.webp "MASERATI 4200 SPYDER (2002) CLUTCH AND CONTROLS -VALID FOR F1 PARTS DIAGRAM")
-part-diagram-024.webp "MASERATI 4200 SPYDER (2002) PEDALS AND ELECTRONIC ACCELERATOR CONTROL -NOT FOR GD PARTS DIAGRAM")
-part-diagram-025.webp "MASERATI 4200 SPYDER (2002) PEDALS AND ELECTRONIC ACCELERATOR CONTROL -VALID FOR GD PARTS DIAGRAM")
-part-diagram-026.webp "MASERATI 4200 SPYDER (2002) F1 CLUTCH HYDRAULIC CONTROLS -VALID FOR F1 PARTS DIAGRAM")
-part-diagram-027.webp "MASERATI 4200 SPYDER (2002) POWER UNIT AND TANK -VALID FOR F1 PARTS DIAGRAM")
-part-diagram-028.webp "MASERATI 4200 SPYDER (2002) GEARBOX - COVER - GEARBOX OIL RADIATOR PARTS DIAGRAM")
-part-diagram-029.webp "MASERATI 4200 SPYDER (2002) DIFFERENTIAL BOX - REAR UNDERBODY PARTS DIAGRAM")
-part-diagram-030.webp "MASERATI 4200 SPYDER (2002) MAIN SHAFT GEARS PARTS DIAGRAM")
-part-diagram-031.webp "MASERATI 4200 SPYDER (2002) LAY SHAFT GEARS PARTS DIAGRAM")
-part-diagram-032.webp "MASERATI 4200 SPYDER (2002) INNER GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-033.webp "MASERATI 4200 SPYDER (2002) OUTER GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-034.webp "MASERATI 4200 SPYDER (2002) ENGINE-TRANSMISSION CONNECTION TUBE AND INSULATIONS PARTS DIAGRAM")
-part-diagram-035.webp "MASERATI 4200 SPYDER (2002) DIFFERENTIAL & AXLE SHAFTS PARTS DIAGRAM")
-part-diagram-036.webp "MASERATI 4200 SPYDER (2002) BRAKES AND CLUTCH HYDRAULIC CONTROLS PARTS DIAGRAM")
-part-diagram-037.webp "MASERATI 4200 SPYDER (2002) BRAKING SYSTEM -NOT FOR GD PARTS DIAGRAM")
-part-diagram-038.webp "MASERATI 4200 SPYDER (2002) BRAKING SYSTEM -VALID FOR GD PARTS DIAGRAM")
-part-diagram-039.webp "MASERATI 4200 SPYDER (2002) BRAKE CALIPERS PARTS DIAGRAM")
-part-diagram-040.webp "MASERATI 4200 SPYDER (2002) HAND-BRAKE CONTROL PARTS DIAGRAM")
-part-diagram-041.webp "MASERATI 4200 SPYDER (2002) FRONT UNDER FRAME AND UNDERMOTOR SHIELDS PARTS DIAGRAM")
-part-diagram-042.webp "MASERATI 4200 SPYDER (2002) STEERING BOX PARTS DIAGRAM")
-part-diagram-043.webp "MASERATI 4200 SPYDER (2002) STEERING COLUMN PARTS DIAGRAM")
-part-diagram-044.webp "MASERATI 4200 SPYDER (2002) FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-045.webp "MASERATI 4200 SPYDER (2002) FRONT SUSPENSION - WISHBONES AND STABILIZER BAR PARTS DIAGRAM")
-part-diagram-046.webp "MASERATI 4200 SPYDER (2002) REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISK PARTS DIAGRAM")
-part-diagram-047.webp "MASERATI 4200 SPYDER (2002) REAR SUSPENSION - WISHBONES PARTS DIAGRAM")
-part-diagram-048.webp "MASERATI 4200 SPYDER (2002) WHEELS PARTS DIAGRAM")
-part-diagram-049.webp "MASERATI 4200 SPYDER (2002) SPARE WHEEL AND EQUIPMENT -OPTIONAL PARTS DIAGRAM")
-part-diagram-050.webp "MASERATI 4200 SPYDER (2002) BATTERY PARTS DIAGRAM")
-part-diagram-051.webp "MASERATI 4200 SPYDER (2002) CURRENT GENERATOR-STARTING MOTOR PARTS DIAGRAM")
-part-diagram-052.webp "MASERATI 4200 SPYDER (2002) TOOLS EQUIPMENT AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-100.webp "MASERATI 4200 SPYDER (2002) BODY - OUTER TRIMS PARTS DIAGRAM")
-part-diagram-101.webp "MASERATI 4200 SPYDER (2002) BODY - REAR OUTER TRIMS PARTS DIAGRAM")
-part-diagram-102.webp "MASERATI 4200 SPYDER (2002) FRONT STRUCTURE PARTS DIAGRAM")
-part-diagram-103.webp "MASERATI 4200 SPYDER (2002) CENTRAL STRUCTURE PARTS DIAGRAM")
-part-diagram-104.webp "MASERATI 4200 SPYDER (2002) REAR STRUCTURE PARTS DIAGRAM")
-part-diagram-105.webp "MASERATI 4200 SPYDER (2002) FRONT BUMPER PARTS DIAGRAM")
-part-diagram-106.webp "MASERATI 4200 SPYDER (2002) REAR BUMPER PARTS DIAGRAM")
-part-diagram-107.webp "MASERATI 4200 SPYDER (2002) PASSENGERS COMPARTMENT CARPETS PARTS DIAGRAM")
-part-diagram-108.webp "MASERATI 4200 SPYDER (2002) ROOF PANEL UPHOLSTERY AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-109.webp "MASERATI 4200 SPYDER (2002) PASSEGERS COMPARTMENT UPHOLSTERY ACCESSORIES PARTS DIAGRAM")
-part-diagram-110.webp "MASERATI 4200 SPYDER (2002) TRUNK HOOD COMPARTMENT TRIMS - AIR INLET AND HEATH SHIELDS PARTS DIAGRAM")
-part-diagram-111.webp "MASERATI 4200 SPYDER (2002) CAPOTE CLOTH - GASKET PARTS DIAGRAM")
-part-diagram-112.webp "MASERATI 4200 SPYDER (2002) CAPOTE FRONT CLOSING PARTS DIAGRAM")
-part-diagram-113.webp "MASERATI 4200 SPYDER (2002) CAPOTE STRUCTURE PARTS DIAGRAM")
-part-diagram-114.webp "MASERATI 4200 SPYDER (2002) CAPOTE CONTROL STATION - RELAY - MICROSWITCH PARTS DIAGRAM")
-part-diagram-115.webp "MASERATI 4200 SPYDER (2002) CAPOTE HYDRAULIC SYSTEM PARTS DIAGRAM")
-part-diagram-116.webp "MASERATI 4200 SPYDER (2002) CLOSINGS AND COVER PARTS DIAGRAM")
-part-diagram-117.webp "MASERATI 4200 SPYDER (2002) ENGINE BONNET AND OPENING DEVICE PARTS DIAGRAM")
-part-diagram-118.webp "MASERATI 4200 SPYDER (2002) TRUNK HOOD BONNET AND GAS DOOR PARTS DIAGRAM")
-part-diagram-119.webp "MASERATI 4200 SPYDER (2002) DOORS - FRAMEWORK AND COVERINGS PARTS DIAGRAM")
-part-diagram-120.webp "MASERATI 4200 SPYDER (2002) DOORS - OPENING CONTROL AND HINGES PARTS DIAGRAM")
-part-diagram-121.webp "MASERATI 4200 SPYDER (2002) DOORS - POWER WINDOW AND REARWIEW MIRROR PARTS DIAGRAM")
-part-diagram-122.webp "MASERATI 4200 SPYDER (2002) GLASSES WINDSHIELD - GASKETS AND INNER REARWIEW MIRROR PARTS DIAGRAM")
