044 - Front suspension - Shock absorber and brake discs

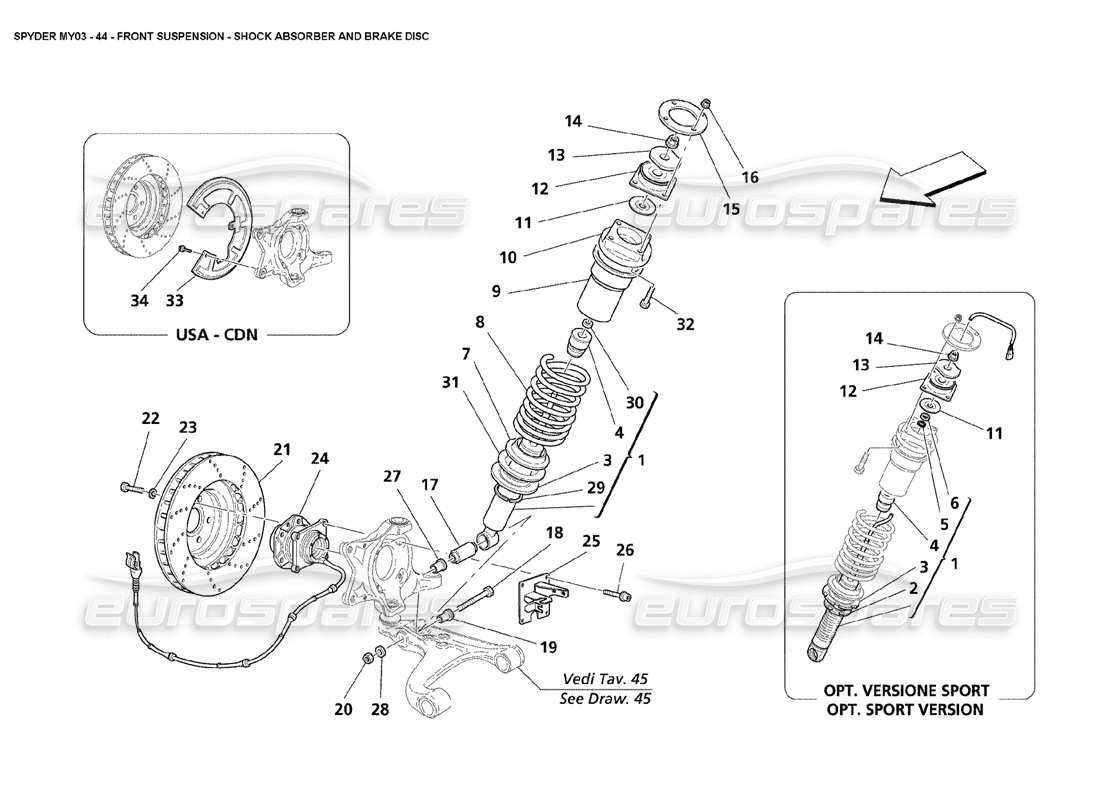

Maserati 4200 Spyder (2003) Front Suspension - Shock Absorber and Brake Discs Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 195937
FRONT SHOCK ABSORBER
- Standard
Supersession
Supersession
This part replaces part number 199111
# 001
MPN: 197908
FRONT SHOCK ABSORBER
- Optional - Version sport
from £945.96
from £945.96
# 002
MPN: 174726
RING NUT
- Optional - Version sport
from £39.83
from £39.83
# 003
MPN: 183020
LOWER SPACER
- Optional - Version sport
from £394.83
from £394.83
# 003
MPN: 386601380
LOWER SPACER
- Standard
from £65.68
from £65.68
# 004
MPN: 197909
SHOCK ABSORBER PAD
from £38.07
from £38.07
# 005
MPN: 183594
FLEXIBLE RING
- Optional - Version sport
from £22.31
from £22.31
# 006
MPN: 183595
BUSHING
- Optional - Version sport
from £33.52
from £33.52
# 007
MPN: 188994
LOWER SPACER
from £4.64
from £4.64
# 008
MPN: 197890

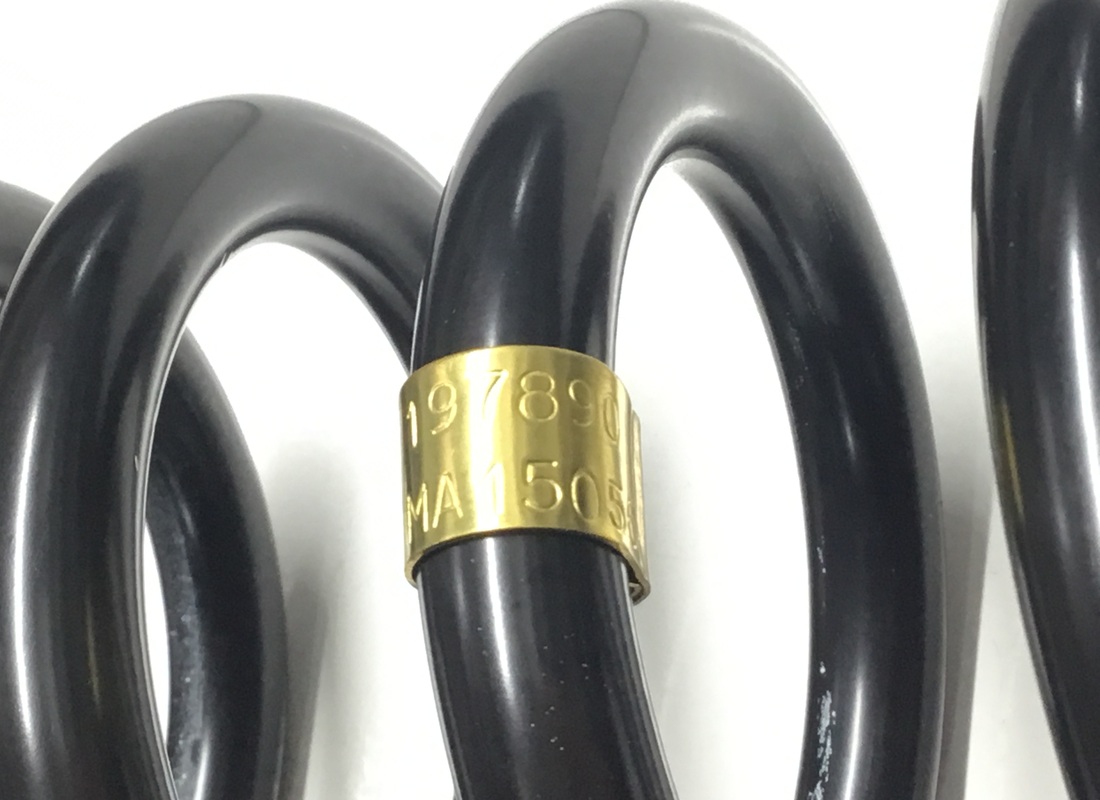

SUSPENSION SPRING
from £145.65
from £145.65
# 009
MPN: 188993
UPPER SPACER
from £7.76
from £7.76
# 010
MPN: 198057
SPRING SUPPORT SPACER
from £9.52
from £9.52
# 011
MPN: 183016
WASHER
- Optional - Version sport
from £16.08
from £16.08
# 011
MPN: 193235
WASHER
- Standard
from £3.28
from £3.28
# 012
MPN: 183015
HYPERBLOCK
- Optional - Version sport
from £44.47
from £44.47
# 012
MPN: 386600109
HYPERBLOCK
- Standard
from £83.87
from £83.87
This part replaces part number 114812 which we have in stock
# 013
MPN: 189110
WASHER
- Optional - Version sport
from £4.00
from £4.00
# 013
MPN: 387000340
WASHER
- Standard
from £3.28
from £3.28
# 014
MPN: 137826
NUT
- Standard
from £1.74
from £1.74
# 014
MPN: 183417
NUT
- Optional - Version sport
Supersession
Supersession
# 015
MPN: 198719
SPACER FOR SHOCK ABSORBER
- Not for USA and CDN
from £6.55
from £6.55
# 016
MPN: 14058521
NUT
from £0.97
from £0.97
# 017
MPN: 157630
SILENT BLOCK BUSH
from £48.50
from £48.50
# 018
MPN: 16241234
SCREW
from £5.68
from £5.68
# 019
MPN: 187059
BUSHING
from £8.96
from £8.96
# 020
MPN: 14076011
NUT
from £4.23
from £4.23
# 021
MPN: 387210321

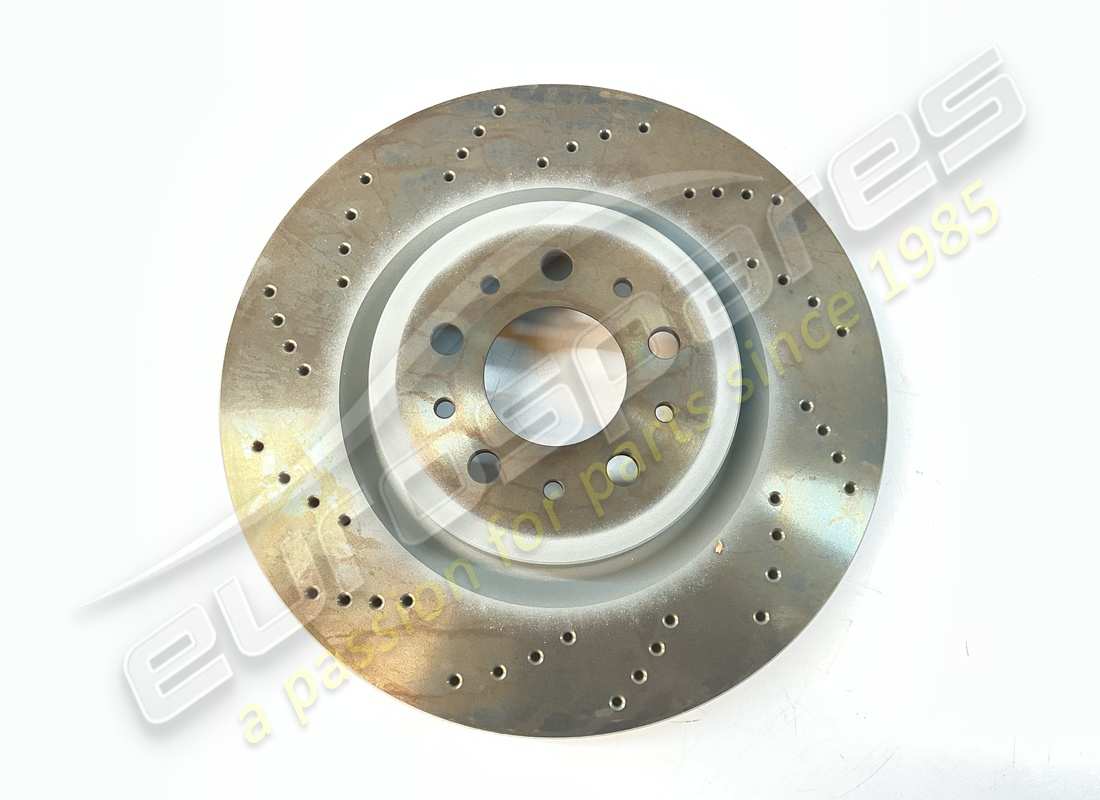

FRONT BRAKE DISC
from £175.36
from £175.36
This part replaces part number 387205321
# 022
MPN: 16043411
SCREW
from £0.88
from £0.88
# 023
MPN: 10571779
WASHER
from £0.47
from £0.47
# 024
MPN: 197064

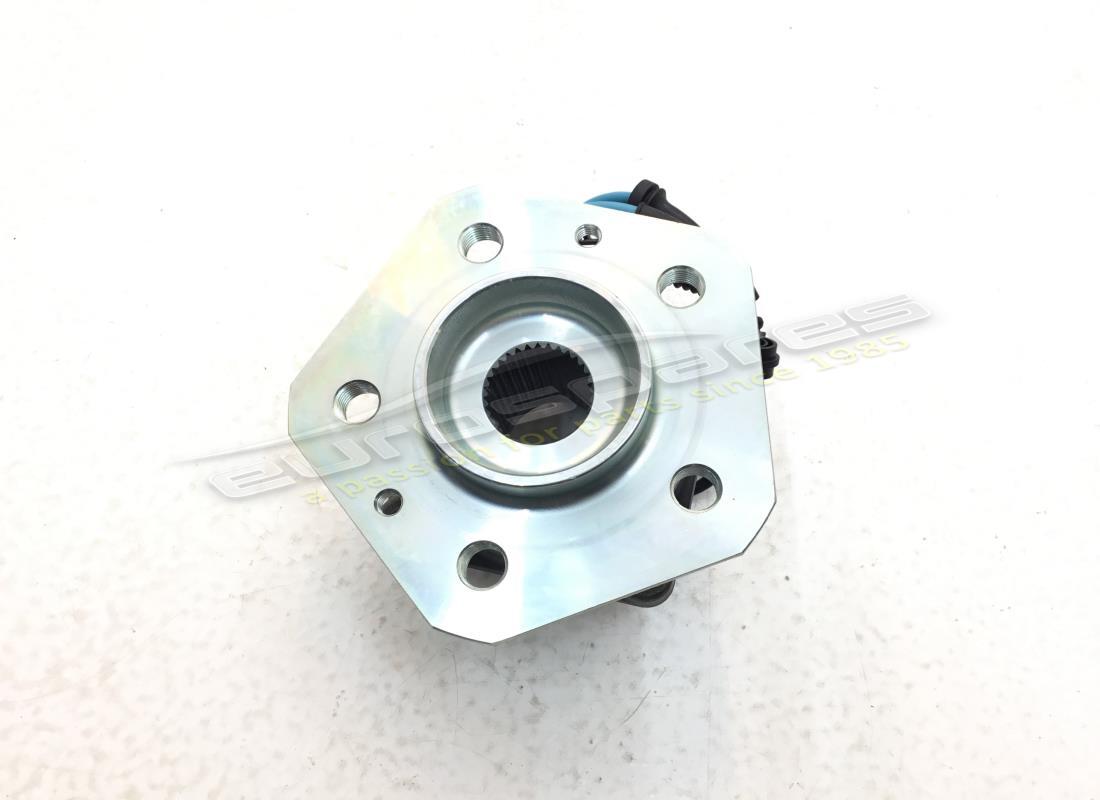

BEARING FOR WHEEL
from £538.00
from £538.00
# 025
MPN: 183585
PLATE FOR RH HUB HOLDER
from £21.12
from £21.12
# 025
MPN: 183586
PLATE FOR LH HUB HOLDER
from £38.40
from £38.40
# 026
MPN: 191238
SCREW
Supersession
Supersession
This part replaces part number 14308024
# 027
MPN: 191823
BUSHING
from £8.96
from £8.96
# 028
MPN: 10738021
WASHER
from £0.69
from £0.69
# 029
MPN: 386601381
SPACER STOP RING
from £4.32
from £4.32
# 030
MPN: 386600329
SPACER FOR PAD SUPPORT
- Standard
from £18.40
from £18.40
# 031
MPN: 386601393
THICKNESS
- Standard - MM. 2,5
from £3.84
from £3.84
# 031
MPN: 386601394
THICKNESS
-Standard - MM. 5
from £4.72
from £4.72
# 032
MPN: 16044124
SCREW
from £0.47
from £0.47
# 033
MPN: 193730
LH FRONT BRAKE DISC SHIELD
- Valid for USA and CDN
from £21.14
from £21.14
# 033
MPN: 193731
RH FRONT BRAKE DISC SHIELD
- Valid for USA and CDN
from £21.14
from £21.14
# 034
MPN: 193737
SCREW
- Valid for USA and CDN
Supersession
Supersession
