103 - central structure

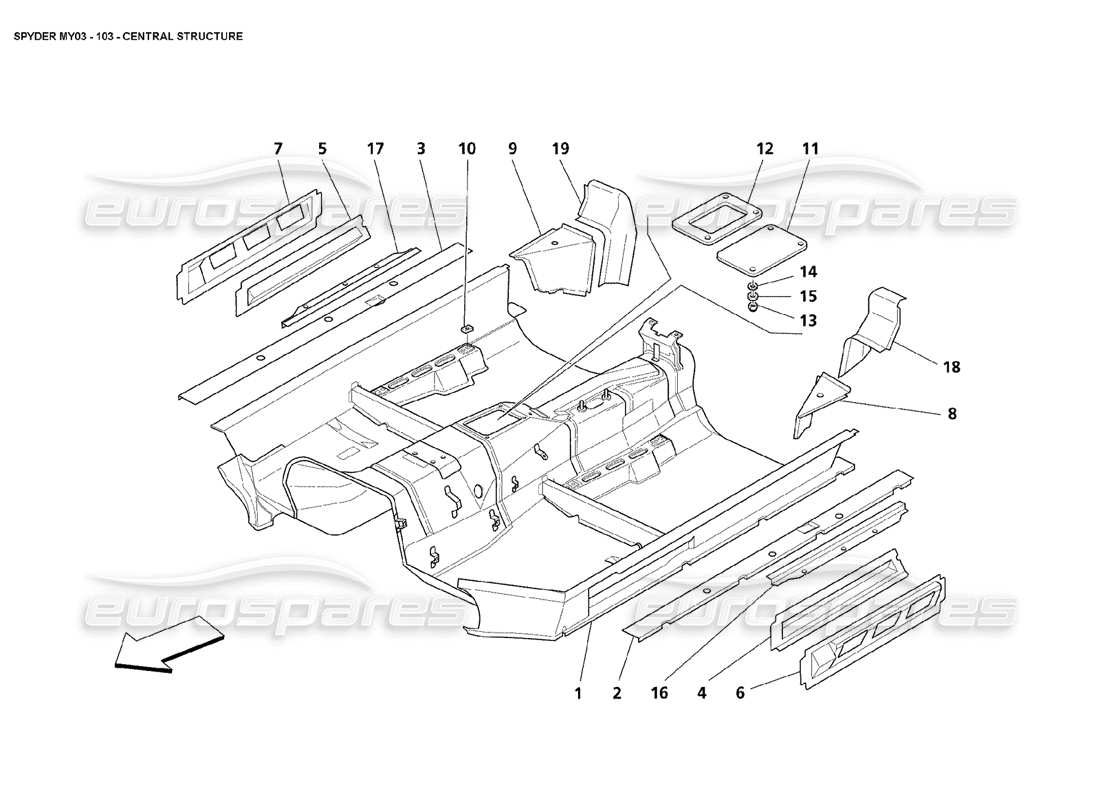

Maserati 4200 Spyder (2003) Central Structure Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 980138028
COMPLETE CENTRAL FLOOR
from £2,694.90
from £2,694.90
# 002
MPN: 65964600
LH UNDERDOOR LOWER LONGITUDINAL MEMBER
from £19.92
from £19.92
# 003
MPN: 65964500
RH UNDERDOOR LOWER LONGITUDINAL MEMBER
from £22.10
from £22.10
# 004
MPN: 67498000
LH FRONT LONGITUDINAL MEMBER REINFORCEMENT
from £77.89
from £77.89
# 005
MPN: 67497900
RH FRONT LONGITUDINAL MEMBER REINFORCEMENT
from £77.89
from £77.89
# 006
MPN: 67498800
LH LONGITUDINAL FRONT MEMBER
from £53.09
from £53.09
# 007
MPN: 67498700
RH LONGITUDINAL FRONT MEMBER
from £53.09
from £53.09
# 008
MPN: 65962700
LH OUTER ANGULAR REINFORCEMENT
from £16.41
from £16.41
# 009
MPN: 65962600
RH OUTER ANGULAR REINFORCEMENT
from £16.41
from £16.41
# 010
MPN: 66422200
NUT
from £5.77
from £5.77
# 011
MPN: 66423900
PLATE FOR GEAR CONTROL TONER
- Valid for F1
from £3.84
from £3.84
# 012
MPN: 66424000
PLATE GASKET
- Valid for F1
from £2.96
from £2.96
# 013
MPN: 16100814
NUT
- Valid for F1
from £0.71
from £0.71
# 014
MPN: 12625224
WASHER
- Valid for F1
from £0.47
from £0.47
This part replaces part number 12625221
# 015
MPN: 12601374
WASHER
- Valid for F1
from £0.47
from £0.47
# 016
MPN: 67498600
LH CONNECTION BRACKET
from £26.40
from £26.40
# 017
MPN: 67498500
RH CONNECTION BRACKET
from £26.40
from £26.40
# 018
MPN: 67507400
LH UPPER OUTER ANGULAR REINFORCEMENT
from £35.95
from £35.95
# 019
MPN: 67507300
RH UPPER OUTER ANGULAR REINFORCEMENT
from £35.95
from £35.95
