113 - Capote Structure

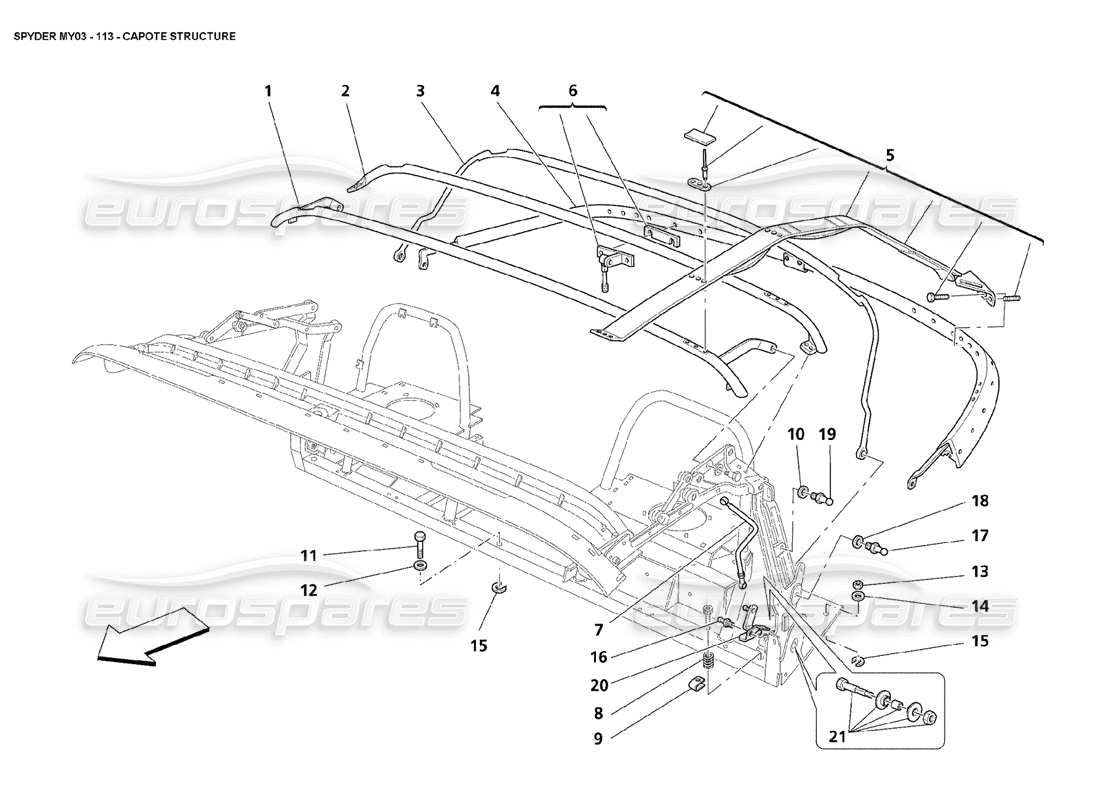

Maserati 4200 Spyder (2003) Capote Structure Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000

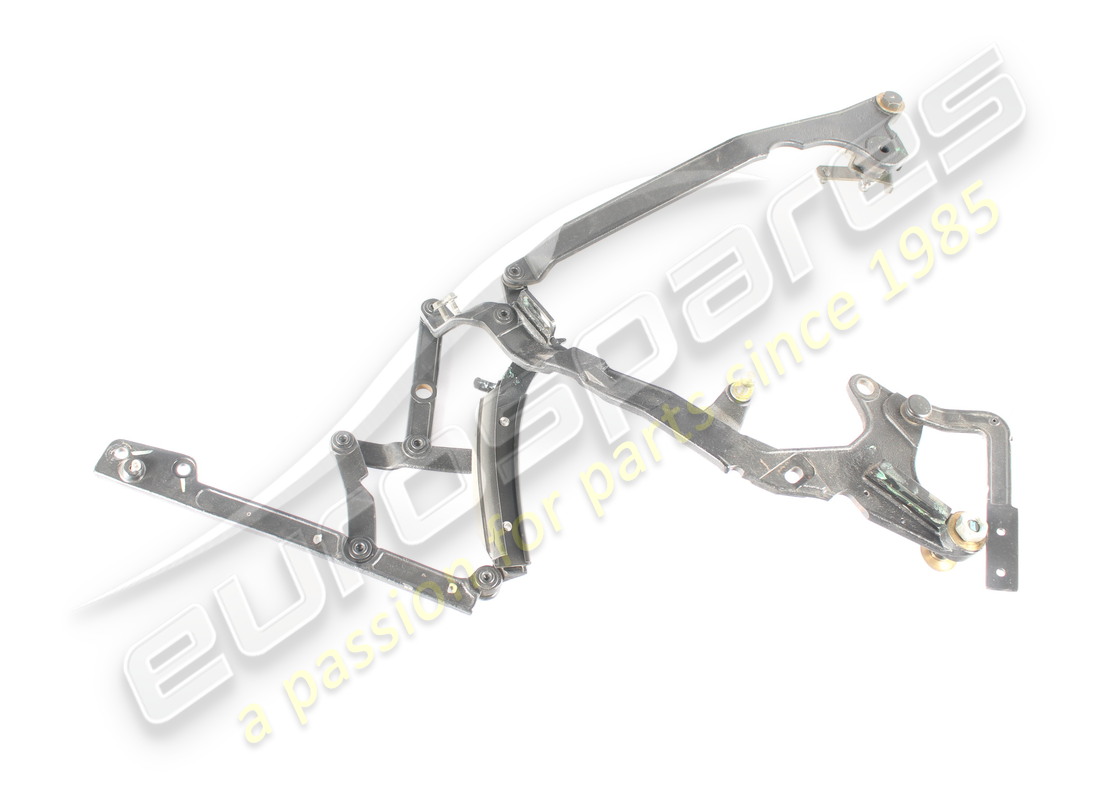

MPN: 66103963L
EFT SIDE FOLDING FRAME
from £315.00
from £315.00
# 000
MPN: 66103963R
RIGHT SIDE FOLDING FRAME
from £315.00
from £315.00
# 001
MPN: 66103600
FRONT MOVABLE FRAME RIB
from £106.38
from £106.38
# 002
MPN: 67240800
CENTRAL FRAME RIB
from £75.45
from £75.45
# 003
MPN: 67519100
REAR FRAME RIB
from £256.13
from £256.13
# 004
MPN: 67518000
COMPLETE CAPOTE ARCH
from £886.23
from £886.23
# 005
MPN: 980002020
BELTS KIT
from £414.19
from £414.19
# 006
MPN: 980002019
PULL DOWN KIT
from £131.74
from £131.74
# 007
MPN: 66604300
RH TIE ROD FOR CAPOTE LEVERS DOOR
from £328.99
from £328.99
# 007
MPN: 66604400
LH TIE ROD FOR CAPOTE LEVERS DOOR
from £328.99
from £328.99
# 008
MPN: 66319500
SPRING
from £7.37
from £7.37
# 009
MPN: 66319400
SPRING FASTENING PLATE
from £3.12
from £3.12
# 010
MPN: 67641900
WASHER
from £14.64
from £14.64
# 011
MPN: 16044421
SCREW
from £1.36
from £1.36
# 012
MPN: 12601379
WASHER
from £0.91
from £0.91
# 013
MPN: 16100824
NUT
from £0.47
from £0.47
# 014
MPN: 12647021
WASHER
from £0.47
from £0.47
This part replaces part number 12647024
# 015
MPN: 377030378
WASHER
- Tickness mm. 0,50
from £3.28
from £3.28
# 015
MPN: 377030379
WASHER
from £4.00
from £4.00
# 015
MPN: 377030380
WASHER
- Tickness mm. 1,00
from £17.83
from £17.83
# 015
MPN: 377030381
WASHER
- Tickness mm. 1,75
from £4.00
from £4.00
# 015
MPN: 377030382
WASHER
- Tickness mm. 3,00
from £4.72
from £4.72
# 016
MPN: 66609200
PIN
from £98.15
from £98.15
# 017
MPN: 66430000
PIN
Supersession
Supersession
# 018
MPN: 14496521
WASHER
from £0.51
from £0.51
# 019
MPN: 66649400
PIN
from £48.15
from £48.15
# 020
MPN: 66604500
RH LEVER FOR CAPOTE DOOR MOVEMENT
from £60.06
from £60.06
# 020
MPN: 66604600
LH LEVER FOR CAPOTE DOOR MOVEMENT
from £60.06
from £60.06
# 021

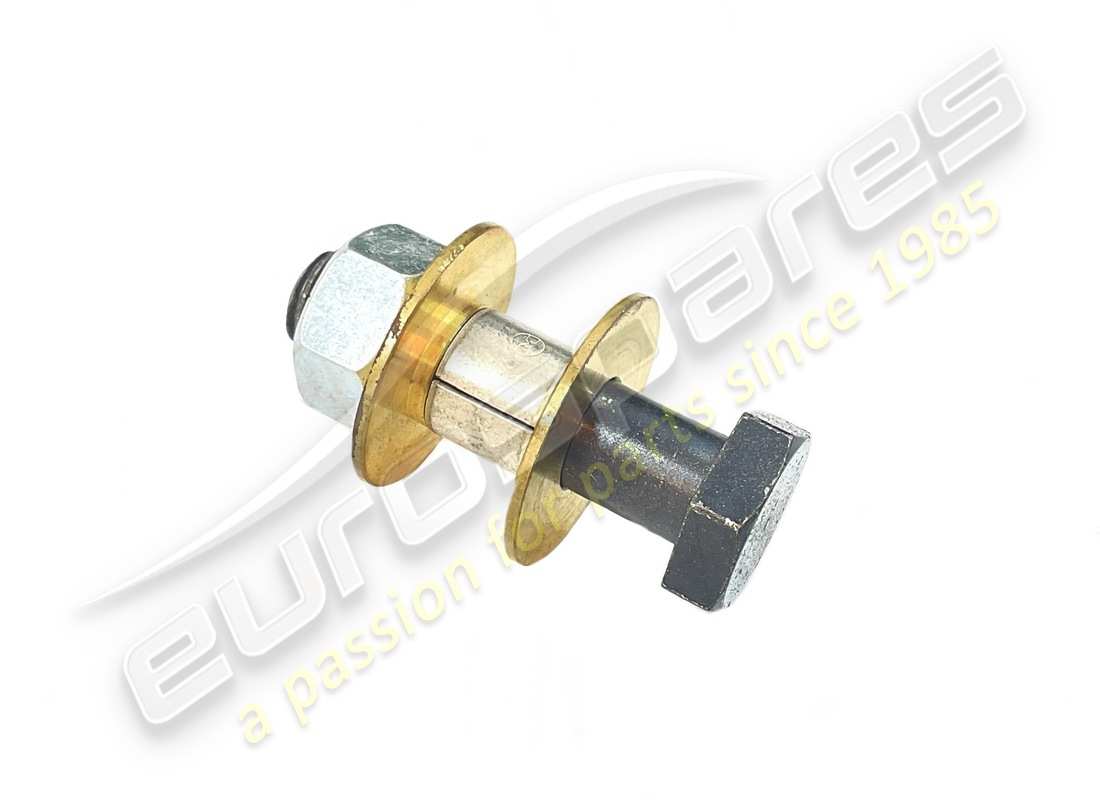

MPN: 980138221
LEVER MOVEMENT PIN KIT
from £240.29
from £240.29
