Maserati 4200 Spyder (2003) Electrical Seat - Safety Belt Parts Diagram

123 - Electrical Seat - Safety Belt

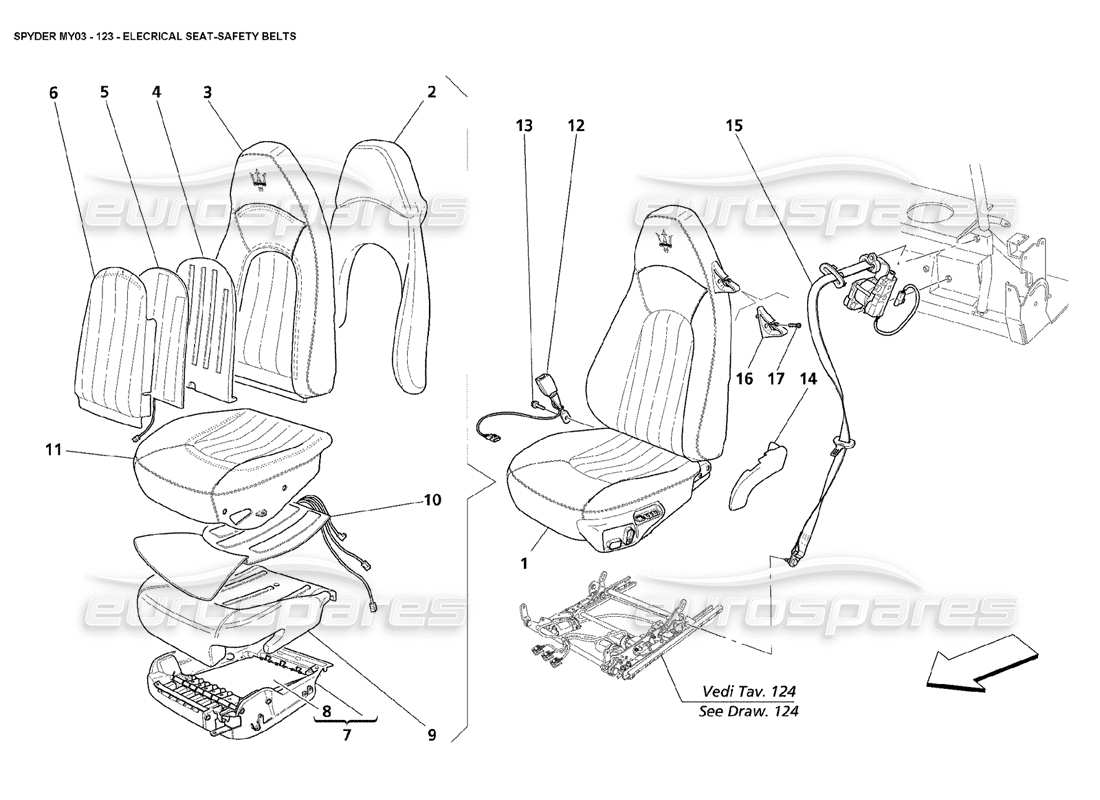

Maserati 4200 Spyder (2003) Electrical Seat - Safety Belt Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                          #
                          Part number
                          Description
                          Key
                          Price
                          # 001
                          MPN: 675142..
                          COMPLETE RH FRONT SEAT
                          - Optional - Leather drilled - Valid for GD
                          COMPLETE RH FRONT SEAT Genuine Maserati Part - New (to order)
                          # 001
                          MPN: 675143..
                          COMPLETE RH FRONT SEAT
                          - Optional - Leather drilled and heater - Valid for GD
                          COMPLETE RH FRONT SEAT Genuine Maserati Part - New (to order)
                          # 001
                          MPN: 675146..
                          COMPLETE LH FRONT SEAT
                          - Optional - Leather drilled - Valid for GD
                          COMPLETE LH FRONT SEAT Genuine Maserati Part - New (to order)
                          # 001
                          MPN: 675147..
                          COMPLETE LH FRONT SEAT
                          - Optional - Leather drilled and heater - Valid for GD
                          COMPLETE LH FRONT SEAT Genuine Maserati Part - New (to order)
                          # 001
                          MPN: 675149..
                          COMPLETE RH FRONT SEAT
                          - Optional - Leather drilled - Not for GD
                          COMPLETE RH FRONT SEAT Genuine Maserati Part - New (to order)
                          # 001
                          MPN: 675151..
                          COMPLETE RH FRONT SEAT
                          - Optional - Leather drilled and heater - Not for GD
                          Supersession
                          Supersession
                          Genuine Maserati Part (no longer available to order)
                          # 001
                          MPN: 675152..
                          COMPLETE LH FRONT SEAT
                          - Optional - Leather drilled - Not for GD
                          COMPLETE LH FRONT SEAT Genuine Maserati Part - New (to order)
                          # 001
                          MPN: 675153..
                          COMPLETE LH FRONT SEAT
                          - Optional - Leather drilled and heater - Not for GD
                          Supersession
                          Supersession
                          Genuine Maserati Part (no longer available to order)
                          # 001
                          MPN: 9811007..
                          COMPLETE LH FRONT SEAT
                          - Standard - Not for GD
                          Supersession
                          Supersession
                          Genuine Maserati Part (no longer available to order)
                          # 001
                          MPN: 9811008..
                          COMPLETE RH FRONT SEAT
                          - Standard - Not for GD
                          Supersession
                          Supersession
                          Genuine Maserati Part (no longer available to order)
                          # 001
                          MPN: 9811009..
                          COMPLETE LH FRONT SEAT
                          - Optional - Heater - Not for GD
                          Supersession
                          Supersession
                          Genuine Maserati Part (no longer available to order)
                          # 001
                          MPN: 9811011..
                          COMPLETE RH FRONT SEAT
                          - Optional - Heater - Not for GD
                          Supersession
                          Supersession
                          Genuine Maserati Part (no longer available to order)
                          # 001
                          MPN: 9811017..
                          COMPLETE RH FRONT SEAT
                          - Standard - Valid for GD
                          Supersession
                          Supersession
                          Genuine Maserati Part (no longer available to order)
                          # 001
                          MPN: 9811018..
                          COMPLETE RH FRONT SEAT
                          - Optional - Heater - Valid for GD
                          Supersession
                          Supersession
                          Genuine Maserati Part (no longer available to order)
                          # 001
                          MPN: 9811019..
                          COMPLETE LH FRONT SEAT
                          - Standard - Valid for GD
                          Supersession
                          Supersession
                          Genuine Maserati Part (no longer available to order)
                          # 001
                          MPN: 9811021..
                          COMPLETE LH FRONT SEAT
                          - Optional - Heater - Valid for GD
                          Supersession
                          Supersession
                          Genuine Maserati Part (no longer available to order)
                          # 002
                          MPN: 980138100
                          SEATBACK PERIPHERAL PADDING
                          from £1,027.81
                          from £1,027.81
                          IMBOTTITURA PERIFERICA SCHIE Genuine Maserati Part - New (to order)
                          # 003
                          MPN: 9811002..
                          BACKSEAT PERIPHERAL UPHOLSTERY
                          Supersession
                          Supersession
                          Genuine Maserati Part (no longer available to order)
                          # 004
                          MPN: 980001118
                          BACKSEAT CENTRAL PADDING
                          from £60.41
                          from £60.41
                          IMBOTTITURA CUSCINO SCHIENAL Genuine Maserati Part - New (to order)
                          # 005
                          MPN: 980001121
                          BACKSEAT HEATER
                          from £53.89
                          from £53.89
                          TERMOFORO SCHIENALE M138 Genuine Maserati Part - New (to order)
                          # 006
                          MPN: 9811000..
                          BACKSEAT CENTRAL UPHOLSTERY
                          - Not for cars with leather drilled seats
                          Supersession
                          Supersession
                          Genuine Maserati Part (no longer available to order)
                          # 006
                          MPN: 9812003..
                          BACKSEAT CENTRAL UPHOLSTERY
                          - Valid for cars with leather drilled seats
                          Supersession
                          Supersession
                          Genuine Maserati Part (no longer available to order)
                          # 007
                          MPN: 980001179
                          COMPLETE LH CUSHION BOTTOM
                          from £50.78
                          from £50.78
                          FONDELLO SEDILE SX COMPLETE DI ST Genuine Maserati Part - New (to order)
                          # 007
                          MPN: 980001180
                          COMPLETE RH CUSHION BOTTOM
                          from £50.78
                          from £50.78
                          RIGHT SEAT BACK COMPLETE WITH ST Genuine Maserati Part - New (to order)
                          # 008
                          MPN: 980001122
                          CUSHION BOTTOM MEMBRANE
                          from £32.34
                          from £32.34
                          MEMBRANE ON SEAT BASE Genuine Maserati Part - New (to order)
                          # 009
                          MPN: 980138101
                          LH CUSHION PADDING
                          - Valid for GD
                          from £1,027.81
                          from £1,027.81
                          IMBOTTITURA CUSCINO ANT SX M Genuine Maserati Part - New (to order)
                          # 009
                          MPN: 980138102
                          RH CUSHION PADDING
                          - Not for GD
                          from £1,027.81
                          from £1,027.81
                          IMBOTTITURA CUSCINO ANT DX M Genuine Maserati Part - New (to order)
                          # 009
                          MPN: 980138103
                          LH CUSHION PADDING
                          - Not for GD
                          from £1,027.81
                          from £1,027.81
                          IMBOTTITURA CUSCINO ANT SX M Genuine Maserati Part - New (to order)
                          # 009
                          MPN: 980138104
                          RH CUSHION PADDING
                          - Valid for GD
                          from £1,027.81
                          from £1,027.81
                          IMBOTTITURA CUSCINO ANT DX M Genuine Maserati Part - New (to order)
                          # 010
                          MPN: 980001120
                          CUSHION HEATER
                          from £128.06
                          from £128.06
                          TERMOFORO SEDILE M138 Genuine Maserati Part - New (to order)
                          # 011
                          MPN: 9812001..
                          LH FRONT CUSHION UPHOLSTERY
                          - Not for cars with leather drilled seats
                          Supersession
                          Supersession
                          Genuine Maserati Part (no longer available to order)
                          # 011
                          MPN: 9812002..
                          RH FRONT CUSHION UPHOLSTERY
                          - Not for cars with leather drilled seats
                          Supersession
                          Supersession
                          Genuine Maserati Part (no longer available to order)
                          # 011
                          MPN: 9812004..
                          LH FRONT CUSHION UPHOLSTERY
                          - Valid for cars with leather drilled seats
                          Supersession
                          Supersession
                          Genuine Maserati Part (no longer available to order)
                          # 011
                          MPN: 9812005..
                          RH FRONT CUSHION UPHOLSTERY
                          - Valid for cars with leather drilled seats
                          Supersession
                          Supersession
                          Genuine Maserati Part (no longer available to order)
                          # 012
                          MPN: 388100336
                          PASSENGER SEAT BELT LOCK
                          from £26.76
                          from £26.76
                          RAMO FIBBIA SEDILE ANT DX M3 Genuine Maserati Part - New (to order)
                          RAMO FIBBIA SEDILE ANT DX M3 Genuine Maserati Part - Used In stock
                          # 012
                          MPN: 388100337
                          PILOT SEAT BELT LOCK
                          from £108.37
                          from £108.37
                          PILOT SEAT BELT LOCK Genuine Maserati Part - New (to order)
                          # 013
                          MPN: 386900301
                          SCREW
                          from £13.92
                          from £13.92
                          VITE FISS. RAMO FIBBIA 33 Genuine Maserati Part - New (to order)
                          # 014
                          MPN: 66710500
                          RH SEAT JOINT COVER
                          from £13.50
                          from £13.50
                          LHD RH SEAT JOINT COVER,SPID Genuine Maserati Part - New (to order)
                          # 014
                          MPN: 66710800
                          LH SEAT JOINT COVER
                          from £15.92
                          from £15.92
                          LHD LH SEAT JOINT COVER,SPID Genuine Maserati Part - New (to order)
                          # 015
                          MPN: 66311100
                          RH ROLLER
                          - Not for USA and CDN
                          from £148.80
                          from £148.80
                          RAMO ARROTOLATORE ANT DX M13 Genuine Maserati Part - New (to order)
                          # 015
                          MPN: 66311200
                          RH ROLLER
                          - Valid for USA and CDN
                          from £153.93
                          from £153.93
                          RAMO ARROTOLATORE ANT DX M13 Genuine Maserati Part - New (to order)
                          # 015
                          MPN: 66311300
                          LH ROLLER
                          - Not for USA e CDN
                          from £148.80
                          from £148.80
                          RAMO ARROTOLATORE ANT SX M13 Genuine Maserati Part - New (to order)
                          # 015
                          MPN: 66919400
                          LH ROLLER
                          - Valid for USA e CDN
                          from £142.88
                          from £142.88
                          RAMO ARROTOLATORE ANT SX M13 Genuine Maserati Part - New (to order)
                          # 016
                          MPN: 66710600
                          BELT HOLDER
                          from £37.91
                          from £37.91
                          This part replaces part number 66710900
                          FIBBIA CINTURA SEDILE ANT DX Genuine Maserati Part - New (to order)
                          # 017
                          MPN: 386900408
                          SCREW
                          from £4.40
                          from £4.40
                          SPECIAL SCREW 3056045 Genuine Maserati Part - New (to order)
