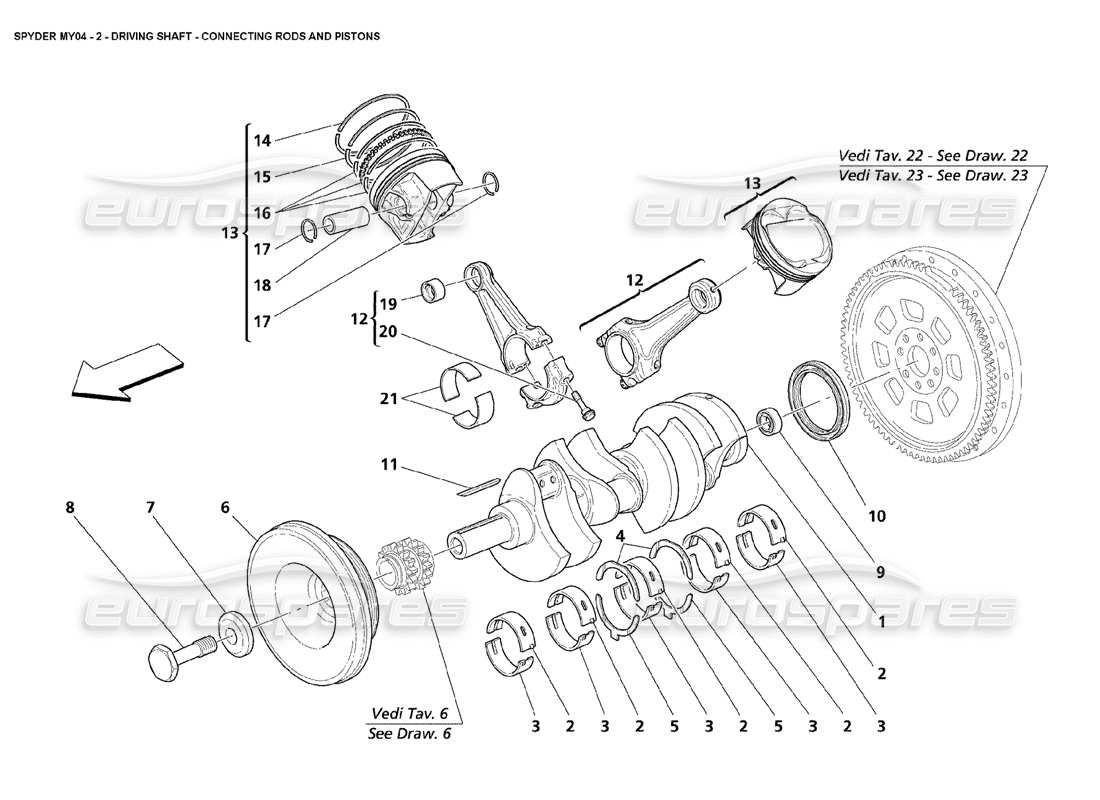

002 - crankshaft conrods and pistons
Maserati 4200 Spyder (2004) Crankshaft Conrods and Pistons Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 193169
crankshaft
from £976.27
from £976.27
# 002
MPN: 182969
UPPER HALF BEARING
- Blue - Valid till engine Nr. 75465
from £7.83
from £7.83
# 002
MPN: 182970
UPPER HALF BEARING
- Yellow - Valid till engine Nr. 75465
from £7.19
from £7.19
# 002
MPN: 188517
UPPER HALF BEARING
- Green - Standard - Valid till engine Nr. 75465
from £36.71
from £36.71
This part replaces part number 174716
# 002
MPN: 193000
UPPER HALF BEARING
- Blue - Valid from engine Nr. 75466
from £11.76
from £11.76
# 002
MPN: 193001
UPPER HALF BEARING
- Yellow - Valid from engine Nr. 75466
from £14.79
from £14.79
# 002
MPN: 193002
UPPER HALF BEARING
- Green - Standard - Valid from engine Nr. 75466
from £14.79
from £14.79
# 003
MPN: 182971
LOWER HALF BEARING
- Blue - Valid till engine Nr. 75465
from £6.49
from £6.49
# 003
MPN: 182972
LOWER HALF BEARING
- Yellow - Valid till engine Nr. 75465
from £25.44
from £25.44
# 003
MPN: 188516
LOWER HALF BEARING
- Green - Standard - Valid till engine Nr. 75465
from £41.49
from £41.49
This part replaces part number 174739
# 003
MPN: 193003
LOWER HALF BEARING
- Blue - Valid from engine Nr. 75466
from £10.50
from £10.50
# 003
MPN: 193004
LOWER HALF BEARING
- Yellow - Valid from engine Nr. 75466
from £11.56
from £11.56
# 003
MPN: 193005
LOWER HALF BEARING
- Green - Standard - Valid from engine Nr. 75466
from £11.56
from £11.56
# 004
MPN: 179539
UPPER SHIM
- Standard
from £22.95
from £22.95
# 004
MPN: 179540
UPPER SHIM
- Standard - 1st Oversize
from £42.69
from £42.69
# 004
MPN: 179541
UPPER SHIM
- 2nd Oversize
from £42.69
from £42.69
# 005
MPN: 179536
LOWER SHIM
- 2nd Oversize
from £42.69
from £42.69
# 005
MPN: 179537
LOWER SHIM
- 1st Oversize
from £42.69
from £42.69
# 005
MPN: 179538
LOWER SHIM
- Standard
from £23.18
from £23.18
# 006
MPN: 187469
torsion damper
from £930.25
from £930.25
# 007
MPN: 192106
WASHER
from £3.67
from £3.67
# 008
MPN: 196216
SCREW FOR DAMPER FIXING
from £25.12
from £25.12
This part replaces part number 192005 - and 1 more. Click to view details
# 009
MPN: 103877
PILOT BEARING
not as spare part - use part number: 235062
from £18.43
from £18.43
This part replaces part number 235062
# 009
MPN: 235062
BEARING
(replaces: 103877)
Supersession
Supersession
# 010
MPN: 200323
SEAL RING
from £24.95
from £24.95
# 011
MPN: 186201
Key
from £0.69
from £0.69
# 012
MPN: 192402
COMPLETE CONNECTING ROD
from £139.35
from £139.35
This part replaces part number 175360 which we have in stock - and 1 more. Click to view details
# 013
MPN: 187199
LH PISTON WITH RINGS
Supersession
Supersession
This part replaces part number 187957
# 013
MPN: 198410
RH PISTON WITH RINGS
from £110.68
from £110.68
This part replaces part number 187198 - and 2 more. Click to view details
# 014
MPN: 175612
SEAL RING
- 1st groove
from £64.38
from £64.38
This part replaces part number 187955
# 015
MPN: 187201
SEAL RING
- 2nd groove
from £18.47
from £18.47
# 016
MPN: 175614
OIL SCRAPING RING
- 3nd groove
from £62.51
from £62.51
This part replaces part number 180022
# 017
MPN: 178890
STOP RING
from £3.24
from £3.24
# 018
MPN: 175367
PIN
from £38.71
from £38.71
# 019
MPN: 184909
BUSHING
from £23.11
from £23.11
# 020
MPN: 177159
CONNECTING ROD TIGHTENING SCREW
from £22.16
from £22.16
# 021
MPN: 188520
CONNECTING ROD HALF BEARING
- Brouwn
from £4.51
from £4.51
This part replaces part number 176151
# 021
MPN: 188521
CONNECTING ROD HALF BEARING
- Green - Standard
from £6.64
from £6.64
This part replaces part number 176150
# 021
MPN: 190265
CONNECTING ROD HALF BEARING
- Yellow
from £9.58
from £9.58
This part replaces part number 176152
