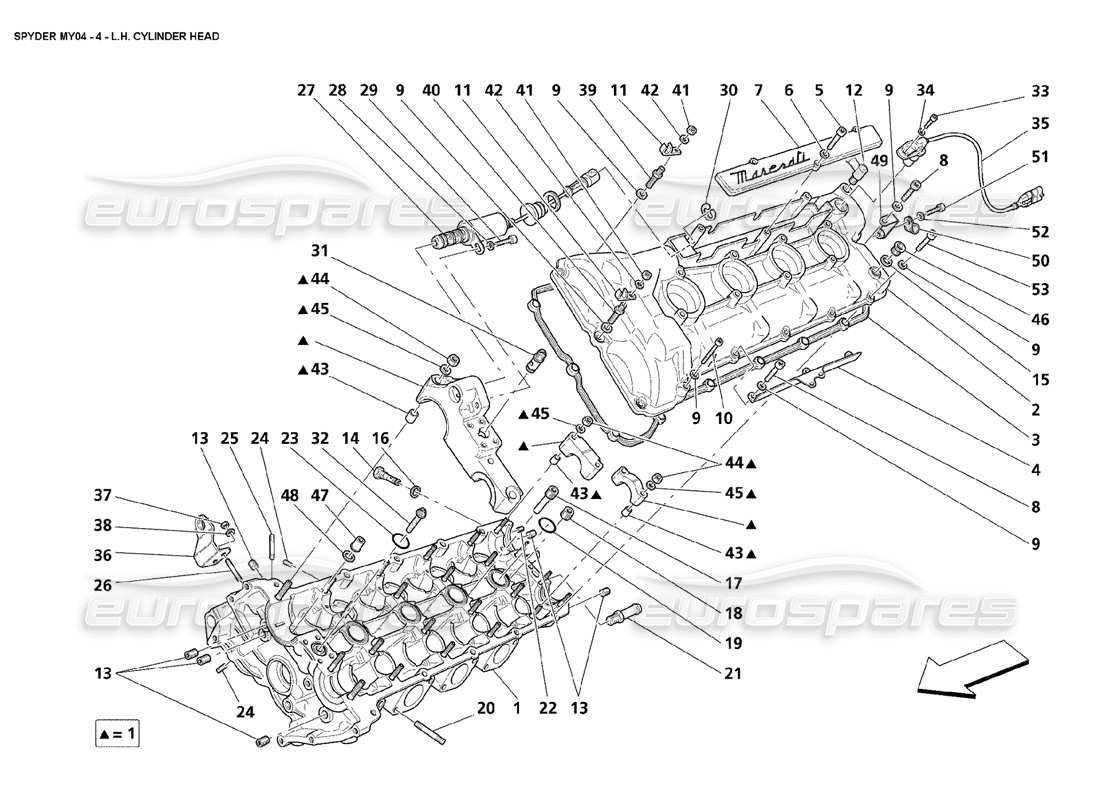

maserati 4200 spyder (2004) lh cylinder head parts diagram

004 - LH cylinder head

Maserati 4200 Spyder (2004) L.H. Cylinder Head Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                      #
                                                                                                      Part number
                                                                                                      Description
                                                                                                      Price
                                                                                                      # 001
                                                                                                      MPN: 189360
                                                                                                      COMPLETE LH HEAD
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      This part replaces part number 187999 - and 1 more. Click to view details
                                                                                                      # 003
                                                                                                      MPN: 198928
                                                                                                      LH HEAD COVER GASKET
                                                                                                      - Supplied also in the cover gasket - revision kit (cod. 98002000)
                                                                                                      from £33.60
                                                                                                      from £33.60
                                                                                                      # 004
                                                                                                      MPN: 192390
                                                                                                      SECONDARY AIR VALVE FIX. BRACKET
                                                                                                      from £44.21
                                                                                                      from £44.21
                                                                                                      # 005
                                                                                                      MPN: 14304424
                                                                                                      SCREW
                                                                                                      from £0.52
                                                                                                      from £0.52
                                                                                                      # 006
                                                                                                      MPN: 14497878
                                                                                                      WASHER
                                                                                                      from £0.52
                                                                                                      from £0.52
                                                                                                      # 007
                                                                                                      MPN: 185313
                                                                                                      LH HARNESS SMALL COVER
                                                                                                      from £24.81
                                                                                                      from £24.81
                                                                                                      # 008
                                                                                                      MPN: 156834
                                                                                                      SCREW
                                                                                                      from £1.55
                                                                                                      from £1.55
                                                                                                      # 009
                                                                                                      MPN: 11197774
                                                                                                      WASHER
                                                                                                      from £0.52
                                                                                                      from £0.52
                                                                                                      # 010
                                                                                                      MPN: 156830
                                                                                                      SCREW
                                                                                                      from £0.57
                                                                                                      from £0.57
                                                                                                      # 011
                                                                                                      MPN: 187713
                                                                                                      CLIP
                                                                                                      from £3.16
                                                                                                      from £3.16
                                                                                                      This part replaces part number 98055
                                                                                                      # 012
                                                                                                      MPN: 124342
                                                                                                      THREADED UNION
                                                                                                      from £3.56
                                                                                                      from £3.56
                                                                                                      # 013
                                                                                                      MPN: 14326050
                                                                                                      THREADED PLUG
                                                                                                      from £0.94
                                                                                                      from £0.94
                                                                                                      # 014
                                                                                                      MPN: 180267
                                                                                                      OIL NONRETURN VALVE
                                                                                                      from £19.44
                                                                                                      from £19.44
                                                                                                      # 015
                                                                                                      MPN: 10263360
                                                                                                      GASKET
                                                                                                      from £0.54
                                                                                                      from £0.54
                                                                                                      # 016
                                                                                                      MPN: 10261060
                                                                                                      GASKET
                                                                                                      from £0.53
                                                                                                      from £0.53
                                                                                                      This part replaces part number 274036
                                                                                                      # 017
                                                                                                      MPN: 183447
                                                                                                      THREADED PLUG
                                                                                                      from £4.63
                                                                                                      from £4.63
                                                                                                      # 018
                                                                                                      MPN: 164400
                                                                                                      THREADED PLUG
                                                                                                      from £2.16
                                                                                                      from £2.16
                                                                                                      # 019
                                                                                                      MPN: 187706
                                                                                                      GASKET
                                                                                                      from £3.24
                                                                                                      from £3.24
                                                                                                      # 020
                                                                                                      MPN: 13543424
                                                                                                      STUD
                                                                                                      from £1.04
                                                                                                      from £1.04
                                                                                                      # 021
                                                                                                      MPN: 191633
                                                                                                      UNION
                                                                                                      from £48.20
                                                                                                      from £48.20
                                                                                                      This part replaces part number 188602
                                                                                                      # 022
                                                                                                      MPN: 14326150
                                                                                                      THREADED PLUG
                                                                                                      from £0.53
                                                                                                      from £0.53
                                                                                                      # 023
                                                                                                      MPN: 134233
                                                                                                      O.R. GASKET
                                                                                                      - Supplied also in the cover gasket - revision kit (cod. 98002000)
                                                                                                      from £0.53
                                                                                                      from £0.53
                                                                                                      # 024
                                                                                                      MPN: 141563
                                                                                                      THREADED PLUG
                                                                                                      from £0.98
                                                                                                      from £0.98
                                                                                                      # 025
                                                                                                      MPN: 13541224
                                                                                                      STUD
                                                                                                      from £34.93
                                                                                                      from £34.93
                                                                                                      # 026
                                                                                                      MPN: 13516624
                                                                                                      STUD
                                                                                                      from £0.69
                                                                                                      from £0.69
                                                                                                      # 027
                                                                                                      MPN: 212423
                                                                                                      VARIATOR CONTROL SOLENOID VALVE
                                                                                                      from £418.39
                                                                                                      from £418.39
                                                                                                      This part replaces part number 186563 - and 2 more. Click to view details
                                                                                                      # 028
                                                                                                      MPN: 11197774
                                                                                                      WASHER
                                                                                                      from £0.54
                                                                                                      from £0.54
                                                                                                      # 029
                                                                                                      MPN: 14433124
                                                                                                      SCREW
                                                                                                      from £0.53
                                                                                                      from £0.53
                                                                                                      # 030
                                                                                                      MPN: 11087376
                                                                                                      FLEXIBLE RING
                                                                                                      from £0.53
                                                                                                      from £0.53
                                                                                                      # 031
                                                                                                      MPN: 184681
                                                                                                      OIL PRESSURE CHECK VALVE
                                                                                                      from £237.18
                                                                                                      from £237.18
                                                                                                      # 032
                                                                                                      MPN: 180266
                                                                                                      OIL FILTER
                                                                                                      - Supplied also in the cover gasket - revision kit (cod. 98002000)
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 033
                                                                                                      MPN: 14305224
                                                                                                      SCREW
                                                                                                      from £0.53
                                                                                                      from £0.53
                                                                                                      # 034
                                                                                                      MPN: 11197774
                                                                                                      WASHER
                                                                                                      from £0.54
                                                                                                      from £0.54
                                                                                                      # 035
                                                                                                      MPN: 177673

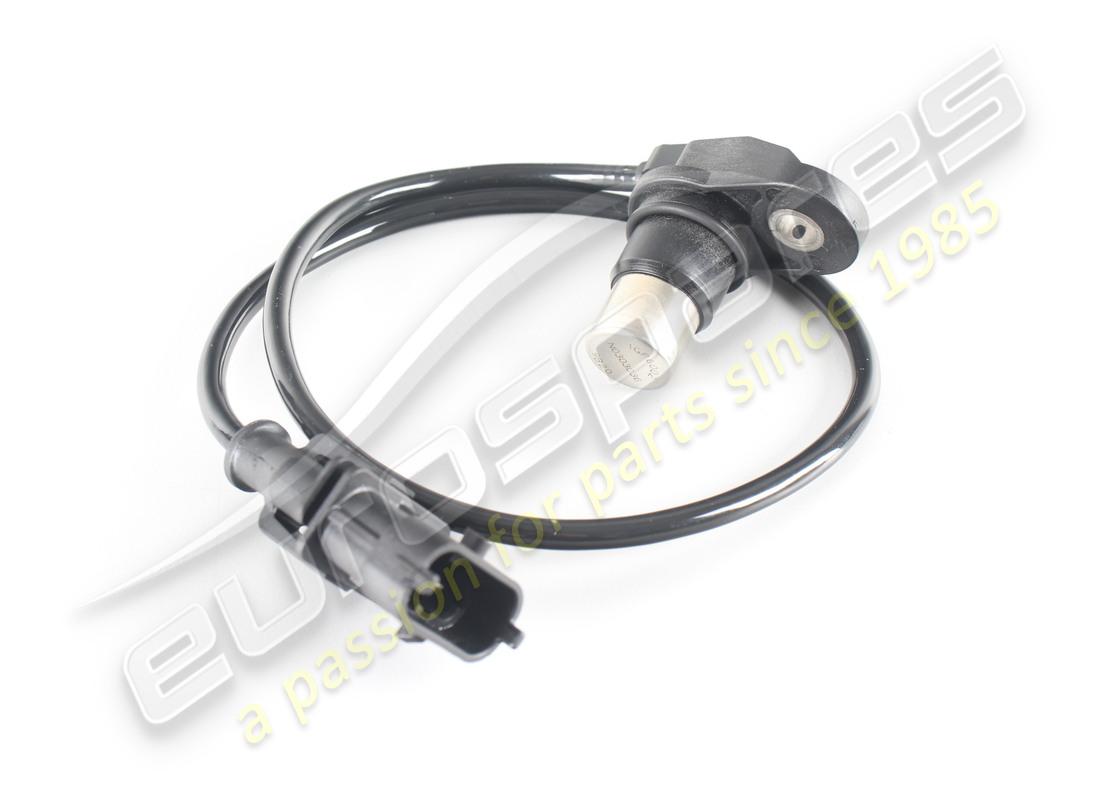

                                                                                                      PHASE SENSOR
                                                                                                      from £67.30
                                                                                                      from £67.30
                                                                                                      # 036
                                                                                                      MPN: 187142
                                                                                                      BRACKET
                                                                                                      from £16.31
                                                                                                      from £16.31
                                                                                                      # 037
                                                                                                      MPN: 16100814
                                                                                                      NUT
                                                                                                      from £0.71
                                                                                                      from £0.71
                                                                                                      # 038
                                                                                                      MPN: 11193874
                                                                                                      WASHER
                                                                                                      from £0.54
                                                                                                      from £0.54
                                                                                                      # 039
                                                                                                      MPN: 187710
                                                                                                      STUD
                                                                                                      from £6.72
                                                                                                      from £6.72
                                                                                                      # 040
                                                                                                      MPN: 187711
                                                                                                      STUD
                                                                                                      from £52.12
                                                                                                      from £52.12
                                                                                                      # 042
                                                                                                      MPN: 12639724
                                                                                                      WASHER
                                                                                                      from £0.54
                                                                                                      from £0.54
                                                                                                      # 043
                                                                                                      MPN: 102725
                                                                                                      CENTERING DOWEL
                                                                                                      from £0.60
                                                                                                      from £0.60
                                                                                                      # 045
                                                                                                      MPN: 11197774
                                                                                                      WASHER
                                                                                                      from £0.51
                                                                                                      from £0.51
                                                                                                      # 046
                                                                                                      MPN: 187963
                                                                                                      PLUG
                                                                                                      from £3.63
                                                                                                      from £3.63
                                                                                                      # 047
                                                                                                      MPN: 183524
                                                                                                      NUT
                                                                                                      from £1.20
                                                                                                      from £1.20
                                                                                                      # 048
                                                                                                      MPN: 151117
                                                                                                      WASHER
                                                                                                      from £0.31
                                                                                                      from £0.31
                                                                                                      This part replaces part number 300266 - and 1 more. Click to view details
                                                                                                      # 049
                                                                                                      MPN: 185471
                                                                                                      BRACKET
                                                                                                      from £2.85
                                                                                                      from £2.85
                                                                                                      # 050
                                                                                                      MPN: 10441190
                                                                                                      BRACKET WITH SHEATH
                                                                                                      from £0.54
                                                                                                      from £0.54
                                                                                                      # 051
                                                                                                      MPN: 14305024
                                                                                                      SCREW
                                                                                                      from £0.54
                                                                                                      from £0.54
                                                                                                      # 052
                                                                                                      MPN: 10519424
                                                                                                      WASHER
                                                                                                      from £0.54
                                                                                                      from £0.54
                                                                                                      This part replaces part number 10519421 - and 1 more. Click to view details
                                                                                                      # 053
                                                                                                      MPN: 157218
                                                                                                      SCREW
                                                                                                      from £0.52
                                                                                                      from £0.52
