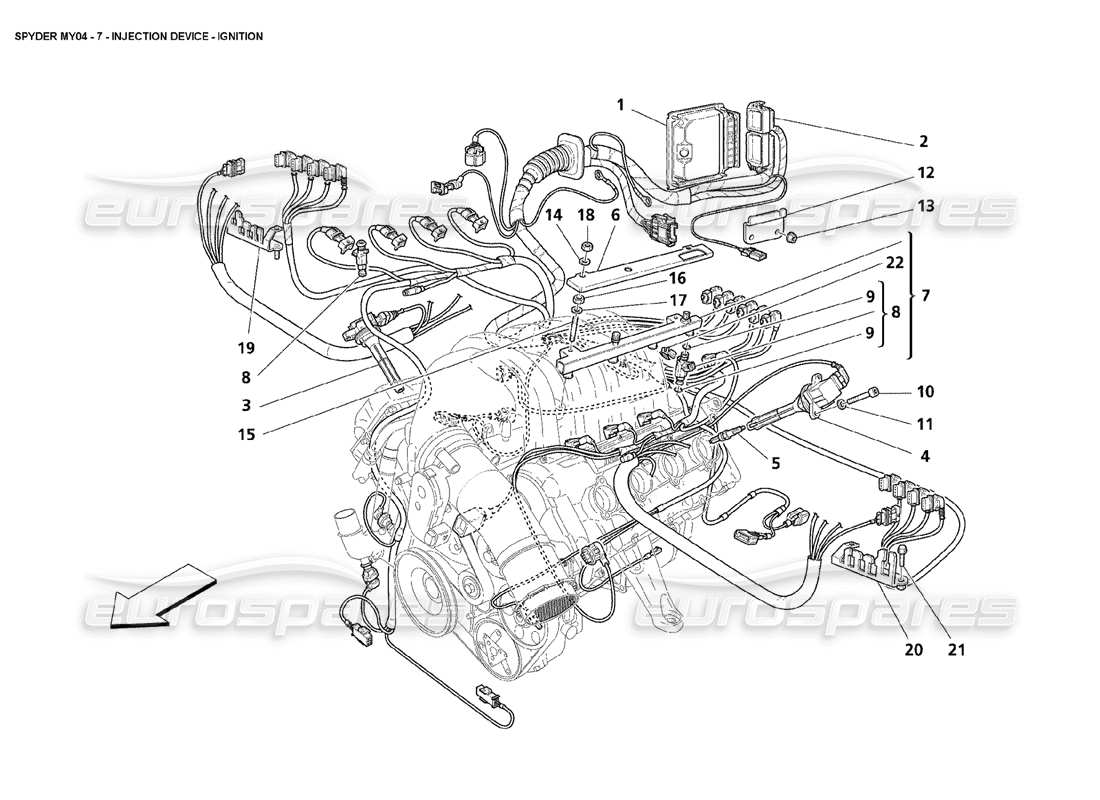

maserati 4200 spyder (2004) injection device ignition parts diagram

007 - injection device ignition

Maserati 4200 Spyder (2004) Injection Device Ignition Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                  #
                                                                                                  Part number
                                                                                                  Description
                                                                                                  Price
                                                                                                  # 001
                                                                                                  MPN: 188634
                                                                                                  IGNITION CONTROL ECU
                                                                                                  from £702.10
                                                                                                  from £702.10
                                                                                                  # 001
                                                                                                  MPN: 196902
                                                                                                  TIMING CONTROL ASSEMBLY
                                                                                                  from £579.69
                                                                                                  from £579.69
                                                                                                  This part replaces part number 193716
                                                                                                  # 001
                                                                                                  MPN: 198865
                                                                                                  CONTROL UNIT IGNITION
                                                                                                  from £861.00
                                                                                                  from £861.00
                                                                                                  # 003
                                                                                                  MPN: 175286
                                                                                                  TRANSMISSION CHAIN
                                                                                                  from £24.10
                                                                                                  from £24.10
                                                                                                  # 004
                                                                                                  MPN: 186184
                                                                                                  MOBILE GUIDE SHOE
                                                                                                  from £69.63
                                                                                                  from £69.63
                                                                                                  # 005
                                                                                                  MPN: 175303
                                                                                                  BUSHING
                                                                                                  from £13.13
                                                                                                  from £13.13
                                                                                                  # 006
                                                                                                  MPN: 10569373
                                                                                                  WASHER
                                                                                                  from £0.47
                                                                                                  from £0.47
                                                                                                  # 007
                                                                                                  MPN: 14306424
                                                                                                  SCREW
                                                                                                  from £0.53
                                                                                                  from £0.53
                                                                                                  This part replaces part number 14306421
                                                                                                  # 008
                                                                                                  MPN: 186185
                                                                                                  FIXED TENSION
                                                                                                  from £34.09
                                                                                                  from £34.09
                                                                                                  # 009
                                                                                                  MPN: 14306224
                                                                                                  SCREW
                                                                                                  from £0.51
                                                                                                  from £0.51
                                                                                                  # 010
                                                                                                  MPN: 11193874
                                                                                                  WASHER
                                                                                                  from £0.53
                                                                                                  from £0.53
                                                                                                  # 011
                                                                                                  MPN: 189564
                                                                                                  PUMP CONTROM TOOTHED WHEEL
                                                                                                  from £261.54
                                                                                                  from £261.54
                                                                                                  # 012
                                                                                                  MPN: 186186
                                                                                                  FIXED TENSION
                                                                                                  from £16.10
                                                                                                  from £16.10
                                                                                                  # 013
                                                                                                  MPN: 11197774
                                                                                                  WASHER
                                                                                                  from £0.54
                                                                                                  from £0.54
                                                                                                  # 014
                                                                                                  MPN: 14305424
                                                                                                  SCREW
                                                                                                  from £0.53
                                                                                                  from £0.53
                                                                                                  # 015
                                                                                                  MPN: 185724
                                                                                                  GUIDE SHOE SUPPORT
                                                                                                  from £10.50
                                                                                                  from £10.50
                                                                                                  # 016
                                                                                                  MPN: 14305724
                                                                                                  SCREW
                                                                                                  from £0.53
                                                                                                  from £0.53
                                                                                                  # 017
                                                                                                  MPN: 11197774
                                                                                                  WASHER
                                                                                                  from £0.54
                                                                                                  from £0.54
                                                                                                  # 019
                                                                                                  MPN: 11197774
                                                                                                  WASHER
                                                                                                  from £0.54
                                                                                                  from £0.54
                                                                                                  # 020
                                                                                                  MPN: 14305724
                                                                                                  SCREW
                                                                                                  from £0.53
                                                                                                  from £0.53
                                                                                                  # 021
                                                                                                  MPN: 306094
                                                                                                  FIXED TENSION
                                                                                                  from £21.56
                                                                                                  from £21.56
                                                                                                  This part replaces part number 186181
                                                                                                  # 022
                                                                                                  MPN: 12647624
                                                                                                  WASHER
                                                                                                  from £0.53
                                                                                                  from £0.53
                                                                                                  This part replaces part number 12647601
                                                                                                  # 023
                                                                                                  MPN: 11197774
                                                                                                  WASHER
                                                                                                  from £0.54
                                                                                                  from £0.54
                                                                                                  # 024
                                                                                                  MPN: 14432224
                                                                                                  SCREW
                                                                                                  from £0.53
                                                                                                  from £0.53
                                                                                                  # 025
                                                                                                  MPN: 193616
                                                                                                  TIMING CONTROL CHAIN
                                                                                                  from £53.12
                                                                                                  from £53.12
                                                                                                  # 027
                                                                                                  MPN: 189569
                                                                                                  UPPER FIXED TENSION
                                                                                                  from £20.46
                                                                                                  from £20.46
                                                                                                  # 028
                                                                                                  MPN: 14305934
                                                                                                  SCREW
                                                                                                  from £0.79
                                                                                                  from £0.79
                                                                                                  # 029
                                                                                                  MPN: 11197774
                                                                                                  WASHER
                                                                                                  from £0.53
                                                                                                  from £0.53
                                                                                                  # 030
                                                                                                  MPN: 11066876
                                                                                                  SEEGER RING
                                                                                                  - Valid till engine Nr. 76866
                                                                                                  from £0.47
                                                                                                  from £0.47
                                                                                                  # 031
                                                                                                  MPN: 180187
                                                                                                  RING
                                                                                                  - Valid till engine Nr. 76866
                                                                                                  from £1.08
                                                                                                  from £1.08
                                                                                                  # 032
                                                                                                  MPN: 175281
                                                                                                  SHOULDER
                                                                                                  - Valid till engine Nr. 76866
                                                                                                  from £17.23
                                                                                                  from £17.23
                                                                                                  # 032
                                                                                                  MPN: 194262
                                                                                                  SHOULDER
                                                                                                  - Valid from engine Nr. 76867
                                                                                                  from £10.46
                                                                                                  from £10.46
                                                                                                  # 033
                                                                                                  MPN: 175282
                                                                                                  ROLLER CAGE
                                                                                                  from £3.48
                                                                                                  from £3.48
                                                                                                  # 034
                                                                                                  MPN: 14159370
                                                                                                  FLEXIBLE PIN
                                                                                                  - Valid till engine Nr. 76866
                                                                                                  from £1.08
                                                                                                  from £1.08
                                                                                                  # 035
                                                                                                  MPN: 188436
                                                                                                  SUPPORT
                                                                                                  - Valid till engine Nr. 76866
                                                                                                  from £852.17
                                                                                                  from £852.17
                                                                                                  # 035
                                                                                                  MPN: 194261
                                                                                                  SUPPORT
                                                                                                  - Valid from engine Nr. 76867
                                                                                                  from £80.45
                                                                                                  from £80.45
                                                                                                  # 036
                                                                                                  MPN: 11181574
                                                                                                  WASHER
                                                                                                  from £0.53
                                                                                                  from £0.53
                                                                                                  # 037
                                                                                                  MPN: 14304224
                                                                                                  SCREW
                                                                                                  from £0.51
                                                                                                  from £0.51
                                                                                                  # 038
                                                                                                  MPN: 104212
                                                                                                  O.R. GASKET
                                                                                                  from £0.54
                                                                                                  from £0.54
                                                                                                  # 039
                                                                                                  MPN: 180316
                                                                                                  HYDRAULIC TIGHTENER
                                                                                                  from £33.63
                                                                                                  from £33.63
                                                                                                  # 040
                                                                                                  MPN: 14432224
                                                                                                  SCREW
                                                                                                  from £0.51
                                                                                                  from £0.51
                                                                                                  # 041
                                                                                                  MPN: 11197774
                                                                                                  WASHER
                                                                                                  from £0.53
                                                                                                  from £0.53
                                                                                                  # 043
                                                                                                  MPN: 323282
                                                                                                  GASKET
                                                                                                  - Supplied also in the cylinder heads - gasket revision kit (cod. 980020001)
                                                                                                  from £1.15
                                                                                                  from £1.15
                                                                                                  This part replaces part number 247147
                                                                                                  # 044
                                                                                                  MPN: 187530
                                                                                                  TOOTHED WHEEL FOR SHAFT
                                                                                                  from £25.81
                                                                                                  from £25.81
                                                                                                  # 045
                                                                                                  MPN: 193831
                                                                                                  SCREW
                                                                                                  from £7.14
                                                                                                  from £7.14
                                                                                                  # 046
                                                                                                  MPN: 175751
                                                                                                  WASHER
                                                                                                  from £3.11
                                                                                                  from £3.11
                                                                                                  # 047
                                                                                                  MPN: 176610
                                                                                                  CENTERING DOWEL
                                                                                                  from £3.24
                                                                                                  from £3.24
                                                                                                  # 048
                                                                                                  MPN: 189779
                                                                                                  DOWEL
                                                                                                  from £1.34
                                                                                                  from £1.34
                                                                                                  # 049
                                                                                                  MPN: 190171
                                                                                                  SPACER
                                                                                                  from £4.00
                                                                                                  from £4.00
                                                                                                  # 050
                                                                                                  MPN: 192069
                                                                                                  O.R. GASKET
                                                                                                  from £0.54
                                                                                                  from £0.54
                                                                                                  # 051
                                                                                                  MPN: 189563
                                                                                                  SCREW
                                                                                                  from £29.29
                                                                                                  from £29.29
                                                                                                  # 053
                                                                                                  MPN: 185725
                                                                                                  CHAIN TENSIONER
                                                                                                  from £30.14
                                                                                                  from £30.14
                                                                                                  # 054
                                                                                                  MPN: 196683
                                                                                                  CHAIN TENSIONER
                                                                                                  from £24.12
                                                                                                  from £24.12
                                                                                                  # 055
                                                                                                  MPN: 194191
                                                                                                  DOWEL
                                                                                                  from £4.17
                                                                                                  from £4.17
                                                                                                  # 056
                                                                                                  MPN: 16043124
                                                                                                  SCREW
                                                                                                  - Valid from engine Nr. 76867
                                                                                                  from £0.30
                                                                                                  from £0.30
                                                                                                  SCREW Genuine Ferrari Part - Used In stock
