maserati 4200 spyder (2004) air intake manifold parts diagram

013 - Air Intake Manifold

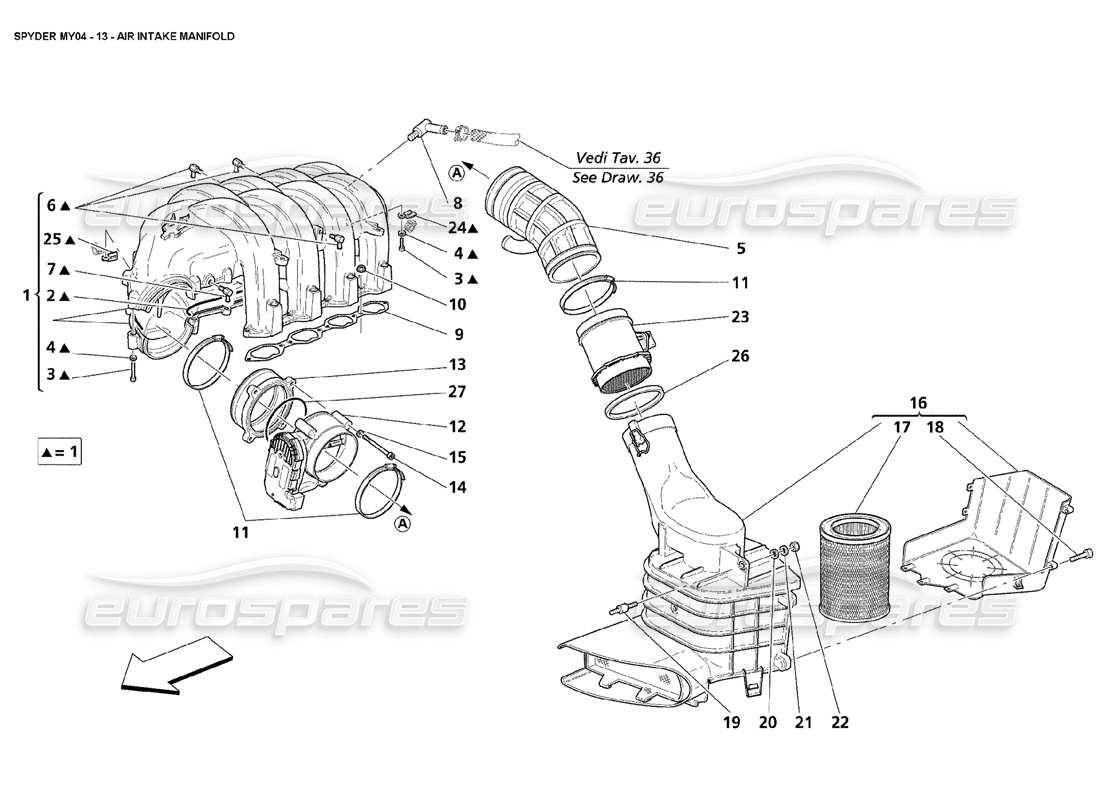

Maserati 4200 Spyder (2004) Air Intake Manifold Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                              #
                                              Part number
                                              Description
                                              Price
                                              # 001
                                              MPN: 186239
                                              COMPLETE SUCTION MANIFOLD
                                              from £591.55
                                              from £591.55
                                              # 002
                                              MPN: 180830
                                              GASKET
                                              from £15.38
                                              from £15.38
                                              # 003
                                              MPN: 14305524
                                              SCREW
                                              - M6X30
                                              from £0.52
                                              from £0.52
                                              # 003
                                              MPN: 14305824
                                              SCREW
                                              - M6X40
                                              from £0.53
                                              from £0.53
                                              # 003
                                              MPN: 14432224
                                              SCREW
                                              - M6X22
                                              from £0.49
                                              from £0.49
                                              # 003
                                              MPN: 14441424
                                              SCREW
                                              - M6X20
                                              from £1.15
                                              from £1.15
                                              # 004
                                              MPN: 11197774
                                              WASHER
                                              from £0.52
                                              from £0.52
                                              # 005
                                              MPN: 180047
                                              SLEEVE
                                              from £29.23
                                              from £29.23
                                              # 006
                                              MPN: 128016
                                              THREADED UNION
                                              from £6.74
                                              from £6.74
                                              # 007
                                              MPN: 174818
                                              THREADED UNION
                                              from £9.10
                                              from £9.10
                                              # 008
                                              MPN: 124342
                                              THREADED UNION
                                              from £3.56
                                              from £3.56
                                              # 009
                                              MPN: 219459
                                              GASKET
                                              - Supplied also in the cylinder heads - gasket revision kit (cod. 980020001)
                                              from £6.81
                                              from £6.81
                                              This part replaces part number 185824
                                              # 010
                                              MPN: 159601
                                              NUT
                                              from £0.52
                                              from £0.52
                                              # 011
                                              MPN: 190151
                                              CLAMP
                                              from £2.01
                                              from £2.01
                                              # 013
                                              MPN: 179671
                                              SPACER
                                              - Valid till engine Nr. 73458
                                              from £138.18
                                              from £138.18
                                              # 013
                                              MPN: 240262
                                              SPACER
                                              - Valid from engine Nr. 73459
                                              from £61.82
                                              from £61.82
                                              This part replaces part number 195206
                                              # 014
                                              MPN: 14305924
                                              SCREW
                                              from £0.51
                                              from £0.51
                                              This part replaces part number 14305921 - and 1 more. Click to view details
                                              # 015
                                              MPN: 11197774
                                              WASHER
                                              from £0.53
                                              from £0.53
                                              # 016
                                              MPN: 196832
                                              COMPLETE FILTER BOX
                                              - Valid till stock exhaustion
                                              from £161.43
                                              from £161.43
                                              This part replaces part number 189757
                                              # 016
                                              MPN: 196832
                                              COMPLETE FILTER BOX
                                              - Valid after stock exhaustion of 189757
                                              from £161.43
                                              from £161.43
                                              This part replaces part number 189757
                                              # 017
                                              MPN: 186183
                                              AIR FILTER
                                              from £30.52
                                              from £30.52
                                              # 018
                                              MPN: 184829
                                              SCREW
                                              from £4.88
                                              from £4.88
                                              # 019
                                              MPN: 184824
                                              PAD
                                              from £9.55
                                              from £9.55
                                              # 020
                                              MPN: 12643724
                                              WASHER
                                              from £0.52
                                              from £0.52
                                              # 021
                                              MPN: 12544274
                                              WASHER
                                              from £1.85
                                              from £1.85
                                              # 022
                                              MPN: 15896224
                                              NUT
                                              from £0.53
                                              from £0.53
                                              # 023
                                              MPN: 180045
                                              AIR FLOW METER
                                              from £151.54
                                              from £151.54
                                              # 024
                                              MPN: 190509
                                              PIPES SUPPORTING BRACKET
                                              from £130.69
                                              from £130.69
                                              # 025
                                              MPN: 191009
                                              PIPES SUPPORTING BRACKET
                                              from £60.28
                                              from £60.28
                                              # 026
                                              MPN: 193113
                                              GASKET
                                              from £3.24
                                              from £3.24
                                              # 027
                                              MPN: 150302
                                              O.R. GASKET
                                              - Valid from engine Nr. 73459
                                              from £1.66
                                              from £1.66
