014 - Exhaust System

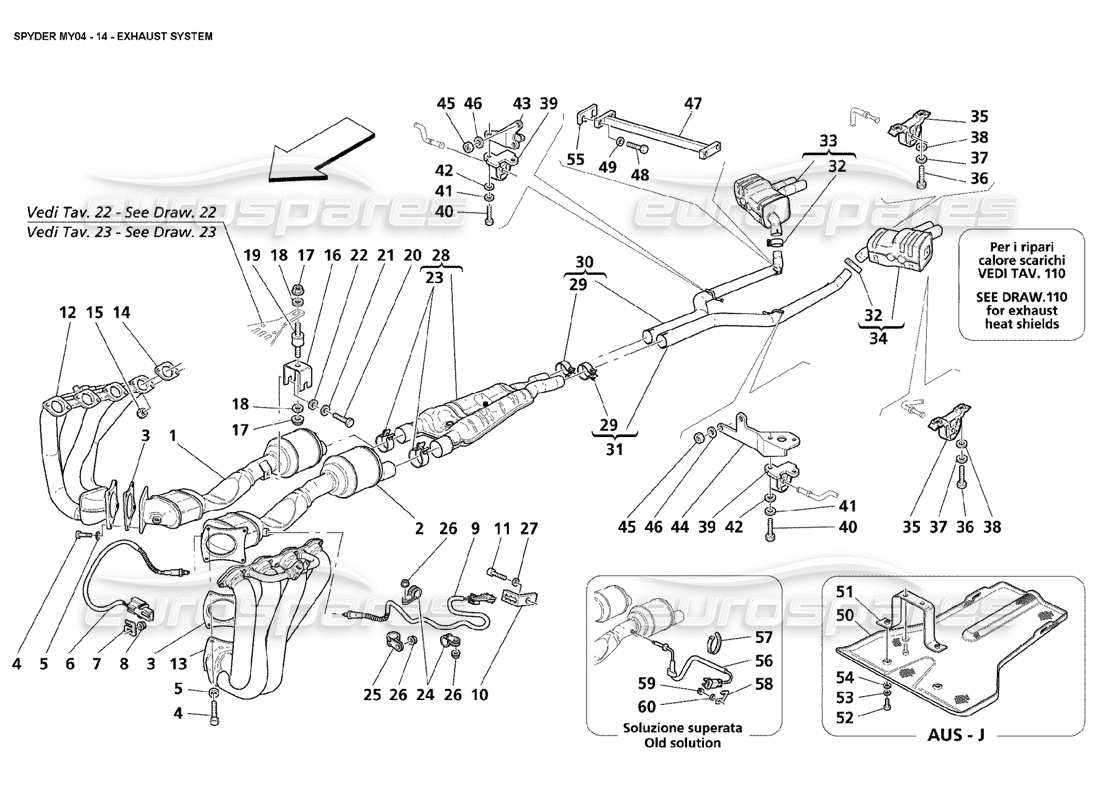

Maserati 4200 Spyder (2004) Exhaust System Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 194714
RH CATALYST
Supersession
Supersession
# 002
MPN: 194715
LH CATALYST
Supersession
Supersession
# 003
MPN: 184798
GASKET
- Supplied also in the cylinder heads - gasket revision kit (cod. 980020001)
from £18.61
from £18.61
# 004
MPN: 190213
SCREW
from £2.47
from £2.47
# 005
MPN: 11193874
WASHER
from £0.53
from £0.53
# 006
MPN: 182837
FRONT LAMBDA FEELER
from £137.60
from £137.60
# 007
MPN: 175856
CONNECTORS FIXING BRACKET
from £1.17
from £1.17
This part replaces part number 155752
# 008
MPN: 67190100
NUT
from £1.08
from £1.08
# 009
MPN: 191412
REAR LAMBDA FEELER
from £106.94
from £106.94
# 010
MPN: 178366
CONNECTORS FIXING BRACKET
from £2.32
from £2.32
# 011
MPN: 14305724
SCREW
from £0.53
from £0.53
# 012
MPN: 183795
RH EXHAUST MANIFOLD
from £1,251.41
from £1,251.41
# 013
MPN: 183796
LH EXHAUST MANIFOLD
from £1,251.41
from £1,251.41
# 014
MPN: 182868
GASKET
- Supplied also in the cylinder heads - gasket revision kit (cod. 980020001)
from £2.85
from £2.85
# 015
MPN: 138392
NUT
from £0.81
from £0.81
# 016
MPN: 187827
BRACKET FOR CATALYSTS FIXING
from £11.44
from £11.44
# 017
MPN: 14048215
NUT
from £3.55
from £3.55
# 018
MPN: 12625221
WASHER
Supersession
Supersession
# 019
MPN: 184333
PAD
from £13.43
from £13.43
# 020
MPN: 16043324
SCREW
from £0.53
from £0.53
# 021
MPN: 11193874
WASHER
from £0.54
from £0.54
# 022
MPN: 12625224
WASHER
from £0.54
from £0.54
This part replaces part number 12625221
# 023
MPN: 185307
CLAMP
from £14.90
from £14.90
This part replaces part number 173896
# 024
MPN: 67190200
BRACKET WITH SHEATH
from £1.33
from £1.33
# 025
MPN: 10441290
BRACKET WITH SHEATH
from £0.51
from £0.51
# 026
MPN: 67190100
NUT
from £1.08
from £1.08
# 027
MPN: 11197774
WASHER
from £0.54
from £0.54
# 028
MPN: 187826
CENTRAL SILENCER
from £876.07
from £876.07
# 029
MPN: 173896
CLAMP
Supersession
Supersession
# 030
MPN: 188176
RH EXHAUST EXTENSION
from £173.75
from £173.75
# 031
MPN: 188177
LH EXHAUST EXTENSION
from £187.43
from £187.43
# 032
MPN: 185307
CLAMP
from £14.90
from £14.90
This part replaces part number 173896
# 033
MPN: 184815
RH REAR SILENCER
from £939.75
from £939.75
# 034
MPN: 184816
LH REAR SILENCER
from £972.45
from £972.45
# 035
MPN: 184814
REAR SUPPORT
from £19.06
from £19.06
# 036
MPN: 16043424
SCREW
from £0.48
from £0.48
# 037
MPN: 12601374
WASHER
from £0.53
from £0.53
# 038
MPN: 12638524
WASHER
from £0.47
from £0.47
# 039
MPN: 187861
ANTI VIBRATION SUPPORT
from £26.99
from £26.99
# 040
MPN: 16043424
SCREW
from £0.51
from £0.51
# 041
MPN: 12601374
WASHER
from £0.53
from £0.53
# 042
MPN: 14496524
WASHER
from £0.53
from £0.53
# 043
MPN: 187775
RH SUPPORT
from £11.91
from £11.91
# 044
MPN: 187774
LH SUPPORT
from £16.85
from £16.85
# 045
MPN: 16100814
NUT
from £0.71
from £0.71
# 046
MPN: 14496524
WASHER
from £0.53
from £0.53
# 047
MPN: 187836
SPACER BAR
from £9.36
from £9.36
# 048
MPN: 16043124
SCREW
from £0.30
from £0.30
# 049
MPN: 12601374
WASHER
from £0.53
from £0.53
# 050
MPN: 190270
UNDER EXHAUST SHIELD
- Valid for J and AUS and cars GB opt. japan version
from £222.59
from £222.59
# 051
MPN: 190271
BRACKET
- Valid for J and AUS and cars GB opt. japan version
from £31.38
from £31.38
# 052
MPN: 14305724
SCREW
- Valid for J and AUS and cars GB opt. japan version
from £0.53
from £0.53
# 053
MPN: 12639724
WASHER
- Valid for J and AUS and cars GB opt. japan version
from £0.54
from £0.54
# 054
MPN: 12601274
WASHER
- Valid for J and AUS and cars GB opt. japan version
from £0.53
from £0.53
This part replaces part number 12601270
# 055
MPN: 193098
SPACER BAR THICKNESS
from £2.32
from £2.32
# 056
MPN: 194744
THERMOCOUPLE
from £157.85
from £157.85
# 057
MPN: 312020382
CLAMP
from £0.69
from £0.69
# 058
MPN: 155751
CLIP
from £2.80
from £2.80
# 059
MPN: 14059111
NUT
from £0.47
from £0.47
# 060
MPN: 12644424
WASHER
from £0.54
from £0.54
This part replaces part number 13550214
-part-diagram-015.webp "MASERATI 4200 SPYDER (2004) EXHAUST SYSTEM VARIATIONS FOR USA AND CDN PARTS DIAGRAM")
-part-diagram-016.webp "MASERATI 4200 SPYDER (2004) BLOW - BY SYSTEM PARTS DIAGRAM")
-part-diagram-017.webp "MASERATI 4200 SPYDER (2004) LUBRICATION SYSTEM TANK HEATER EXCHANGER PARTS DIAGRAM")
-part-diagram-018.webp "MASERATI 4200 SPYDER (2004) WATER-OIL PUMP PARTS DIAGRAM")
-part-diagram-019.webp "MASERATI 4200 SPYDER (2004) NOURICE COOLING SYSTEM NOT FOR GD PARTS DIAGRAM")
-part-diagram-020.webp "MASERATI 4200 SPYDER (2004) NOURICE COOLING SYSTEM VALID FOR GD PARTS DIAGRAM")
-part-diagram-021.webp "MASERATI 4200 SPYDER (2004) COOLING SYSTEM RADIATOR PARTS DIAGRAM")
-part-diagram-022.webp "MASERATI 4200 SPYDER (2004) CLUTCH AND CONTROLS NOT FOR F1 PARTS DIAGRAM")
-part-diagram-023.webp "MASERATI 4200 SPYDER (2004) CLUTCH AND CONTROLS VALID FOR F1 PARTS DIAGRAM")
-part-diagram-024.webp "MASERATI 4200 SPYDER (2004) PEDALS AND ELECTRONIC ACCELERATOR CONTROL NOT FOR GD PARTS DIAGRAM")
-part-diagram-025.webp "MASERATI 4200 SPYDER (2004) PEDALS AND ELECTRONIC ACCELERATOR CONTROL VALID FOR GD PARTS DIAGRAM")
-part-diagram-026.webp "MASERATI 4200 SPYDER (2004) F1 CLUTCH HYDRAULIC CONTROLS VALID FOR F1 PARTS DIAGRAM")
-part-diagram-027.webp "MASERATI 4200 SPYDER (2004) POWER UNIT AND TANK VALID FOR F1 PARTS DIAGRAM")
-part-diagram-028.webp "MASERATI 4200 SPYDER (2004) GEARBOX COVER GEARBOX OIL RADIATOR PARTS DIAGRAM")
-part-diagram-029.webp "MASERATI 4200 SPYDER (2004) DIFFERENTIAL BOX REAR UNDERBODY PARTS DIAGRAM")
-part-diagram-030.webp "MASERATI 4200 SPYDER (2004) MAIN SHAFT GEARS PARTS DIAGRAM")
-part-diagram-031.webp "MASERATI 4200 SPYDER (2004) LAY SHAFT GEARS PARTS DIAGRAM")
-part-diagram-032.webp "MASERATI 4200 SPYDER (2004) INNER GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-033.webp "MASERATI 4200 SPYDER (2004) OUTER GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-034.webp "MASERATI 4200 SPYDER (2004) ENGINE TRANSMISSION CONNECTION TUBE AND INSULATIONS PARTS DIAGRAM")
-part-diagram-035.webp "MASERATI 4200 SPYDER (2004) DIFFERENTIAL & AXLE SHAFTS PARTS DIAGRAM")
-part-diagram-036.webp "MASERATI 4200 SPYDER (2004) BRAKES AND CLUTCH HYDRAULIC CONTROLS PARTS DIAGRAM")
-part-diagram-037.webp "MASERATI 4200 SPYDER (2004) BRAKING SYSTEM NOT FOR GD PARTS DIAGRAM")
-part-diagram-038.webp "MASERATI 4200 SPYDER (2004) BRAKING SYSTEM VALID FOR GD PARTS DIAGRAM")
-part-diagram-039.webp "MASERATI 4200 SPYDER (2004) BRAKE CALIPERS PARTS DIAGRAM")
-part-diagram-040.webp "MASERATI 4200 SPYDER (2004) HANDBRAKE CONTROL PARTS DIAGRAM")
-part-diagram-041.webp "MASERATI 4200 SPYDER (2004) FRONT UNDER FRAME AND UNDERMOTOR SHIELDS PARTS DIAGRAM")
-part-diagram-042.webp "MASERATI 4200 SPYDER (2004) STEERING BOX PARTS DIAGRAM")
-part-diagram-043.webp "MASERATI 4200 SPYDER (2004) STEERING COLUMN PARTS DIAGRAM")
-part-diagram-044.webp "MASERATI 4200 SPYDER (2004) FRONT SUSPENSION SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-045.webp "MASERATI 4200 SPYDER (2004) FRONT SUSPENSION WISHBONES AND STABILIZER BAR PARTS DIAGRAM")
-part-diagram-046.webp "MASERATI 4200 SPYDER (2004) REAR SUSPENSION SHOCK ABSORBER AND BRAKE DISK PARTS DIAGRAM")
-part-diagram-047.webp "MASERATI 4200 SPYDER (2004) REAR SUSPENSION WISHBONES PARTS DIAGRAM")
-part-diagram-048.webp "MASERATI 4200 SPYDER (2004) WHEELS PARTS DIAGRAM")
-part-diagram-049.webp "MASERATI 4200 SPYDER (2004) SPARE WHEEL AND EQUIPMENT OPTIONAL PARTS DIAGRAM")
-part-diagram-050.webp "MASERATI 4200 SPYDER (2004) BATTERY PARTS DIAGRAM")
-part-diagram-051.webp "MASERATI 4200 SPYDER (2004) CURRENT GENERATOR STARTING MOTOR PARTS DIAGRAM")
-part-diagram-052.webp "MASERATI 4200 SPYDER (2004) TOOLS EQUIPMENT AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-100.webp "MASERATI 4200 SPYDER (2004) BODY FRONT OUTER TRIMS PARTS DIAGRAM")
-part-diagram-101.webp "MASERATI 4200 SPYDER (2004) BODY REAR OUTER TRIMS PARTS DIAGRAM")
-part-diagram-102.webp "MASERATI 4200 SPYDER (2004) FRONT STRUCTURE PARTS DIAGRAM")
-part-diagram-103.webp "MASERATI 4200 SPYDER (2004) CENTRAL STRUCTURE PARTS DIAGRAM")
-part-diagram-104.webp "MASERATI 4200 SPYDER (2004) REAR STRUCTURE PARTS DIAGRAM")
-part-diagram-105.webp "MASERATI 4200 SPYDER (2004) FRONT BUMPER PARTS DIAGRAM")
-part-diagram-106.webp "MASERATI 4200 SPYDER (2004) REAR BUMPER PARTS DIAGRAM")
-part-diagram-107.webp "MASERATI 4200 SPYDER (2004) PASSENGERS COMPARTMENT CARPETS PARTS DIAGRAM")
-part-diagram-108.webp "MASERATI 4200 SPYDER (2004) ROOF PANEL UPHOLSTERY AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-109.webp "MASERATI 4200 SPYDER (2004) PASSENGERS COMPARTMENT UPHOLSTERY ACCESSORIES PARTS DIAGRAM")
-part-diagram-110.webp "MASERATI 4200 SPYDER (2004) TRUNK HOOD COMPARTMENT TRIMS AIR INLET AND HEATH SHIELDS PARTS DIAGRAM")
-part-diagram-111.webp "MASERATI 4200 SPYDER (2004) CAPOTE CLOTH GASKET PARTS DIAGRAM")
-part-diagram-112.webp "MASERATI 4200 SPYDER (2004) CAPOTE FRONT CLOSING PARTS DIAGRAM")
-part-diagram-113.webp "MASERATI 4200 SPYDER (2004) CAPOTE STRUCTURE PARTS DIAGRAM")
-part-diagram-114.webp "MASERATI 4200 SPYDER (2004) CAPOTE CONTROL STATION RELAY MICROSWITCH PARTS DIAGRAM")
-part-diagram-115.webp "MASERATI 4200 SPYDER (2004) CAPOTE HYDRAULIC SYSTEM PARTS DIAGRAM")
-part-diagram-116.webp "MASERATI 4200 SPYDER (2004) CAPOTE CLOSINGS AND COVER PARTS DIAGRAM")
-part-diagram-117.webp "MASERATI 4200 SPYDER (2004) ENGINE BONNET AND OPENING DEVICE PARTS DIAGRAM")
-part-diagram-118.webp "MASERATI 4200 SPYDER (2004) TRUNK HOOD BONNET AND GAS DOOR PARTS DIAGRAM")
-part-diagram-119.webp "MASERATI 4200 SPYDER (2004) DOORS FRAMEWORK AND COVERINGS PARTS DIAGRAM")
-part-diagram-120.webp "MASERATI 4200 SPYDER (2004) DOORS OPENING CONTROL AND HINGES PARTS DIAGRAM")
-part-diagram-121.webp "MASERATI 4200 SPYDER (2004) DOORS POWER WINDOW AND REARWIEW MIRROR PARTS DIAGRAM")
-part-diagram-122.webp "MASERATI 4200 SPYDER (2004) GLASSES WINDSHIELD PARTS DIAGRAM")
-part-diagram-123.webp "MASERATI 4200 SPYDER (2004) ELECRICAL SEATSAFETY BELTS PARTS DIAGRAM")
-part-diagram-124.webp "MASERATI 4200 SPYDER (2004) ELECTRICAL SEATGUIDE AND MOVEMENT PARTS DIAGRAM")
-part-diagram-125.webp "MASERATI 4200 SPYDER (2004) DASHBOARD NOT FOR GD PARTS DIAGRAM")
-part-diagram-126.webp "MASERATI 4200 SPYDER (2004) DASHBOARD VALID FOR GD PARTS DIAGRAM")
-part-diagram-127.webp "MASERATI 4200 SPYDER (2004) DASHBOARD DRAWER PARTS DIAGRAM")
-part-diagram-128.webp "MASERATI 4200 SPYDER (2004) TUNNEL FRAMEWORK AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-129.webp "MASERATI 4200 SPYDER (2004) AIR-BAGS PARTS DIAGRAM")
-part-diagram-130.webp "MASERATI 4200 SPYDER (2004) DASHBOARD INSTRUMENTS PARTS DIAGRAM")
-part-diagram-131.webp "MASERATI 4200 SPYDER (2004) TUNNEL INSTRUMENTS PARTS DIAGRAM")
-part-diagram-132.webp "MASERATI 4200 SPYDER (2004) FRONT AND REAR LIGHTS PARTS DIAGRAM")
-part-diagram-133.webp "MASERATI 4200 SPYDER (2004) XENO HEADLIGTHS AND HEADLIGHTS WASHER OPTIONAL PARTS DIAGRAM")
-part-diagram-134.webp "MASERATI 4200 SPYDER (2004) SHIELDS AND FINISHING PARTS DIAGRAM")
-part-diagram-135.webp "MASERATI 4200 SPYDER (2004) SHIELDS AND PROTECTIONS FOR WHEEL COMPARTMENT PARTS DIAGRAM")
-part-diagram-136.webp "MASERATI 4200 SPYDER (2004) WINDSHIELD GLASS WASHER AND HORNS PARTS DIAGRAM")
-part-diagram-137.webp "MASERATI 4200 SPYDER (2004) ELECTRICAL SYSTEM PARTS DIAGRAM")
-part-diagram-138.webp "MASERATI 4200 SPYDER (2004) ENGINE BONNET SENSOR AND CONTROL STATIONS PARTS DIAGRAM")
-part-diagram-139.webp "MASERATI 4200 SPYDER (2004) FRONT PASSENGERS COMPARTMENT CONTROL STATION PARTS DIAGRAM")
-part-diagram-140.webp "MASERATI 4200 SPYDER (2004) PASSENGERS SIDE CONTROL UNITS PARTS DIAGRAM")
-part-diagram-141.webp "MASERATI 4200 SPYDER (2004) RH SIDE TRUNK BONNET SENSOR AND CONTROL UNITS PARTS DIAGRAM")
-part-diagram-142.webp "MASERATI 4200 SPYDER (2004) LH SIDE TRUNK BONNET CONTROL UNIT PARTS DIAGRAM")
-part-diagram-143.webp "MASERATI 4200 SPYDER (2004) ANTI THEFT ELECTRICAL BOARDS AND DEVICES PARTS DIAGRAM")
-part-diagram-144.webp "MASERATI 4200 SPYDER (2004) IMMOBILIZER KIT PARTS DIAGRAM")
-part-diagram-145.webp "MASERATI 4200 SPYDER (2004) EVAPORATOR GROUP PARTS DIAGRAM")
-part-diagram-146.webp "MASERATI 4200 SPYDER (2004) AIR CONDITIONING SYSTEM PARTS DIAGRAM")
-part-diagram-147.webp "MASERATI 4200 SPYDER (2004) CAR STEREO SYSTEM PARTS DIAGRAM")
-part-diagram-148.webp "MASERATI 4200 SPYDER (2004) STEREO EQUIPMENT ACCESORIES PARTS DIAGRAM")
-part-diagram-149.webp "MASERATI 4200 SPYDER (2004) PLATES PARTS DIAGRAM")
-part-diagram-000.webp "MASERATI 4200 SPYDER (2004) SPARE ASSEMBLY UNITS PARTS DIAGRAM")
-part-diagram-001.webp "MASERATI 4200 SPYDER (2004) CRANKCASE PARTS DIAGRAM")
-part-diagram-002.webp "MASERATI 4200 SPYDER (2004) CRANKSHAFT CONRODS AND PISTONS PARTS DIAGRAM")
-part-diagram-003.webp "MASERATI 4200 SPYDER (2004) RH CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-004.webp "MASERATI 4200 SPYDER (2004) LH CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-005.webp "MASERATI 4200 SPYDER (2004) TIMING TAPPETS PARTS DIAGRAM")
-part-diagram-006.webp "MASERATI 4200 SPYDER (2004) TIMING CONTROLS PARTS DIAGRAM")
-part-diagram-007.webp "MASERATI 4200 SPYDER (2004) INJECTION DEVICE IGNITION PARTS DIAGRAM")
-part-diagram-008.webp "MASERATI 4200 SPYDER (2004) SECONDARY AIR SYSTEM PARTS DIAGRAM")
-part-diagram-009.webp "MASERATI 4200 SPYDER (2004) FUEL PUMP AND PIPES PARTS DIAGRAM")
-part-diagram-010.webp "MASERATI 4200 SPYDER (2004) FUEL TANKS AND UNION PARTS DIAGRAM")
-part-diagram-011.webp "MASERATI 4200 SPYDER (2004) ANTIEVAPORATION DEVICE NOT FOR USA AND CDN PARTS DIAGRAM")
-part-diagram-012.webp "MASERATI 4200 SPYDER (2004) ANTIEVAPORATION DEVICE VALID FOR USA AND CDN PARTS DIAGRAM")
-part-diagram-013.webp "MASERATI 4200 SPYDER (2004) AIR INTAKE MANIFOLD PARTS DIAGRAM")
