maserati 4200 spyder (2004) clutch and controls valid for f1 parts diagram

023 - Clutch and Controls Valid for F1

Maserati 4200 Spyder (2004) Clutch and Controls Valid For F1 Parts Diagram

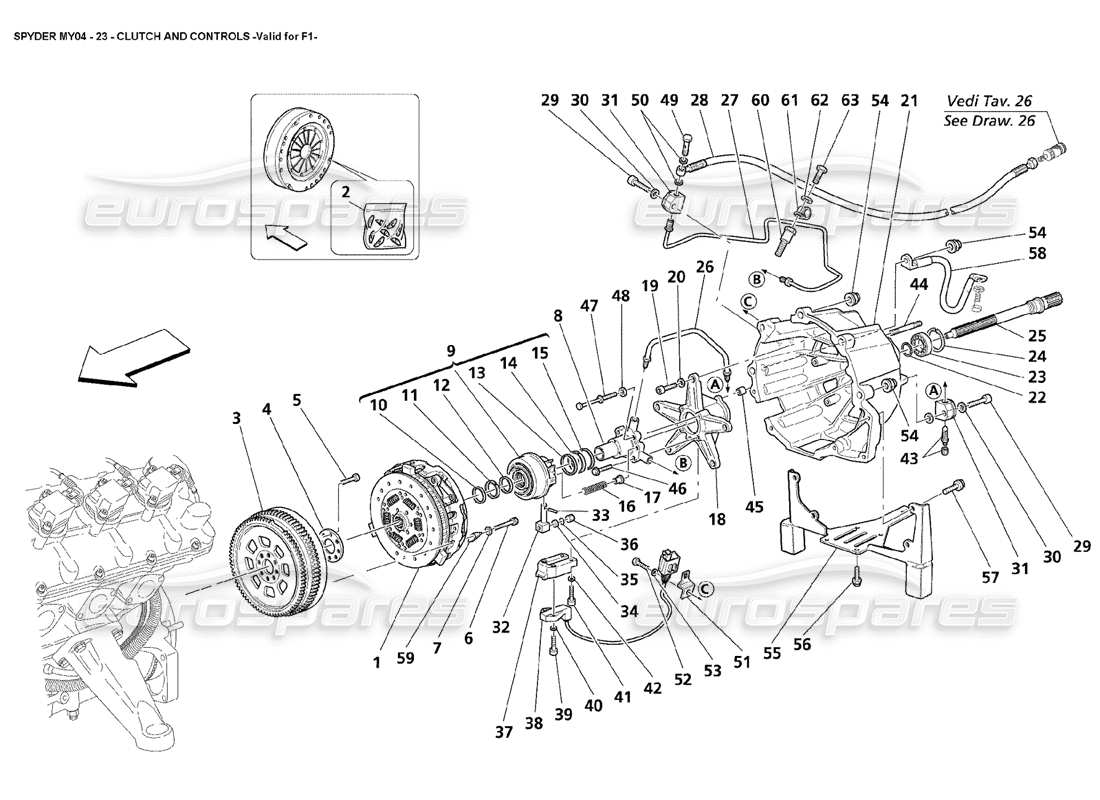

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                    #
                                                                                                                    Part number
                                                                                                                    Description
                                                                                                                    Price
                                                                                                                    # 001
                                                                                                                    MPN: 196335
                                                                                                                    COMPLETE CLUTCH
                                                                                                                    from £1,088.39
                                                                                                                    from £1,088.39
                                                                                                                    # 002
                                                                                                                    MPN: 980001166
                                                                                                                    CLUTCH BALANCING KIT
                                                                                                                    from £966.00
                                                                                                                    from £966.00
                                                                                                                    # 003
                                                                                                                    MPN: 230426
                                                                                                                    FLYWHEEL
                                                                                                                    from £401.38
                                                                                                                    from £401.38
                                                                                                                    This part replaces part number 185983
                                                                                                                    # 004
                                                                                                                    MPN: 103876
                                                                                                                    FLYWHEEL FIXING WASHER
                                                                                                                    from £2.74
                                                                                                                    from £2.74
                                                                                                                    # 006
                                                                                                                    MPN: 185206
                                                                                                                    SCREW
                                                                                                                    from £1.42
                                                                                                                    from £1.42
                                                                                                                    # 007
                                                                                                                    MPN: 11194377
                                                                                                                    WASHER
                                                                                                                    from £0.71
                                                                                                                    from £0.71
                                                                                                                    # 008
                                                                                                                    MPN: 182952
                                                                                                                    BEARING SUPPORTING FLANGE
                                                                                                                    from £357.74
                                                                                                                    from £357.74
                                                                                                                    # 009
                                                                                                                    MPN: 234953
                                                                                                                    CLUTCH BEARING WITH SEALS
                                                                                                                    Valid for F1 Cars only
                                                                                                                    from £495.00
                                                                                                                    from £495.00
                                                                                                                    This part replaces part number 190771 - and 1 more. Click to view details
                                                                                                                    # 010
                                                                                                                    MPN: 181837
                                                                                                                    SCRAPER RING
                                                                                                                    from £13.30
                                                                                                                    from £13.30
                                                                                                                    # 011
                                                                                                                    MPN: 170416
                                                                                                                    RING
                                                                                                                    (replaces: 181839)
                                                                                                                    from £1.21
                                                                                                                    from £1.21
                                                                                                                    This part replaces part number 181839
                                                                                                                    # 011
                                                                                                                    MPN: 181839
                                                                                                                    RING
                                                                                                                    not as spare part - use part number: 170416
                                                                                                                    Supersession
                                                                                                                    Supersession
                                                                                                                    # 012
                                                                                                                    MPN: 181838
                                                                                                                    SEAL RING
                                                                                                                    from £12.46
                                                                                                                    from £12.46
                                                                                                                    # 013
                                                                                                                    MPN: 181828
                                                                                                                    SEAL RING
                                                                                                                    from £15.54
                                                                                                                    from £15.54
                                                                                                                    # 014
                                                                                                                    MPN: 154507
                                                                                                                    RING
                                                                                                                    (replaces: 181829)
                                                                                                                    from £2.01
                                                                                                                    from £2.01
                                                                                                                    This part replaces part number 170419 which we have in stock - and 1 more. Click to view details
                                                                                                                    # 014
                                                                                                                    MPN: 181829
                                                                                                                    RING
                                                                                                                    not as spare part - use part number 154507
                                                                                                                    from £4.03
                                                                                                                    from £4.03
                                                                                                                    # 015
                                                                                                                    MPN: 181836
                                                                                                                    SCRAPER RING
                                                                                                                    from £14.64
                                                                                                                    from £14.64
                                                                                                                    # 016
                                                                                                                    MPN: 155207
                                                                                                                    PRELOAD SPRING
                                                                                                                    from £2.25
                                                                                                                    from £2.25
                                                                                                                    # 017
                                                                                                                    MPN: 155206
                                                                                                                    SPACER FOR SPRING
                                                                                                                    from £1.82
                                                                                                                    from £1.82
                                                                                                                    # 018
                                                                                                                    MPN: 184970
                                                                                                                    CLUTCH CONTROL FLANGE SUPPORT
                                                                                                                    from £308.85
                                                                                                                    from £308.85
                                                                                                                    # 019
                                                                                                                    MPN: 14305334
                                                                                                                    SCREW
                                                                                                                    from £0.52
                                                                                                                    from £0.52
                                                                                                                    # 020
                                                                                                                    MPN: 12604274
                                                                                                                    WASHER
                                                                                                                    from £0.53
                                                                                                                    from £0.53
                                                                                                                    # 021
                                                                                                                    MPN: 184763
                                                                                                                    CLUTCH HOUSING
                                                                                                                    from £1,044.75
                                                                                                                    from £1,044.75
                                                                                                                    # 022
                                                                                                                    MPN: 144511
                                                                                                                    STOP RING
                                                                                                                    from £1.55
                                                                                                                    from £1.55
                                                                                                                    # 023
                                                                                                                    MPN: 174470
                                                                                                                    BEARING
                                                                                                                    from £29.78
                                                                                                                    from £29.78
                                                                                                                    # 024
                                                                                                                    MPN: 182963
                                                                                                                    STOP RING
                                                                                                                    from £2.37
                                                                                                                    from £2.37
                                                                                                                    # 025
                                                                                                                    MPN: 182587
                                                                                                                    CLUTCH SHAFT
                                                                                                                    from £215.88
                                                                                                                    from £215.88
                                                                                                                    # 026
                                                                                                                    MPN: 182584
                                                                                                                    CLUTCH OIL BLEED PIPE
                                                                                                                    from £10.84
                                                                                                                    from £10.84
                                                                                                                    # 027
                                                                                                                    MPN: 182583
                                                                                                                    CLUTCH OIL DELIVERY TUBE
                                                                                                                    from £29.04
                                                                                                                    from £29.04
                                                                                                                    # 028
                                                                                                                    MPN: 187734
                                                                                                                    CLUTCH OIL PIPE
                                                                                                                    from £171.91
                                                                                                                    from £171.91
                                                                                                                    # 029
                                                                                                                    MPN: 14305434
                                                                                                                    SCREW
                                                                                                                    from £0.53
                                                                                                                    from £0.53
                                                                                                                    # 030
                                                                                                                    MPN: 12604274
                                                                                                                    WASHER
                                                                                                                    from £0.54
                                                                                                                    from £0.54
                                                                                                                    # 031
                                                                                                                    MPN: 139471
                                                                                                                    TWO WAY UNION
                                                                                                                    from £12.84
                                                                                                                    from £12.84
                                                                                                                    # 032
                                                                                                                    MPN: 166676
                                                                                                                    PIN
                                                                                                                    from £19.02
                                                                                                                    from £19.02
                                                                                                                    # 033
                                                                                                                    MPN: 14158570
                                                                                                                    FLEXIBLE PIN
                                                                                                                    from £0.54
                                                                                                                    from £0.54
                                                                                                                    # 034
                                                                                                                    MPN: 165676
                                                                                                                    MAGNET
                                                                                                                    from £34.09
                                                                                                                    from £34.09
                                                                                                                    # 035
                                                                                                                    MPN: 165658
                                                                                                                    O.R. GASKET
                                                                                                                    from £4.26
                                                                                                                    from £4.26
                                                                                                                    # 036
                                                                                                                    MPN: 167802
                                                                                                                    PLUG
                                                                                                                    from £21.56
                                                                                                                    from £21.56
                                                                                                                    # 037
                                                                                                                    MPN: 184900
                                                                                                                    F1 SENSOR SUPPORT
                                                                                                                    from £152.93
                                                                                                                    from £152.93
                                                                                                                    # 038
                                                                                                                    MPN: 179658
                                                                                                                    COMPLETE F1 SENSORS KIT
                                                                                                                    - Valid till car Ass. Nr. 13382
                                                                                                                    from £176.49
                                                                                                                    from £176.49
                                                                                                                    This part replaces part number 179782
                                                                                                                    # 038
                                                                                                                    MPN: 201935
                                                                                                                    COMPLETE F1 SENSORS KIT
                                                                                                                    - Valid from car Ass. Nr. 13383
                                                                                                                    from £239.45
                                                                                                                    from £239.45
                                                                                                                    # 039
                                                                                                                    MPN: 14303324
                                                                                                                    SCREW
                                                                                                                    from £0.53
                                                                                                                    from £0.53
                                                                                                                    # 040
                                                                                                                    MPN: 10519224
                                                                                                                    WASHER
                                                                                                                    from £0.54
                                                                                                                    from £0.54
                                                                                                                    # 041
                                                                                                                    MPN: 14304424
                                                                                                                    SCREW
                                                                                                                    from £0.53
                                                                                                                    from £0.53
                                                                                                                    # 042
                                                                                                                    MPN: 10519378
                                                                                                                    WASHER
                                                                                                                    from £0.54
                                                                                                                    from £0.54
                                                                                                                    # 043
                                                                                                                    MPN: 121699
                                                                                                                    BLEEDER SCREW
                                                                                                                    from £11.66
                                                                                                                    from £11.66
                                                                                                                    # 044
                                                                                                                    MPN: 13546334
                                                                                                                    STUD
                                                                                                                    from £0.60
                                                                                                                    from £0.60
                                                                                                                    # 045
                                                                                                                    MPN: 102725
                                                                                                                    CENTERING DOWEL
                                                                                                                    from £0.64
                                                                                                                    from £0.64
                                                                                                                    # 046
                                                                                                                    MPN: 16286224
                                                                                                                    SCREW
                                                                                                                    from £1.55
                                                                                                                    from £1.55
                                                                                                                    # 047
                                                                                                                    MPN: 182955
                                                                                                                    STUD FOR END OF STROKE
                                                                                                                    from £16.05
                                                                                                                    from £16.05
                                                                                                                    # 048
                                                                                                                    MPN: 12601274
                                                                                                                    WASHER
                                                                                                                    from £0.53
                                                                                                                    from £0.53
                                                                                                                    This part replaces part number 12601270
                                                                                                                    # 049
                                                                                                                    MPN: 171454
                                                                                                                    UNION
                                                                                                                    from £26.41
                                                                                                                    from £26.41
                                                                                                                    # 050
                                                                                                                    MPN: 10261060
                                                                                                                    GASKET
                                                                                                                    from £0.53
                                                                                                                    from £0.53
                                                                                                                    This part replaces part number 274036
                                                                                                                    # 051
                                                                                                                    MPN: 170925
                                                                                                                    CONNECTOR FIXING BRACKET
                                                                                                                    from £2.23
                                                                                                                    from £2.23
                                                                                                                    # 052
                                                                                                                    MPN: 10979414
                                                                                                                    SCREW
                                                                                                                    from £0.51
                                                                                                                    from £0.51
                                                                                                                    # 053
                                                                                                                    MPN: 12601274
                                                                                                                    WASHER
                                                                                                                    from £0.54
                                                                                                                    from £0.54
                                                                                                                    This part replaces part number 12601270
                                                                                                                    # 055
                                                                                                                    MPN: 187799
                                                                                                                    EXHAUST FRONT SUPPORT
                                                                                                                    - Not for USA, CDN, J, AUS and cars GB opt. japan version
                                                                                                                    from £79.19
                                                                                                                    from £79.19
                                                                                                                    # 055
                                                                                                                    MPN: 191399
                                                                                                                    EXHAUST FRONT SUPPORT
                                                                                                                    - Valid for USA, CDN, J, AUS and cars GB opt. japan version
                                                                                                                    from £77.83
                                                                                                                    from £77.83
                                                                                                                    # 056
                                                                                                                    MPN: 11730624
                                                                                                                    SCREW
                                                                                                                    from £0.53
                                                                                                                    from £0.53
                                                                                                                    # 057
                                                                                                                    MPN: 16288121
                                                                                                                    SCREW
                                                                                                                    from £2.47
                                                                                                                    from £2.47
                                                                                                                    # 057
                                                                                                                    MPN: 16297721
                                                                                                                    SCREW
                                                                                                                    from £1.85
                                                                                                                    from £1.85
                                                                                                                    # 059
                                                                                                                    MPN: 191329
                                                                                                                    BALANCING MASS
                                                                                                                    - Grams 1 - As necessary
                                                                                                                    from £25.22
                                                                                                                    from £25.22
                                                                                                                    # 059
                                                                                                                    MPN: 191330
                                                                                                                    BALANCING MASS
                                                                                                                    - Grams 2 - As necessary
                                                                                                                    from £23.10
                                                                                                                    from £23.10
                                                                                                                    # 059
                                                                                                                    MPN: 191331
                                                                                                                    BALANCING MASS
                                                                                                                    - Grams 4 - As necessary
                                                                                                                    from £30.15
                                                                                                                    from £30.15
                                                                                                                    # 059
                                                                                                                    MPN: 191333
                                                                                                                    BALANCING MASS
                                                                                                                    - Grams 5 - As necessary
                                                                                                                    from £8.04
                                                                                                                    from £8.04
                                                                                                                    # 059
                                                                                                                    MPN: 191334
                                                                                                                    BALANCING MASS
                                                                                                                    - Grams 6 - As necessary
                                                                                                                    from £15.87
                                                                                                                    from £15.87
                                                                                                                    # 059
                                                                                                                    MPN: 191335
                                                                                                                    BALANCING MASS
                                                                                                                    - Grams 7 - As necessary
                                                                                                                    from £19.80
                                                                                                                    from £19.80
                                                                                                                    # 059
                                                                                                                    MPN: 191336
                                                                                                                    BALANCING MASS
                                                                                                                    - Grams 8 - As necessary
                                                                                                                    from £46.51
                                                                                                                    from £46.51
                                                                                                                    # 059
                                                                                                                    MPN: 191337
                                                                                                                    BALANCING MASS
                                                                                                                    - Grams 9 - As necessary
                                                                                                                    from £36.78
                                                                                                                    from £36.78
                                                                                                                    # 059
                                                                                                                    MPN: 191338
                                                                                                                    BALANCING MASS
                                                                                                                    - Grams 10 - As necessary
                                                                                                                    from £41.23
                                                                                                                    from £41.23
                                                                                                                    # 059
                                                                                                                    MPN: 191339
                                                                                                                    BALANCING MASS
                                                                                                                    - Grams 11 - As necessary
                                                                                                                    from £8.88
                                                                                                                    from £8.88
                                                                                                                    # 059
                                                                                                                    MPN: 191340
                                                                                                                    BALANCING MASS
                                                                                                                    - Grams 12 - As necessary
                                                                                                                    from £41.23
                                                                                                                    from £41.23
                                                                                                                    # 059
                                                                                                                    MPN: 191341
                                                                                                                    BALANCING MASS
                                                                                                                    - Grams 13 - As necessary
                                                                                                                    from £9.29
                                                                                                                    from £9.29
                                                                                                                    # 059
                                                                                                                    MPN: 191342
                                                                                                                    BALANCING MASS
                                                                                                                    - Grams 14 - As necessary
                                                                                                                    from £96.75
                                                                                                                    from £96.75
                                                                                                                    # 059
                                                                                                                    MPN: 191343
                                                                                                                    BALANCING MASS
                                                                                                                    - Grams 15 - As necessary
                                                                                                                    from £9.29
                                                                                                                    from £9.29
                                                                                                                    # 059
                                                                                                                    MPN: 191344
                                                                                                                    BALANCING MASS
                                                                                                                    - Grams 16 - As necessary
                                                                                                                    from £90.47
                                                                                                                    from £90.47
                                                                                                                    # 059
                                                                                                                    MPN: 191345
                                                                                                                    BALANCING MASS
                                                                                                                    - Grams 17 - As necessary
                                                                                                                    from £10.84
                                                                                                                    from £10.84
                                                                                                                    # 059
                                                                                                                    MPN: 191346
                                                                                                                    BALANCING MASS
                                                                                                                    - Grams 18 - As necessary
                                                                                                                    from £10.84
                                                                                                                    from £10.84
                                                                                                                    # 059
                                                                                                                    MPN: 191347
                                                                                                                    BALANCING MASS
                                                                                                                    - Grams 19 - As necessary
                                                                                                                    from £8.88
                                                                                                                    from £8.88
                                                                                                                    # 059
                                                                                                                    MPN: 191395
                                                                                                                    BALANCING MASS
                                                                                                                    - Grams 20 - As necessary
                                                                                                                    from £90.47
                                                                                                                    from £90.47
                                                                                                                    # 060
                                                                                                                    MPN: 190876
                                                                                                                    STUD
                                                                                                                    from £14.19
                                                                                                                    from £14.19
                                                                                                                    This part replaces part number 585412900
                                                                                                                    # 061
                                                                                                                    MPN: 10441190
                                                                                                                    BRACKET WITH SHEATH
                                                                                                                    from £0.54
                                                                                                                    from £0.54
                                                                                                                    # 062
                                                                                                                    MPN: 127494
                                                                                                                    WASHER
                                                                                                                    from £0.54
                                                                                                                    from £0.54
                                                                                                                    # 063
                                                                                                                    MPN: 10979414
                                                                                                                    SCREW
                                                                                                                    from £0.51
                                                                                                                    from £0.51
