030 - Main Shaft Gears

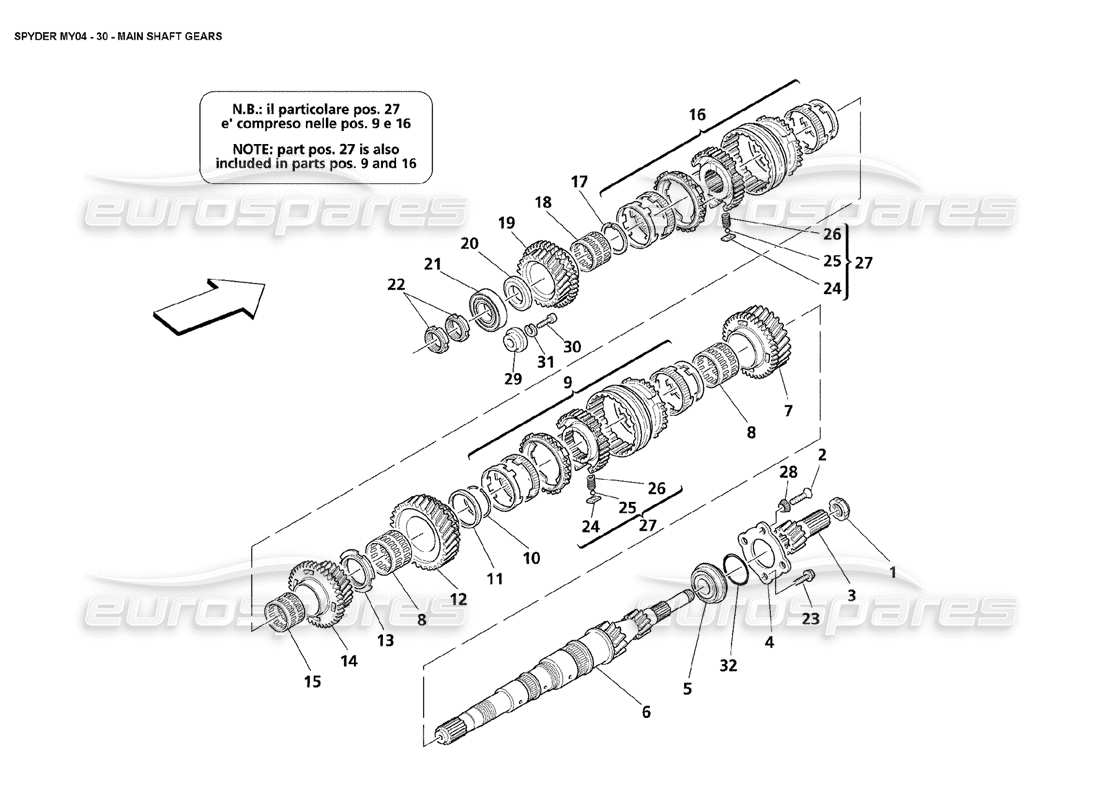

Maserati 4200 Spyder (2004) Main Shaft Gears Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 182359
RING NUT
from £23.35
from £23.35
# 002
MPN: 14442027
SCREW
from £1.09
from £1.09
# 003
MPN: 199531
REVERSE DRIVING GEAR
from £505.14
from £505.14
# 004
MPN: 183984
PLATE
from £6.45
from £6.45
# 005
MPN: 184019
BALL BEARING
from £44.30
from £44.30
# 006
MPN: 182327
MAIN SHAFT FOR GEAR LEVER
- Not for F1 - Valid till car Ass. Nr. 13598 - Not for cars with complete gearbox code 203018
from £752.56
from £752.56
# 006
MPN: 182327
MAIN SHAFT FOR GEAR LEVER
- Valid for F1
from £752.56
from £752.56
# 006
MPN: 208624
MAIN SHAFT FOR GEAR LEVER
- Not for F1 - Valid from car Ass. Nr. 13599 - Valid for cars with complete gearbox code 203018
from £800.03
from £800.03
# 007
MPN: 182329
PINION FOR 5TH GEAR
from £134.10
from £134.10
# 008
MPN: 184015
ROLLER CAGE
from £29.12
from £29.12
# 009
MPN: 185166
5TH AND 6TH GEAR COMPLETE SYNCHRONIZER
from £795.01
from £795.01
# 010
MPN: 184011
FLEXIBLE RING
from £5.58
from £5.58
# 011
MPN: 183970
SPACER FOR PINION FOR 6TH GEAR
from £55.00
from £55.00
# 012
MPN: 182335
PINION FOR 6TH GEAR
from £134.10
from £134.10
# 013
MPN: 184010
RING NUT
from £95.67
from £95.67
# 014
MPN: 182338
PINION FOR 3RD GEAR
from £307.17
from £307.17
# 015
MPN: 184014
ROLLER CAGE
from £10.20
from £10.20
# 016
MPN: 185165
3RD AND 4TH GEAR COPLETE SYNCHRONIZER
- Not for F1 - Valid till car Ass. Nr. 13598 - Not for cars with complete gearbox code 203018
from £891.91
from £891.91
# 016
MPN: 185165
3RD AND 4TH GEAR COPLETE SYNCHRONIZER
- Valid for F1
from £891.91
from £891.91
# 016
MPN: 208628
3RD AND 4TH GEAR COPLETE SYNCHRONIZER
- Not for F1 - Valid from car Ass. Nr. 13599 - Valid for cars with complete gearbox code 203018
from £247.93
from £247.93
# 017
MPN: 184042
FLEXIBLE RING
from £6.76
from £6.76
# 018
MPN: 184005
ROLLER CAGE
from £14.35
from £14.35
# 019
MPN: 182345
PINION FOR 4TH GEAR
from £136.42
from £136.42
# 020
MPN: 183973
WASHER
from £26.23
from £26.23
# 021
MPN: 184021
ROLLER BEARING
from £80.27
from £80.27
# 022
MPN: 184012
RING NUT
from £17.47
from £17.47
# 023
MPN: 16287124
SCREW
from £0.82
from £0.82
This part replaces part number 16297921
# 024
-
PAD FOR SYNCHRONIZER
# 025
-
BALL
# 026
-
SPRING FOR BALL
# 027
MPN: 188320
PAD FOR SYNCHRONIZER/BALL/SPRING REPLACEMENT KIT
from £6.75
from £6.75
# 028
MPN: 12606979
WASHER
from £1.85
from £1.85
# 029
MPN: 183985
BUSHING
from £7.68
from £7.68
# 030
MPN: 14305721
SCREW
from £1.47
from £1.47
# 031
MPN: 10569274
WASHER
from £0.85
from £0.85
# 032
MPN: 14454281
O.R. GASKET
from £4.17
from £4.17
