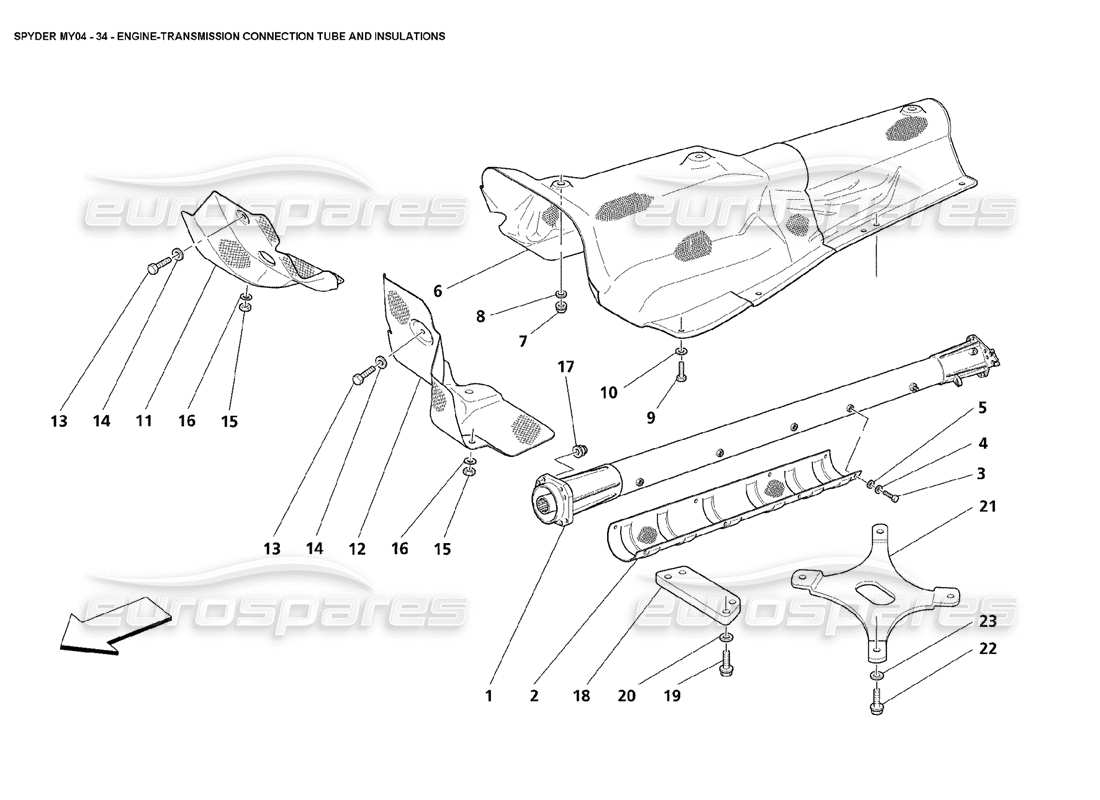

034 - Engine Transmission Connection Tube and Insulations
Maserati 4200 Spyder (2004) Engine Transmission Connection Tube and Insulations Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 187532
COMPLETE ENGINE TRANSMISSION CONNECTION TUBE
- Valid for F1 -
from £4,693.27
from £4,693.27
This part replaces part number 186739 - and 1 more. Click to view details
# 001
MPN: 196491
COMPLETE ENGINE TRANSMISSION CONNECTION TUBE
- Not for F1
from £1,892.94
from £1,892.94
TRANSMISSION SHAFT ASS.-SPYDER Genuine Maserati Part - Used In stock
TRANSMISSION CONNECTION TUBE - Not for F1
TRANSMISSION CONNECTION TUBE - Not for F1
# 002
MPN: 185559
ANTI HEAT SHIELD
from £20.15
from £20.15
# 003
MPN: 11635724
SCREW
from £0.48
from £0.48
# 004
MPN: 12601274
WASHER
from £0.51
from £0.51
This part replaces part number 12601270
# 005
MPN: 12644424
WASHER
from £0.53
from £0.53
This part replaces part number 13550214
# 006
MPN: 67515400
TUNNEL HEAT SHIELD
from £156.12
from £156.12
# 007
MPN: 14059111
NUT
from £0.47
from £0.47
# 008
MPN: 12624124
WASHER
from £0.95
from £0.95
# 009
MPN: 10977824
SCREW
from £1.04
from £1.04
This part replaces part number 16130321 which we have in stock
# 010
MPN: 12624124
WASHER
from £0.92
from £0.92
# 011
MPN: 66584200
RH SHIELD
from £17.67
from £17.67
# 012
MPN: 66582900
LH SHIELD
from £17.67
from £17.67
# 013
MPN: 10977824
SCREW
from £1.08
from £1.08
This part replaces part number 16130321 which we have in stock
# 014
MPN: 12624124
WASHER
from £0.94
from £0.94
# 015
MPN: 13831811
NUT
from £0.53
from £0.53
# 016
MPN: 12624124
WASHER
from £0.95
from £0.95
# 017
MPN: 156462
NUT
Supersession
Supersession
# 018
MPN: 67497700
CROSS MEMBER TUNNEL
from £58.27
from £58.27
# 019
MPN: 14307821
SCREW
from £0.69
from £0.69
# 020
MPN: 12646821
WASHER
from £0.53
from £0.53
# 021
MPN: 67497800
TUNNEL REINFORCEMENT SPIDER
from £38.04
from £38.04
# 022
MPN: 16287224
SCREW
from £0.51
from £0.51
# 023
MPN: 12642024
WASHER
from £0.53
from £0.53
