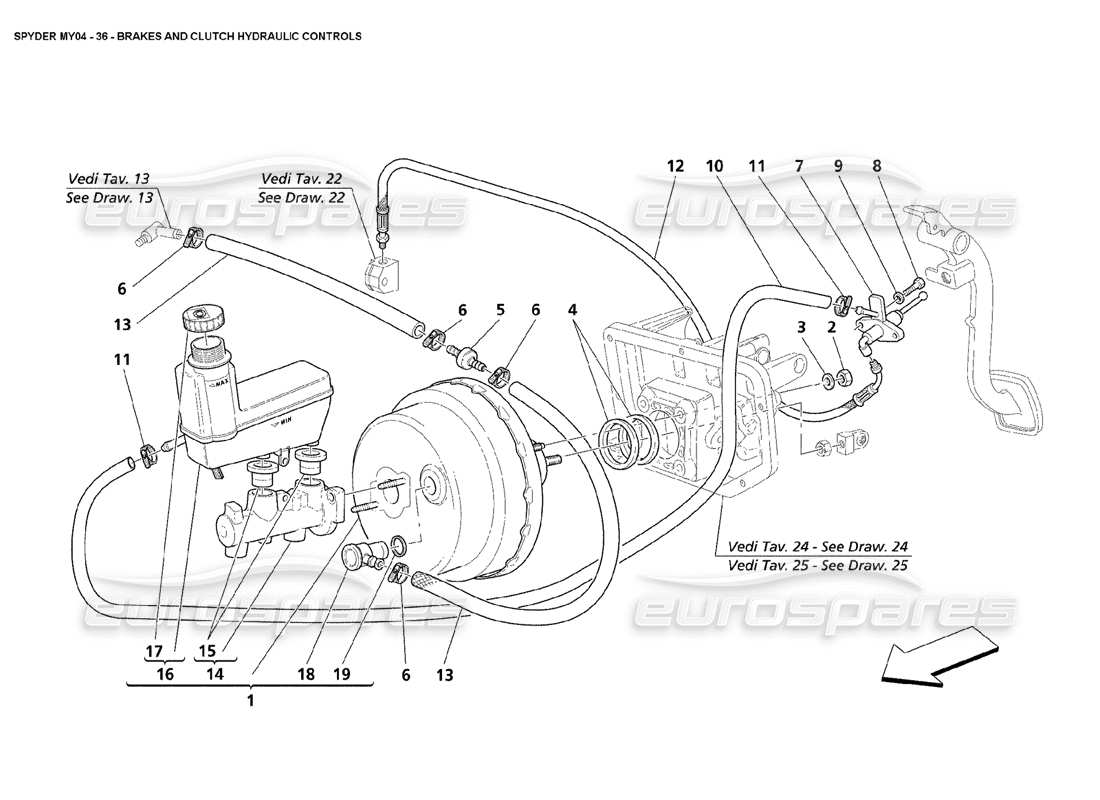

036 - Brakes and Clutch Hydraulic Controls
Maserati 4200 Spyder (2004) Brakes and Clutch Hydraulic Controls Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 195560
COMPLETE BRAKE BOOSTER
- Not for F1
from £637.96
from £637.96
# 001
MPN: 196150
COMPLETE BRAKE BOOSTER
- Valid for F1
from £185.01
from £185.01
# 002
MPN: 16104421

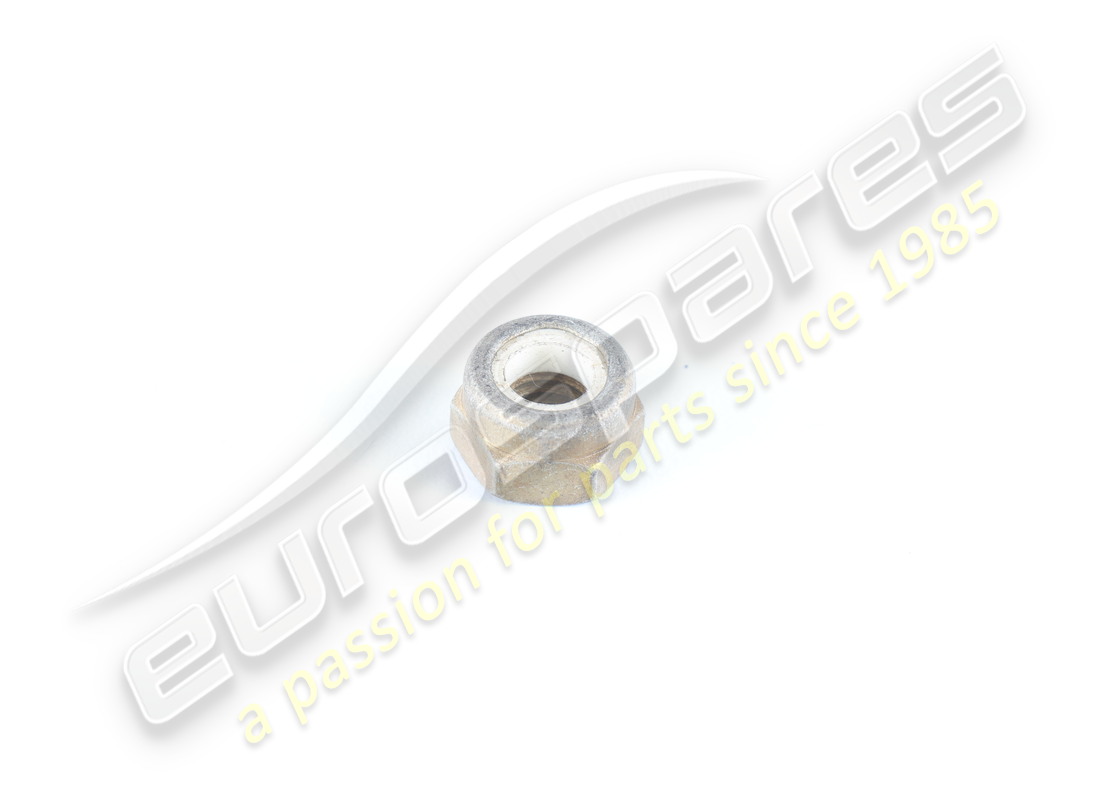

NUT
from £0.81
from £0.81
# 003
MPN: 14496521
WASHER
from £0.47
from £0.47
# 004
MPN: 367402309
GASKET
from £1.55
from £1.55
# 005
MPN: 193186
DEPRESSION VALVE
from £7.05
from £7.05
# 006
MPN: 13000390
SCREW COLLAR
from £0.51
from £0.51
This part replaces part number 13121170 - and 1 more. Click to view details
# 007
MPN: 184753
Clutch Pump
- Not for F1
from £239.29
from £239.29
# 008
MPN: 16043621
SCREW
- Not for F1
from £1.08
from £1.08
# 009
MPN: 12601374
WASHER
- Not for F1
from £0.54
from £0.54
# 010
MPN: 197127
BRAKE LIQUID PIPE
- Not for F1 - Not for GD
from £37.28
from £37.28
# 010
MPN: 197130
BRAKE LIQUID PIPE
- Not for F1 - Valid for GD
from £34.81
from £34.81
# 011
MPN: 13000190
SCREW COLLAR
- Not for F1
from £0.53
from £0.53
# 012
MPN: 181769
CLUTCH CONTROL TUBE
- Not for F1 - Not for GD
from £261.76
from £261.76
# 012
MPN: 189061
CLUTCH CONTROL TUBE
- Not for F1 - Valid for GD
from £44.82
from £44.82
# 013
MPN: 302220611
RUBBER HOSE
- Supplied in meters - (Minimum quantity 1m. or multiples)
from £21.92
from £21.92
This part replaces part number 192978
# 014
MPN: 980138133
BRAKE PUMP
from £671.08
from £671.08
# 015
MPN: 980138134
BRAKE PUMP RUBBER
from £5.09
from £5.09
# 016
MPN: 197024
OIL TANK
- Not for F1
from £487.19
from £487.19
# 016
MPN: 197025
OIL TANK
- Valid for F1
from £52.57
from £52.57
# 017
MPN: 980138135
OIL TANK PLUG
from £19.01
from £19.01
# 018
MPN: 980138136
UNION
from £16.00
from £16.00
# 019
MPN: 980138137
GASKET
from £8.20
from £8.20
