maserati 4200 spyder (2004) braking system not for gd parts diagram

037 - Braking System Not for GD

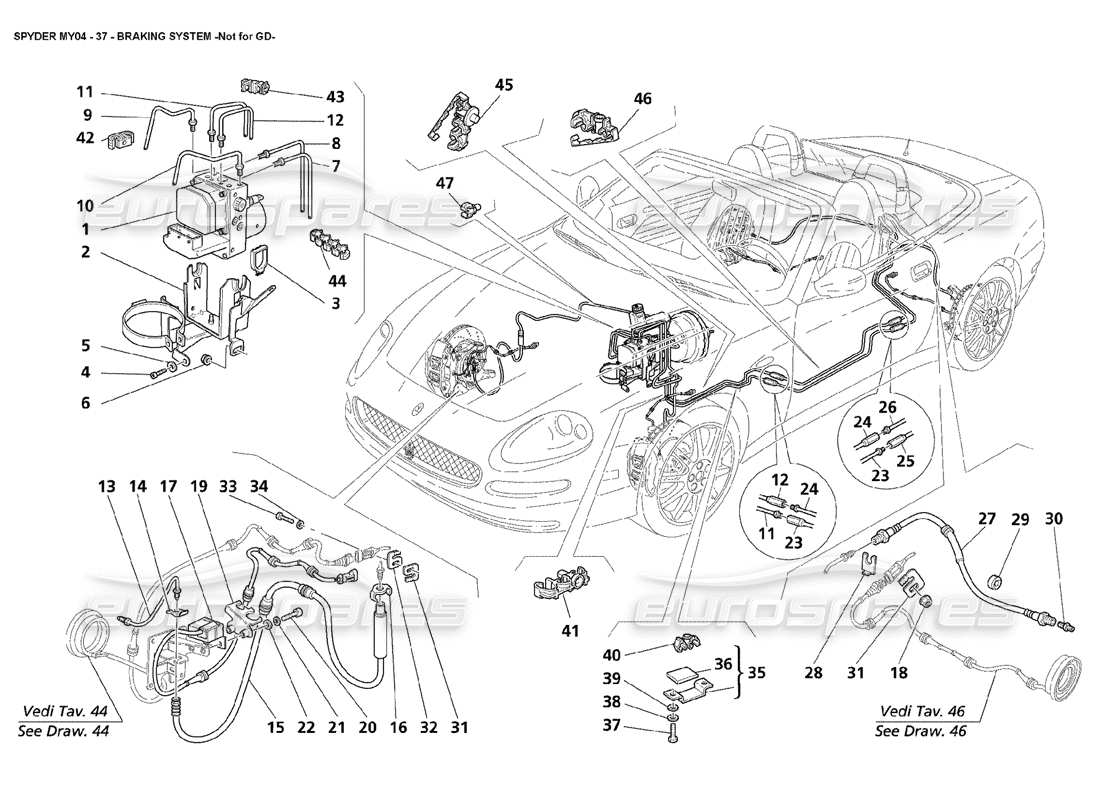

Maserati 4200 Spyder (2004) Braking System Not For GD Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                            #
                                                            Part number
                                                            Description
                                                            Price
                                                            # 001
                                                            MPN: 192444
                                                            hydraulic unit
                                                            - Not for F1 - Not for USA and CDN
                                                            from £2,880.37
                                                            from £2,880.37
                                                            This part replaces part number 192443
                                                            # 001
                                                            MPN: 198983
                                                            hydraulic unit
                                                            - Valid for F1 - Valid also for cars USA and CDN NOT F1
                                                            from £2,419.92
                                                            from £2,419.92
                                                            # 002
                                                            MPN: 195570
                                                            CONTROL UNIT FIXING BRACKET
                                                            from £31.25
                                                            from £31.25
                                                            # 003
                                                            MPN: 193877
                                                            CONTROL UNIT FIXING CLIP
                                                            from £0.53
                                                            from £0.53
                                                            # 004
                                                            MPN: 14433124
                                                            SCREW
                                                            from £0.53
                                                            from £0.53
                                                            # 005
                                                            MPN: 12646604
                                                            WASHER
                                                            from £0.53
                                                            from £0.53
                                                            # 006
                                                            MPN: 14040611
                                                            NUT
                                                            from £0.54
                                                            from £0.54
                                                            # 007
                                                            MPN: 196616
                                                            BRAKE PIPE FROM ABS CENTER UNIT TO LH FRONT FLEXIBLE PIPE
                                                            - Valid till stock exhaustion
                                                            Supersession
                                                            Supersession
                                                            # 007
                                                            MPN: 207998
                                                            BRAKE PIPE FROM ABS CENTER UNIT TO LH FRONT FLEXIBLE PIPE
                                                            - Valid after stock exhaustion of 196616
                                                            from £10.93
                                                            from £10.93
                                                            This part replaces part number 196616
                                                            # 008
                                                            MPN: 195574
                                                            RH FRONT BRAKE PIPE
                                                            - Valid till stock exhaustion
                                                            Supersession
                                                            Supersession
                                                            # 008
                                                            MPN: 208000
                                                            RH FRONT BRAKE PIPE
                                                            - Valid after stock exhaustion of 195574
                                                            from £80.96
                                                            from £80.96
                                                            This part replaces part number 195574
                                                            # 009
                                                            MPN: 196620
                                                            FRONT BRAKE PIPE FROM PUMP TO UNIT
                                                            - Valid till stock exhaustion
                                                            Supersession
                                                            Supersession
                                                            # 009
                                                            MPN: 208005
                                                            FRONT BRAKE PIPE FROM PUMP TO UNIT
                                                            - Valid after stock exhaustion of 196620
                                                            from £7.26
                                                            from £7.26
                                                            This part replaces part number 196620
                                                            # 010
                                                            MPN: 196619
                                                            REAR BRAKE PIPE FROM PUMP TO UNIT
                                                            - Valid till stock exhaustion
                                                            Supersession
                                                            Supersession
                                                            # 010
                                                            MPN: 208004
                                                            REAR BRAKE PIPE FROM PUMP TO UNIT
                                                            - Valid after stock exhaustion of 196619
                                                            from £9.29
                                                            from £9.29
                                                            This part replaces part number 196619
                                                            # 011
                                                            MPN: 195581
                                                            LH REAR BRAKE PIPE
                                                            - Valid till stock exhaustion
                                                            from £18.53
                                                            from £18.53
                                                            # 011
                                                            MPN: 208011
                                                            LH REAR BRAKE PIPE
                                                            - Valid after stock exhaustion of 195581
                                                            from £18.53
                                                            from £18.53
                                                            # 012
                                                            MPN: 195582
                                                            RH REAR BRAKE PIPE
                                                            - Valid till stock exhaustion
                                                            from £15.79
                                                            from £15.79
                                                            # 012
                                                            MPN: 208012
                                                            RH REAR BRAKE PIPE
                                                            - Valid after stock exhaustion of 195582
                                                            from £15.79
                                                            from £15.79
                                                            # 013
                                                            MPN: 185954
                                                            RH FRONT CALIPER RIGID PIPE
                                                            - Valid till car Ass. Nr. 13411
                                                            from £14.73
                                                            from £14.73
                                                            # 013
                                                            MPN: 185955
                                                            LH FRONT CALIPER RIGID PIPE
                                                            - Valid till car Ass. Nr. 13411
                                                            from £16.63
                                                            from £16.63
                                                            # 013
                                                            MPN: 202776
                                                            LH FRONT CALIPER RIGID PIPE
                                                            - Valid from car Ass. Nr. 13412
                                                            from £34.32
                                                            from £34.32
                                                            # 013
                                                            MPN: 202777
                                                            RH FRONT CALIPER RIGID PIPE
                                                            - Valid from car Ass. Nr. 13412
                                                            from £34.32
                                                            from £34.32
                                                            # 014
                                                            MPN: 181897
                                                            CLIP
                                                            from £1.08
                                                            from £1.08
                                                            This part replaces part number 252814
                                                            # 015
                                                            MPN: 185956
                                                            BRAKE FLEXIBLE PIPE TO FRONT CALIPERS
                                                            from £98.99
                                                            from £98.99
                                                            # 016
                                                            MPN: 228185
                                                            CLIP
                                                            from £2.85
                                                            from £2.85
                                                            This part replaces part number 387400301
                                                            # 017
                                                            MPN: 232160
                                                            VERTICAL ACCELERATION SENSOR
                                                            - Optional - Sport version
                                                            from £124.56
                                                            from £124.56
                                                            This part replaces part number 183580
                                                            # 018
                                                            MPN: 14084111
                                                            NUT
                                                            from £0.53
                                                            from £0.53
                                                            # 019
                                                            MPN: 185792
                                                            RH BRAKE PIPE SUPPORT BRACKET
                                                            - Valid till car Ass. Nr. 13411
                                                            from £6.42
                                                            from £6.42
                                                            # 019
                                                            MPN: 185793
                                                            LH BRAKE PIPE SUPPORT BRACKET
                                                            - Valid till car Ass. Nr. 13411
                                                            from £6.81
                                                            from £6.81
                                                            # 019
                                                            MPN: 202762
                                                            LH BRAKE PIPE SUPPORT BRACKET
                                                            - Valid from car Ass. Nr. 13412
                                                            from £5.31
                                                            from £5.31
                                                            # 019
                                                            MPN: 202763
                                                            RH BRAKE PIPE SUPPORT BRACKET
                                                            - Valid from car Ass. Nr. 13412
                                                            from £9.20
                                                            from £9.20
                                                            # 020
                                                            MPN: 14305324
                                                            SCREW
                                                            from £0.51
                                                            from £0.51
                                                            This part replaces part number 14305321
                                                            # 021
                                                            MPN: 12604274
                                                            WASHER
                                                            from £0.53
                                                            from £0.53
                                                            # 022
                                                            MPN: 14496424
                                                            WASHER
                                                            Supersession
                                                            Supersession
                                                            This part replaces part number 14496421
                                                            # 023
                                                            MPN: 197471
                                                            LH REAR CALIPER INTERMEDIATE BRAKE PIPE
                                                            - Valid till stock exhaustion
                                                            from £5.57
                                                            from £5.57
                                                            # 023
                                                            MPN: 208021
                                                            LH REAR CALIPER INTERMEDIATE BRAKE PIPE
                                                            - Valid after stock exhaustion of 197471
                                                            from £6.76
                                                            from £6.76
                                                            # 024
                                                            MPN: 197472
                                                            RH REAR CALIPER INTERMEDIATE BRAKE PIPE
                                                            - Valid till stock exhaustion
                                                            from £6.76
                                                            from £6.76
                                                            # 024
                                                            MPN: 208022
                                                            RH REAR CALIPER INTERMEDIATE BRAKE PIPE
                                                            - Valid after stock exhaustion of 197472
                                                            from £7.05
                                                            from £7.05
                                                            # 025
                                                            MPN: 190512
                                                            LH REAR CALIPER RIGID PIPE
                                                            - Valid till stock exhaustion
                                                            Supersession
                                                            Supersession
                                                            # 025
                                                            MPN: 208013
                                                            LH REAR CALIPER RIGID PIPE
                                                            - Valid after stock exhaustion of 190512
                                                            from £33.89
                                                            from £33.89
                                                            This part replaces part number 190512
                                                            # 026
                                                            MPN: 190513
                                                            RH REAR CALIPER RIGID PIPE
                                                            - Valid till stock exhaustion
                                                            Supersession
                                                            Supersession
                                                            # 026
                                                            MPN: 208015
                                                            RH REAR CALIPER RIGID PIPE
                                                            - Valid after stock exhaustion of 190513
                                                            from £10.93
                                                            from £10.93
                                                            This part replaces part number 190513
                                                            # 027
                                                            MPN: 387401155
                                                            BRAKE FLEXIBLE PIPE TO REAR CALIPERS
                                                            from £152.55
                                                            from £152.55
                                                            This part replaces part number 387400155
                                                            # 028
                                                            MPN: 181897
                                                            CLIP
                                                            from £1.08
                                                            from £1.08
                                                            This part replaces part number 252814
                                                            # 029
                                                            MPN: 327456313
                                                            SPACER RING
                                                            from £1.08
                                                            from £1.08
                                                            # 030
                                                            MPN: 387400330
                                                            UNION
                                                            from £17.16
                                                            from £17.16
                                                            This part replaces part number 387400333
                                                            # 031
                                                            MPN: 162606
                                                            CLIP
                                                            from £0.82
                                                            from £0.82
                                                            # 032
                                                            MPN: 156198
                                                            CLIP
                                                            from £10.41
                                                            from £10.41
                                                            # 033
                                                            MPN: 10977687
                                                            SCREW
                                                            from £0.53
                                                            from £0.53
                                                            # 034
                                                            MPN: 12638177
                                                            WASHER
                                                            from £1.08
                                                            from £1.08
                                                            # 035
                                                            MPN: 187464
                                                            PIPES PROTECTION BRACKET
                                                            - Not for USA and CDN
                                                            from £8.20
                                                            from £8.20
                                                            This part replaces part number 387400102
                                                            # 035
                                                            MPN: 197587
                                                            PIPES PROTECTION BRACKET
                                                            - Valid for USA and CDN
                                                            from £20.25
                                                            from £20.25
                                                            # 036
                                                            MPN: 387400402
                                                            GASKET
                                                            from £1.55
                                                            from £1.55
                                                            # 037
                                                            MPN: 10977824
                                                            SCREW
                                                            from £1.08
                                                            from £1.08
                                                            This part replaces part number 16130321 which we have in stock
                                                            # 038
                                                            MPN: 11181574
                                                            WASHER
                                                            from £0.54
                                                            from £0.54
                                                            # 039
                                                            MPN: 14447025
                                                            WASHER
                                                            from £1.39
                                                            from £1.39
                                                            # 040
                                                            MPN: 379200408
                                                            CLIP
                                                            from £1.08
                                                            from £1.08
                                                            # 041
                                                            MPN: 188335
                                                            CLIP
                                                            - (Quantity defined during at assembly)
                                                            from £1.28
                                                            from £1.28
                                                            # 042
                                                            MPN: 169476
                                                            CLIP
                                                            - (Quantity defined during at assembly)
                                                            from £1.75
                                                            from £1.75
                                                            # 043
                                                            MPN: 377430340
                                                            BLOCK
                                                            from £0.69
                                                            from £0.69
                                                            # 044
                                                            MPN: 198575
                                                            CLIP
                                                            from £3.63
                                                            from £3.63
                                                            # 045
                                                            MPN: 198574
                                                            CLIP
                                                            - (Quantity defined during at assembly)
                                                            from £2.85
                                                            from £2.85
                                                            # 046
                                                            MPN: 190409
                                                            CLIP
                                                            from £3.24
                                                            from £3.24
                                                            # 047
                                                            MPN: 377430346
                                                            CLIP
                                                            from £1.08
                                                            from £1.08
