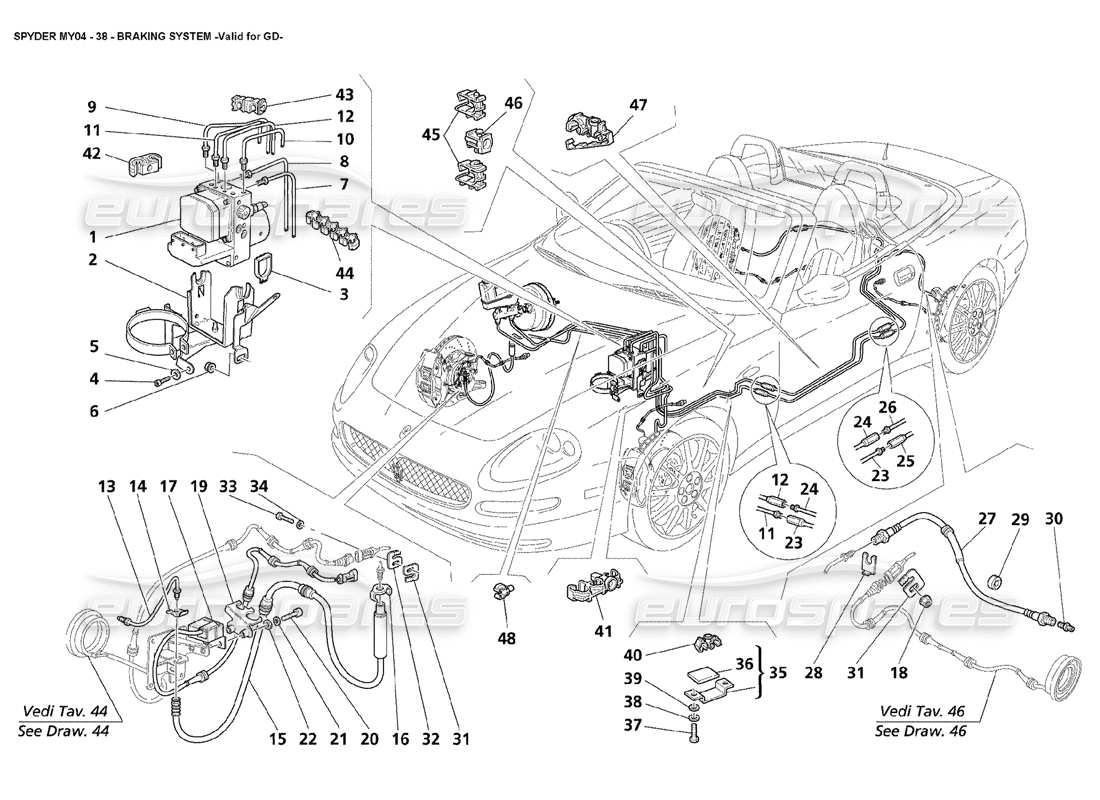

038 - Braking System Valid for GD

Maserati 4200 Spyder (2004) Braking System Valid For GD Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                              #
                                                              Part number
                                                              Description
                                                              Price
                                                              # 001
                                                              MPN: 192444
                                                              hydraulic unit
                                                              - Not for F1
                                                              from £2,880.37
                                                              from £2,880.37
                                                              This part replaces part number 192443
                                                              # 001
                                                              MPN: 198983
                                                              hydraulic unit
                                                              - Valid for F1
                                                              from £2,419.92
                                                              from £2,419.92
                                                              # 002
                                                              MPN: 195570
                                                              CONTROL UNIT FIXING BRACKET
                                                              from £31.25
                                                              from £31.25
                                                              # 003
                                                              MPN: 193877
                                                              CONTROL UNIT FIXING CLIP
                                                              from £0.53
                                                              from £0.53
                                                              # 004
                                                              MPN: 14433124
                                                              SCREW
                                                              from £0.53
                                                              from £0.53
                                                              # 005
                                                              MPN: 12646604
                                                              WASHER
                                                              from £0.53
                                                              from £0.53
                                                              # 006
                                                              MPN: 14040611
                                                              NUT
                                                              from £0.54
                                                              from £0.54
                                                              # 007
                                                              MPN: 196616
                                                              BRAKE PIPE FROM ABS CENTER UNIT TO LH FRONT FLEXIBLE PIPE
                                                              - Valid till stock exhaustion
                                                              Supersession
                                                              Supersession
                                                              # 007
                                                              MPN: 207998
                                                              BRAKE PIPE FROM ABS CENTER UNIT TO LH FRONT FLEXIBLE PIPE
                                                              - Valid after stock exhaustion of 196616
                                                              from £10.93
                                                              from £10.93
                                                              This part replaces part number 196616
                                                              # 008
                                                              MPN: 195800
                                                              RH FRONT BRAKE PIPE
                                                              - Valid till stock exhaustion
                                                              Supersession
                                                              Supersession
                                                              # 008
                                                              MPN: 208018
                                                              RH FRONT BRAKE PIPE
                                                              - Valid after stock exhaustion of 195800
                                                              from £28.26
                                                              from £28.26
                                                              This part replaces part number 195800
                                                              # 009
                                                              MPN: 196845
                                                              FRONT BRAKE PIPE FROM PUMP TO UNIT
                                                              - Valid till stock exhaustion
                                                              Supersession
                                                              Supersession
                                                              # 009
                                                              MPN: 208020
                                                              FRONT BRAKE PIPE FROM PUMP TO UNIT
                                                              - Valid after stock exhaustion of 196845
                                                              from £59.26
                                                              from £59.26
                                                              This part replaces part number 196845
                                                              # 010
                                                              MPN: 196844
                                                              REAR BRAKE PIPE FROM PUMP TO UNIT
                                                              - Valid till stock exhaustion
                                                              Supersession
                                                              Supersession
                                                              # 010
                                                              MPN: 208019
                                                              REAR BRAKE PIPE FROM PUMP TO UNIT
                                                              - Valid after stock exhaustion of 196844
                                                              from £63.84
                                                              from £63.84
                                                              This part replaces part number 196844
                                                              # 011
                                                              MPN: 195581
                                                              LH REAR BRAKE PIPE
                                                              - Valid till stock exhaustion
                                                              from £18.53
                                                              from £18.53
                                                              # 011
                                                              MPN: 208011
                                                              LH REAR BRAKE PIPE
                                                              - Valid after stock exhaustion of 195581
                                                              from £18.53
                                                              from £18.53
                                                              # 012
                                                              MPN: 195582
                                                              RH REAR BRAKE PIPE
                                                              - Valid till stock exhaustion
                                                              from £15.79
                                                              from £15.79
                                                              # 012
                                                              MPN: 208012
                                                              RH REAR BRAKE PIPE
                                                              - Valid after stock exhaustion of 195582
                                                              from £15.79
                                                              from £15.79
                                                              # 013
                                                              MPN: 185954
                                                              RH FRONT CALIPER RIGID PIPE
                                                              - Valid till car Ass. Nr. 13411
                                                              from £14.73
                                                              from £14.73
                                                              # 013
                                                              MPN: 185955
                                                              LH FRONT CALIPER RIGID PIPE
                                                              - Valid till car Ass. Nr. 13411
                                                              from £16.63
                                                              from £16.63
                                                              # 013
                                                              MPN: 202776
                                                              LH FRONT CALIPER RIGID PIPE
                                                              - Valid from car Ass. Nr. 13412
                                                              from £34.32
                                                              from £34.32
                                                              # 013
                                                              MPN: 202777
                                                              RH FRONT CALIPER RIGID PIPE
                                                              - Valid from car Ass. Nr. 13412
                                                              from £34.32
                                                              from £34.32
                                                              # 014
                                                              MPN: 181897
                                                              CLIP
                                                              from £1.08
                                                              from £1.08
                                                              This part replaces part number 252814
                                                              # 015
                                                              MPN: 185956
                                                              BRAKE FLEXIBLE PIPE TO FRONT CALIPERS
                                                              from £98.99
                                                              from £98.99
                                                              # 016
                                                              MPN: 228185
                                                              CLIP
                                                              - optional
                                                              from £2.85
                                                              from £2.85
                                                              This part replaces part number 387400301
                                                              # 017
                                                              MPN: 232160
                                                              VERTICAL ACCELERATION SENSOR
                                                              - Sport version
                                                              from £124.56
                                                              from £124.56
                                                              This part replaces part number 183580
                                                              # 018
                                                              MPN: 14084111
                                                              NUT
                                                              from £0.53
                                                              from £0.53
                                                              # 019
                                                              MPN: 185792
                                                              RH BRAKE PIPE SUPPORT BRACKET
                                                              - Valid till car Ass. Nr. 13411
                                                              from £6.42
                                                              from £6.42
                                                              # 019
                                                              MPN: 185793
                                                              LH BRAKE PIPE SUPPORT BRACKET
                                                              - Valid till car Ass. Nr. 13411
                                                              from £6.81
                                                              from £6.81
                                                              # 019
                                                              MPN: 202762
                                                              LH BRAKE PIPE SUPPORT BRACKET
                                                              - Valid from car Ass. Nr. 13412
                                                              from £5.31
                                                              from £5.31
                                                              # 019
                                                              MPN: 202763
                                                              RH BRAKE PIPE SUPPORT BRACKET
                                                              - Valid from car Ass. Nr. 13412
                                                              from £9.20
                                                              from £9.20
                                                              # 020
                                                              MPN: 14305324
                                                              SCREW
                                                              from £0.51
                                                              from £0.51
                                                              This part replaces part number 14305321
                                                              # 021
                                                              MPN: 12604274
                                                              WASHER
                                                              from £0.53
                                                              from £0.53
                                                              # 022
                                                              MPN: 14496424
                                                              WASHER
                                                              Supersession
                                                              Supersession
                                                              This part replaces part number 14496421
                                                              # 023
                                                              MPN: 197471
                                                              LH REAR CALIPER INTERMEDIATE BRAKE PIPE
                                                              - Valid till stock exhaustion
                                                              from £5.57
                                                              from £5.57
                                                              # 023
                                                              MPN: 208021
                                                              LH REAR CALIPER INTERMEDIATE BRAKE PIPE
                                                              - Valid after stock exhaustion of 197471
                                                              from £6.76
                                                              from £6.76
                                                              # 024
                                                              MPN: 197472
                                                              RH REAR CALIPER INTERMEDIATE BRAKE PIPE
                                                              - Valid till stock exhaustion
                                                              from £6.76
                                                              from £6.76
                                                              # 024
                                                              MPN: 208022
                                                              RH REAR CALIPER INTERMEDIATE BRAKE PIPE
                                                              - Valid after stock exhaustion of 197472
                                                              from £7.05
                                                              from £7.05
                                                              # 025
                                                              MPN: 190512
                                                              LH REAR CALIPER RIGID PIPE
                                                              - Valid till stock exhaustion
                                                              Supersession
                                                              Supersession
                                                              # 025
                                                              MPN: 208013
                                                              LH REAR CALIPER RIGID PIPE
                                                              - Valid after stock exhaustion of 190512
                                                              from £33.89
                                                              from £33.89
                                                              This part replaces part number 190512
                                                              # 026
                                                              MPN: 190513
                                                              RH REAR CALIPER RIGID PIPE
                                                              - Valid till stock exhaustion
                                                              Supersession
                                                              Supersession
                                                              # 026
                                                              MPN: 208015
                                                              RH REAR CALIPER RIGID PIPE
                                                              - Valid after stock exhaustion of 190513
                                                              from £10.93
                                                              from £10.93
                                                              This part replaces part number 190513
                                                              # 027
                                                              MPN: 387401155
                                                              BRAKE FLEXIBLE PIPE TO REAR CALIPERS
                                                              from £152.55
                                                              from £152.55
                                                              This part replaces part number 387400155
                                                              # 028
                                                              MPN: 181897
                                                              CLIP
                                                              from £1.08
                                                              from £1.08
                                                              This part replaces part number 252814
                                                              # 029
                                                              MPN: 327456313
                                                              SPACER RING
                                                              from £1.08
                                                              from £1.08
                                                              # 030
                                                              MPN: 387400330
                                                              UNION
                                                              from £17.16
                                                              from £17.16
                                                              This part replaces part number 387400333
                                                              # 031
                                                              MPN: 162606
                                                              CLIP
                                                              from £0.82
                                                              from £0.82
                                                              # 032
                                                              MPN: 156198
                                                              CLIP
                                                              from £10.41
                                                              from £10.41
                                                              # 033
                                                              MPN: 10977687
                                                              SCREW
                                                              from £0.53
                                                              from £0.53
                                                              # 034
                                                              MPN: 12638177
                                                              WASHER
                                                              from £1.08
                                                              from £1.08
                                                              # 035
                                                              MPN: 187464
                                                              PIPES PROTECTION BRACKET
                                                              from £8.20
                                                              from £8.20
                                                              This part replaces part number 387400102
                                                              # 036
                                                              MPN: 387400402
                                                              GASKET
                                                              from £1.55
                                                              from £1.55
                                                              # 037
                                                              MPN: 10977824
                                                              SCREW
                                                              from £1.08
                                                              from £1.08
                                                              This part replaces part number 16130321 which we have in stock
                                                              # 038
                                                              MPN: 11181574
                                                              WASHER
                                                              from £0.54
                                                              from £0.54
                                                              # 039
                                                              MPN: 14447025
                                                              WASHER
                                                              from £1.39
                                                              from £1.39
                                                              # 040
                                                              MPN: 379200408
                                                              CLIP
                                                              from £1.08
                                                              from £1.08
                                                              # 041
                                                              MPN: 188335
                                                              CLIP
                                                              from £1.28
                                                              from £1.28
                                                              # 042
                                                              MPN: 169476
                                                              CLIP
                                                              - (Quantity defined during at assembly)
                                                              from £1.75
                                                              from £1.75
                                                              # 043
                                                              MPN: 377430340
                                                              BLOCK
                                                              - (Quantity defined during at assembly)
                                                              from £0.69
                                                              from £0.69
                                                              # 044
                                                              MPN: 198641
                                                              CLIP
                                                              from £3.63
                                                              from £3.63
                                                              # 045
                                                              MPN: 377400341
                                                              CLIP
                                                              from £1.08
                                                              from £1.08
                                                              # 046
                                                              MPN: 155781
                                                              ANCHORAGE FOR CLIP
                                                              from £0.47
                                                              from £0.47
                                                              # 047
                                                              MPN: 190409
                                                              CLIP
                                                              - (Quantity defined during at assembly)
                                                              from £3.24
                                                              from £3.24
                                                              # 048
                                                              MPN: 377430346
                                                              CLIP
                                                              from £1.08
                                                              from £1.08
