maserati 4200 spyder (2004) front under frame and undermotor shields parts diagram

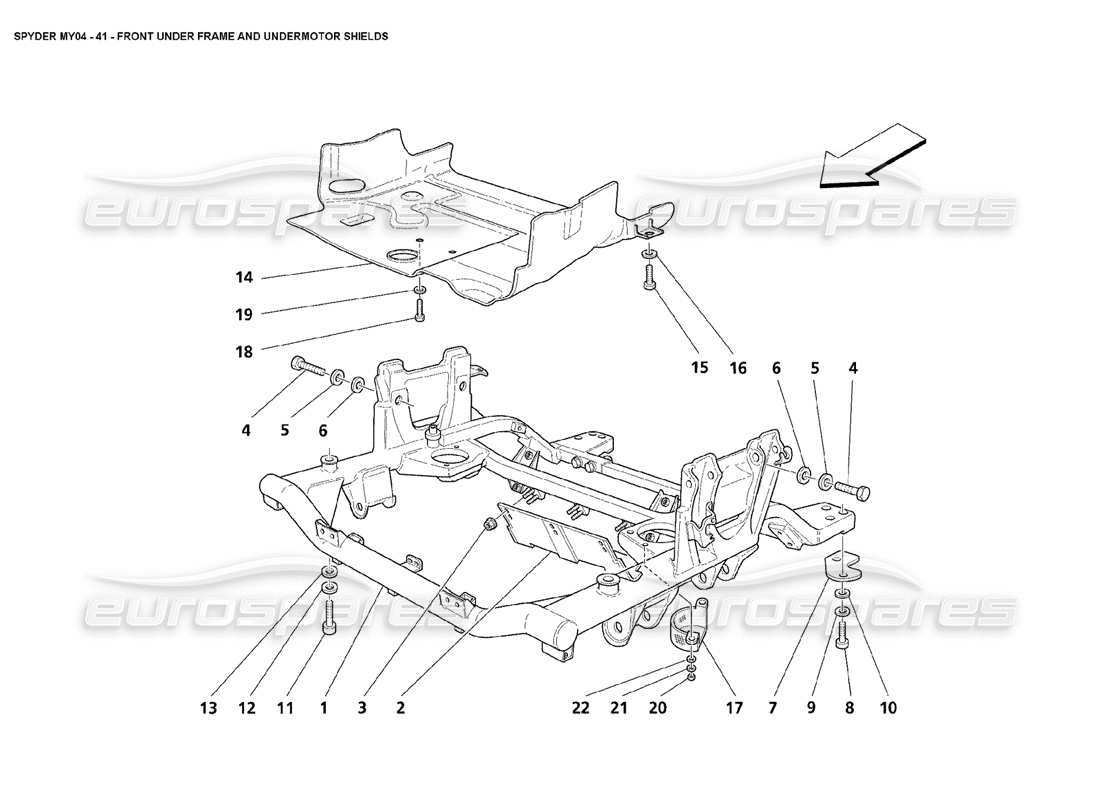

041 - Front Under Frame and Undermotor Shields

Maserati 4200 Spyder (2004) Front Under Frame and Undermotor Shields Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                              #
                              Part number
                              Description
                              Price
                              # 001
                              MPN: 67650500
                              FRONT UNDER FRAME
                              - Its also recommended to replace the - screws for fixing steering box (See draw 42)
                              from £1,271.20
                              from £1,271.20
                              This part replaces part number 66069200
                              # 002
                              MPN: 184141
                              ANTI HEAT SHIELD
                              from £22.25
                              from £22.25
                              # 003
                              MPN: 14039614
                              NUT
                              from £0.52
                              from £0.52
                              # 004
                              MPN: 11306924
                              SCREW
                              from £1.31
                              from £1.31
                              # 005
                              MPN: 12620774
                              WASHER
                              from £1.39
                              from £1.39
                              # 006
                              MPN: 12626224
                              WASHER
                              from £0.53
                              from £0.53
                              # 007
                              MPN: 66318700
                              REAR PLATE
                              from £2.01
                              from £2.01
                              # 008
                              MPN: 14422574
                              SCREW
                              from £1.85
                              from £1.85
                              # 009
                              MPN: 11198674
                              WASHER
                              from £1.39
                              from £1.39
                              # 010
                              MPN: 10732531
                              WASHER
                              from £0.53
                              from £0.53
                              # 011
                              MPN: 14422574
                              SCREW
                              from £1.85
                              from £1.85
                              # 012
                              MPN: 12601574
                              WASHER
                              from £0.53
                              from £0.53
                              This part replaces part number 12601579 which we have in stock
                              # 013
                              MPN: 10732531
                              WASHER
                              from £0.53
                              from £0.53
                              # 014
                              MPN: 184842
                              UNDERMOTOR SHIELD
                              - Not for USA and CDN
                              from £63.10
                              from £63.10
                              # 015
                              MPN: 16043324
                              SCREW
                              - Not for USA and CDN
                              from £0.53
                              from £0.53
                              # 016
                              MPN: 14496524
                              WASHER
                              - Not for USA and CDN
                              from £0.53
                              from £0.53
                              # 017
                              MPN: 191790
                              PAD LOWER SHIELD
                              - Valid for USA and CDN
                              from £7.80
                              from £7.80
                              # 018
                              MPN: 16043224
                              SCREW
                              from £0.53
                              from £0.53
                              # 019
                              MPN: 14496524
                              WASHER
                              from £0.53
                              from £0.53
                              # 020
                              MPN: 15896214
                              NUT
                              - Valid for USA and CDN
                              from £0.53
                              from £0.53
                              This part replaces part number 15896211
                              # 021
                              MPN: 13579224
                              WASHER
                              - Valid for USA and CDN
                              from £0.53
                              from £0.53
                              # 022
                              MPN: 12601274
                              WASHER
                              - Valid for USA and CDN
                              from £0.53
                              from £0.53
                              This part replaces part number 12601270
