042 - Steering box

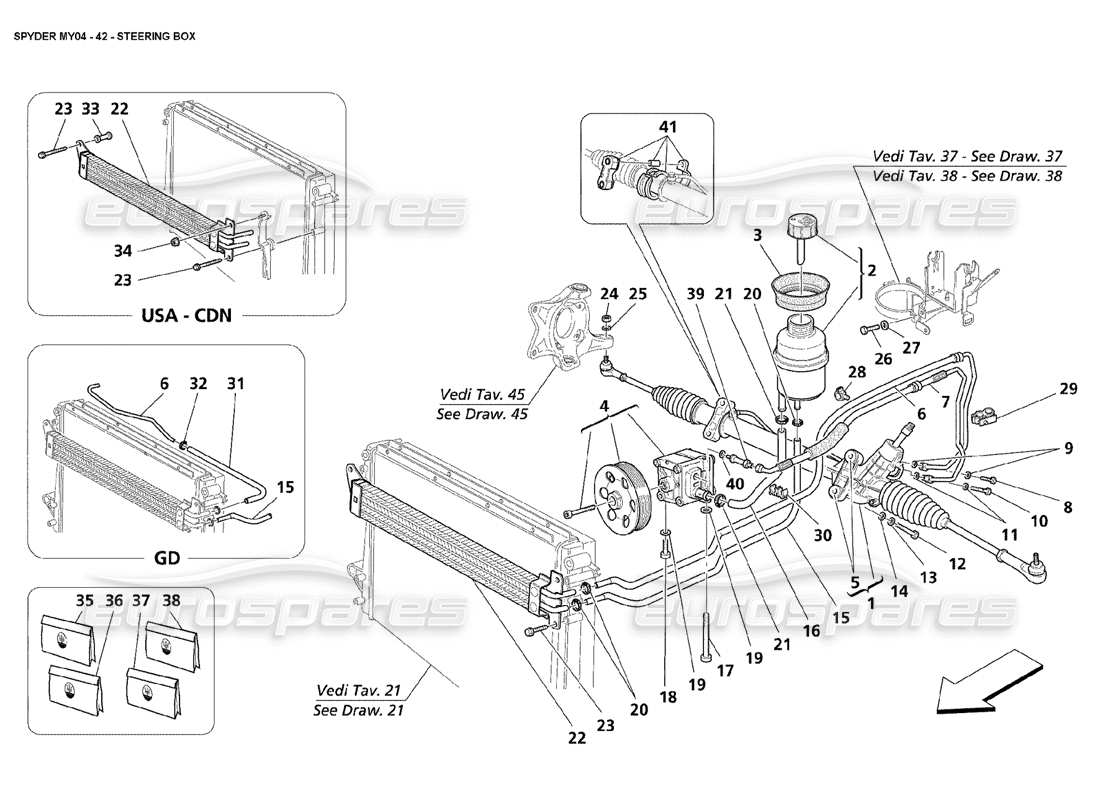

Maserati 4200 Spyder (2004) Steering Box Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 207275
STEERING BOX WITH POWER STEERING
- Valid for GD
from £2,047.50
from £2,047.50
This part replaces part number 195593 - and 1 more. Click to view details
# 001
MPN: 207276
STEERING BOX WITH POWER STEERING
- Not for GD
from £1,234.82
from £1,234.82
This part replaces part number 195592 - and 1 more. Click to view details
# 002
MPN: 185820
COMPLETE OIL TANK FOR SERVOSTEERING
from £10.45
from £10.45
# 004
MPN: 187920
COMPLETE HYDRAULIC SERVO CONTROL PUMP
from £215.09
from £215.09
# 005
MPN: 980138228
SILENTBLOCK
from £13.52
from £13.52
# 006
MPN: 188970
PIPE FROM HYDRODRIVE TO EXCHANGER
- Not for GD
from £40.07
from £40.07
# 006
MPN: 193191
PIPE FROM HYDRODRIVE TO EXCHANGER
- Valid for GD
from £147.19
from £147.19
# 007
MPN: 191070
PIPE FROM PUMP TO DRIVING BOX
- Not for GD - Valid till car Ass. Nr. 13386
from £51.45
from £51.45
# 007
MPN: 193190
PIPE FROM PUMP TO DRIVING BOX
- Valid for GD
from £88.05
from £88.05
# 007
MPN: 212002
PIPE FROM PUMP TO DRIVING BOX
- Not for GD - Valid from car Ass. Nr. 13387
from £57.05
from £57.05
This part replaces part number 191070 which we have in stock - and 3 more. Click to view details
# 008
MPN: 193264
UNION
- Not for cars with steering box - cod. 207276 (GS) and 207275 (GD)
from £38.17
from £38.17
# 008
MPN: 207273
UNION
- Valid for cars with steering box - cod. 207276 (GS) and 207275 (GD)
from £19.94
from £19.94
# 009
MPN: 10298460
GASKET
- Not for cars with steering box - cod. 207276 (GS) and 207275 (GD)
from £0.47
from £0.47
# 010
MPN: 193018
UNION
- Valid for cars with steering box - cod. 207276 (GS) and 207275 (GD)
from £41.96
from £41.96
# 010
MPN: 207274
UNION
from £23.66
from £23.66
# 011
MPN: 10280060
GASKET
from £0.53
from £0.53
# 012
MPN: 206926
SCREW
from £5.49
from £5.49
# 013
MPN: 11198374
WASHER
from £0.47
from £0.47
This part replaces part number 675000618
# 014
MPN: 12641024
WASHER
from £1.40
from £1.40
# 015
MPN: 188969
PIPE FROM EXCHANGER TO TANK
from £15.19
from £15.19
# 016
MPN: 192205
PIPE FROM TANK TO HYDRODRIVE
- Till car Ass. Nr. 13386 valid for - all versions - From car Ass. Nr. 13387 valid - only for GD
from £47.55
from £47.55
This part replaces part number 188968 - and 1 more. Click to view details
# 016
MPN: 198482
PIPE FROM TANK TO HYDRODRIVE
- Not for GD - Valid from car Ass. Nr. 13387
from £15.07
from £15.07
# 017
MPN: 160531
SCREW
from £5.49
from £5.49
This part replaces part number 180604
# 018
MPN: 198519
SCREW
from £3.62
from £3.62
# 019
MPN: 11193874
WASHER
from £0.54
from £0.54
# 020
MPN: 13000390
SCREW COLLAR
from £0.52
from £0.52
This part replaces part number 13121170 - and 1 more. Click to view details
# 021
MPN: 13000490
SCREW COLLAR
from £0.53
from £0.53
This part replaces part number 13127870 - and 1 more. Click to view details
# 022
MPN: 231013
POWER STEERING EXCHANGER
- Not for USA and CDN
from £1,462.01
from £1,462.01
This part replaces part number 199892 - and 1 more. Click to view details
# 023
MPN: 15698504
SCREW
- Valid for USA and CDN
from £6.04
from £6.04
# 023
MPN: 15699804
SCREW
- Not for USA and CDN
from £0.54
from £0.54
This part replaces part number 15534501
# 024
MPN: 14047421
NUT
from £1.31
from £1.31
# 025
MPN: 12626221
WASHER
from £0.47
from £0.47
# 026
MPN: 10902621
SCREW
Supersession
Supersession
# 027
MPN: 10523401
WASHER
from £0.53
from £0.53
# 028
MPN: 14631387
CLIP
from £0.47
from £0.47
# 029
MPN: 177805
CLIP
from £1.28
from £1.28
This part replaces part number 377890660
# 030
MPN: 190953
CLIP
from £2.85
from £2.85
# 031
MPN: 193192
SLEEVE FROM HYDRODRIVE TO EXCHANGER
- Valid for GD
from £21.14
from £21.14
# 032
MPN: 13000390
SCREW COLLAR
- Valid for GD
from £0.53
from £0.53
This part replaces part number 13121170 - and 1 more. Click to view details
# 033
MPN: 193719
SPACER
- Valid for USA and CDN
from £5.96
from £5.96
# 034
MPN: 14040614
NUT
- Valid for USA and CDN
from £0.54
from £0.54
# 035
MPN: 980001703
PIPES REPLACEMENT KIT FOR STEERING BOX
- Not for GD
from £133.60
from £133.60
This part replaces part number 980001701
# 035
MPN: 980001704
PIPES REPLACEMENT KIT FOR STEERING BOX
- Valid for GD
from £126.76
from £126.76
This part replaces part number 980001702
# 036
MPN: 980001705
STEERING ARM
from £203.40
from £203.40
This part replaces part number 980000967
# 037
MPN: 980001706
TRACK ROD END
from £88.98
from £88.98
This part replaces part number 980000968
# 038
MPN: 980001707
STEERING RACK BOOTS KIT
Pair
from £90.49
from £90.49
This part replaces part number 980000969
# 039
MPN: 212083
UNION
- Not for GD - Valid from car Ass. Nr. 13387
from £23.82
from £23.82
This part replaces part number 195315
# 040
MPN: 675000691
GASKET
from £1.08
from £1.08
This part replaces part number 10257060 which we have in stock
# 041
MPN: 980138275
STEERING BOX FIXING KIT
from £117.39
from £117.39
-part-diagram-043.webp "MASERATI 4200 SPYDER (2004) STEERING COLUMN PARTS DIAGRAM")
-part-diagram-044.webp "MASERATI 4200 SPYDER (2004) FRONT SUSPENSION SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-045.webp "MASERATI 4200 SPYDER (2004) FRONT SUSPENSION WISHBONES AND STABILIZER BAR PARTS DIAGRAM")
-part-diagram-046.webp "MASERATI 4200 SPYDER (2004) REAR SUSPENSION SHOCK ABSORBER AND BRAKE DISK PARTS DIAGRAM")
-part-diagram-047.webp "MASERATI 4200 SPYDER (2004) REAR SUSPENSION WISHBONES PARTS DIAGRAM")
-part-diagram-048.webp "MASERATI 4200 SPYDER (2004) WHEELS PARTS DIAGRAM")
-part-diagram-049.webp "MASERATI 4200 SPYDER (2004) SPARE WHEEL AND EQUIPMENT OPTIONAL PARTS DIAGRAM")
-part-diagram-050.webp "MASERATI 4200 SPYDER (2004) BATTERY PARTS DIAGRAM")
-part-diagram-051.webp "MASERATI 4200 SPYDER (2004) CURRENT GENERATOR STARTING MOTOR PARTS DIAGRAM")
-part-diagram-052.webp "MASERATI 4200 SPYDER (2004) TOOLS EQUIPMENT AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-100.webp "MASERATI 4200 SPYDER (2004) BODY FRONT OUTER TRIMS PARTS DIAGRAM")
-part-diagram-101.webp "MASERATI 4200 SPYDER (2004) BODY REAR OUTER TRIMS PARTS DIAGRAM")
-part-diagram-102.webp "MASERATI 4200 SPYDER (2004) FRONT STRUCTURE PARTS DIAGRAM")
-part-diagram-103.webp "MASERATI 4200 SPYDER (2004) CENTRAL STRUCTURE PARTS DIAGRAM")
-part-diagram-104.webp "MASERATI 4200 SPYDER (2004) REAR STRUCTURE PARTS DIAGRAM")
-part-diagram-105.webp "MASERATI 4200 SPYDER (2004) FRONT BUMPER PARTS DIAGRAM")
-part-diagram-106.webp "MASERATI 4200 SPYDER (2004) REAR BUMPER PARTS DIAGRAM")
-part-diagram-107.webp "MASERATI 4200 SPYDER (2004) PASSENGERS COMPARTMENT CARPETS PARTS DIAGRAM")
-part-diagram-108.webp "MASERATI 4200 SPYDER (2004) ROOF PANEL UPHOLSTERY AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-109.webp "MASERATI 4200 SPYDER (2004) PASSENGERS COMPARTMENT UPHOLSTERY ACCESSORIES PARTS DIAGRAM")
-part-diagram-110.webp "MASERATI 4200 SPYDER (2004) TRUNK HOOD COMPARTMENT TRIMS AIR INLET AND HEATH SHIELDS PARTS DIAGRAM")
-part-diagram-111.webp "MASERATI 4200 SPYDER (2004) CAPOTE CLOTH GASKET PARTS DIAGRAM")
-part-diagram-112.webp "MASERATI 4200 SPYDER (2004) CAPOTE FRONT CLOSING PARTS DIAGRAM")
-part-diagram-113.webp "MASERATI 4200 SPYDER (2004) CAPOTE STRUCTURE PARTS DIAGRAM")
-part-diagram-114.webp "MASERATI 4200 SPYDER (2004) CAPOTE CONTROL STATION RELAY MICROSWITCH PARTS DIAGRAM")
-part-diagram-115.webp "MASERATI 4200 SPYDER (2004) CAPOTE HYDRAULIC SYSTEM PARTS DIAGRAM")
-part-diagram-116.webp "MASERATI 4200 SPYDER (2004) CAPOTE CLOSINGS AND COVER PARTS DIAGRAM")
-part-diagram-117.webp "MASERATI 4200 SPYDER (2004) ENGINE BONNET AND OPENING DEVICE PARTS DIAGRAM")
-part-diagram-118.webp "MASERATI 4200 SPYDER (2004) TRUNK HOOD BONNET AND GAS DOOR PARTS DIAGRAM")
-part-diagram-119.webp "MASERATI 4200 SPYDER (2004) DOORS FRAMEWORK AND COVERINGS PARTS DIAGRAM")
-part-diagram-120.webp "MASERATI 4200 SPYDER (2004) DOORS OPENING CONTROL AND HINGES PARTS DIAGRAM")
-part-diagram-121.webp "MASERATI 4200 SPYDER (2004) DOORS POWER WINDOW AND REARWIEW MIRROR PARTS DIAGRAM")
-part-diagram-122.webp "MASERATI 4200 SPYDER (2004) GLASSES WINDSHIELD PARTS DIAGRAM")
-part-diagram-123.webp "MASERATI 4200 SPYDER (2004) ELECRICAL SEATSAFETY BELTS PARTS DIAGRAM")
-part-diagram-124.webp "MASERATI 4200 SPYDER (2004) ELECTRICAL SEATGUIDE AND MOVEMENT PARTS DIAGRAM")
-part-diagram-125.webp "MASERATI 4200 SPYDER (2004) DASHBOARD NOT FOR GD PARTS DIAGRAM")
-part-diagram-126.webp "MASERATI 4200 SPYDER (2004) DASHBOARD VALID FOR GD PARTS DIAGRAM")
-part-diagram-127.webp "MASERATI 4200 SPYDER (2004) DASHBOARD DRAWER PARTS DIAGRAM")
-part-diagram-128.webp "MASERATI 4200 SPYDER (2004) TUNNEL FRAMEWORK AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-129.webp "MASERATI 4200 SPYDER (2004) AIR-BAGS PARTS DIAGRAM")
-part-diagram-130.webp "MASERATI 4200 SPYDER (2004) DASHBOARD INSTRUMENTS PARTS DIAGRAM")
-part-diagram-131.webp "MASERATI 4200 SPYDER (2004) TUNNEL INSTRUMENTS PARTS DIAGRAM")
-part-diagram-132.webp "MASERATI 4200 SPYDER (2004) FRONT AND REAR LIGHTS PARTS DIAGRAM")
-part-diagram-133.webp "MASERATI 4200 SPYDER (2004) XENO HEADLIGTHS AND HEADLIGHTS WASHER OPTIONAL PARTS DIAGRAM")
-part-diagram-134.webp "MASERATI 4200 SPYDER (2004) SHIELDS AND FINISHING PARTS DIAGRAM")
-part-diagram-135.webp "MASERATI 4200 SPYDER (2004) SHIELDS AND PROTECTIONS FOR WHEEL COMPARTMENT PARTS DIAGRAM")
-part-diagram-136.webp "MASERATI 4200 SPYDER (2004) WINDSHIELD GLASS WASHER AND HORNS PARTS DIAGRAM")
-part-diagram-137.webp "MASERATI 4200 SPYDER (2004) ELECTRICAL SYSTEM PARTS DIAGRAM")
-part-diagram-138.webp "MASERATI 4200 SPYDER (2004) ENGINE BONNET SENSOR AND CONTROL STATIONS PARTS DIAGRAM")
-part-diagram-139.webp "MASERATI 4200 SPYDER (2004) FRONT PASSENGERS COMPARTMENT CONTROL STATION PARTS DIAGRAM")
-part-diagram-140.webp "MASERATI 4200 SPYDER (2004) PASSENGERS SIDE CONTROL UNITS PARTS DIAGRAM")
-part-diagram-141.webp "MASERATI 4200 SPYDER (2004) RH SIDE TRUNK BONNET SENSOR AND CONTROL UNITS PARTS DIAGRAM")
-part-diagram-142.webp "MASERATI 4200 SPYDER (2004) LH SIDE TRUNK BONNET CONTROL UNIT PARTS DIAGRAM")
-part-diagram-143.webp "MASERATI 4200 SPYDER (2004) ANTI THEFT ELECTRICAL BOARDS AND DEVICES PARTS DIAGRAM")
-part-diagram-144.webp "MASERATI 4200 SPYDER (2004) IMMOBILIZER KIT PARTS DIAGRAM")
-part-diagram-145.webp "MASERATI 4200 SPYDER (2004) EVAPORATOR GROUP PARTS DIAGRAM")
-part-diagram-146.webp "MASERATI 4200 SPYDER (2004) AIR CONDITIONING SYSTEM PARTS DIAGRAM")
-part-diagram-147.webp "MASERATI 4200 SPYDER (2004) CAR STEREO SYSTEM PARTS DIAGRAM")
-part-diagram-148.webp "MASERATI 4200 SPYDER (2004) STEREO EQUIPMENT ACCESORIES PARTS DIAGRAM")
-part-diagram-149.webp "MASERATI 4200 SPYDER (2004) PLATES PARTS DIAGRAM")
-part-diagram-000.webp "MASERATI 4200 SPYDER (2004) SPARE ASSEMBLY UNITS PARTS DIAGRAM")
-part-diagram-001.webp "MASERATI 4200 SPYDER (2004) CRANKCASE PARTS DIAGRAM")
-part-diagram-002.webp "MASERATI 4200 SPYDER (2004) CRANKSHAFT CONRODS AND PISTONS PARTS DIAGRAM")
-part-diagram-003.webp "MASERATI 4200 SPYDER (2004) RH CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-004.webp "MASERATI 4200 SPYDER (2004) LH CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-005.webp "MASERATI 4200 SPYDER (2004) TIMING TAPPETS PARTS DIAGRAM")
-part-diagram-006.webp "MASERATI 4200 SPYDER (2004) TIMING CONTROLS PARTS DIAGRAM")
-part-diagram-007.webp "MASERATI 4200 SPYDER (2004) INJECTION DEVICE IGNITION PARTS DIAGRAM")
-part-diagram-008.webp "MASERATI 4200 SPYDER (2004) SECONDARY AIR SYSTEM PARTS DIAGRAM")
-part-diagram-009.webp "MASERATI 4200 SPYDER (2004) FUEL PUMP AND PIPES PARTS DIAGRAM")
-part-diagram-010.webp "MASERATI 4200 SPYDER (2004) FUEL TANKS AND UNION PARTS DIAGRAM")
-part-diagram-011.webp "MASERATI 4200 SPYDER (2004) ANTIEVAPORATION DEVICE NOT FOR USA AND CDN PARTS DIAGRAM")
-part-diagram-012.webp "MASERATI 4200 SPYDER (2004) ANTIEVAPORATION DEVICE VALID FOR USA AND CDN PARTS DIAGRAM")
-part-diagram-013.webp "MASERATI 4200 SPYDER (2004) AIR INTAKE MANIFOLD PARTS DIAGRAM")
-part-diagram-014.webp "MASERATI 4200 SPYDER (2004) EXHAUST SYSTEM PARTS DIAGRAM")
-part-diagram-015.webp "MASERATI 4200 SPYDER (2004) EXHAUST SYSTEM VARIATIONS FOR USA AND CDN PARTS DIAGRAM")
-part-diagram-016.webp "MASERATI 4200 SPYDER (2004) BLOW - BY SYSTEM PARTS DIAGRAM")
-part-diagram-017.webp "MASERATI 4200 SPYDER (2004) LUBRICATION SYSTEM TANK HEATER EXCHANGER PARTS DIAGRAM")
-part-diagram-018.webp "MASERATI 4200 SPYDER (2004) WATER-OIL PUMP PARTS DIAGRAM")
-part-diagram-019.webp "MASERATI 4200 SPYDER (2004) NOURICE COOLING SYSTEM NOT FOR GD PARTS DIAGRAM")
-part-diagram-020.webp "MASERATI 4200 SPYDER (2004) NOURICE COOLING SYSTEM VALID FOR GD PARTS DIAGRAM")
-part-diagram-021.webp "MASERATI 4200 SPYDER (2004) COOLING SYSTEM RADIATOR PARTS DIAGRAM")
-part-diagram-022.webp "MASERATI 4200 SPYDER (2004) CLUTCH AND CONTROLS NOT FOR F1 PARTS DIAGRAM")
-part-diagram-023.webp "MASERATI 4200 SPYDER (2004) CLUTCH AND CONTROLS VALID FOR F1 PARTS DIAGRAM")
-part-diagram-024.webp "MASERATI 4200 SPYDER (2004) PEDALS AND ELECTRONIC ACCELERATOR CONTROL NOT FOR GD PARTS DIAGRAM")
-part-diagram-025.webp "MASERATI 4200 SPYDER (2004) PEDALS AND ELECTRONIC ACCELERATOR CONTROL VALID FOR GD PARTS DIAGRAM")
-part-diagram-026.webp "MASERATI 4200 SPYDER (2004) F1 CLUTCH HYDRAULIC CONTROLS VALID FOR F1 PARTS DIAGRAM")
-part-diagram-027.webp "MASERATI 4200 SPYDER (2004) POWER UNIT AND TANK VALID FOR F1 PARTS DIAGRAM")
-part-diagram-028.webp "MASERATI 4200 SPYDER (2004) GEARBOX COVER GEARBOX OIL RADIATOR PARTS DIAGRAM")
-part-diagram-029.webp "MASERATI 4200 SPYDER (2004) DIFFERENTIAL BOX REAR UNDERBODY PARTS DIAGRAM")
-part-diagram-030.webp "MASERATI 4200 SPYDER (2004) MAIN SHAFT GEARS PARTS DIAGRAM")
-part-diagram-031.webp "MASERATI 4200 SPYDER (2004) LAY SHAFT GEARS PARTS DIAGRAM")
-part-diagram-032.webp "MASERATI 4200 SPYDER (2004) INNER GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-033.webp "MASERATI 4200 SPYDER (2004) OUTER GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-034.webp "MASERATI 4200 SPYDER (2004) ENGINE TRANSMISSION CONNECTION TUBE AND INSULATIONS PARTS DIAGRAM")
-part-diagram-035.webp "MASERATI 4200 SPYDER (2004) DIFFERENTIAL & AXLE SHAFTS PARTS DIAGRAM")
-part-diagram-036.webp "MASERATI 4200 SPYDER (2004) BRAKES AND CLUTCH HYDRAULIC CONTROLS PARTS DIAGRAM")
-part-diagram-037.webp "MASERATI 4200 SPYDER (2004) BRAKING SYSTEM NOT FOR GD PARTS DIAGRAM")
-part-diagram-038.webp "MASERATI 4200 SPYDER (2004) BRAKING SYSTEM VALID FOR GD PARTS DIAGRAM")
-part-diagram-039.webp "MASERATI 4200 SPYDER (2004) BRAKE CALIPERS PARTS DIAGRAM")
-part-diagram-040.webp "MASERATI 4200 SPYDER (2004) HANDBRAKE CONTROL PARTS DIAGRAM")
-part-diagram-041.webp "MASERATI 4200 SPYDER (2004) FRONT UNDER FRAME AND UNDERMOTOR SHIELDS PARTS DIAGRAM")
