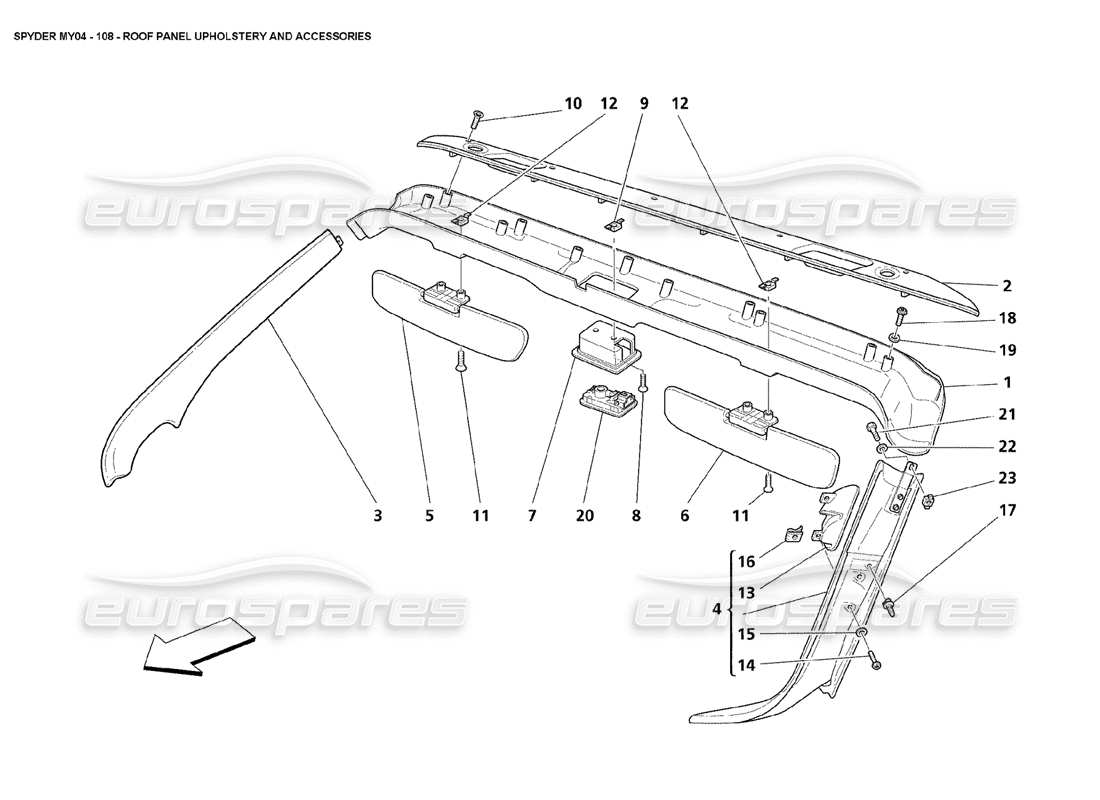

108 - Roof Panel Upholstery and Accessories
Maserati 4200 Spyder (2004) Roof Panel Upholstery and Accessories Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 667360..
WINDSCREEN UPPER CROSS
Supersession
Supersession
# 002
MPN: 66606300
UPPER COVER
from £102.03
from £102.03
# 003
MPN: 9812102..
COMPLETE FRONT RH POST COVERING
- For order specify car number
Supersession
Supersession
# 004
MPN: 9812101..
COMPLETE FRONT LH POST COVERING
- For order specify car number
Supersession
Supersession
# 005
MPN: 9811054..
PASSENGER SUN VISOR
- Not for GD
Supersession
Supersession
# 005
MPN: 9811056..
DRIVER SUN VISOR
- Valid for GD
Supersession
Supersession
# 006
MPN: 9811053..
DRIVER SUN VISOR
- Not for GD
Supersession
Supersession
# 006
MPN: 9811055..
PASSENGER SUN VISOR
- Valid for GD
Supersession
Supersession
# 007
MPN: 66363100
ROOF LIGHT PLATE
from £4.96
from £4.96
# 008
MPN: 13299411
SCREW
from £0.53
from £0.53
# 009
MPN: 14647691
NUT WITH CAGE
from £1.08
from £1.08
# 010
MPN: 12678577
SCREW
from £0.75
from £0.75
# 011
MPN: 13299877
SCREW
from £1.31
from £1.31
# 012
MPN: 14647691
NUT WITH CAGE
from £1.08
from £1.08
# 013
MPN: 388300607
LH AIR DIFFUSER
Supersession
Supersession
This part replaces part number 388300647
# 013
MPN: 388300608
RH AIR DIFFUSER
Supersession
Supersession
This part replaces part number 388300648
# 014
MPN: 15901401
SCREW
from £0.47
from £0.47
# 015
MPN: 12639901
WASHER
from £0.53
from £0.53
# 016
MPN: 14368871
FIXING CLIP
from £3.24
from £3.24
# 017
MPN: 14188181
RETAINER
from £0.51
from £0.51
# 018
MPN: 13273811
SCREW
from £0.47
from £0.47
# 019
MPN: 12637807
WASHER
from £0.50
from £0.50
# 020
MPN: 184098
ROOF LAMP FOR PASSENGERS COMPARTMENT LIGHTING
from £110.25
from £110.25
# 021
MPN: 10977724
SCREW
from £0.53
from £0.53
# 022
MPN: 12620374
WASHER
from £0.53
from £0.53
# 023
MPN: 14647690
NUT WITH CAGE
from £1.31
from £1.31
