115 - Capote Hydraulic System
Maserati 4200 Spyder (2004) Capote Hydraulic System Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 66106400
COMPLETE ELECTROHYDRAULIC GROUP
from £3,767.93
from £3,767.93
This part replaces part number 66115200 - and 1 more. Click to view details
# 002
MPN: 980001092
OIL TANK KIT
from £148.15
from £148.15
# 003
MPN: 980001093
PIPES FIXING PLATE
from £62.57
from £62.57
# 004
MPN: 66662600
HYDRAULIC CYLINDER ON FRONT CROSS MEMBER
from £162.09
from £162.09
This part replaces part number 66115300 - and 1 more. Click to view details
# 005
MPN: 66115400
RH CAPOTE MOVEMENT FOR ELECTROHIDRAULIC CYLINDER
from £163.37
from £163.37
# 006
MPN: 66115500
LH CAPOTE MOVEMENT FOR ELECTRHYDRAULIC CYLINDER
from £149.67
from £149.67
# 007
MPN: 66115600
RH COVER MOVEMENT FOR ELECTOHYDRAULIC CYLYNDER
from £381.57
from £381.57
# 008
MPN: 66115700
LH COVER MOVEMENT FOR ELECTRHYDRAULIC CYLINDER
from £246.52
from £246.52
# 009
MPN: 66115800
RH CAPOTE ARCH MOVEMENT FOR ELECTRHYDRAULIC CYLINDER
from £793.55
from £793.55
# 010
MPN: 66115900
LH CAPOTE ARCH MOVEMENT FOR ELECTROHYDRAULIC CYLINDER
from £790.36
from £790.36
# 011
MPN: 980002002
FRONT CROSS MEMBER OIL CYLINDER PIPES KIT
from £194.26
from £194.26
# 012
MPN: 980002003
RH CAPOTE MOVEMENT CYLINDER OIL PIPE KIT
from £40.58
from £40.58
# 013
MPN: 980002004
LH CAPOTE MOVEMENT CYLINDER OIL PIPE KIT
from £108.45
from £108.45
# 014
MPN: 980002005
RH COVER MOVEMENT CYLINDER OIL PIPE KIT
from £161.56
from £161.56
# 015
MPN: 980002006
LH COVER MOVEMENT CYLINDER OIL PIPE KIT
from £183.55
from £183.55
# 016
MPN: 980002007
RH CAPOTE ARC MOVEMENT CYLINDER OIL PIPE KIT
from £212.37
from £212.37
# 017
MPN: 980002008
LH CAPOTE ARC MOVEMENT CYLINDER OIL PIPE KIT
from £210.12
from £210.12
# 018
MPN: 980001094
PIPES FIXING CLIP KIT
from £25.20
from £25.20
# 019
MPN: 66956400

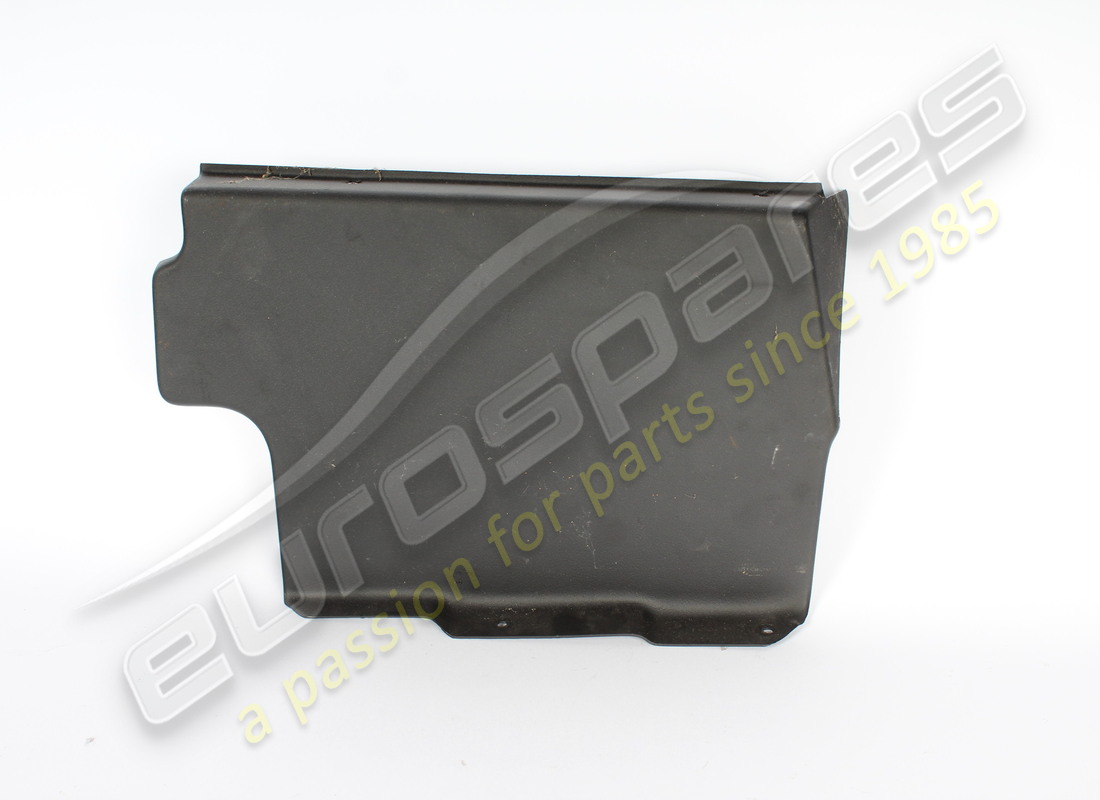

CAPOTE PUMP COVER
from £18.71
from £18.71
# 020
MPN: 15896472
NUT
from £0.51
from £0.51
# 021
MPN: 13577778

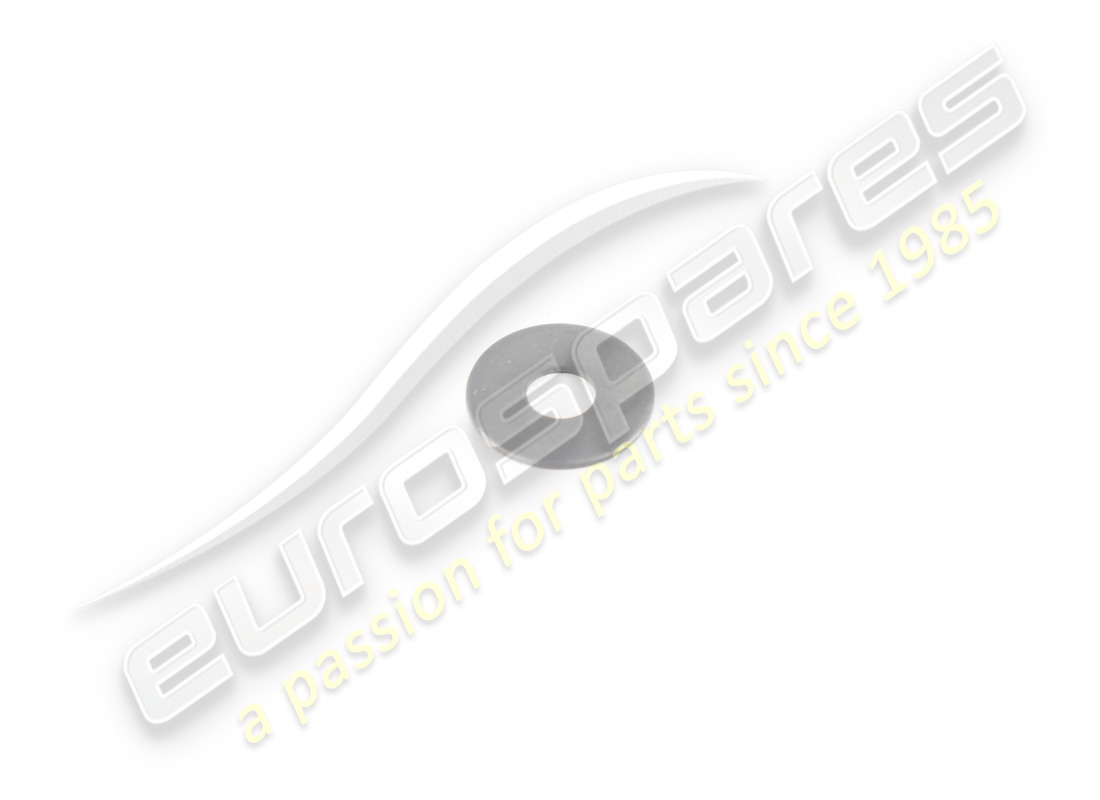

WASHER
from £0.53
from £0.53
# 022
MPN: 980002015
SHEATHS KIT
from £43.09
from £43.09
# 023
MPN: 980002017
RINGS KIT
from £44.52
from £44.52
