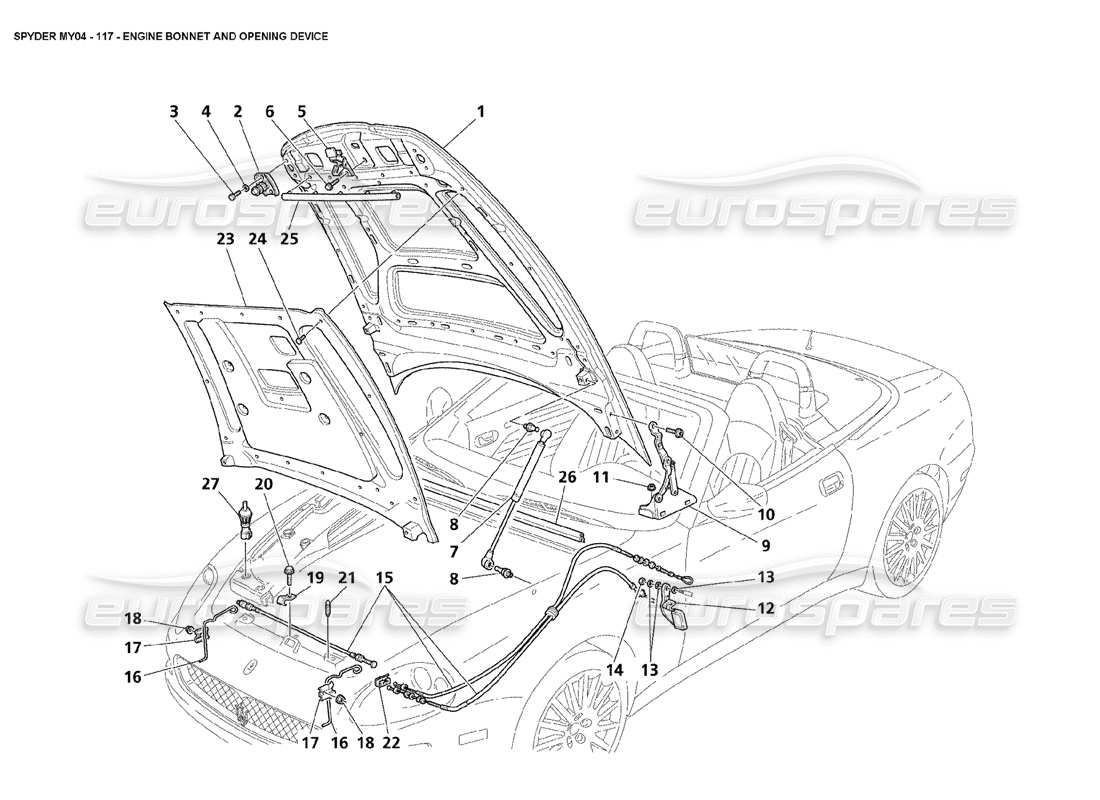

117 - Engine Bonnet and Opening Device
Maserati 4200 Spyder (2004) Engine Bonnet and Opening Device Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 65966300
ENGINE HOOD BONNET
from £1,049.93
from £1,049.93
# 002
MPN: 60608477
ENGINE BONNET LOCK
from £31.45
from £31.45
# 003
MPN: 16132324
SCREW
from £0.51
from £0.51
# 004
MPN: 12647724
WASHER
from £0.53
from £0.53
# 005
MPN: 67119900
SAFETY HOOK FOR BONNET
from £3.75
from £3.75
# 006
MPN: 11730624
SCREW
from £0.54
from £0.54
# 007
MPN: 384300122
ENGINE COVER STRUT
from £49.68
from £49.68
# 008
MPN: 384300322
BALL PIN
from £8.27
from £8.27
# 009
MPN: 384300115
LH HINGE
from £128.62
from £128.62
# 009
MPN: 384300116
RH HINGE
from £128.62
from £128.62
# 010
MPN: 18770424
SCREW
Supersession
Supersession
This part replaces part number 14300924
# 011
MPN: 13046314
NUT
from £0.53
from £0.53
# 012
MPN: 156016380
COMPLETE HANDLE FOR ENGINE BONNET OPENING
from £7.22
from £7.22
# 013
MPN: 46411398
WASHER
from £1.08
from £1.08
# 014
MPN: 14059311
NUT
from £0.54
from £0.54
# 015
MPN: 66070800
TIE ROD KIT FOR FRONT HOOD OPENING
- Not for GD
from £76.67
from £76.67
# 015
MPN: 66721700
TIE ROD KIT FOR FRONT HOOD OPENING
- Valid for GD
from £107.58
from £107.58
# 016
MPN: 60540718
BONNET HOOKING SPRING
from £5.08
from £5.08
# 017
MPN: 82475483
BRACKET
from £18.09
from £18.09
# 018
MPN: 14084211
NUT
from £0.71
from £0.71
This part replaces part number 14084217
# 019
MPN: 384300305
PLATE
from £4.58
from £4.58
# 020
MPN: 46401657
SCREW
from £0.54
from £0.54
# 021
MPN: 374330426
SMALL BUFFER
from £1.08
from £1.08
This part replaces part number 53431319
# 022
MPN: 384300372
BRACKET
from £1.08
from £1.08
# 023
MPN: 67247400
BONNET DEADENING SHIELD
from £63.10
from £63.10
# 024
MPN: 14593487
FIXING BUTTON
from £10.58
from £10.58
# 024
MPN: 7560860
FIXING BUTTON
from £1.70
from £1.70
# 025
MPN: 384300171
DUST SEAL
from £13.86
from £13.86
# 026
MPN: 384300410
ENGINE BONNET GASKET
Supersession
Supersession
# 027
MPN: 383300244
SWITCH FOR OPEN HOOD BONNET SIGNAL
from £12.74
from £12.74
