132 - Front and Rear Lights

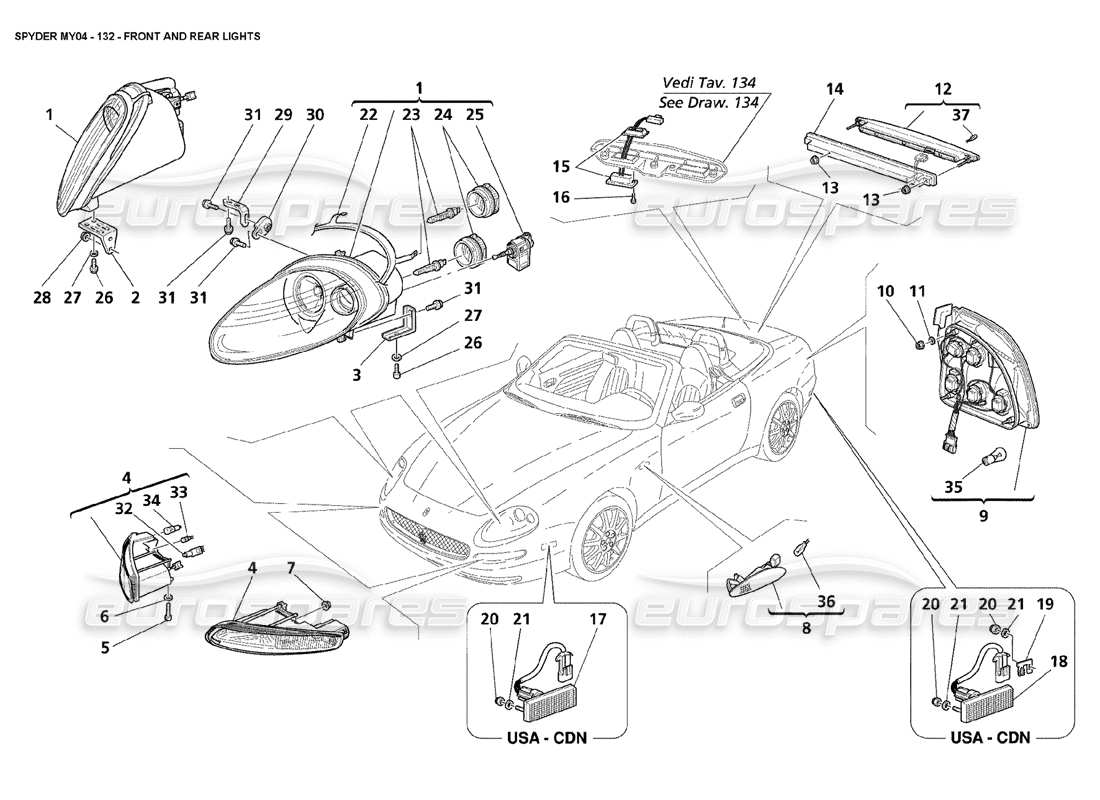

Maserati 4200 Spyder (2004) Front and Rear Lights Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit

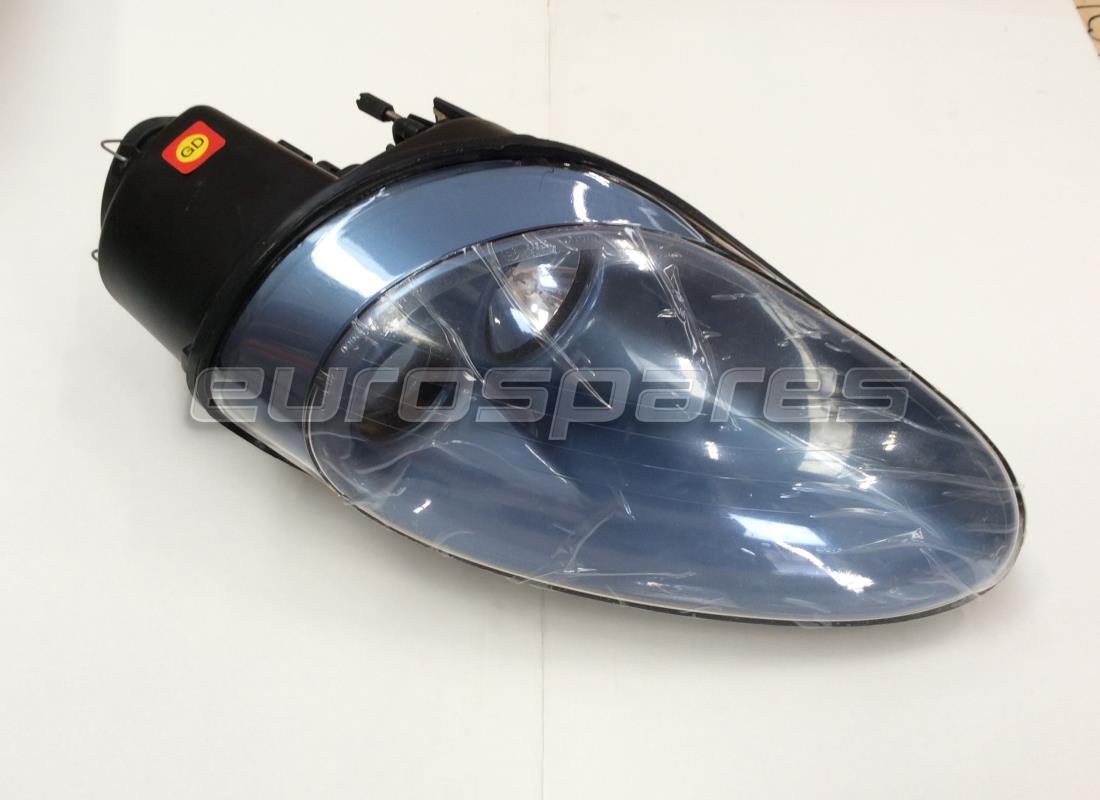

# 001
MPN: 184922007
RH HEADLIGHT
Valid for RHD and J - ARGENTINA BLUE
from £1,438.49
from £1,438.49
# 001
MPN: 184922015
RH HEADLIGHT
Valid for RHD and J - BOLOGNA RED
from £1,438.49
from £1,438.49
# 001
MPN: 190712...
RH FRONT HEADLIGHT
- Valid for USA and CDN
# 001
MPN: 190713...
LH FRONT HEADLIGHT
- Valid for USA and CDN
# 001
MPN: 980000927
LH FRONT HEADLIGHT
- Not for USA, CDN, GD and J
from £327.35
from £327.35
# 001
MPN: 980000928
RH FRONT HEADLIGHT
- Not for USA, CDN, GD and J
from £321.53
from £321.53
# 001
MPN: 980000929
LH FRONT HEADLIGHT (AQUAMARINE GREEN)
- Valid for GD and J
from £328.18
from £328.18
# 001
MPN: 980000930
RH FRONT HEADLIGHT
- Valid for GD and J
from £338.39
from £338.39
# 002
MPN: 383100312
FRONT BRACKET
from £9.20
from £9.20
# 003
MPN: 383100161
REAR BRACKET
from £16.70
from £16.70

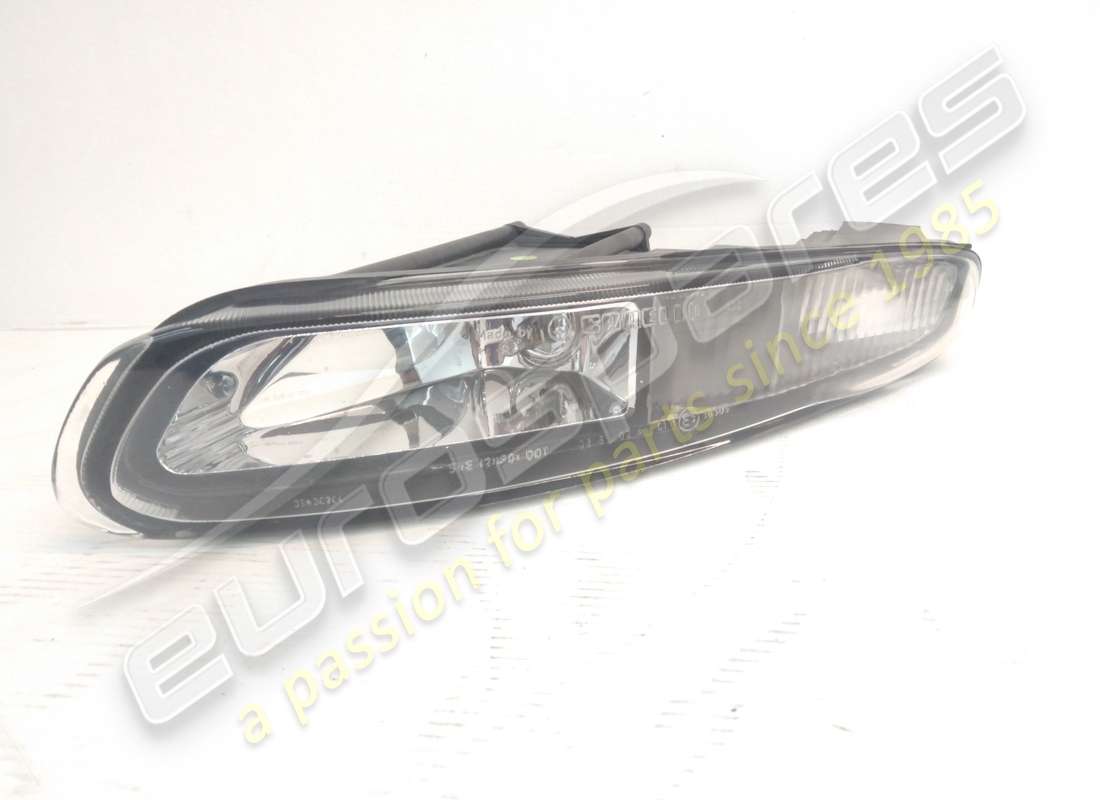

# 004
MPN: 188041
FOG LAMP/POSITION/RH INDICATOR SET
- Not for USA and CDN
from £697.34
from £697.34
# 004
MPN: 188042
FOG LAMP/POSITION/LH INDICATOR SET
- Not for USA and CDN
from £336.19
from £336.19
# 004
MPN: 190714
FOG LAMP/POSITION/RH INDICATOR SET
- Valid for USA and CDN
from £233.48
from £233.48
# 004
MPN: 190715
FOG LAMP/POSITION/LH INDICATOR SET
- Valid for USA and CDN
from £233.48
from £233.48
# 005
MPN: 11730924
SCREW
from £1.55
from £1.55
# 006
MPN: 12620474
WASHER
from £0.47
from £0.47
# 007
MPN: 13046114
NUT
from £0.53
from £0.53
# 008
MPN: 383100127
SIDE DIRECTION SMALL LAMP
from £31.30
from £31.30
# 009
MPN: 195750
LH REAR LIGHT
from £166.84
from £166.84
# 009
MPN: 195751
RH REAR LAMP
from £155.97
from £155.97
# 010
MPN: 13046011
NUT
from £0.50
from £0.50
# 011
MPN: 12638101
WASHER
from £0.71
from £0.71
This part replaces part number 12638121

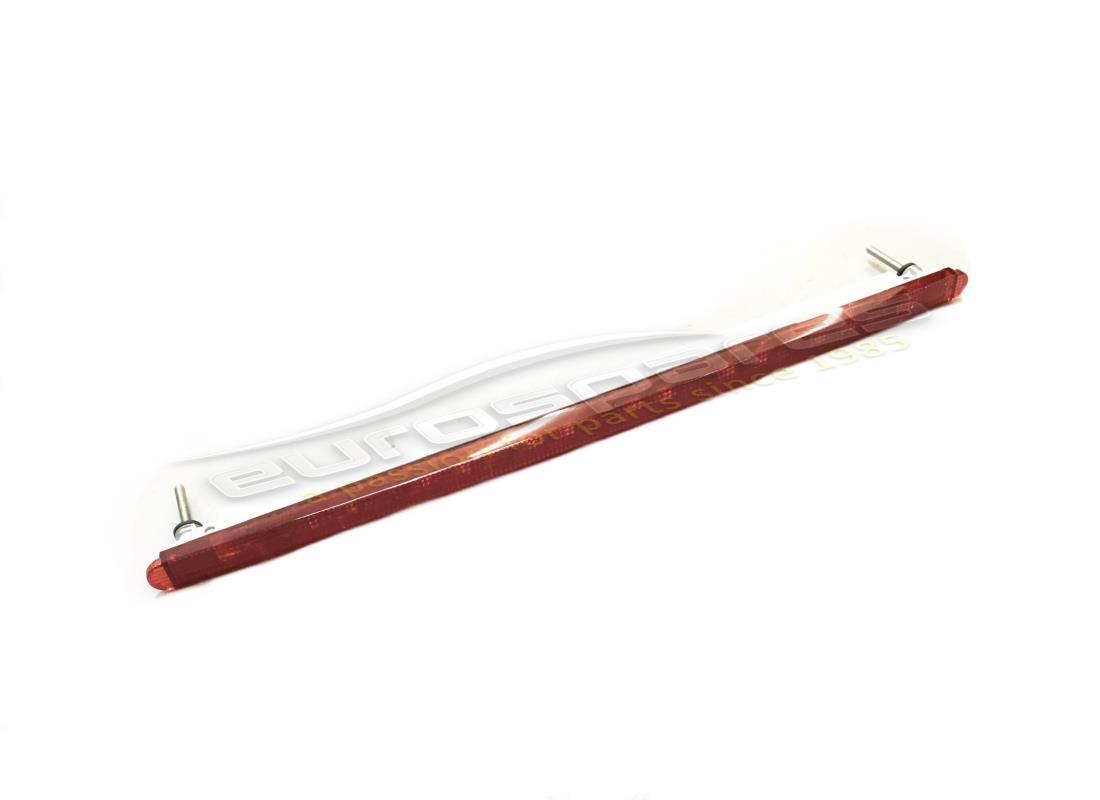

# 012
MPN: 241531
ADDITIONAL STOP LIGHT
alternative 241531
from £127.64
from £127.64
# 013
MPN: 14039414
NUT
from £0.53
from £0.53
# 014
MPN: 66490900
COMPLETE STOP LAMP MOULDING
from £14.77
from £14.77
This part replaces part number 66246800
# 015
MPN: 198231
SIDE LAMP
from £32.86
from £32.86
This part replaces part number 198842
# 016
MPN: 15901570
SCREW
from £0.51
from £0.51
# 017
MPN: 147563
FRONT SIDE MARKER LAMP
- Valid for USA and CDN
from £16.33
from £16.33
# 018
MPN: 140594
REAR SIDE MARKER LIGHT
- Valid for USA and CDN
from £22.89
from £22.89
# 019
MPN: 156198
CLIP
- Valid for USA and CDN
from £10.41
from £10.41
# 020
MPN: 14084111
NUT
- Valid for USA and CDN
from £0.51
from £0.51
# 021
MPN: 12638124
WASHER
- Valid for USA and CDN
from £0.53
from £0.53
# 022
MPN: 980000951
LH HEADLAMP EXTERNAL GASKET
from £19.01
from £19.01
This part replaces part number 94074245
# 022
MPN: 980000952
RH HEADLAMP EXTERNAL GASKET
from £19.01
from £19.01
This part replaces part number 94074244
# 023
MPN: 980000953
HEADLIGHT BULB
from £20.22
from £20.22
# 024
MPN: 980001141
CAP
from £21.56
from £21.56
# 025
MPN: 980000950
HEADLAMP ACTUATOR
from £40.11
from £40.11
# 026
MPN: 11730924
SCREW
from £1.55
from £1.55
# 027
MPN: 12644424
WASHER
from £0.53
from £0.53
This part replaces part number 13550214
# 028
MPN: 13046114
NUT
from £0.53
from £0.53
# 029
MPN: 66379100
LAMP FIXING UPPER BRACKET
from £5.57
from £5.57
# 030
MPN: 66320000
LH BRACKET
from £11.82
from £11.82
# 030
MPN: 66379200
RH BRACKET
from £29.06
from £29.06
# 031
MPN: 11730624
SCREW
from £0.51
from £0.51
# 032
MPN: 980000953
FOG LAMP HEADLIGHT BULB
- Not for USA and CDN
from £20.22
from £20.22
# 032
MPN: 980001167
HEADLIGHT BULB
- Not for USA and CDN
from £3.23
from £3.23
# 033
MPN: 980000955
LIGHT POSITION BULB
- Not for USA and CDN
from £1.24
from £1.24
# 033
MPN: 980001160
LIGHT POSITION BULB
- Valid for USA and CDN
from £4.58
from £4.58
# 034
MPN: 980000954
DIRECTION LIGHT BULB
- Not for USA and CDN
from £2.29
from £2.29
# 034
MPN: 980001167
DIRECTION LIGHT BULB
- Valid for USA and CDN
from £3.23
from £3.23
# 035
MPN: 87720021
BULB 21 W.
from £1.00
from £1.00
# 035
MPN: 87720521
TWO LIGHT BULB 5/21 W.
from £3.06
from £3.06
# 036
MPN: 980001160
BULB
from £4.58
from £4.58
# 037
MPN: 383100502
STOP LAMP BULB
from £3.12
from £3.12
-part-diagram-133.webp "MASERATI 4200 SPYDER (2004) XENO HEADLIGTHS AND HEADLIGHTS WASHER OPTIONAL PARTS DIAGRAM")
-part-diagram-134.webp "MASERATI 4200 SPYDER (2004) SHIELDS AND FINISHING PARTS DIAGRAM")
-part-diagram-135.webp "MASERATI 4200 SPYDER (2004) SHIELDS AND PROTECTIONS FOR WHEEL COMPARTMENT PARTS DIAGRAM")
-part-diagram-136.webp "MASERATI 4200 SPYDER (2004) WINDSHIELD GLASS WASHER AND HORNS PARTS DIAGRAM")
-part-diagram-137.webp "MASERATI 4200 SPYDER (2004) ELECTRICAL SYSTEM PARTS DIAGRAM")
-part-diagram-138.webp "MASERATI 4200 SPYDER (2004) ENGINE BONNET SENSOR AND CONTROL STATIONS PARTS DIAGRAM")
-part-diagram-139.webp "MASERATI 4200 SPYDER (2004) FRONT PASSENGERS COMPARTMENT CONTROL STATION PARTS DIAGRAM")
-part-diagram-140.webp "MASERATI 4200 SPYDER (2004) PASSENGERS SIDE CONTROL UNITS PARTS DIAGRAM")
-part-diagram-141.webp "MASERATI 4200 SPYDER (2004) RH SIDE TRUNK BONNET SENSOR AND CONTROL UNITS PARTS DIAGRAM")
-part-diagram-142.webp "MASERATI 4200 SPYDER (2004) LH SIDE TRUNK BONNET CONTROL UNIT PARTS DIAGRAM")
-part-diagram-143.webp "MASERATI 4200 SPYDER (2004) ANTI THEFT ELECTRICAL BOARDS AND DEVICES PARTS DIAGRAM")
-part-diagram-144.webp "MASERATI 4200 SPYDER (2004) IMMOBILIZER KIT PARTS DIAGRAM")
-part-diagram-145.webp "MASERATI 4200 SPYDER (2004) EVAPORATOR GROUP PARTS DIAGRAM")
-part-diagram-146.webp "MASERATI 4200 SPYDER (2004) AIR CONDITIONING SYSTEM PARTS DIAGRAM")
-part-diagram-147.webp "MASERATI 4200 SPYDER (2004) CAR STEREO SYSTEM PARTS DIAGRAM")
-part-diagram-148.webp "MASERATI 4200 SPYDER (2004) STEREO EQUIPMENT ACCESORIES PARTS DIAGRAM")
-part-diagram-149.webp "MASERATI 4200 SPYDER (2004) PLATES PARTS DIAGRAM")
-part-diagram-000.webp "MASERATI 4200 SPYDER (2004) SPARE ASSEMBLY UNITS PARTS DIAGRAM")
-part-diagram-001.webp "MASERATI 4200 SPYDER (2004) CRANKCASE PARTS DIAGRAM")
-part-diagram-002.webp "MASERATI 4200 SPYDER (2004) CRANKSHAFT CONRODS AND PISTONS PARTS DIAGRAM")
-part-diagram-003.webp "MASERATI 4200 SPYDER (2004) RH CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-004.webp "MASERATI 4200 SPYDER (2004) LH CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-005.webp "MASERATI 4200 SPYDER (2004) TIMING TAPPETS PARTS DIAGRAM")
-part-diagram-006.webp "MASERATI 4200 SPYDER (2004) TIMING CONTROLS PARTS DIAGRAM")
-part-diagram-007.webp "MASERATI 4200 SPYDER (2004) INJECTION DEVICE IGNITION PARTS DIAGRAM")
-part-diagram-008.webp "MASERATI 4200 SPYDER (2004) SECONDARY AIR SYSTEM PARTS DIAGRAM")
-part-diagram-009.webp "MASERATI 4200 SPYDER (2004) FUEL PUMP AND PIPES PARTS DIAGRAM")
-part-diagram-010.webp "MASERATI 4200 SPYDER (2004) FUEL TANKS AND UNION PARTS DIAGRAM")
-part-diagram-011.webp "MASERATI 4200 SPYDER (2004) ANTIEVAPORATION DEVICE NOT FOR USA AND CDN PARTS DIAGRAM")
-part-diagram-012.webp "MASERATI 4200 SPYDER (2004) ANTIEVAPORATION DEVICE VALID FOR USA AND CDN PARTS DIAGRAM")
-part-diagram-013.webp "MASERATI 4200 SPYDER (2004) AIR INTAKE MANIFOLD PARTS DIAGRAM")
-part-diagram-014.webp "MASERATI 4200 SPYDER (2004) EXHAUST SYSTEM PARTS DIAGRAM")
-part-diagram-015.webp "MASERATI 4200 SPYDER (2004) EXHAUST SYSTEM VARIATIONS FOR USA AND CDN PARTS DIAGRAM")
-part-diagram-016.webp "MASERATI 4200 SPYDER (2004) BLOW - BY SYSTEM PARTS DIAGRAM")
-part-diagram-017.webp "MASERATI 4200 SPYDER (2004) LUBRICATION SYSTEM TANK HEATER EXCHANGER PARTS DIAGRAM")
-part-diagram-018.webp "MASERATI 4200 SPYDER (2004) WATER-OIL PUMP PARTS DIAGRAM")
-part-diagram-019.webp "MASERATI 4200 SPYDER (2004) NOURICE COOLING SYSTEM NOT FOR GD PARTS DIAGRAM")
-part-diagram-020.webp "MASERATI 4200 SPYDER (2004) NOURICE COOLING SYSTEM VALID FOR GD PARTS DIAGRAM")
-part-diagram-021.webp "MASERATI 4200 SPYDER (2004) COOLING SYSTEM RADIATOR PARTS DIAGRAM")
-part-diagram-022.webp "MASERATI 4200 SPYDER (2004) CLUTCH AND CONTROLS NOT FOR F1 PARTS DIAGRAM")
-part-diagram-023.webp "MASERATI 4200 SPYDER (2004) CLUTCH AND CONTROLS VALID FOR F1 PARTS DIAGRAM")
-part-diagram-024.webp "MASERATI 4200 SPYDER (2004) PEDALS AND ELECTRONIC ACCELERATOR CONTROL NOT FOR GD PARTS DIAGRAM")
-part-diagram-025.webp "MASERATI 4200 SPYDER (2004) PEDALS AND ELECTRONIC ACCELERATOR CONTROL VALID FOR GD PARTS DIAGRAM")
-part-diagram-026.webp "MASERATI 4200 SPYDER (2004) F1 CLUTCH HYDRAULIC CONTROLS VALID FOR F1 PARTS DIAGRAM")
-part-diagram-027.webp "MASERATI 4200 SPYDER (2004) POWER UNIT AND TANK VALID FOR F1 PARTS DIAGRAM")
-part-diagram-028.webp "MASERATI 4200 SPYDER (2004) GEARBOX COVER GEARBOX OIL RADIATOR PARTS DIAGRAM")
-part-diagram-029.webp "MASERATI 4200 SPYDER (2004) DIFFERENTIAL BOX REAR UNDERBODY PARTS DIAGRAM")
-part-diagram-030.webp "MASERATI 4200 SPYDER (2004) MAIN SHAFT GEARS PARTS DIAGRAM")
-part-diagram-031.webp "MASERATI 4200 SPYDER (2004) LAY SHAFT GEARS PARTS DIAGRAM")
-part-diagram-032.webp "MASERATI 4200 SPYDER (2004) INNER GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-033.webp "MASERATI 4200 SPYDER (2004) OUTER GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-034.webp "MASERATI 4200 SPYDER (2004) ENGINE TRANSMISSION CONNECTION TUBE AND INSULATIONS PARTS DIAGRAM")
-part-diagram-035.webp "MASERATI 4200 SPYDER (2004) DIFFERENTIAL & AXLE SHAFTS PARTS DIAGRAM")
-part-diagram-036.webp "MASERATI 4200 SPYDER (2004) BRAKES AND CLUTCH HYDRAULIC CONTROLS PARTS DIAGRAM")
-part-diagram-037.webp "MASERATI 4200 SPYDER (2004) BRAKING SYSTEM NOT FOR GD PARTS DIAGRAM")
-part-diagram-038.webp "MASERATI 4200 SPYDER (2004) BRAKING SYSTEM VALID FOR GD PARTS DIAGRAM")
-part-diagram-039.webp "MASERATI 4200 SPYDER (2004) BRAKE CALIPERS PARTS DIAGRAM")
-part-diagram-040.webp "MASERATI 4200 SPYDER (2004) HANDBRAKE CONTROL PARTS DIAGRAM")
-part-diagram-041.webp "MASERATI 4200 SPYDER (2004) FRONT UNDER FRAME AND UNDERMOTOR SHIELDS PARTS DIAGRAM")
-part-diagram-042.webp "MASERATI 4200 SPYDER (2004) STEERING BOX PARTS DIAGRAM")
-part-diagram-043.webp "MASERATI 4200 SPYDER (2004) STEERING COLUMN PARTS DIAGRAM")
-part-diagram-044.webp "MASERATI 4200 SPYDER (2004) FRONT SUSPENSION SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-045.webp "MASERATI 4200 SPYDER (2004) FRONT SUSPENSION WISHBONES AND STABILIZER BAR PARTS DIAGRAM")
-part-diagram-046.webp "MASERATI 4200 SPYDER (2004) REAR SUSPENSION SHOCK ABSORBER AND BRAKE DISK PARTS DIAGRAM")
-part-diagram-047.webp "MASERATI 4200 SPYDER (2004) REAR SUSPENSION WISHBONES PARTS DIAGRAM")
-part-diagram-048.webp "MASERATI 4200 SPYDER (2004) WHEELS PARTS DIAGRAM")
-part-diagram-049.webp "MASERATI 4200 SPYDER (2004) SPARE WHEEL AND EQUIPMENT OPTIONAL PARTS DIAGRAM")
-part-diagram-050.webp "MASERATI 4200 SPYDER (2004) BATTERY PARTS DIAGRAM")
-part-diagram-051.webp "MASERATI 4200 SPYDER (2004) CURRENT GENERATOR STARTING MOTOR PARTS DIAGRAM")
-part-diagram-052.webp "MASERATI 4200 SPYDER (2004) TOOLS EQUIPMENT AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-100.webp "MASERATI 4200 SPYDER (2004) BODY FRONT OUTER TRIMS PARTS DIAGRAM")
-part-diagram-101.webp "MASERATI 4200 SPYDER (2004) BODY REAR OUTER TRIMS PARTS DIAGRAM")
-part-diagram-102.webp "MASERATI 4200 SPYDER (2004) FRONT STRUCTURE PARTS DIAGRAM")
-part-diagram-103.webp "MASERATI 4200 SPYDER (2004) CENTRAL STRUCTURE PARTS DIAGRAM")
-part-diagram-104.webp "MASERATI 4200 SPYDER (2004) REAR STRUCTURE PARTS DIAGRAM")
-part-diagram-105.webp "MASERATI 4200 SPYDER (2004) FRONT BUMPER PARTS DIAGRAM")
-part-diagram-106.webp "MASERATI 4200 SPYDER (2004) REAR BUMPER PARTS DIAGRAM")
-part-diagram-107.webp "MASERATI 4200 SPYDER (2004) PASSENGERS COMPARTMENT CARPETS PARTS DIAGRAM")
-part-diagram-108.webp "MASERATI 4200 SPYDER (2004) ROOF PANEL UPHOLSTERY AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-109.webp "MASERATI 4200 SPYDER (2004) PASSENGERS COMPARTMENT UPHOLSTERY ACCESSORIES PARTS DIAGRAM")
-part-diagram-110.webp "MASERATI 4200 SPYDER (2004) TRUNK HOOD COMPARTMENT TRIMS AIR INLET AND HEATH SHIELDS PARTS DIAGRAM")
-part-diagram-111.webp "MASERATI 4200 SPYDER (2004) CAPOTE CLOTH GASKET PARTS DIAGRAM")
-part-diagram-112.webp "MASERATI 4200 SPYDER (2004) CAPOTE FRONT CLOSING PARTS DIAGRAM")
-part-diagram-113.webp "MASERATI 4200 SPYDER (2004) CAPOTE STRUCTURE PARTS DIAGRAM")
-part-diagram-114.webp "MASERATI 4200 SPYDER (2004) CAPOTE CONTROL STATION RELAY MICROSWITCH PARTS DIAGRAM")
-part-diagram-115.webp "MASERATI 4200 SPYDER (2004) CAPOTE HYDRAULIC SYSTEM PARTS DIAGRAM")
-part-diagram-116.webp "MASERATI 4200 SPYDER (2004) CAPOTE CLOSINGS AND COVER PARTS DIAGRAM")
-part-diagram-117.webp "MASERATI 4200 SPYDER (2004) ENGINE BONNET AND OPENING DEVICE PARTS DIAGRAM")
-part-diagram-118.webp "MASERATI 4200 SPYDER (2004) TRUNK HOOD BONNET AND GAS DOOR PARTS DIAGRAM")
-part-diagram-119.webp "MASERATI 4200 SPYDER (2004) DOORS FRAMEWORK AND COVERINGS PARTS DIAGRAM")
-part-diagram-120.webp "MASERATI 4200 SPYDER (2004) DOORS OPENING CONTROL AND HINGES PARTS DIAGRAM")
-part-diagram-121.webp "MASERATI 4200 SPYDER (2004) DOORS POWER WINDOW AND REARWIEW MIRROR PARTS DIAGRAM")
-part-diagram-122.webp "MASERATI 4200 SPYDER (2004) GLASSES WINDSHIELD PARTS DIAGRAM")
-part-diagram-123.webp "MASERATI 4200 SPYDER (2004) ELECRICAL SEATSAFETY BELTS PARTS DIAGRAM")
-part-diagram-124.webp "MASERATI 4200 SPYDER (2004) ELECTRICAL SEATGUIDE AND MOVEMENT PARTS DIAGRAM")
-part-diagram-125.webp "MASERATI 4200 SPYDER (2004) DASHBOARD NOT FOR GD PARTS DIAGRAM")
-part-diagram-126.webp "MASERATI 4200 SPYDER (2004) DASHBOARD VALID FOR GD PARTS DIAGRAM")
-part-diagram-127.webp "MASERATI 4200 SPYDER (2004) DASHBOARD DRAWER PARTS DIAGRAM")
-part-diagram-128.webp "MASERATI 4200 SPYDER (2004) TUNNEL FRAMEWORK AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-129.webp "MASERATI 4200 SPYDER (2004) AIR-BAGS PARTS DIAGRAM")
-part-diagram-130.webp "MASERATI 4200 SPYDER (2004) DASHBOARD INSTRUMENTS PARTS DIAGRAM")
-part-diagram-131.webp "MASERATI 4200 SPYDER (2004) TUNNEL INSTRUMENTS PARTS DIAGRAM")
