136 - Windshield Glass Washer and Horns

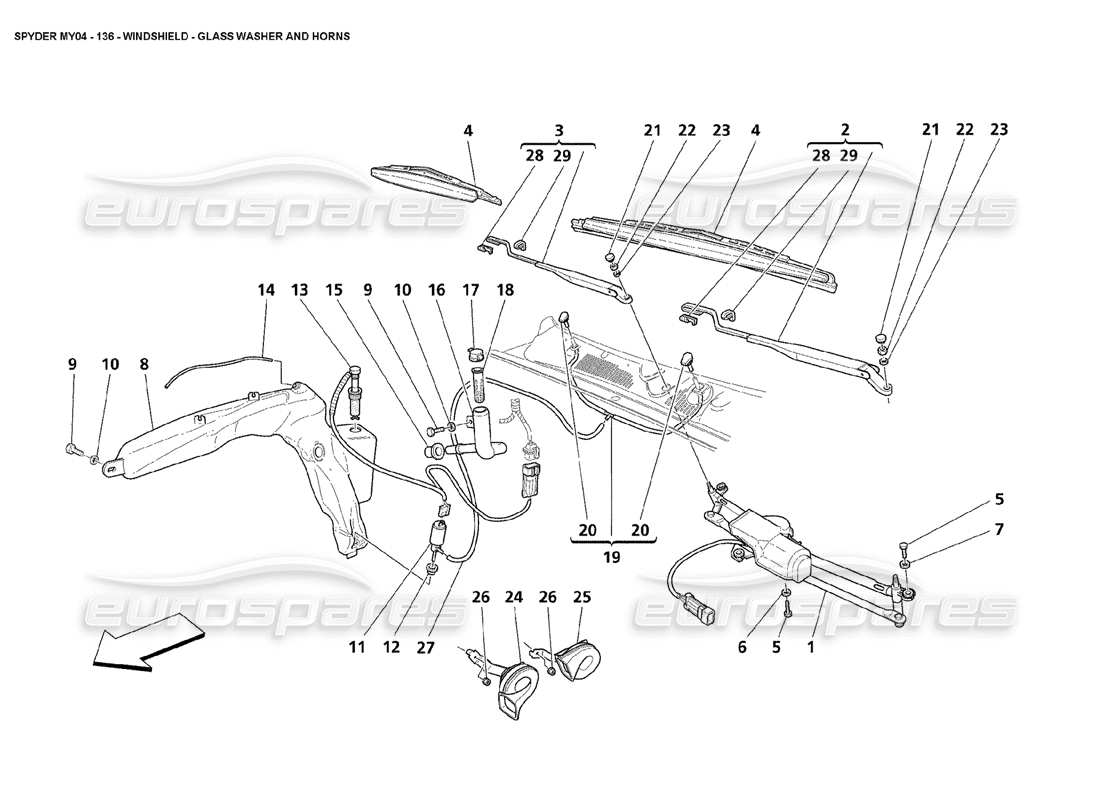

Maserati 4200 Spyder (2004) Windshield Glass Washer and Horns Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 67115800
COMPLETE WINDSHIELD WIPER SET
- Not for GD
from £198.24
from £198.24
This part replaces part number 66241300 which we have in stock - and 2 more. Click to view details
# 001
MPN: 67115800/A
WIPER MECHANISM ONLY
Not for GD
# 001
MPN: 67115900
COMPLETE WINDSHIELD WIPER SET
- Valid for GD
from £332.90
from £332.90
This part replaces part number 66665600
# 002
MPN: 66241400
DRIVER SIDE WINDSHIELD WIPER ARM
- Not for GD
from £22.23
from £22.23
# 002
MPN: 66665700
PASSENGER SIDE WINDSHIELD WIPER ARM
- Valid for GD
from £22.23
from £22.23
# 003
MPN: 66241500
PASSENGER SIDE WINDSHIELD WIPER ARM
- Not for GD
from £40.41
from £40.41
# 003
MPN: 66665800
DRIVER SIDE WINDSHIELD WIPER ARM
- Valid for GD
from £15.26
from £15.26
# 004
MPN: 66241600
WIPER BRUSH
- Not for GD
Supersession
Supersession
This part replaces part number 383300182
# 004
MPN: 66959000
WIPER BRUSH
- Valid for GD
from £19.27
from £19.27
This part replaces part number 383310182 - and 1 more. Click to view details
# 005
MPN: 13837411
SCREW
from £0.52
from £0.52
# 006
MPN: 12640624
WASHER
from £0.54
from £0.54
# 007
MPN: 10523424
WASHER
from £0.53
from £0.53
# 008
MPN: 66420800
WINDSHIELD WIPER CONTAINER
from £67.03
from £67.03
# 009
MPN: 10902224
SCREW
from £0.52
from £0.52
# 010
MPN: 12647729
WASHER
Supersession
Supersession
# 011
MPN: 65358700
WIPER PUMP
from £20.25
from £20.25
# 012
MPN: 65775100
GASKET
from £3.19
from £3.19
# 013
MPN: 187736
CABLES WITH LEVEL SENSOR
- Optional - Xeno Headlights and Headligts Washer
from £30.18
from £30.18
# 013
MPN: 190048
CABLES WITH LEVEL SENSOR
- Standard
from £32.55
from £32.55
This part replaces part number 65758700
# 014
MPN: 66420900
VENT PIPE
from £5.35
from £5.35
# 015
MPN: 65581700
GASKET
from £4.63
from £4.63
# 016
MPN: 66421200
FILLING COLLECTOR
from £14.30
from £14.30
# 017
MPN: 66421300
PLUG
from £2.85
from £2.85
# 018
MPN: 66421400
FILTER
from £6.42
from £6.42
# 019
MPN: 66421600
COMPLETE JETS FOR WINDOW WASHING PIPE
from £16.32
from £16.32
# 020
MPN: 94074166
JET FOR WINDOW WASHING
from £27.44
from £27.44
This part replaces part number 7769348
# 021
MPN: 393350327
BOOT
from £1.55
from £1.55
# 022
MPN: 16100814
NUT
from £0.71
from £0.71
# 023
MPN: 12601377
WASHER
from £0.85
from £0.85
# 024
MPN: 193124
HIGH TONE ELECTRO MAGNETIC HORN
from £9.58
from £9.58
This part replaces part number 383300216 which we have in stock - and 1 more. Click to view details
# 025
MPN: 193125
LOW TONE ELECTRO MAGNETIC HORN
from £9.58
from £9.58
This part replaces part number 383300217 which we have in stock - and 1 more. Click to view details
# 026
MPN: 14084211
NUT
from £0.71
from £0.71
This part replaces part number 14084217
# 027
MPN: 67352500
PIPE CONNECTION PUMP TO JETS FOR WINDOW WASHING
from £8.10
from £8.10
# 028
MPN: 383300500
CLIP
from £1.08
from £1.08
# 029
MPN: 383300299
CLIP
from £29.06
from £29.06
