001 - crankcase

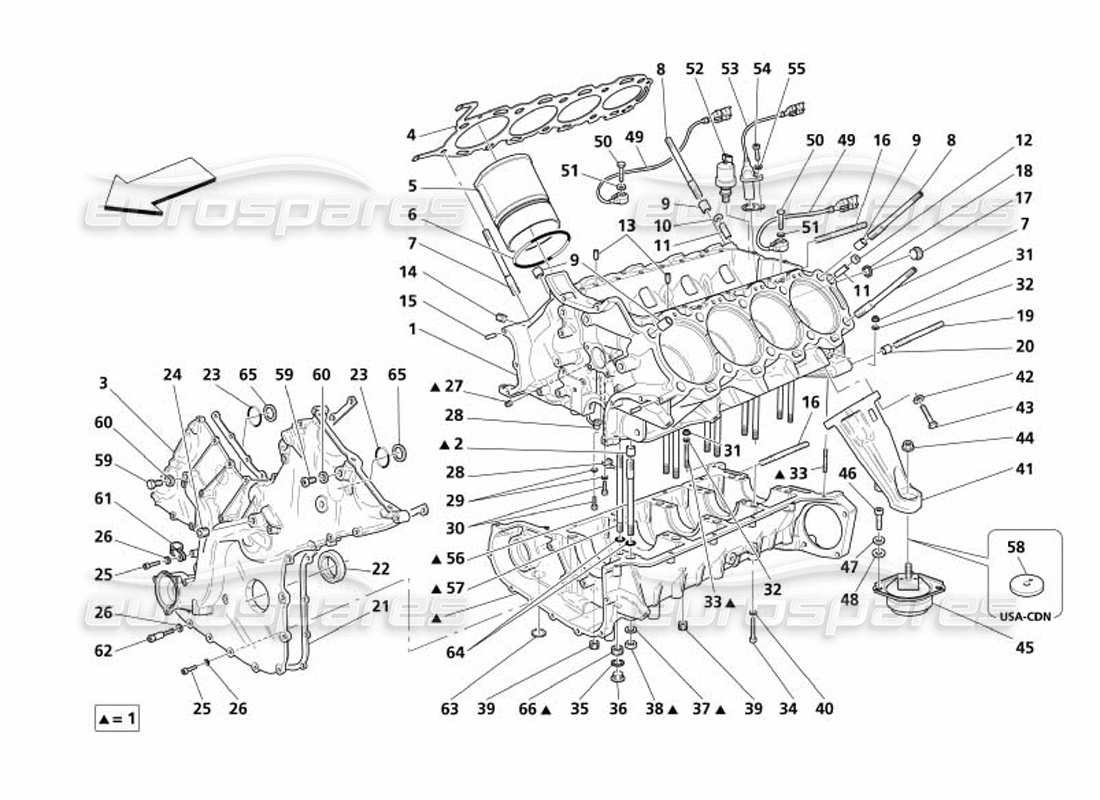

Maserati 4200 Spyder (2005) Crankcase Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: 980020001
HEAD OVERHAUL GASKET KIT
Valid till stock exhaustion
Supersession
Supersession
# 000
MPN: 980020002
CRANKCASE GASKET KIT
Valid till stock exhaustion
Supersession
Supersession
# 000
MPN: 980020004
CRANKCASE GASKET KIT
Valid after stock exhaustion of 980020002
from £109.16
from £109.16
This part replaces part number 980020002
# 000
MPN: 980020005
CAM COVER GASKET KIT
from £40.21
from £40.21
# 000
MPN: 980020006
HEAD OVERHAUL GASKET KIT
Valid after stock exhaustion of 980020001
from £55.22
from £55.22
This part replaces part number 980020001
# 001
MPN: 199422
COMPLETE CRANKCASE
Supersession
Supersession
This part replaces part number 192423
# 002
MPN: 176421
CENTERING DOWEL
from £2.55
from £2.55
# 003
MPN: 221366
FRONT COVER
not available as spare parts
from £194.25
from £194.25
This part replaces part number 188710 - and 1 more. Click to view details
# 004
MPN: 184966
RH HEAD GASKET
Supplied also in the cylinder headsgasket revision kit (cod. 980020001)
from £41.59
from £41.59
# 004
MPN: 184967
LH HEAD GASKET
Supplied also in the cylinder headsgasket revision kit (cod. 980020001)
from £41.59
from £41.59
# 005
MPN: 190770
CYLINDER LINER
from £109.14
from £109.14
# 006
MPN: 186251
GASKET
Supplied also in the crankcasegasket revision kit (cod. 980020004)
from £1.57
from £1.57
# 007
MPN: 194754
STUD
from £11.40
from £11.40
# 008
MPN: 194755
STUD
from £10.01
from £10.01
# 009
MPN: 185360
CENTERING DOWEL
from £1.75
from £1.75
# 010
MPN: 194773
DOWEL
from £5.54
from £5.54
# 011
MPN: 156862
NONRETURN VALVE
from £5.10
from £5.10
# 012
MPN: 184045
DOWEL
from £5.54
from £5.54
# 013
MPN: 177727
CENTERING DOWEL
from £1.68
from £1.68
# 014
MPN: 164400
THREADED PLUG
from £2.16
from £2.16
# 015
MPN: 175611
CENTERING DOWEL
from £1.14
from £1.14
# 016
MPN: 13546734
STUD
from £0.77
from £0.77
# 016
MPN: 13546834
STUD
from £0.90
from £0.90
# 017
MPN: 193885
THREADED PLUG
from £1.90
from £1.90
# 018
MPN: 10263460
GASKET
Supplied also in the crankcasegasket revision kit (cod. 980020004)
from £0.54
from £0.54
This part replaces part number 10261830
# 019
MPN: 13546934
STUD
from £1.20
from £1.20
# 019
MPN: 13547034
STUD
from £1.81
from £1.81
# 020
MPN: 100052
CENTERING DOWEL
from £1.52
from £1.52
# 021
MPN: 323979
FRONT COVER GASKET
from £29.43
from £29.43
This part replaces part number 245464
# 022
MPN: 188717
FRONT CRANKSHAFT SEAL
from £15.77
from £15.77
This part replaces part number 186883
# 023
MPN: 183010
O.R. GASKET
Supplied also in the cylinder headsgasket revision kit (cod. 980020001)
from £1.04
from £1.04
# 024
MPN: 14324940
THREADED PLUG
from £1.08
from £1.08
# 025
MPN: 14303924
SCREW
M 6X70
from £0.53
from £0.53
# 025
MPN: 14305524
SCREW
M 6X30
from £0.53
from £0.53
# 025
MPN: 14305624
SCREW
M 6X35
from £0.53
from £0.53
# 025
MPN: 14305924
SCREW
M 6X45
from £0.53
from £0.53
This part replaces part number 14305921 - and 1 more. Click to view details
# 025
MPN: 14306024
SCREW
M 6X50
from £1.31
from £1.31
This part replaces part number 14306034 which we have in stock
# 025
MPN: 14432224
SCREW
M 6X22
from £0.52
from £0.52
# 025
MPN: 14433124
SCREW
M 6X18
from £0.49
from £0.49
# 026
MPN: 11197774
WASHER
from £0.50
from £0.50
# 027
MPN: 13525770
THREADED INSERT
from £1.50
from £1.50
# 028
MPN: 175657
PISTONS COOLING NOZZLE
from £5.28
from £5.28
# 029
MPN: 11181474
WASHER
from £0.51
from £0.51
# 030
MPN: 14302921
SCREW
from £0.51
from £0.51
# 031
MPN: 132877
NUT
from £1.75
from £1.75
# 032
MPN: 12604274
WASHER
from £0.54
from £0.54
# 033
MPN: 13541624
STUD
from £8.22
from £8.22
# 034
MPN: 14305324
SCREW
from £0.53
from £0.53
This part replaces part number 14305321
# 034
MPN: 14305424
SCREW
from £0.47
from £0.47
# 035
MPN: 10261860
GASKET
Supplied also in the crankcasegasket revision kit (cod. 980020004)
from £0.54
from £0.54
# 036
MPN: 104280
THREADED PLUG
from £4.95
from £4.95
# 037
MPN: 178348
WASHER
from £0.47
from £0.47
# 038
MPN: 133988
NUT
from £0.47
from £0.47
This part replaces part number 186261
# 039
MPN: 14325140
THREADED PLUG
from £1.01
from £1.01
# 040
MPN: 11197774
WASHER
from £0.52
from £0.52
# 041
MPN: 186029
RH ENGINE FIXING SUPPORT
from £41.77
from £41.77
# 041
MPN: 186030
LH ENGINE FIXING SUPPORT
from £41.77
from £41.77
# 042
MPN: 11190574
WASHER
from £0.47
from £0.47
# 043
MPN: 11306934
SCREW
from £0.47
from £0.47
# 044
MPN: 177018
NUT
from £0.65
from £0.65
# 045
MPN: 185361
ENGINE PAD
Alternative : 225839
Supersession
Supersession
# 046
MPN: 14307334
SCREW
from £5.46
from £5.46
# 047
MPN: 11198374
WASHER
from £0.47
from £0.47
This part replaces part number 675000618
# 048
MPN: 14496624
WASHER
from £0.53
from £0.53
# 049
MPN: 187739
SENSOR FOR FIRING
Flywheel side
from £55.20
from £55.20
This part replaces part number 182266 - and 1 more. Click to view details
# 049
MPN: 187740
SENSOR FOR FIRING
Timing side
from £32.46
from £32.46
This part replaces part number 181809
# 050
MPN: 16043834
SCREW
from £0.51
from £0.51
This part replaces part number 16043824
# 051
MPN: 11198074
WASHER
from £0.53
from £0.53
# 052
MPN: 135940
OIL PRESSURE TRANSMITTER
from £89.32
from £89.32
# 053
MPN: 182194
ANGOLAR SPEED SENSOR
from £48.44
from £48.44
# 054
MPN: 14305724
SCREW
from £0.54
from £0.54
# 055
MPN: 11197774
WASHER
from £0.54
from £0.54
# 056
MPN: 194756
STUD
from £35.74
from £35.74
# 057
MPN: 194757
STUD
from £4.02
from £4.02
# 058
MPN: 191791
PAD UPPER SHIELD
Valid for USA and CDN
from £2.81
from £2.81
# 059
MPN: 187718
BLEEDER PLUG
from £3.65
from £3.65
# 060
MPN: 10284460
GASKET
from £0.47
from £0.47
# 061
MPN: 10441590
BRACKET WITH SHEATH
from £0.53
from £0.53
# 062
MPN: 190876
STUD
from £14.13
from £14.13
This part replaces part number 585412900
# 063
MPN: 10158801
PLUG
from £0.81
from £0.81
# 064
MPN: 134704
O.R. GASKET
from £0.94
from £0.94
# 065
MPN: 191620
REDUCTION
from £12.17
from £12.17
# 066
MPN: 112254
THREADED INSERT
from £2.41
from £2.41
-part-diagram-002.webp "MASERATI 4200 SPYDER (2005) CRANKSHAFT CONRODS AND PISTONS PARTS DIAGRAM")
-part-diagram-003.webp "MASERATI 4200 SPYDER (2005) RH CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-004.webp "MASERATI 4200 SPYDER (2005) LH CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-005.webp "MASERATI 4200 SPYDER (2005) TIMING - TAPPETS PARTS DIAGRAM")
-part-diagram-006.webp "MASERATI 4200 SPYDER (2005) TIMING - CONTROLS PARTS DIAGRAM")
-part-diagram-007.webp "MASERATI 4200 SPYDER (2005) INJECTION DEVICE - IGNITION PARTS DIAGRAM")
-part-diagram-008.webp "MASERATI 4200 SPYDER (2005) SECONDARY AIR SYSTEM PARTS DIAGRAM")
-part-diagram-009.webp "MASERATI 4200 SPYDER (2005) FUEL PUMP AND PIPES PARTS DIAGRAM")
-part-diagram-010.webp "MASERATI 4200 SPYDER (2005) FUEL TANKS AND UNION PARTS DIAGRAM")
-part-diagram-011.webp "MASERATI 4200 SPYDER (2005) ANTIEVAPORATION DEVICE -NOT FOR USA AND CDN- PARTS DIAGRAM")
-part-diagram-012.webp "MASERATI 4200 SPYDER (2005) ANTIEVAPORATION DEVICE -VALID FOR USA AND CDN- PARTS DIAGRAM")
-part-diagram-013.webp "MASERATI 4200 SPYDER (2005) AIR INTAKE MANIFOLD PARTS DIAGRAM")
-part-diagram-014.webp "MASERATI 4200 SPYDER (2005) EXHAUST SYSTEM PARTS DIAGRAM")
-part-diagram-015.webp "MASERATI 4200 SPYDER (2005) EXHAUST SYSTEM -VARIATIONS FOR USA AND CDN- PARTS DIAGRAM")
-part-diagram-016.webp "MASERATI 4200 SPYDER (2005) BLOW - BY SYSTEM PARTS DIAGRAM")
-part-diagram-017.webp "MASERATI 4200 SPYDER (2005) LUBRICATION SYSTEM - TANK - HEATER EXCHANGER PARTS DIAGRAM")
-part-diagram-018.webp "MASERATI 4200 SPYDER (2005) WATER-OIL PUMP PARTS DIAGRAM")
-part-diagram-019.webp "MASERATI 4200 SPYDER (2005) NOURICE - COOLING SYSTEM -NOT FOR GD- PARTS DIAGRAM")
-part-diagram-020.webp "MASERATI 4200 SPYDER (2005) NOURICE - COOLING SYSTEM -VALID FOR GD- PARTS DIAGRAM")
-part-diagram-021.webp "MASERATI 4200 SPYDER (2005) COOLING SYSTEM RADIATOR PARTS DIAGRAM")
-part-diagram-022.webp "MASERATI 4200 SPYDER (2005) CLUTCH AND CONTROLS -NOT FOR F1- PARTS DIAGRAM")
-part-diagram-023.webp "MASERATI 4200 SPYDER (2005) CLUTCH AND CONTROLS -VALID FOR F1- PARTS DIAGRAM")
-part-diagram-024.webp "MASERATI 4200 SPYDER (2005) PEDALS AND ELECTRONIC ACCELERATOR CONTROL -NOT FOR GD- PARTS DIAGRAM")
-part-diagram-025.webp "MASERATI 4200 SPYDER (2005) PEDALS AND ELECTRONIC ACCELERATOR CONTROL -VALID FOR GD- PARTS DIAGRAM")
-part-diagram-026.webp "MASERATI 4200 SPYDER (2005) F1 CLUTCH HYDRAULIC CONTROLS -VALID FOR F1- PARTS DIAGRAM")
-part-diagram-027.webp "MASERATI 4200 SPYDER (2005) POWER UNIT AND TANK -VALID FOR F1- PARTS DIAGRAM")
-part-diagram-028.webp "MASERATI 4200 SPYDER (2005) GEARBOX - COVER - GEARBOX OIL RADIATOR PARTS DIAGRAM")
-part-diagram-029.webp "MASERATI 4200 SPYDER (2005) DIFFERENTIAL BOX - REAR UNDERBODY PARTS DIAGRAM")
-part-diagram-030.webp "MASERATI 4200 SPYDER (2005) MAIN SHAFT GEARS PARTS DIAGRAM")
-part-diagram-031.webp "MASERATI 4200 SPYDER (2005) LAY SHAFT GEARS PARTS DIAGRAM")
-part-diagram-032.webp "MASERATI 4200 SPYDER (2005) INNER GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-033.webp "MASERATI 4200 SPYDER (2005) OUTER GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-034.webp "MASERATI 4200 SPYDER (2005) ENGINE-TRANSMISSION CONNECTION TUBE AND INSULATIONS PARTS DIAGRAM")
-part-diagram-035.webp "MASERATI 4200 SPYDER (2005) DIFFERENTIAL & AXLE SHAFTS PARTS DIAGRAM")
-part-diagram-036.webp "MASERATI 4200 SPYDER (2005) BRAKES AND CLUTCH HYDRAULIC CONTROLS PARTS DIAGRAM")
-part-diagram-037.webp "MASERATI 4200 SPYDER (2005) BRAKING SYSTEM -NOT FOR GD- PARTS DIAGRAM")
-part-diagram-038.webp "MASERATI 4200 SPYDER (2005) BRAKING SYSTEM -VALID FOR GD- PARTS DIAGRAM")
-part-diagram-039.webp "MASERATI 4200 SPYDER (2005) BRAKE CALIPERS PARTS DIAGRAM")
-part-diagram-040.webp "MASERATI 4200 SPYDER (2005) HAND-BRAKE CONTROL PARTS DIAGRAM")
-part-diagram-041.webp "MASERATI 4200 SPYDER (2005) FRONT UNDER FRAME AND UNDERMOTOR SHIELDS PARTS DIAGRAM")
-part-diagram-042.webp "MASERATI 4200 SPYDER (2005) STEERING BOX PARTS DIAGRAM")
-part-diagram-043.webp "MASERATI 4200 SPYDER (2005) STEERING COLUMN PARTS DIAGRAM")
-part-diagram-044.webp "MASERATI 4200 SPYDER (2005) FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-045.webp "MASERATI 4200 SPYDER (2005) FRONT SUSPENSION - WISHBONES AND STABILIZER BAR PARTS DIAGRAM")
-part-diagram-046.webp "MASERATI 4200 SPYDER (2005) REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISK PARTS DIAGRAM")
-part-diagram-047.webp "MASERATI 4200 SPYDER (2005) REAR SUSPENSION - WISHBONES PARTS DIAGRAM")
-part-diagram-048.webp "MASERATI 4200 SPYDER (2005) WHEELS PARTS DIAGRAM")
-part-diagram-049.webp "MASERATI 4200 SPYDER (2005) SPARE WHEEL AND EQUIPMENT -OPTIONAL- PARTS DIAGRAM")
-part-diagram-050.webp "MASERATI 4200 SPYDER (2005) BATTERY PARTS DIAGRAM")
-part-diagram-051.webp "MASERATI 4200 SPYDER (2005) CURRENT GENERATOR-STARTING MOTOR PARTS DIAGRAM")
-part-diagram-052.webp "MASERATI 4200 SPYDER (2005) TOOLS EQUIPMENT AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-100.webp "MASERATI 4200 SPYDER (2005) BODY - FRONT OUTER TRIMS PARTS DIAGRAM")
-part-diagram-101.webp "MASERATI 4200 SPYDER (2005) BODY REAR OUTER TRIMS PARTS DIAGRAM")
-part-diagram-102.webp "MASERATI 4200 SPYDER (2005) FRONT STRUCTURE PARTS DIAGRAM")
-part-diagram-103.webp "MASERATI 4200 SPYDER (2005) CENTRAL STRUCTURE PARTS DIAGRAM")
-part-diagram-104.webp "MASERATI 4200 SPYDER (2005) REAR STRUCTURE PARTS DIAGRAM")
-part-diagram-105.webp "MASERATI 4200 SPYDER (2005) FRONT BUMPER PARTS DIAGRAM")
-part-diagram-106.webp "MASERATI 4200 SPYDER (2005) REAR BUMPER PARTS DIAGRAM")
-part-diagram-107.webp "MASERATI 4200 SPYDER (2005) PASSENGERS COMPARTMENT CARPETS PARTS DIAGRAM")
-part-diagram-108.webp "MASERATI 4200 SPYDER (2005) ROOF PANEL UPHOLSTERY AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-109.webp "MASERATI 4200 SPYDER (2005) PASSENGERS COMPARTMENT UPHOLSTERY ACCESSORIES PARTS DIAGRAM")
-part-diagram-110.webp "MASERATI 4200 SPYDER (2005) TRUNK HOOD COMPARTMENT TRIMS - AIR INLET AND HEATH SHIELDS PARTS DIAGRAM")
-part-diagram-111.webp "MASERATI 4200 SPYDER (2005) CAPOTE CLOTH - GASKET PARTS DIAGRAM")
-part-diagram-112.webp "MASERATI 4200 SPYDER (2005) CAPOTE FRONT CLOSING PARTS DIAGRAM")
-part-diagram-113.webp "MASERATI 4200 SPYDER (2005) CAPOTE STRUCTURE PARTS DIAGRAM")
-part-diagram-114.webp "MASERATI 4200 SPYDER (2005) CAPOTE CONTROL STATION - RELAY - MICROSWITCH PARTS DIAGRAM")
-part-diagram-115.webp "MASERATI 4200 SPYDER (2005) CAPOTE HYDRAULIC SYSTEM PARTS DIAGRAM")
-part-diagram-116.webp "MASERATI 4200 SPYDER (2005) CAPOTE CLOSINGS AND COVER PARTS DIAGRAM")
-part-diagram-117.webp "MASERATI 4200 SPYDER (2005) ENGINE BONNET AND OPENING DEVICE PARTS DIAGRAM")
-part-diagram-118.webp "MASERATI 4200 SPYDER (2005) TRUNK HOOD BONNET AND GAS DOOR PARTS DIAGRAM")
-part-diagram-119.webp "MASERATI 4200 SPYDER (2005) DOORS - FRAMEWORK AND COVERINGS PARTS DIAGRAM")
-part-diagram-120.webp "MASERATI 4200 SPYDER (2005) DOORS - OPENING CONTROL AND HINGES PARTS DIAGRAM")
-part-diagram-121.webp "MASERATI 4200 SPYDER (2005) DOORS - POWER WINDOW AND REARWIEW MIRROR PARTS DIAGRAM")
-part-diagram-122.webp "MASERATI 4200 SPYDER (2005) GLASSES WINDSHIELD - GASKETS AND INNER REARWIEW MIRROR PARTS DIAGRAM")
-part-diagram-123.webp "MASERATI 4200 SPYDER (2005) ELECRICAL SEAT-SAFETY BELTS PARTS DIAGRAM")
-part-diagram-124.webp "MASERATI 4200 SPYDER (2005) ELECTRICAL SEAT-GUIDE AND MOVEMENT PARTS DIAGRAM")
-part-diagram-125.webp "MASERATI 4200 SPYDER (2005) DASHBOARD -NOT FOR GD- PARTS DIAGRAM")
-part-diagram-126.webp "MASERATI 4200 SPYDER (2005) DASHBOARD -VALID FOR GD- PARTS DIAGRAM")
-part-diagram-127.webp "MASERATI 4200 SPYDER (2005) DASHBOARD DRAWER PARTS DIAGRAM")
-part-diagram-128.webp "MASERATI 4200 SPYDER (2005) TUNNEL - FRAMEWORK AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-129.webp "MASERATI 4200 SPYDER (2005) AIR-BAGS PARTS DIAGRAM")
-part-diagram-130.webp "MASERATI 4200 SPYDER (2005) DASHBOARD INSTRUMENTS PARTS DIAGRAM")
-part-diagram-131.webp "MASERATI 4200 SPYDER (2005) TUNNEL INSTRUMENTS PARTS DIAGRAM")
-part-diagram-132.webp "MASERATI 4200 SPYDER (2005) FRONT AND REAR LIGHTS PARTS DIAGRAM")
-part-diagram-133.webp "MASERATI 4200 SPYDER (2005) XENO HEADLIGTHS AND HEADLIGHTS WASHER -OPTIONAL- PARTS DIAGRAM")
-part-diagram-134.webp "MASERATI 4200 SPYDER (2005) SHIELDS AND FINISHING PARTS DIAGRAM")
-part-diagram-135.webp "MASERATI 4200 SPYDER (2005) SHIELDS AND PROTECTIONS FOR WHEEL COMPARTMENT PARTS DIAGRAM")
-part-diagram-136.webp "MASERATI 4200 SPYDER (2005) WINDSHIELD - GLASS WASHER AND HORNS PARTS DIAGRAM")
-part-diagram-137.webp "MASERATI 4200 SPYDER (2005) ELECTRICAL SYSTEM PARTS DIAGRAM")
-part-diagram-138.webp "MASERATI 4200 SPYDER (2005) ENGINE BONNET SENSOR AND CONTROL STATIONS PARTS DIAGRAM")
-part-diagram-139.webp "MASERATI 4200 SPYDER (2005) FRONT PASSENGERS COMPARTMENT CONTROL STATION PARTS DIAGRAM")
-part-diagram-140.webp "MASERATI 4200 SPYDER (2005) PASSENGERS SIDE CONTROL UNITS PARTS DIAGRAM")
-part-diagram-141.webp "MASERATI 4200 SPYDER (2005) RH SIDE TRUNK BONNET SENSOR AND CONTROL UNITS PARTS DIAGRAM")
-part-diagram-142.webp "MASERATI 4200 SPYDER (2005) LH SIDE TRUNK BONNET CONTROL UNIT PARTS DIAGRAM")
-part-diagram-143.webp "MASERATI 4200 SPYDER (2005) ANTI THEFT ELECTRICAL BOARDS AND DEVICES PARTS DIAGRAM")
-part-diagram-144.webp "MASERATI 4200 SPYDER (2005) IMMOBILIZER KIT PARTS DIAGRAM")
-part-diagram-145.webp "MASERATI 4200 SPYDER (2005) EVAPORATOR GROUP PARTS DIAGRAM")
-part-diagram-146.webp "MASERATI 4200 SPYDER (2005) AIR CONDITIONING SYSTEM PARTS DIAGRAM")
-part-diagram-147.webp "MASERATI 4200 SPYDER (2005) CAR STEREO SYSTEM PARTS DIAGRAM")
-part-diagram-148.webp "MASERATI 4200 SPYDER (2005) STEREO EQUIPMENT - ACCESORIES PARTS DIAGRAM")
-part-diagram-149.webp "MASERATI 4200 SPYDER (2005) PLATES PARTS DIAGRAM")
-part-diagram-000.webp "MASERATI 4200 SPYDER (2005) SPARE ASSEMBLY UNITS PARTS DIAGRAM")
