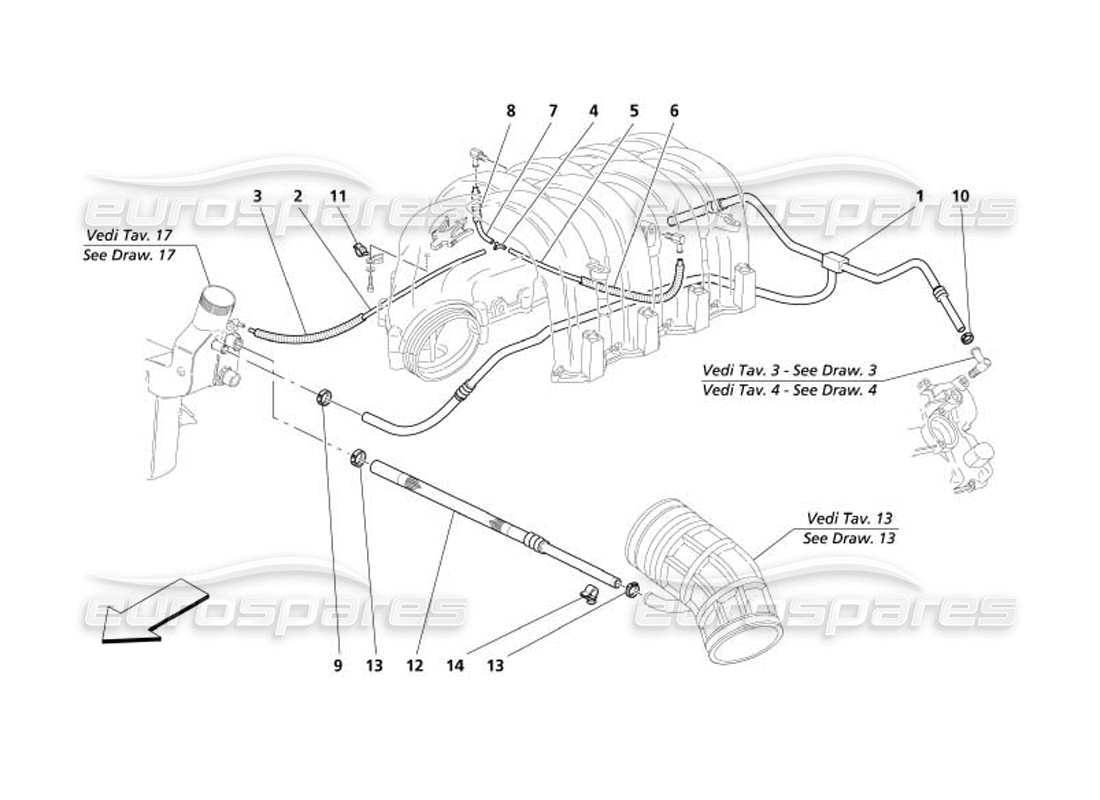

016 - Blow - By System
Maserati 4200 Spyder (2005) Blow - By System Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 198346
HEAD COVERS VENT PIPE
from £47.13
from £47.13
This part replaces part number 190120 which we have in stock - and 1 more. Click to view details
# 002
MPN: 169700
RUBBER HOSE
from £7.19
from £7.19
# 003
MPN: 97218
PIPE
Supplied in meters - (Minimum quantity 1m. or multiples)
from £1.86
from £1.86
This part replaces part number 188340 - and 1 more. Click to view details
# 004
MPN: 146972
3-WAY UNION
from £2.78
from £2.78
# 005
MPN: 194323
RUBBER HOSE
from £6.93
from £6.93
This part replaces part number 192445
# 006
MPN: 97218
PIPE
Supplied in meters - (Minimum quantity 1m. or multiples)
from £1.86
from £1.86
This part replaces part number 188340 - and 1 more. Click to view details
# 007
MPN: 165608
RUBBER HOSE
from £1.52
from £1.52
This part replaces part number 235375
# 008
MPN: 97218
PIPE
Supplied in meters - (Minimum quantity 1m. or multiples)
from £1.86
from £1.86
This part replaces part number 188340 - and 1 more. Click to view details
# 009
MPN: 177996
CLAMP
from £3.48
from £3.48
# 010
MPN: 178052
CLAMP
from £0.94
from £0.94
# 011
MPN: 191273
CLIP
from £0.71
from £0.71
# 012
MPN: 184216
VENT PIPE
from £30.08
from £30.08
# 013
MPN: 13000490
SCREW COLLAR
from £0.53
from £0.53
This part replaces part number 13127870 - and 1 more. Click to view details
# 014
MPN: 187694
CLIP
from £0.69
from £0.69
This part replaces part number 98061
