128 - Tunnel - Framework and Accessories
Maserati 4200 Spyder (2005) Tunnel - Framework and Accessories Parts Diagram

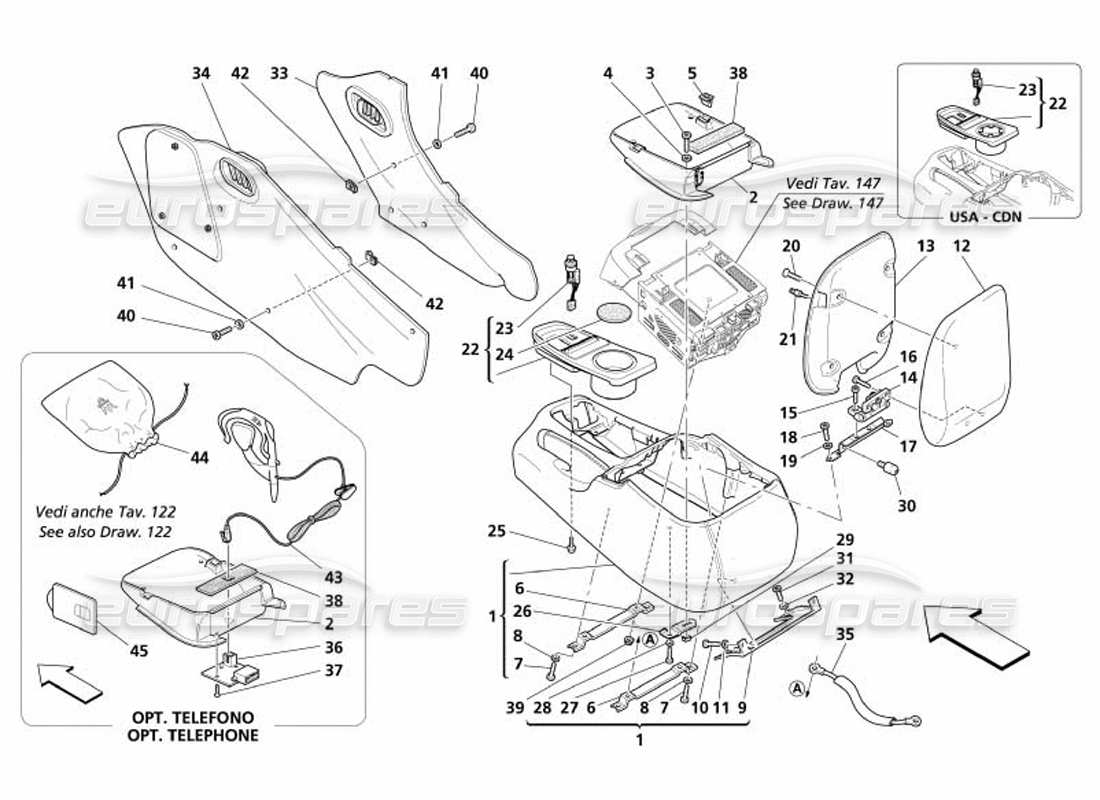

View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 672484..
COMPLETE TUNNEL COVER CONSOLE
For order specify car number
Supersession
Supersession
# 002
MPN: 68328700
CONTAINER BOX
STANDARD
from £12.92
from £12.92
# 002
MPN: 68329000
CONTAINER BOX
Optional - Telephone - Not for USA, CDN and J
from £7.11
from £7.11
This part replaces part number 66724100 - and 1 more. Click to view details
# 003
MPN: 13274014
SCREW
from £3.54
from £3.54
# 004
MPN: 12637824
WASHER
from £0.47
from £0.47
# 005
MPN: 66498900
CLIP
from £1.59
from £1.59
# 006
MPN: 66060100
BRACKET
from £4.28
from £4.28
# 007
MPN: 13273811
SCREW
from £0.47
from £0.47
# 008
MPN: 12637824
WASHER
from £0.47
from £0.47
# 009
MPN: 66392600
BRACKET
from £7.37
from £7.37
# 010
MPN: 15901501
SCREW
from £0.54
from £0.54
# 011
MPN: 12639924
WASHER
from £0.87
from £0.87
# 012
MPN: 66772800
UPPER GLOVE BOX SHUTTER
For order specify car number
from £120.75
from £120.75
# 013
MPN: 68328800
Door Frame
from £115.49
from £115.49
This part replaces part number 66191400
# 014
MPN: 66493600
BOX HINGE
from £58.68
from £58.68
# 015
MPN: 13272011
SCREW
from £0.47
from £0.47
# 016
MPN: 13272011
SCREW
from £0.47
from £0.47
# 017
MPN: 66061700
BRACKET
from £134.10
from £134.10
# 018
MPN: 13273911
SCREW
from £0.53
from £0.53
# 019
MPN: 12637824
WASHER
from £0.47
from £0.47
# 020
MPN: 13299177
SCREW
from £1.90
from £1.90
# 021
MPN: 66498800
PIN
from £3.25
from £3.25
# 022
MPN: 68346200
COMPLETE FRONT PLATE
Black color - Not for USA and CDN
from £279.53
from £279.53
# 022
MPN: 68346226
COMPLETE FRONT PLATE
Bordeaux color - Not for USA and CDN
from £254.55
from £254.55
# 022
MPN: 68346227
COMPLETE FRONT PLATE
Gray color - Not for USA and CDN
from £214.15
from £214.15
# 022
MPN: 68346400
COMPLETE FRONT PLATE
Black color - Valid for USA and CDN
from £230.99
from £230.99
# 022
MPN: 68346426
COMPLETE FRONT PLATE
Bordeaux color - Valid for USA and CDN
from £242.81
from £242.81
# 022
MPN: 68346427
COMPLETE FRONT PLATE
Gray color - Valid for USA and CDN
from £242.81
from £242.81
# 023
MPN: 373380115
ELECTRONIC CIGAR LIGHTER
from £19.98
from £19.98
# 024
MPN: 68345900
CARPET
Not for USA and CDN
from £28.58
from £28.58
# 025
MPN: 64460500
SCREW
from £0.61
from £0.61
# 026
MPN: 66609000
BRACKET
from £5.23
from £5.23
# 027
MPN: 13273911
SCREW
from £0.53
from £0.53
# 028
MPN: 12637824
WASHER
from £0.47
from £0.47
# 029
MPN: 14074490
NUT WITH CAGE
from £1.11
from £1.11
# 030
MPN: 66734000
ADJUSTMENT PIN
from £16.50
from £16.50
# 031
MPN: 13273911
SCREW
from £0.53
from £0.53
# 032
MPN: 12637824
WASHER
from £0.47
from £0.47
# 033
MPN: 675104..
RH TUNNEL LATERAL COVER
Not for GD
Supersession
Supersession
# 033
MPN: 675106..
RH TUNNEL LATERAL COVER
Valid for GD
Supersession
Supersession
# 034
MPN: 675105..
LH TUNNEL LATERAL COVER
Not for GD
Supersession
Supersession
# 034
MPN: 675107..
LH TUNNEL LATERAL COVER
Valid for GD
Supersession
Supersession
# 035
MPN: 199416
GROUND CABLE
from £4.43
from £4.43
# 036
MPN: 189555
INTIMITY BOOT DEVICE SHEETS
Optional - Telephone - Not for USA, CDN and J
from £23.16
from £23.16
# 037
MPN: 15901401
SCREW
Optional - Telephone - Not for USA, CDN and J
from £0.47
from £0.47
# 038
MPN: 66241000
CARPET
STANDARD
from £8.53
from £8.53
# 038
MPN: 66728600
CARPET
Optional - Telephone - Not for USA, CDN and J
from £12.61
from £12.61
# 039
MPN: 15896411
NUT
Supersession
Supersession
# 040
MPN: 15908807
SCREW
Valid for GD
from £1.13
from £1.13
# 040
MPN: 15909977
SCREW
Not for GD
from £1.11
from £1.11
# 041
MPN: 13336207
WASHER
Valid for GD
from £4.67
from £4.67
# 041
MPN: 388300580
WASHER
Not for GD
from £4.67
from £4.67
This part replaces part number 13336207
# 042
MPN: 14371971
CLIP
Valid for GD
from £0.47
from £0.47
# 042
MPN: 386300326
CLIP
Not for GD
from £3.33
from £3.33
# 043
MPN: 193493
BOOT INTIMITY
Optional - Telephone - Not for USA, CDN and J
from £183.34
from £183.34
# 044
MPN: 193495
CASE FOR BOOT INTIMITY
Optional - Telephone - Not for USA, CDN and J
from £22.07
from £22.07
# 045
MPN: 193494
ADAPTER FOR SIM CARD
Optional - Telephone - Not for USA, CDN and J
from £26.08
from £26.08
-part-diagram-129.webp "MASERATI 4200 SPYDER (2005) AIR-BAGS PARTS DIAGRAM")
-part-diagram-130.webp "MASERATI 4200 SPYDER (2005) DASHBOARD INSTRUMENTS PARTS DIAGRAM")
-part-diagram-131.webp "MASERATI 4200 SPYDER (2005) TUNNEL INSTRUMENTS PARTS DIAGRAM")
-part-diagram-132.webp "MASERATI 4200 SPYDER (2005) FRONT AND REAR LIGHTS PARTS DIAGRAM")
-part-diagram-133.webp "MASERATI 4200 SPYDER (2005) XENO HEADLIGTHS AND HEADLIGHTS WASHER -OPTIONAL- PARTS DIAGRAM")
-part-diagram-134.webp "MASERATI 4200 SPYDER (2005) SHIELDS AND FINISHING PARTS DIAGRAM")
-part-diagram-135.webp "MASERATI 4200 SPYDER (2005) SHIELDS AND PROTECTIONS FOR WHEEL COMPARTMENT PARTS DIAGRAM")
-part-diagram-136.webp "MASERATI 4200 SPYDER (2005) WINDSHIELD - GLASS WASHER AND HORNS PARTS DIAGRAM")
-part-diagram-137.webp "MASERATI 4200 SPYDER (2005) ELECTRICAL SYSTEM PARTS DIAGRAM")
-part-diagram-138.webp "MASERATI 4200 SPYDER (2005) ENGINE BONNET SENSOR AND CONTROL STATIONS PARTS DIAGRAM")
-part-diagram-139.webp "MASERATI 4200 SPYDER (2005) FRONT PASSENGERS COMPARTMENT CONTROL STATION PARTS DIAGRAM")
-part-diagram-140.webp "MASERATI 4200 SPYDER (2005) PASSENGERS SIDE CONTROL UNITS PARTS DIAGRAM")
-part-diagram-141.webp "MASERATI 4200 SPYDER (2005) RH SIDE TRUNK BONNET SENSOR AND CONTROL UNITS PARTS DIAGRAM")
-part-diagram-142.webp "MASERATI 4200 SPYDER (2005) LH SIDE TRUNK BONNET CONTROL UNIT PARTS DIAGRAM")
-part-diagram-143.webp "MASERATI 4200 SPYDER (2005) ANTI THEFT ELECTRICAL BOARDS AND DEVICES PARTS DIAGRAM")
-part-diagram-144.webp "MASERATI 4200 SPYDER (2005) IMMOBILIZER KIT PARTS DIAGRAM")
-part-diagram-145.webp "MASERATI 4200 SPYDER (2005) EVAPORATOR GROUP PARTS DIAGRAM")
-part-diagram-146.webp "MASERATI 4200 SPYDER (2005) AIR CONDITIONING SYSTEM PARTS DIAGRAM")
-part-diagram-147.webp "MASERATI 4200 SPYDER (2005) CAR STEREO SYSTEM PARTS DIAGRAM")
-part-diagram-148.webp "MASERATI 4200 SPYDER (2005) STEREO EQUIPMENT - ACCESORIES PARTS DIAGRAM")
-part-diagram-149.webp "MASERATI 4200 SPYDER (2005) PLATES PARTS DIAGRAM")
-part-diagram-000.webp "MASERATI 4200 SPYDER (2005) SPARE ASSEMBLY UNITS PARTS DIAGRAM")
-part-diagram-001.webp "MASERATI 4200 SPYDER (2005) CRANKCASE PARTS DIAGRAM")
-part-diagram-002.webp "MASERATI 4200 SPYDER (2005) CRANKSHAFT CONRODS AND PISTONS PARTS DIAGRAM")
-part-diagram-003.webp "MASERATI 4200 SPYDER (2005) RH CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-004.webp "MASERATI 4200 SPYDER (2005) LH CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-005.webp "MASERATI 4200 SPYDER (2005) TIMING - TAPPETS PARTS DIAGRAM")
-part-diagram-006.webp "MASERATI 4200 SPYDER (2005) TIMING - CONTROLS PARTS DIAGRAM")
-part-diagram-007.webp "MASERATI 4200 SPYDER (2005) INJECTION DEVICE - IGNITION PARTS DIAGRAM")
-part-diagram-008.webp "MASERATI 4200 SPYDER (2005) SECONDARY AIR SYSTEM PARTS DIAGRAM")
-part-diagram-009.webp "MASERATI 4200 SPYDER (2005) FUEL PUMP AND PIPES PARTS DIAGRAM")
-part-diagram-010.webp "MASERATI 4200 SPYDER (2005) FUEL TANKS AND UNION PARTS DIAGRAM")
-part-diagram-011.webp "MASERATI 4200 SPYDER (2005) ANTIEVAPORATION DEVICE -NOT FOR USA AND CDN- PARTS DIAGRAM")
-part-diagram-012.webp "MASERATI 4200 SPYDER (2005) ANTIEVAPORATION DEVICE -VALID FOR USA AND CDN- PARTS DIAGRAM")
-part-diagram-013.webp "MASERATI 4200 SPYDER (2005) AIR INTAKE MANIFOLD PARTS DIAGRAM")
-part-diagram-014.webp "MASERATI 4200 SPYDER (2005) EXHAUST SYSTEM PARTS DIAGRAM")
-part-diagram-015.webp "MASERATI 4200 SPYDER (2005) EXHAUST SYSTEM -VARIATIONS FOR USA AND CDN- PARTS DIAGRAM")
-part-diagram-016.webp "MASERATI 4200 SPYDER (2005) BLOW - BY SYSTEM PARTS DIAGRAM")
-part-diagram-017.webp "MASERATI 4200 SPYDER (2005) LUBRICATION SYSTEM - TANK - HEATER EXCHANGER PARTS DIAGRAM")
-part-diagram-018.webp "MASERATI 4200 SPYDER (2005) WATER-OIL PUMP PARTS DIAGRAM")
-part-diagram-019.webp "MASERATI 4200 SPYDER (2005) NOURICE - COOLING SYSTEM -NOT FOR GD- PARTS DIAGRAM")
-part-diagram-020.webp "MASERATI 4200 SPYDER (2005) NOURICE - COOLING SYSTEM -VALID FOR GD- PARTS DIAGRAM")
-part-diagram-021.webp "MASERATI 4200 SPYDER (2005) COOLING SYSTEM RADIATOR PARTS DIAGRAM")
-part-diagram-022.webp "MASERATI 4200 SPYDER (2005) CLUTCH AND CONTROLS -NOT FOR F1- PARTS DIAGRAM")
-part-diagram-023.webp "MASERATI 4200 SPYDER (2005) CLUTCH AND CONTROLS -VALID FOR F1- PARTS DIAGRAM")
-part-diagram-024.webp "MASERATI 4200 SPYDER (2005) PEDALS AND ELECTRONIC ACCELERATOR CONTROL -NOT FOR GD- PARTS DIAGRAM")
-part-diagram-025.webp "MASERATI 4200 SPYDER (2005) PEDALS AND ELECTRONIC ACCELERATOR CONTROL -VALID FOR GD- PARTS DIAGRAM")
-part-diagram-026.webp "MASERATI 4200 SPYDER (2005) F1 CLUTCH HYDRAULIC CONTROLS -VALID FOR F1- PARTS DIAGRAM")
-part-diagram-027.webp "MASERATI 4200 SPYDER (2005) POWER UNIT AND TANK -VALID FOR F1- PARTS DIAGRAM")
-part-diagram-028.webp "MASERATI 4200 SPYDER (2005) GEARBOX - COVER - GEARBOX OIL RADIATOR PARTS DIAGRAM")
-part-diagram-029.webp "MASERATI 4200 SPYDER (2005) DIFFERENTIAL BOX - REAR UNDERBODY PARTS DIAGRAM")
-part-diagram-030.webp "MASERATI 4200 SPYDER (2005) MAIN SHAFT GEARS PARTS DIAGRAM")
-part-diagram-031.webp "MASERATI 4200 SPYDER (2005) LAY SHAFT GEARS PARTS DIAGRAM")
-part-diagram-032.webp "MASERATI 4200 SPYDER (2005) INNER GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-033.webp "MASERATI 4200 SPYDER (2005) OUTER GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-034.webp "MASERATI 4200 SPYDER (2005) ENGINE-TRANSMISSION CONNECTION TUBE AND INSULATIONS PARTS DIAGRAM")
-part-diagram-035.webp "MASERATI 4200 SPYDER (2005) DIFFERENTIAL & AXLE SHAFTS PARTS DIAGRAM")
-part-diagram-036.webp "MASERATI 4200 SPYDER (2005) BRAKES AND CLUTCH HYDRAULIC CONTROLS PARTS DIAGRAM")
-part-diagram-037.webp "MASERATI 4200 SPYDER (2005) BRAKING SYSTEM -NOT FOR GD- PARTS DIAGRAM")
-part-diagram-038.webp "MASERATI 4200 SPYDER (2005) BRAKING SYSTEM -VALID FOR GD- PARTS DIAGRAM")
-part-diagram-039.webp "MASERATI 4200 SPYDER (2005) BRAKE CALIPERS PARTS DIAGRAM")
-part-diagram-040.webp "MASERATI 4200 SPYDER (2005) HAND-BRAKE CONTROL PARTS DIAGRAM")
-part-diagram-041.webp "MASERATI 4200 SPYDER (2005) FRONT UNDER FRAME AND UNDERMOTOR SHIELDS PARTS DIAGRAM")
-part-diagram-042.webp "MASERATI 4200 SPYDER (2005) STEERING BOX PARTS DIAGRAM")
-part-diagram-043.webp "MASERATI 4200 SPYDER (2005) STEERING COLUMN PARTS DIAGRAM")
-part-diagram-044.webp "MASERATI 4200 SPYDER (2005) FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-045.webp "MASERATI 4200 SPYDER (2005) FRONT SUSPENSION - WISHBONES AND STABILIZER BAR PARTS DIAGRAM")
-part-diagram-046.webp "MASERATI 4200 SPYDER (2005) REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISK PARTS DIAGRAM")
-part-diagram-047.webp "MASERATI 4200 SPYDER (2005) REAR SUSPENSION - WISHBONES PARTS DIAGRAM")
-part-diagram-048.webp "MASERATI 4200 SPYDER (2005) WHEELS PARTS DIAGRAM")
-part-diagram-049.webp "MASERATI 4200 SPYDER (2005) SPARE WHEEL AND EQUIPMENT -OPTIONAL- PARTS DIAGRAM")
-part-diagram-050.webp "MASERATI 4200 SPYDER (2005) BATTERY PARTS DIAGRAM")
-part-diagram-051.webp "MASERATI 4200 SPYDER (2005) CURRENT GENERATOR-STARTING MOTOR PARTS DIAGRAM")
-part-diagram-052.webp "MASERATI 4200 SPYDER (2005) TOOLS EQUIPMENT AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-100.webp "MASERATI 4200 SPYDER (2005) BODY - FRONT OUTER TRIMS PARTS DIAGRAM")
-part-diagram-101.webp "MASERATI 4200 SPYDER (2005) BODY REAR OUTER TRIMS PARTS DIAGRAM")
-part-diagram-102.webp "MASERATI 4200 SPYDER (2005) FRONT STRUCTURE PARTS DIAGRAM")
-part-diagram-103.webp "MASERATI 4200 SPYDER (2005) CENTRAL STRUCTURE PARTS DIAGRAM")
-part-diagram-104.webp "MASERATI 4200 SPYDER (2005) REAR STRUCTURE PARTS DIAGRAM")
-part-diagram-105.webp "MASERATI 4200 SPYDER (2005) FRONT BUMPER PARTS DIAGRAM")
-part-diagram-106.webp "MASERATI 4200 SPYDER (2005) REAR BUMPER PARTS DIAGRAM")
-part-diagram-107.webp "MASERATI 4200 SPYDER (2005) PASSENGERS COMPARTMENT CARPETS PARTS DIAGRAM")
-part-diagram-108.webp "MASERATI 4200 SPYDER (2005) ROOF PANEL UPHOLSTERY AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-109.webp "MASERATI 4200 SPYDER (2005) PASSENGERS COMPARTMENT UPHOLSTERY ACCESSORIES PARTS DIAGRAM")
-part-diagram-110.webp "MASERATI 4200 SPYDER (2005) TRUNK HOOD COMPARTMENT TRIMS - AIR INLET AND HEATH SHIELDS PARTS DIAGRAM")
-part-diagram-111.webp "MASERATI 4200 SPYDER (2005) CAPOTE CLOTH - GASKET PARTS DIAGRAM")
-part-diagram-112.webp "MASERATI 4200 SPYDER (2005) CAPOTE FRONT CLOSING PARTS DIAGRAM")
-part-diagram-113.webp "MASERATI 4200 SPYDER (2005) CAPOTE STRUCTURE PARTS DIAGRAM")
-part-diagram-114.webp "MASERATI 4200 SPYDER (2005) CAPOTE CONTROL STATION - RELAY - MICROSWITCH PARTS DIAGRAM")
-part-diagram-115.webp "MASERATI 4200 SPYDER (2005) CAPOTE HYDRAULIC SYSTEM PARTS DIAGRAM")
-part-diagram-116.webp "MASERATI 4200 SPYDER (2005) CAPOTE CLOSINGS AND COVER PARTS DIAGRAM")
-part-diagram-117.webp "MASERATI 4200 SPYDER (2005) ENGINE BONNET AND OPENING DEVICE PARTS DIAGRAM")
-part-diagram-118.webp "MASERATI 4200 SPYDER (2005) TRUNK HOOD BONNET AND GAS DOOR PARTS DIAGRAM")
-part-diagram-119.webp "MASERATI 4200 SPYDER (2005) DOORS - FRAMEWORK AND COVERINGS PARTS DIAGRAM")
-part-diagram-120.webp "MASERATI 4200 SPYDER (2005) DOORS - OPENING CONTROL AND HINGES PARTS DIAGRAM")
-part-diagram-121.webp "MASERATI 4200 SPYDER (2005) DOORS - POWER WINDOW AND REARWIEW MIRROR PARTS DIAGRAM")
-part-diagram-122.webp "MASERATI 4200 SPYDER (2005) GLASSES WINDSHIELD - GASKETS AND INNER REARWIEW MIRROR PARTS DIAGRAM")
-part-diagram-123.webp "MASERATI 4200 SPYDER (2005) ELECRICAL SEAT-SAFETY BELTS PARTS DIAGRAM")
-part-diagram-124.webp "MASERATI 4200 SPYDER (2005) ELECTRICAL SEAT-GUIDE AND MOVEMENT PARTS DIAGRAM")
-part-diagram-125.webp "MASERATI 4200 SPYDER (2005) DASHBOARD -NOT FOR GD- PARTS DIAGRAM")
-part-diagram-126.webp "MASERATI 4200 SPYDER (2005) DASHBOARD -VALID FOR GD- PARTS DIAGRAM")
-part-diagram-127.webp "MASERATI 4200 SPYDER (2005) DASHBOARD DRAWER PARTS DIAGRAM")
