023 - FUEL TANK

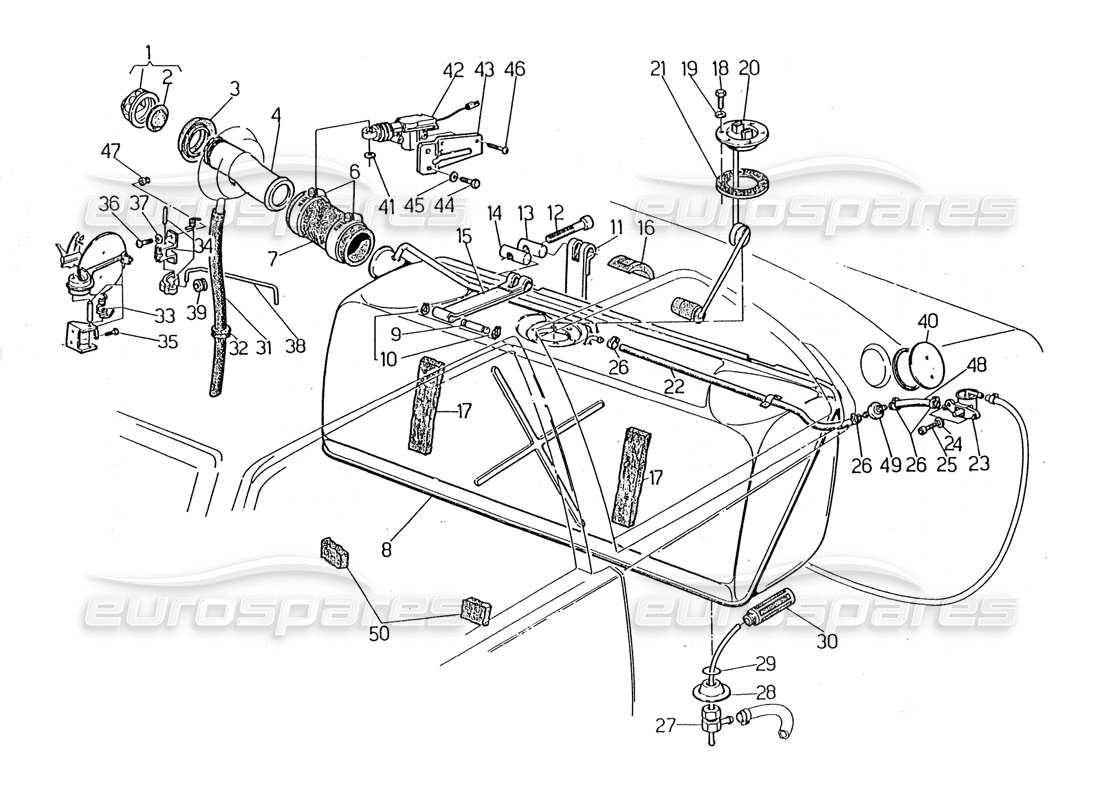

Maserati 2.24v Fuel Tank Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 319220354
TANK PLUG
from £6.31
from £6.31
This part replaces part number 319220007
# 002
MPN: 329232355
GASKET
from £6.70
from £6.70
# 003
MPN: 319250411
GASKET
from £3.89
from £3.89
This part replaces part number 329232410 - and 1 more. Click to view details
# 004
MPN: 329232118
UNION PIPE
from £15.99
from £15.99
This part replaces part number 319220115
# 006
MPN: 186404087
CLAMP
Supersession
Supersession
# 007
MPN: 319220383
SLEEVE FOR FUEL INLET
from £4.08
from £4.08
This part replaces part number 319220382
# 008
MPN: 319220103
FUEL TANK
Supersession
Supersession
# 009
MPN: 30921336
PIN
from £3.58
from £3.58
# 010
MPN: 150800050
SEEGER RING
# 011
MPN: 319220106
LOWER STRIP TO FIX. TANK
from £7.61
from £7.61
# 012
MPN: 53921333
SCREW
from £1.97
from £1.97
# 013
MPN: 53921331
PIN FOR STRIP
from £1.52
from £1.52
# 014
MPN: 53921332
PIN FOR STRIP
from £2.29
from £2.29
# 015
MPN: 319220385
UPPER STRIP TO FIX. TANK
from £6.70
from £6.70
# 016
MPN: 319220337
BLOCK
from £1.90
from £1.90
# 017
MPN: 310220398
GASKET
# 018
MPN: 53361308
SCREW
Supersession
Supersession
# 019
MPN: 136220043
WASHER
# 020
MPN: 313620111
FUEL FLOAT GANGE
from £34.91
from £34.91
# 021
MPN: 33331300
GASKET
from £1.90
from £1.90
# 022
MPN: 319220389
PIPE TO CONN, TANK TO RELIEF VALVE
from £5.32
from £5.32
# 023
MPN: 319220102
TIP CONTROL VALVE
Supersession
Supersession
# 024
MPN: 163030050
WASHER
# 025
MPN: 119142160
SCREW
from £0.93
from £0.93
# 026
MPN: 30921110
CLAMP
# 027
MPN: 319220017
EXHAUST FUEL CONNECTOR
from £7.74
from £7.74
# 028
MPN: 319220362
GASKET
from £1.07
from £1.07
# 029
MPN: 319220315
GASKET
from £0.69
from £0.69
# 030
MPN: 319220107
CONN, FILTER
from £0.80
from £0.80
# 031
MPN: 319220360
Drainpipe
# 032
MPN: 319220361
WIRE INLET
from £2.29
from £2.29
# 033
MPN: 312550143
FUEL FILTER FLOP
from £2.90
from £2.90
This part replaces part number 312550516
# 034
MPN: 312520144
OPERING DEVICE
from £5.47
from £5.47
# 035
MPN: 167570512
SCREW
from £1.52
from £1.52
# 036
MPN: 119142160
SCREW
from £0.90
from £0.90
# 037
MPN: 135900043
WASHER
from £1.07
from £1.07
This part replaces part number 14496207
# 038
MPN: 312550520
CONTROL TIE ROD.
from £1.73
from £1.73
# 039
MPN: 30211310
WIRE INLET
from £1.03
from £1.03
# 040
MPN: 312550515
MARQUE SEATING
from £1.07
from £1.07
This part replaces part number 312520515
# 041
MPN: 53451389
SPRING
from £1.07
from £1.07
# 042
MPN: 313320195
ACTUATOR
Supersession
Supersession
# 043
MPN: 313320196
ACTUATOR BRACKET
from £1.52
from £1.52
# 044
MPN: 101205010
SCREW
# 045
MPN: 135700050
WASHER
from £1.07
from £1.07
# 046
MPN: 119148160
SCREW
# 047
MPN: 312520499
BLOCK TO BIX OPERING DEVICE
from £0.69
from £0.69
# 048
MPN: 310220390
SLEEVE TO CONN, RELIEF VALVE TO TIP CONTROL VALVE
# 049
MPN: 319220134
PRESSURE RELIEF VALVE
Supersession
Supersession
# 050
MPN: 319220399
SHORT FELT
Supersession
Supersession
