maserati 2.24v windshield wiper - washer parts diagram

055 - Windshield Wiper - Washer

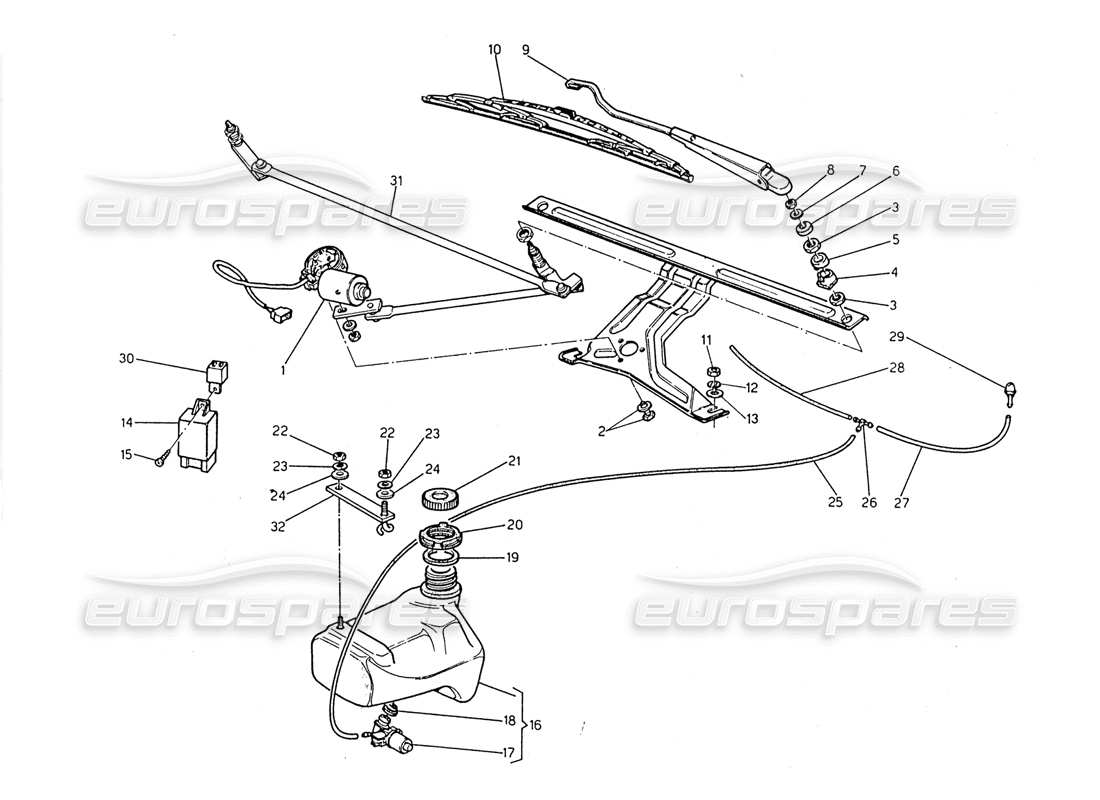

Maserati 2.24v Windshield Wiper - Washer Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                  #
                                                                  Part number
                                                                  Description
                                                                  Key
                                                                  Price
                                                                  # 001
                                                                  MPN: 313320201
                                                                  wiper motor
                                                                  from £95.08
                                                                  from £95.08
                                                                  Maserati PART 313320201 Genuine Maserati Part - New (to order)
                                                                  # 002
                                                                  MPN: 313320401
                                                                  SCREW AND WASHER
                                                                  SCREW AND WASHER Genuine Maserati Part - New (to order)
                                                                  # 003
                                                                  MPN: 313320402
                                                                  NUT
                                                                  from £1.60
                                                                  from £1.60
                                                                  NUT Genuine Maserati Part - New (to order)
                                                                  # 004
                                                                  MPN: 313327328
                                                                  INSIDE SPACER
                                                                  from £0.99
                                                                  from £0.99
                                                                  SPACER Genuine Maserati Part - New (to order)
                                                                  # 005
                                                                  MPN: 313327329
                                                                  OUTSIDE SPACER
                                                                  from £0.99
                                                                  from £0.99
                                                                  SPACER Genuine Maserati Part - New (to order)
                                                                  # 006
                                                                  MPN: 313320405
                                                                  PLUG
                                                                  from £0.69
                                                                  from £0.69
                                                                  CAPPUCCIO Genuine Maserati Part - New (to order)
                                                                  # 007
                                                                  MPN: 138410080
                                                                  WASHER
                                                                  from £2.25
                                                                  from £2.25
                                                                  Maserati PART 138410080 Genuine Maserati Part - New (to order)
                                                                  # 009
                                                                  MPN: 313320118
                                                                  WIPER ARM
                                                                  from £39.95
                                                                  from £39.95
                                                                  LHD WIPER ARM Genuine Maserati Part - New In stock
                                                                  # 010
                                                                  MPN: 323356128
                                                                  BRUSH WITH SPOYLER DRIVER SIDE
                                                                  Supersession
                                                                  Supersession
                                                                  Genuine Maserati Part (no longer available to order)
                                                                  # 010
                                                                  MPN: 323356129
                                                                  PASSENGER SIDE BRUSH
                                                                  Supersession
                                                                  Supersession
                                                                  Genuine Maserati Part (no longer available to order)
                                                                  # 011
                                                                  MPN: 125100080
                                                                  NUT
                                                                  from £0.86
                                                                  from £0.86
                                                                  DADO Genuine Maserati Part - New (to order)
                                                                  # 014
                                                                  MPN: 313320116
                                                                  INTERVAL SWITCH
                                                                  from £25.64
                                                                  from £25.64
                                                                  T.G.E. TIMER Genuine Maserati Part - New (to order)
                                                                  # 015
                                                                  MPN: 119148130
                                                                  SCREW
                                                                  from £0.83
                                                                  from £0.83
                                                                  SCREW Genuine Maserati Part - New In stock
                                                                  # 016
                                                                  MPN: 318120024
                                                                  RESERVOIR
                                                                  Supersession
                                                                  Supersession
                                                                  Genuine Maserati Part (no longer available to order)
                                                                  # 017
                                                                  MPN: 373300183
                                                                  ELECTRIC WIPER PUMP
                                                                  from £14.77
                                                                  from £14.77
                                                                  This part replaces part number 330907620
                                                                  POWERED WINDSCREEN WASHER PUMP Genuine Maserati Part - New (to order)
                                                                  # 018
                                                                  MPN: 30331302
                                                                  SEAL
                                                                  from £0.69
                                                                  from £0.69
                                                                  GASKET Genuine Maserati Part - New (to order)
                                                                  # 019
                                                                  MPN: 318120328
                                                                  SEAL
                                                                  from £1.52
                                                                  from £1.52
                                                                  NOURICE GASKET Genuine Maserati Part - New (to order)
                                                                  # 020
                                                                  MPN: 318120329
                                                                  GROOVED NUT
                                                                  from £0.69
                                                                  from £0.69
                                                                  GHIERA NOURICE Genuine Maserati Part - New (to order)
                                                                  # 022
                                                                  MPN: 125100060
                                                                  NUT TO FIX. TANK
                                                                  Maserati PART 125100060 Genuine Maserati Part - New (to order)
                                                                  # 023
                                                                  MPN: 135900064
                                                                  WASHER
                                                                  from £0.47
                                                                  from £0.47
                                                                  ROSETTA PIANA Genuine Maserati Part - New (to order)
                                                                  # 024
                                                                  MPN: 163020100
                                                                  WASHER
                                                                  from £1.07
                                                                  from £1.07
                                                                  WASHER Genuine Maserati Part - New (to order)
                                                                  # 025
                                                                  MPN: 318120313
                                                                  CONNECTOR-PUMP LINE
                                                                  from £0.77
                                                                  from £0.77
                                                                  WINDSCR.WASH.PIPE FROM PUMP TO 3- Genuine Maserati Part - New (to order)
                                                                  # 026
                                                                  MPN: 30811310
                                                                  CONNECTOR
                                                                  from £0.77
                                                                  from £0.77
                                                                  3-WAY UNION Genuine Maserati Part - New (to order)
                                                                  # 027
                                                                  MPN: 318120311
                                                                  LH NOZZLE-CONNECTOR LINE
                                                                  from £0.48
                                                                  from £0.48
                                                                  LH NOZZLE-CONNECTOR Genuine Maserati Part - New (to order)
                                                                  # 028
                                                                  MPN: 318120312
                                                                  RH NOZZLE-CONNECTOR LINE
                                                                  from £0.48
                                                                  from £0.48
                                                                  RH NOZZLE-CONNECTOR Genuine Maserati Part - New (to order)
                                                                  # 029
                                                                  MPN: 53811109
                                                                  NOZZLE
                                                                  NOZZLE Genuine Maserati Part - New (to order)
                                                                  # 030
                                                                  MPN: 313320115
                                                                  LIGHTS FLASHING
                                                                  Supersession
                                                                  Supersession
                                                                  Genuine Maserati Part (no longer available to order)
                                                                  # 031
                                                                  MPN: 313320202
                                                                  LEVERAGE
                                                                  Supersession
                                                                  Supersession
                                                                  Genuine Maserati Part (no longer available to order)
                                                                  # 032
                                                                  MPN: 318120130
                                                                  BRACKET
                                                                  from £1.52
                                                                  from £1.52
                                                                  Maserati PART 318120130 Genuine Maserati Part - New (to order)
