maserati 222 / 222e biturbo timing control parts diagram

008 - timing control

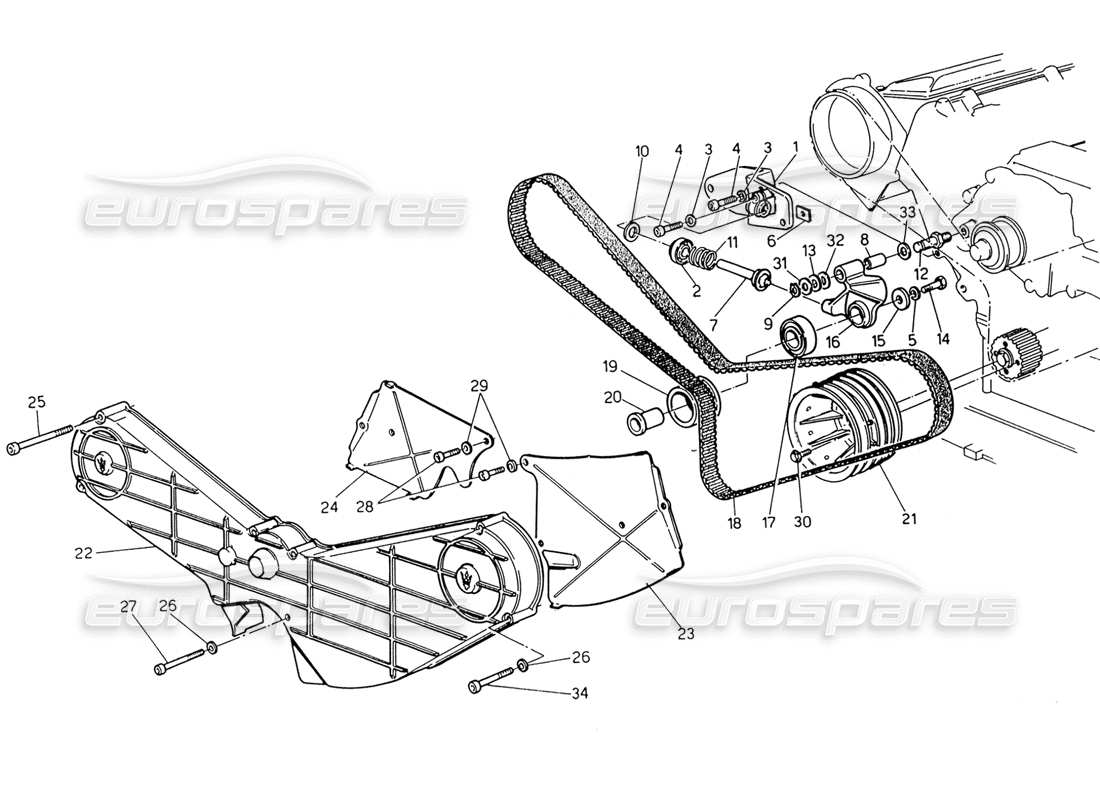

Maserati 222 / 222E Biturbo Timing Control Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                            #
                                                            Part number
                                                            Description
                                                            Key
                                                            Price
                                                            # 000
                                                            MPN: 311020005
                                                            KIT GUIDE PULLEY (COMPOSED FROM POS. 2-3-4-6-7-8-10-11-13-16-31-32-33)
                                                            from £13.80
                                                            from £13.80
                                                            This part replaces part number 311020110
                                                            CHAIN TIGHTENER KIT Genuine Maserati Part - New (to order)
                                                            # 002
                                                            MPN: 311020367
                                                            SPRING ADJUSTMENT
                                                            *not supplied in single part - included with guide pulley kit
                                                            SPRING ADJUSTMENT (NOT SUPPLIED IN SINGLE PART) Genuine Maserati Part - New (to order)
                                                            # 003
                                                            MPN: 138410080
                                                            WASHER
                                                            from £2.28
                                                            from £2.28
                                                            Maserati PART 138410080 Genuine Maserati Part - New (to order)
                                                            # 004
                                                            MPN: 14306424
                                                            SCREW
                                                            from £0.52
                                                            from £0.52
                                                            This part replaces part number 14306421
                                                            SCREW Genuine Maserati Part - New In stock
                                                            SCREW Genuine Ferrari Part - New In stock
                                                            # 006
                                                            MPN: 311037365
                                                            SPACER
                                                            *not supplied in single part - included with guide pulley kit
                                                            SPACER (NOT SUPPLIED IN SINGLE PART) Genuine Maserati Part - New (to order)
                                                            # 007
                                                            MPN: 311020363
                                                            SPRING CAP
                                                            *not supplied in single part - included with guide pulley kit
                                                            SPRING CAP (NOT SUPPLIED IN SINGLE PART) Genuine Maserati Part - New (to order)
                                                            # 008
                                                            MPN: 470037700
                                                            BUSH
                                                            *not supplied in single part - included with guide pulley kit
                                                            from £9.25
                                                            from £9.25
                                                            This part replaces part number 311020336
                                                            BOCCOLA FULCRO GALOP.MB 1225 Genuine Maserati Part - New (to order)
                                                            # 009
                                                            MPN: 151100120
                                                            RETAINING RING
                                                            *not supplied in single part - included with guide pulley kit
                                                            Maserati PART 151100120 Genuine Maserati Part - New (to order)
                                                            # 010
                                                            MPN: 311020342
                                                            WASHER
                                                            from £1.08
                                                            from £1.08
                                                            WASHER Genuine Maserati Part - New (to order)
                                                            # 012
                                                            MPN: 470037600
                                                            GUIDE PULLEY PIN
                                                            from £27.76
                                                            from £27.76
                                                            This part replaces part number 311020343
                                                            FULCRO SUPPORTO GALOP.TEND. Genuine Maserati Part - New (to order)
                                                            # 013
                                                            MPN: 311020334
                                                            WASHER
                                                            from £1.08
                                                            from £1.08
                                                            WASHER Genuine Maserati Part - New (to order)
                                                            # 016
                                                            MPN: 311020110
                                                            SUPPORT WITH BUSH
                                                            *not supplied in single part - included with guide pulley kit
                                                            Supersession
                                                            Supersession
                                                            Genuine Maserati Part (no longer available to order)
                                                            # 017
                                                            MPN: 311020107
                                                            TIMING BEARING
                                                            from £99.75
                                                            from £99.75
                                                            TIMING BEARING Genuine Maserati Part - New In stock
                                                            # 018
                                                            MPN: 311020349
                                                            TIMING BELT
                                                            from £39.48
                                                            from £39.48
                                                            TIMING BELT (VALID FOR 2.0 ENGINE ALSO ) Genuine Maserati Part - New (to order)
                                                            Maserati BITURBO TIMING BELT Original Equipment - New In stock
                                                            VALID 2.0 ENGINE
                                                            # 019
                                                            MPN: 311020350
                                                            BEARING COVER
                                                            from £56.75
                                                            from £56.75
                                                            BELT TENSIONER PULLEY BEARING COVER Genuine Maserati Part - New In stock
                                                            PULLEY Eurospares Approved Part - New In stock
                                                            # 020
                                                            MPN: 311020353
                                                            PIN
                                                            from £132.31
                                                            from £132.31
                                                            PIN Genuine Maserati Part - New (to order)
                                                            # 021
                                                            MPN: 311050113
                                                            PULLEY
                                                            from £26.51
                                                            from £26.51
                                                            PULLEY Genuine Maserati Part - New (to order)
                                                            # 022
                                                            MPN: 311620300
                                                            FRONT CASE
                                                            from £171.76
                                                            from £171.76
                                                            TOOTHED BELT COVER Genuine Maserati Part - New (to order)
                                                            # 025
                                                            MPN: 14305924
                                                            SCREW
                                                            from £0.51
                                                            from £0.51
                                                            This part replaces part number 14305921 - and 1 more. Click to view details
                                                            SOCKET HEAD SCREW M6 X 45 Genuine Maserati Part - New (to order)
                                                            SCREW. Genuine Ferrari Part - New In stock
                                                            # 027
                                                            MPN: 14304821
                                                            SCREW
                                                            from £0.53
                                                            from £0.53
                                                            SCREW 6X1X55 Genuine Maserati Part - New In stock
                                                            Genuine Ferrari Part (no longer available to order)
                                                            # 029
                                                            MPN: 311620303
                                                            WASHER
                                                            from £1.08
                                                            from £1.08
                                                            WASHER Genuine Maserati Part - New In stock
                                                            # 030
                                                            MPN: 311030360
                                                            BOLT
                                                            from £0.69
                                                            from £0.69
                                                            BOLT Genuine Maserati Part - New (to order)
                                                            # 031
                                                            MPN: 311020352
                                                            WASHER
                                                            from £1.20
                                                            from £1.20
                                                            WASHER 12.7X20X0.5 Genuine Maserati Part - New (to order)
                                                            # 032
                                                            MPN: 311020354
                                                            WASHER
                                                            from £1.20
                                                            from £1.20
                                                            WASHER Genuine Maserati Part - New (to order)
                                                            # 033
                                                            MPN: 311020362
                                                            WASHER
                                                            from £1.31
                                                            from £1.31
                                                            RONDELLA D 12,5X20X1 Genuine Maserati Part - New (to order)
                                                            # 034
                                                            MPN: 108006050
                                                            SCREW
                                                            SCREW Genuine Maserati Part - New (to order)
